- SKU:
- VENDOR: OddityRC

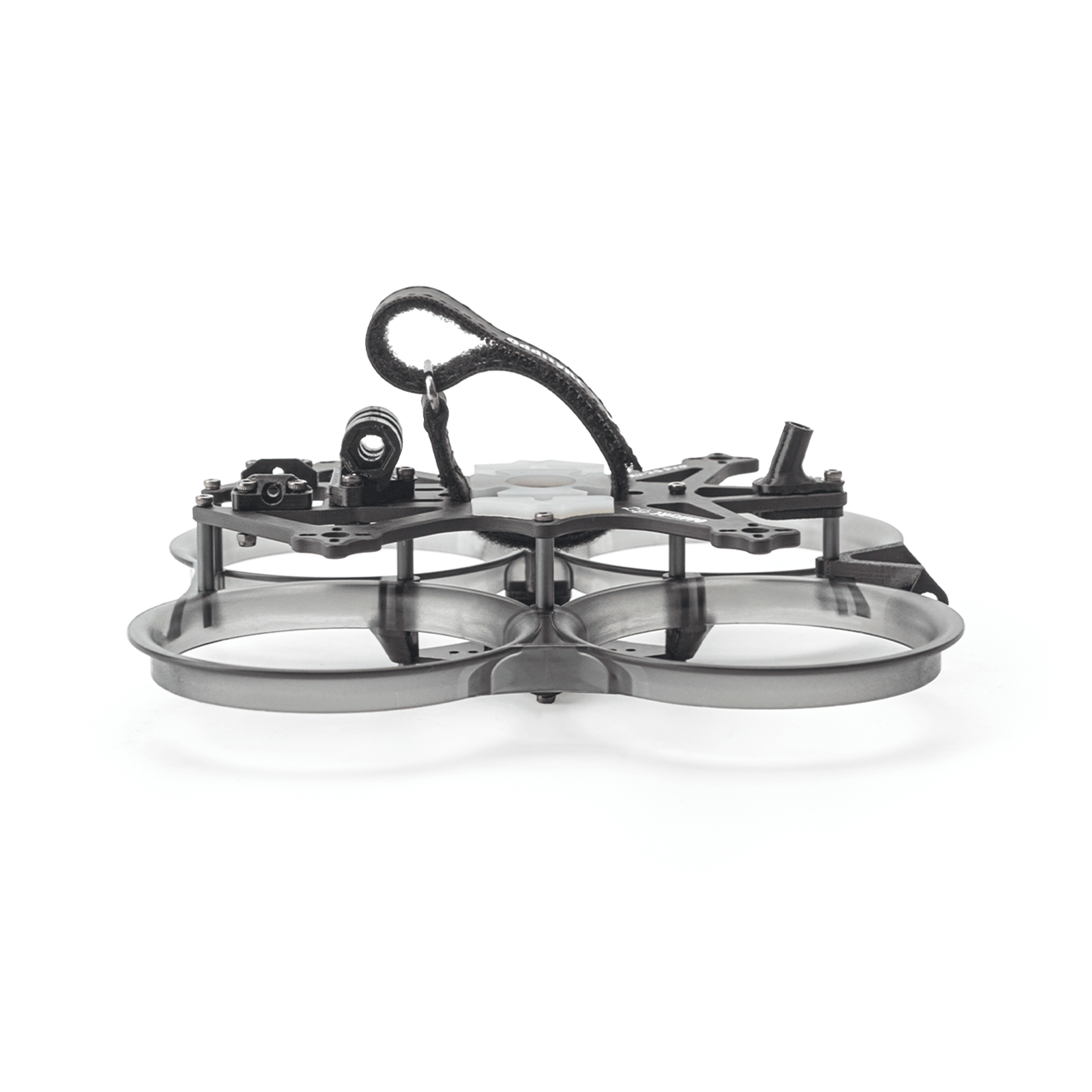

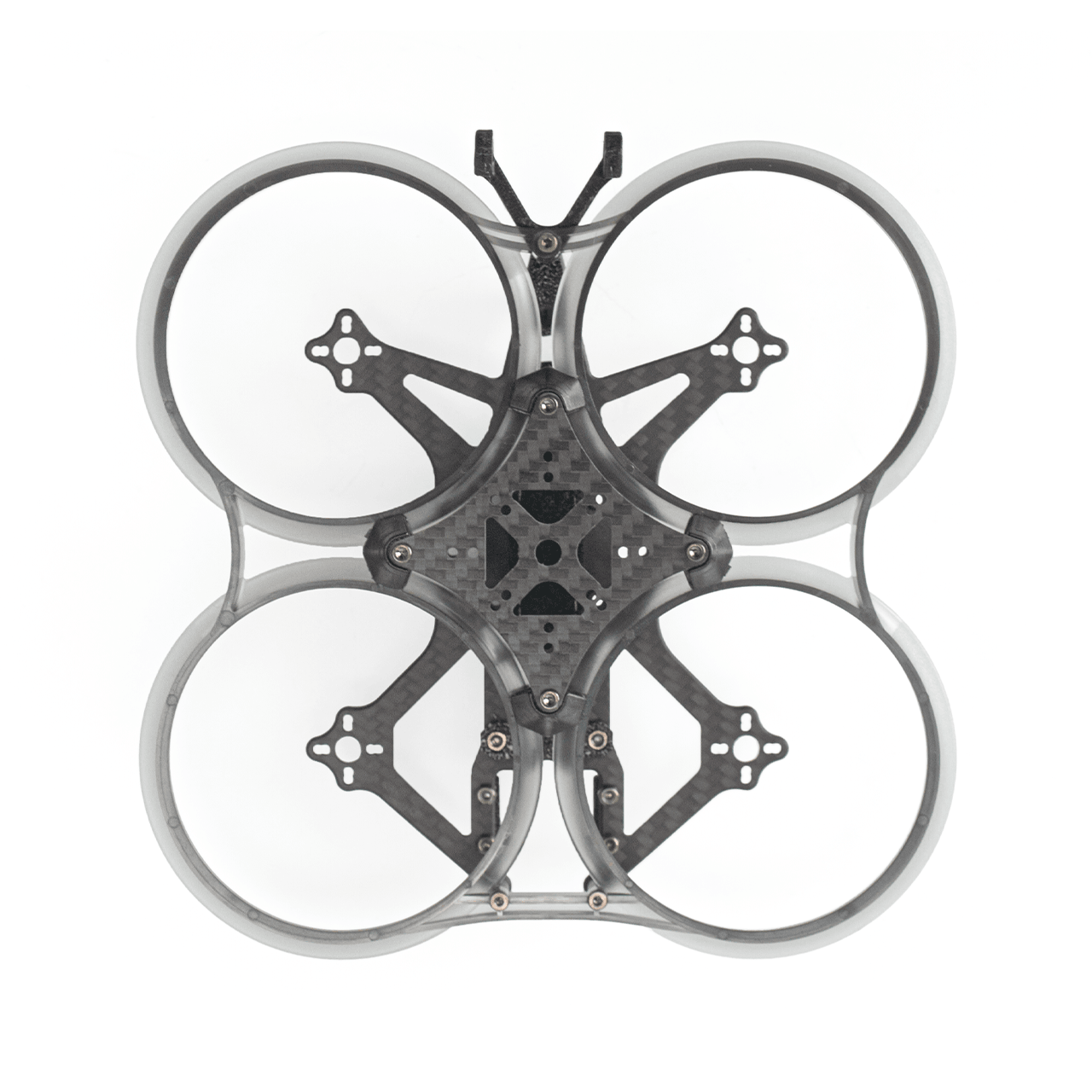

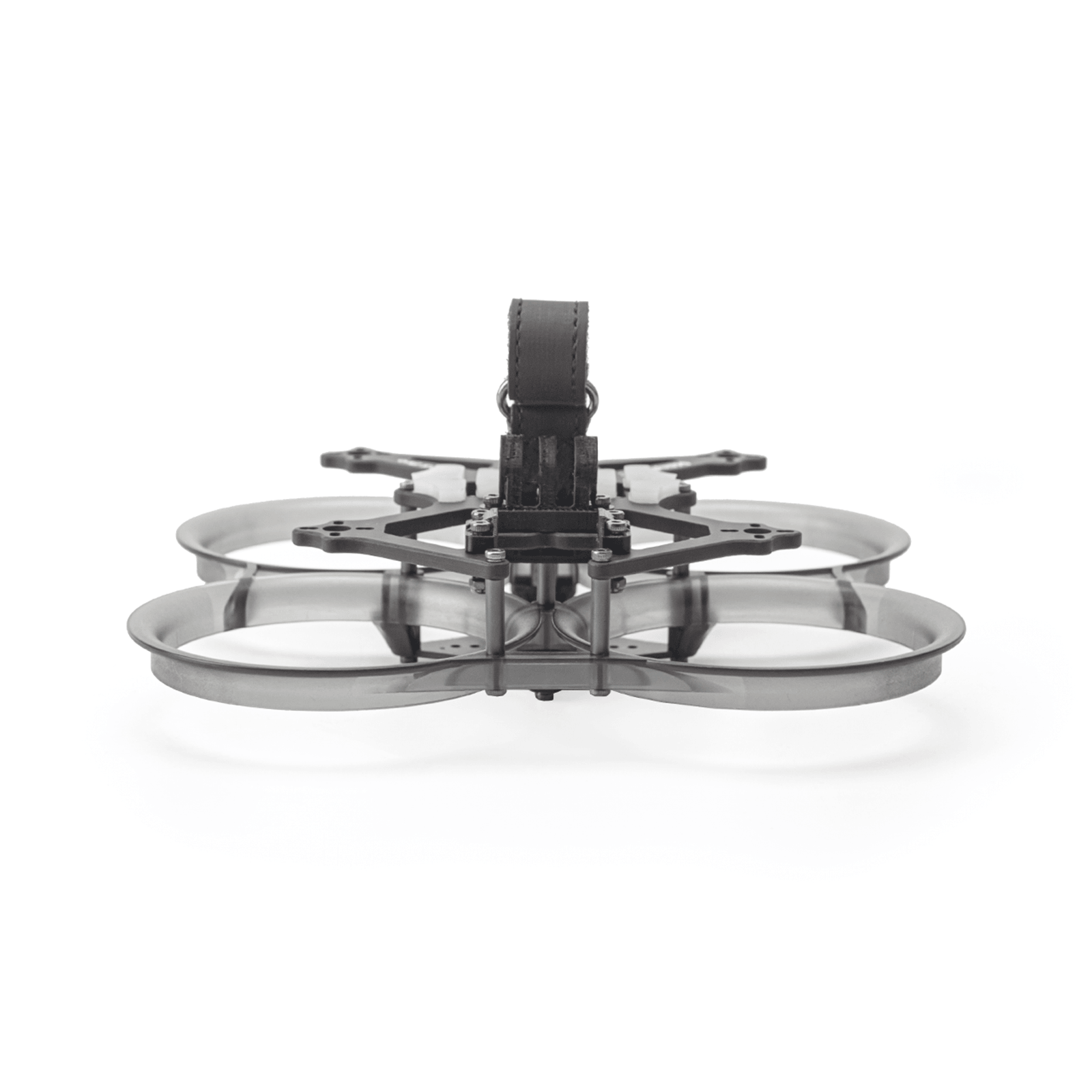

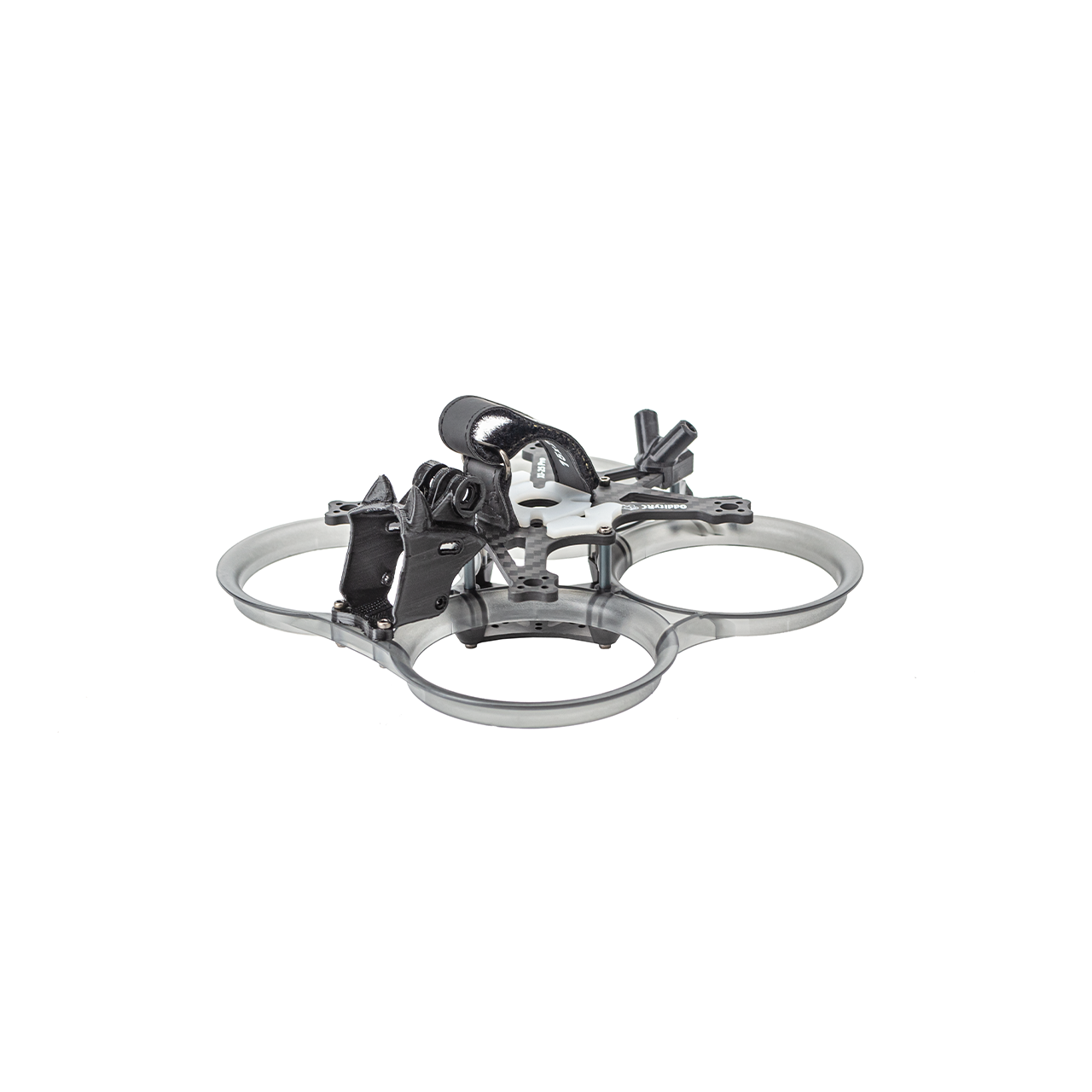

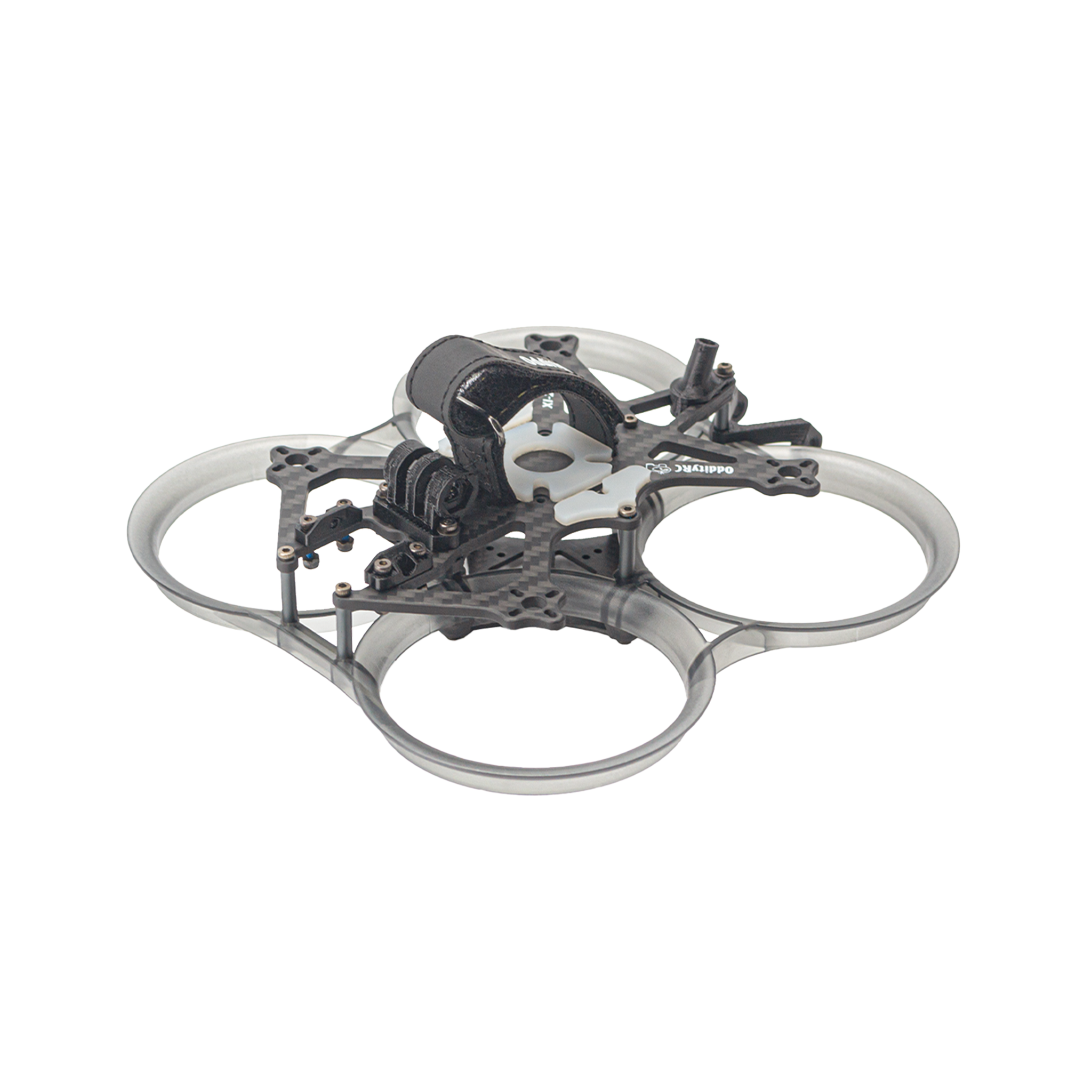

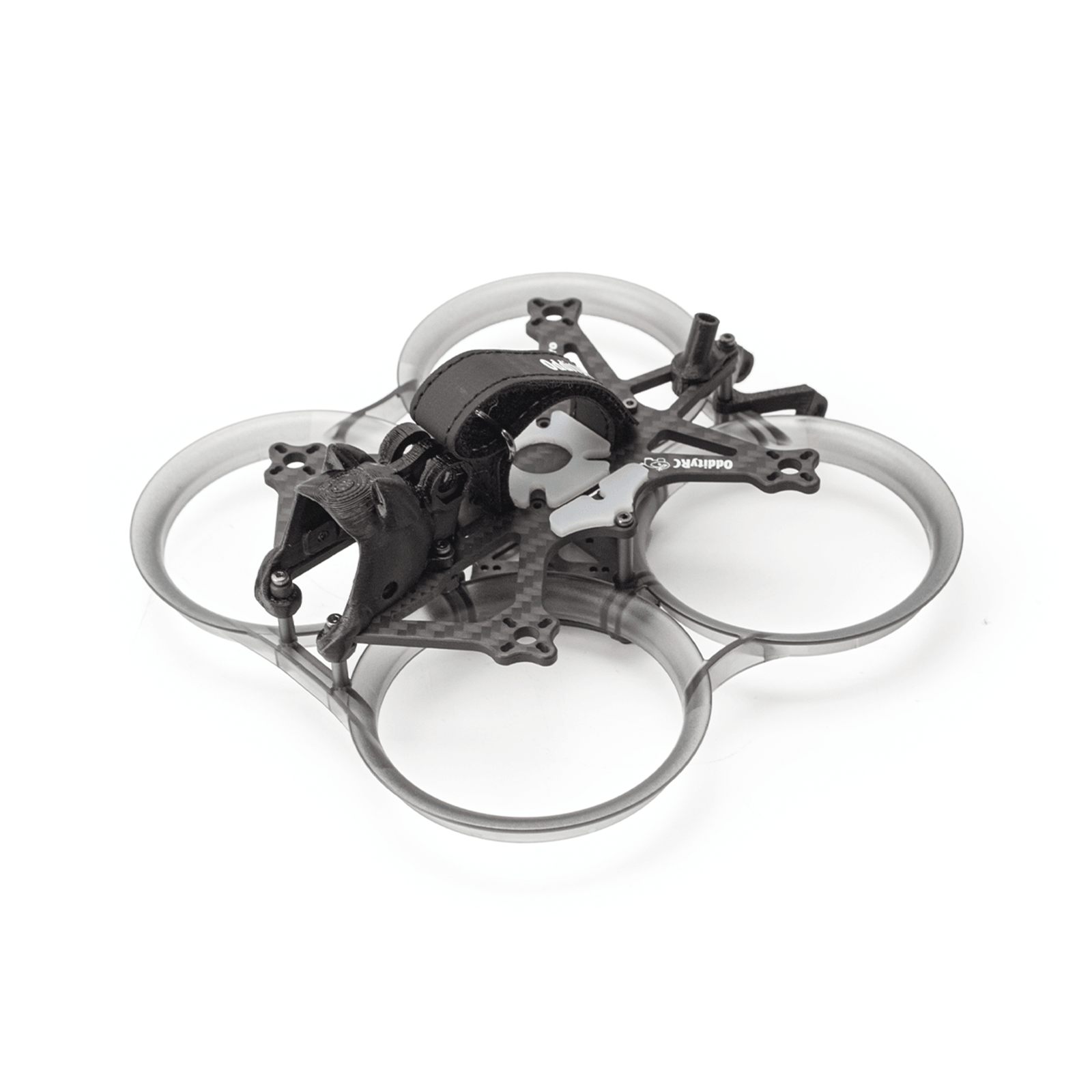

OddityRC XI25 Pro Frame Kit
Shipping calculated at checkout.
Couldn't load pickup availability
Important reminder：There are a lot of counterfeit XI25 frames on the market，major features of these frames are poor quality carbon fiber plate and prop guard, the main sources are Aliexpress. Thank you for your support of our genuine frames!
Introduction
- Designed by OddityRC team and upgraded from XI25 Series.
- Added DJI O3 Version.

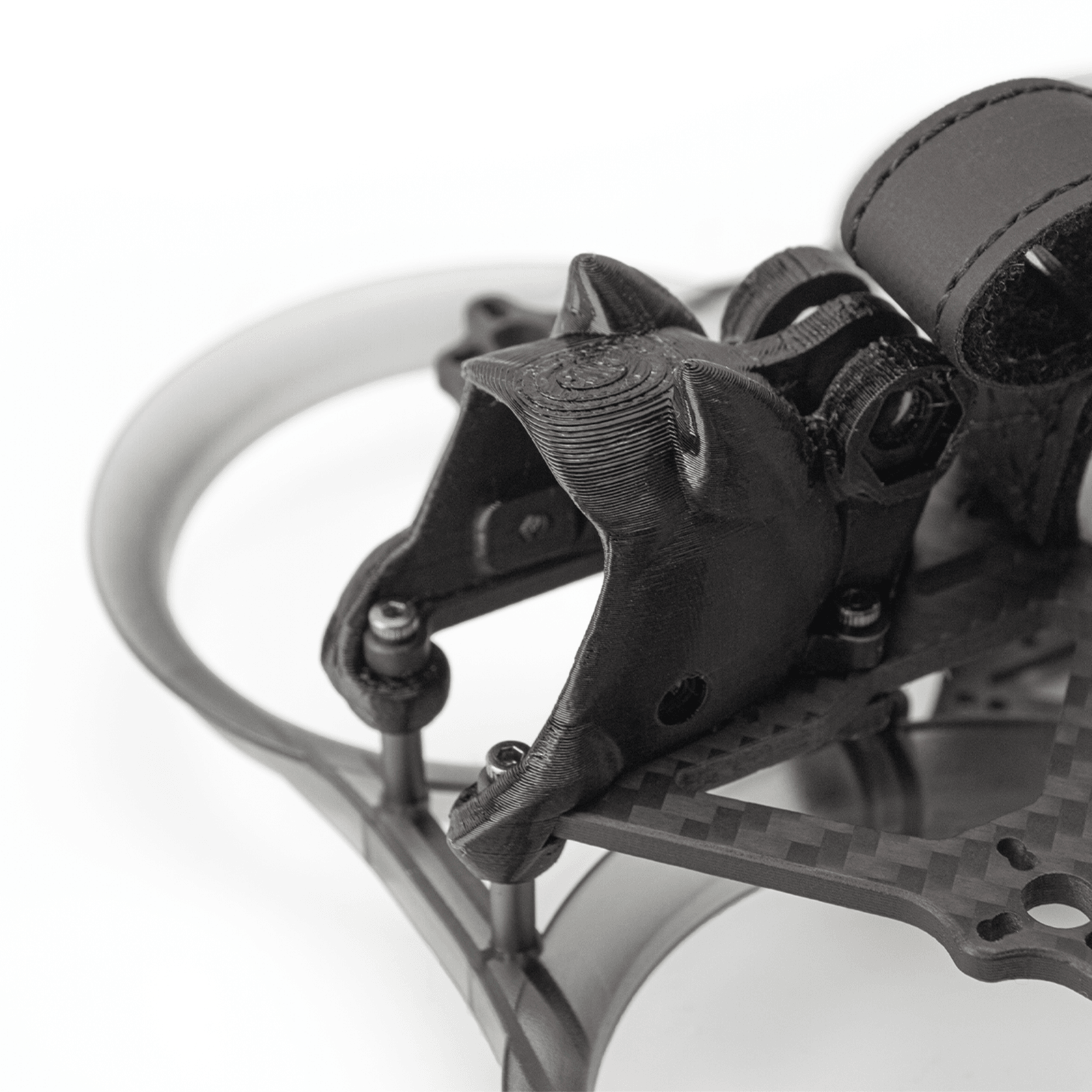

- Exclusive O3 camera mount to filter frame vibration

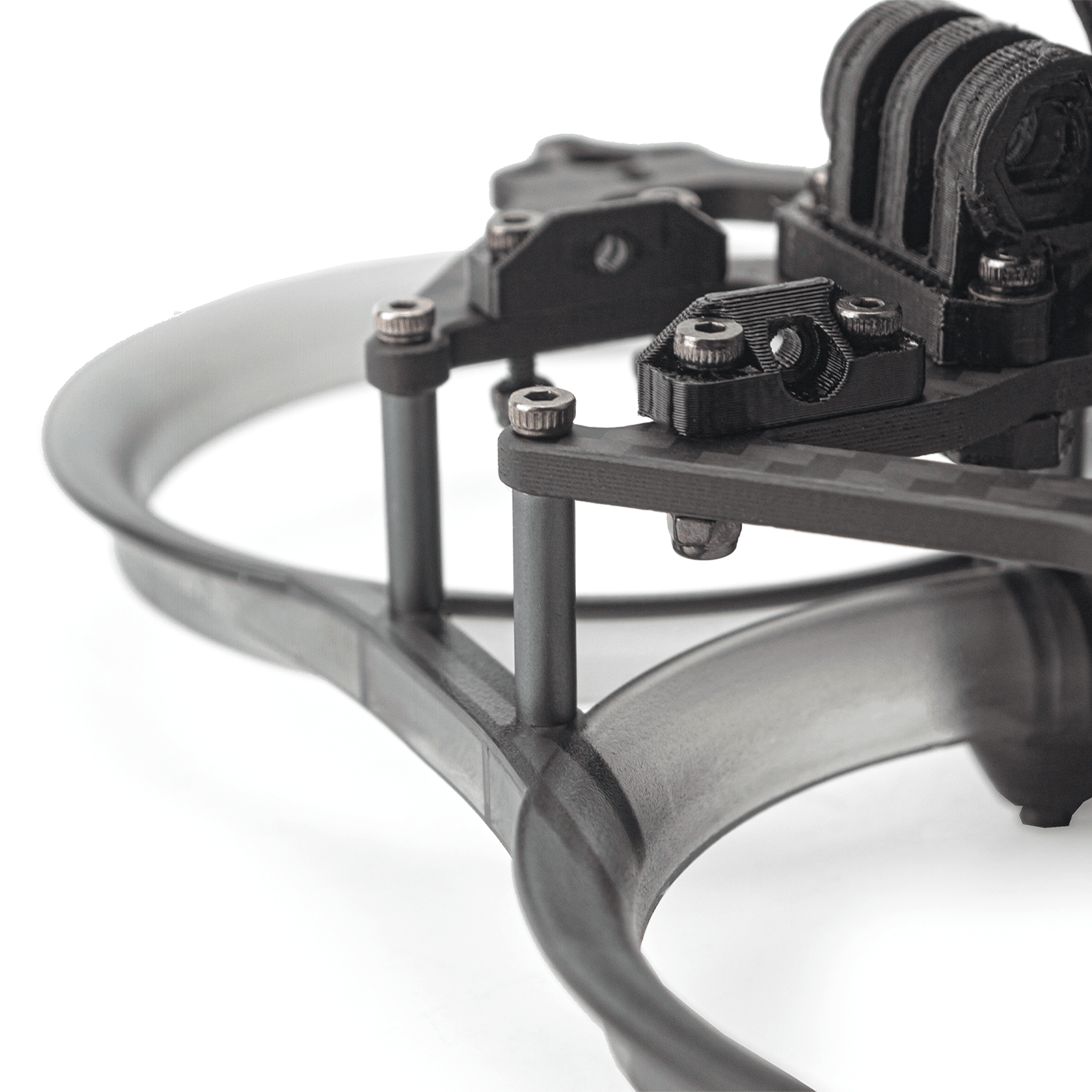

- With innovative design of the OddityRC team, the prop guard can effectively reduce flight noise and improve motor efficiency.
- Can mount Insta360, naked Gopro, Action2 sports camera.
- Small and light, can be used in indoor and outdoor.
Parameter
- Wheelbase: 112mm
- Interior space height: 23mm(Analog/Vista Version), 30mm(DJI O3 Version)
- Main plate: 3mm
- Bottom plate: 1.5mm
- FC mounting: 26.5/25.5/20mm
- VTX mounting: 25.5/20mm
- Motor mounting: 12/9mm
- Camera mounting: 19/14mm(Analog/Vista Version), 20mm(DJI O3 Version)
- Suitable prop size: 2.5 inch
- Weight: 66.2g (Analog/Vista Version), 74.6g (DJI O3 Version)
Recommended Parts
- FC: OddityRC F7 40A AIO
- VTX: Rush Tank Mini (Analog) / Polar Starlight Vista / DJI O3 Air Unit
- Motor: Spinnybois-1405 3200KV/4800KV Motor
- Prop: GEMFAN D63-3 / GemFan D63-5 / HQProp DT63-3 / HQProp DT63-4 / HQProp DT63-5
- Battery: Coddar 6S 650mah~850mAh / Coddar 4S 850mah~1150mAh
Package Included
- Main plate * 1
- Bottom plate * 1
- Injection-molded prop guard * 1
- Aluminum column kit * 1
- Screw kit * 1
- Nut kit * 1
- Camera mount (14mm) * 1
- Camera mount (19mm) * 1
- Camera mount for O3 * 1 (only for DJI O3 Version)
- M3 Insta360go mount * 1

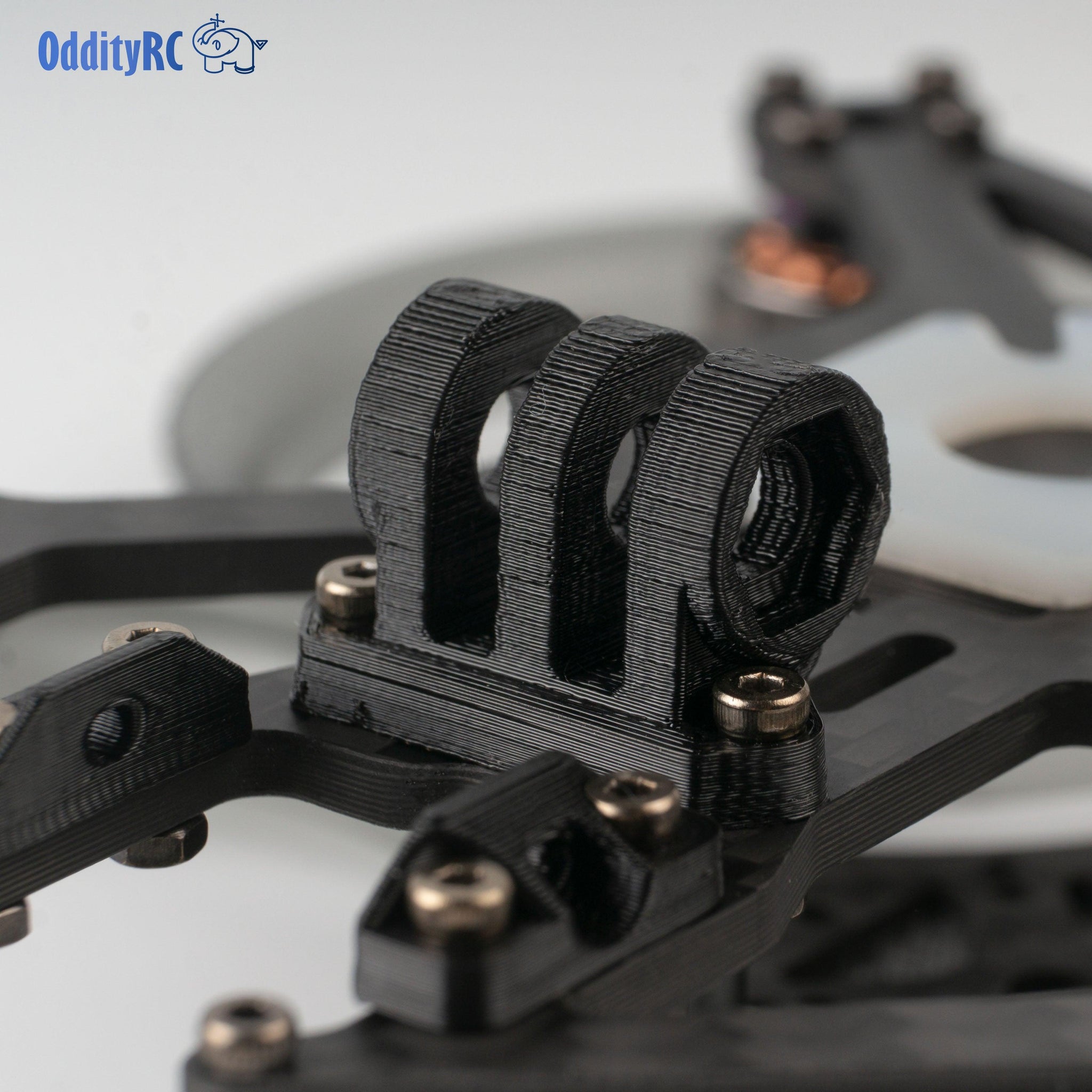

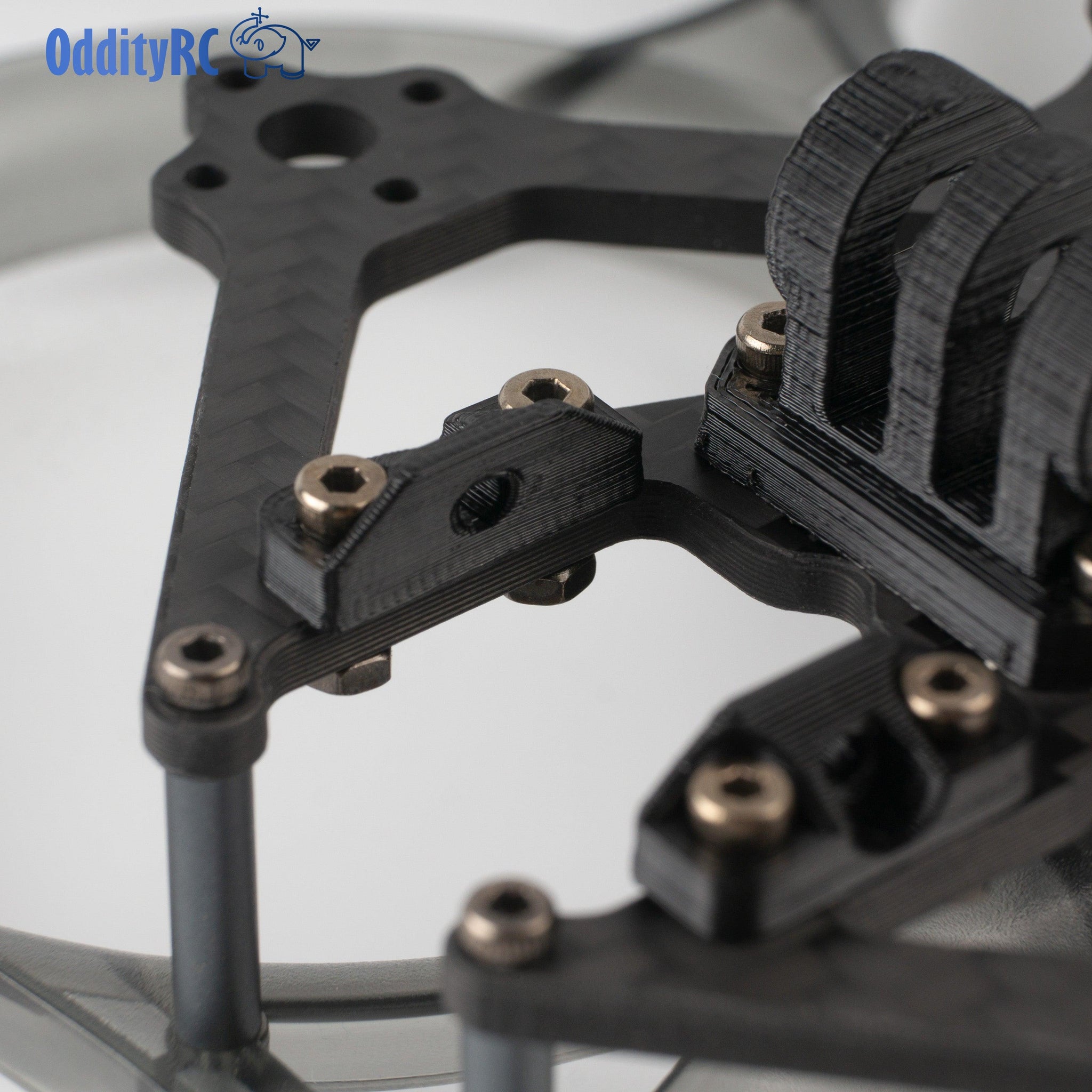

- M5 Gopro mount * 1
- Normal antenna mount * 1
- SMA antenna mount * 1

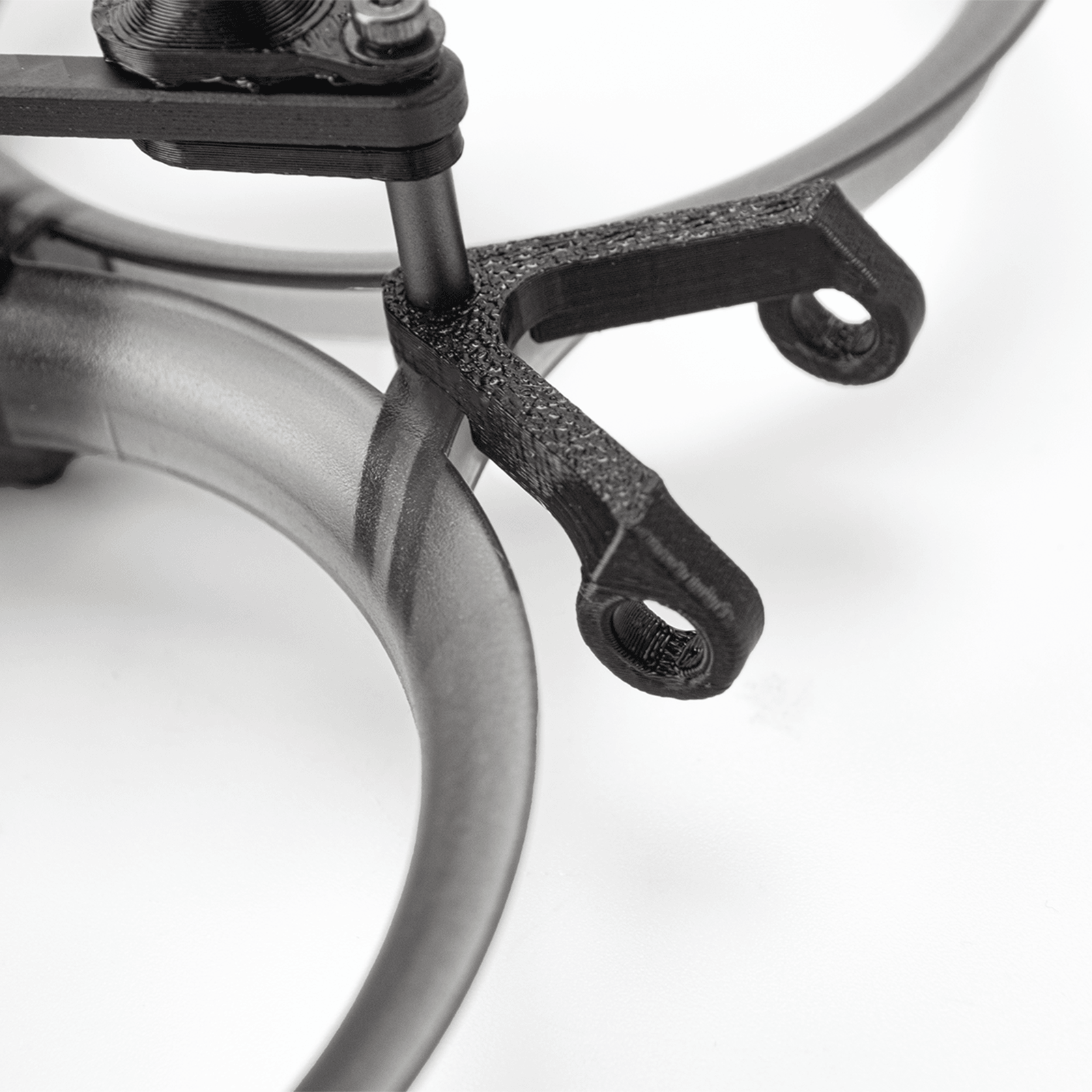

- Receiver antenna mount * 1
- Battery strap 15*200mm * 1
- Battery anti-slip pad * 1
- Bottom foam pad * 1
- Spinnybois-1405 motor * 4 (only for power combo)

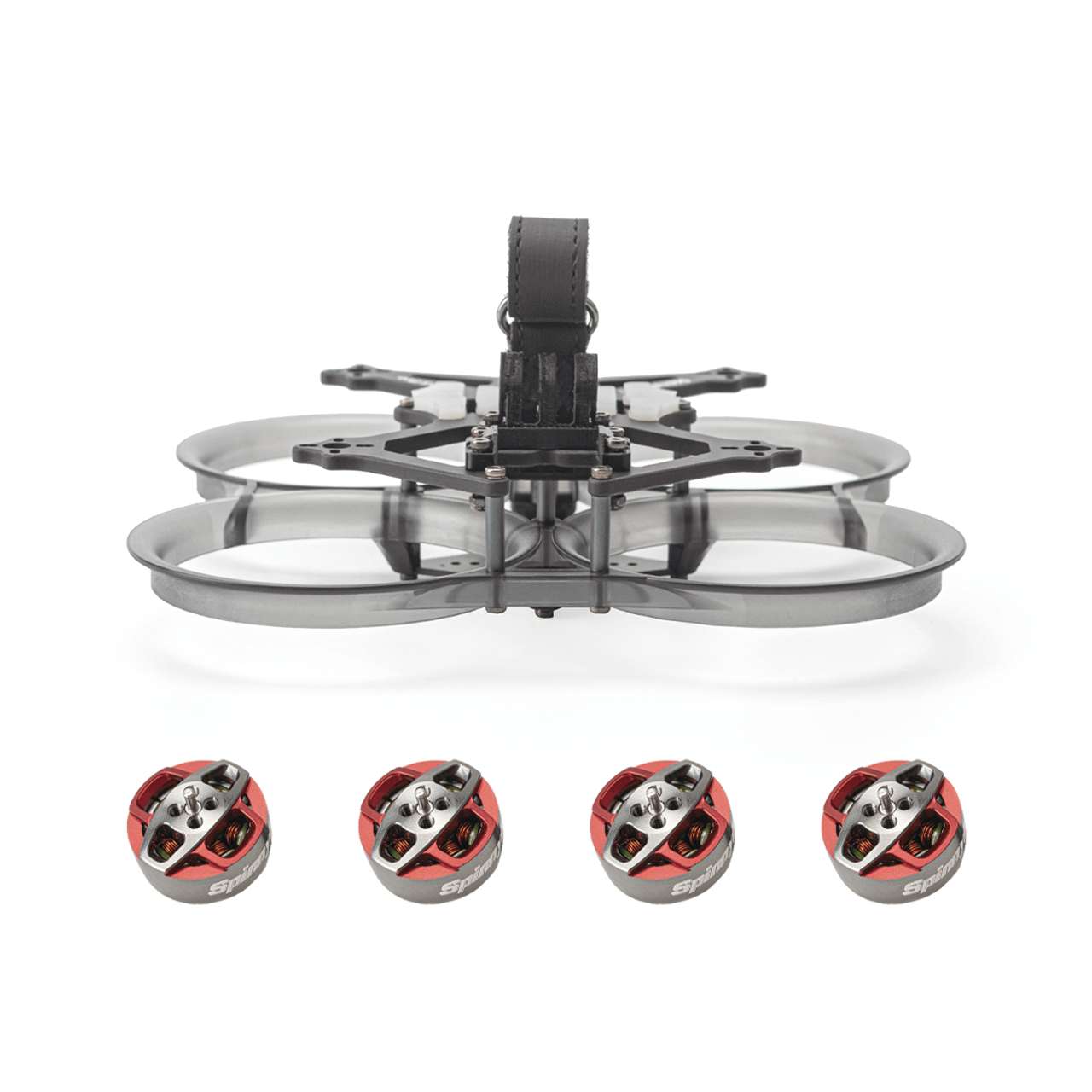

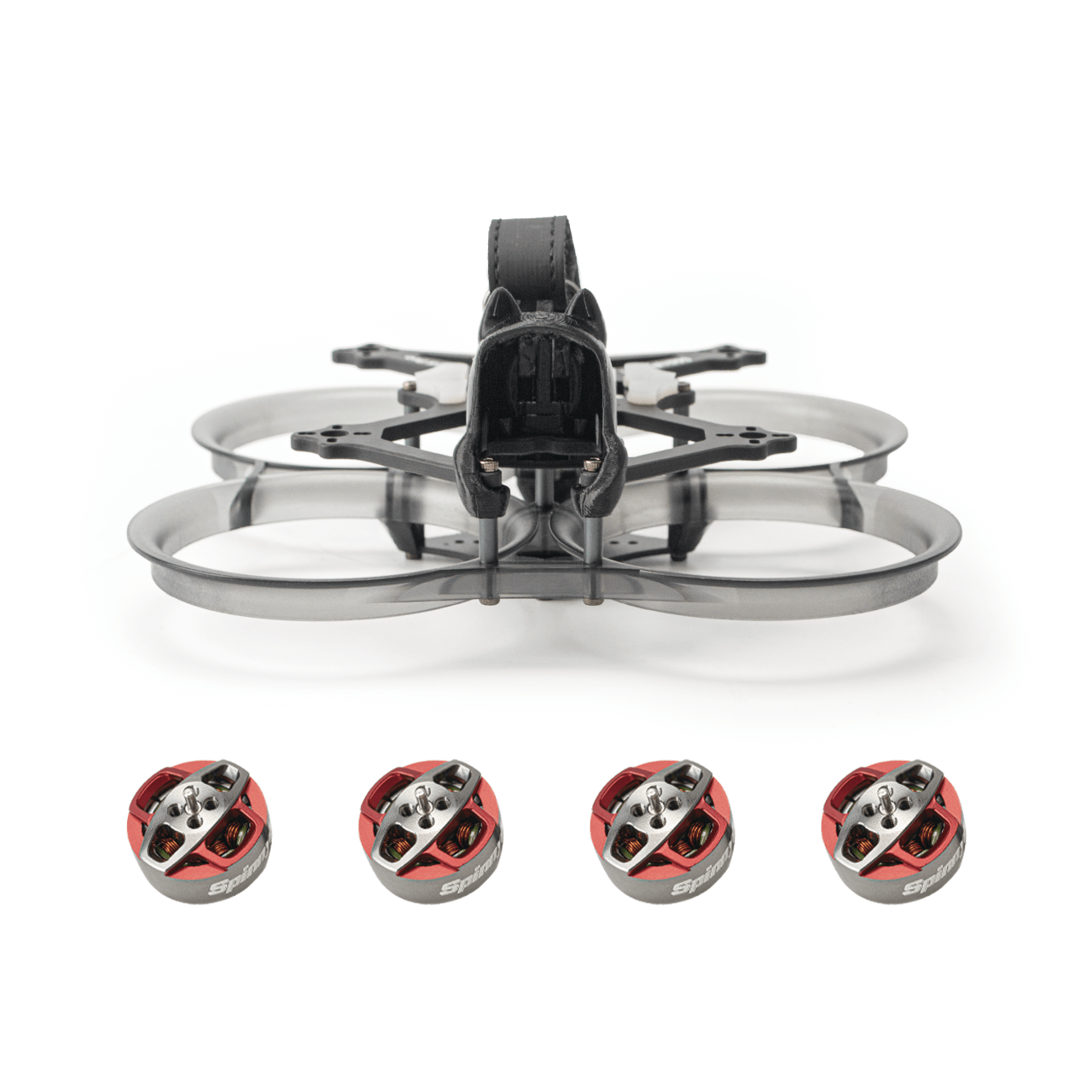

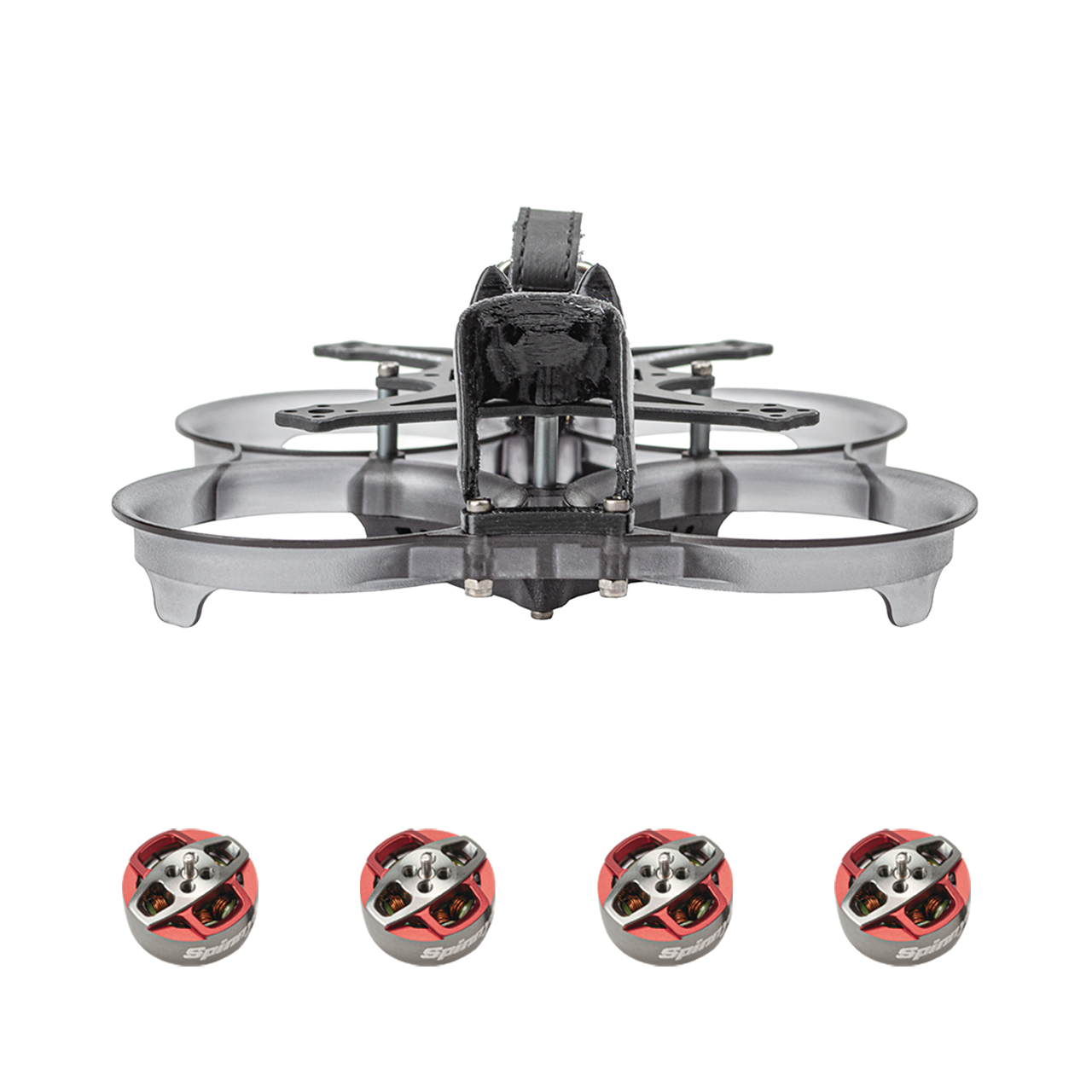

Power Combo includes one set of frame kit and 4 corresponding motors.
XI25Pro Print Parts Files Download
Click here to get Installation Instruction
