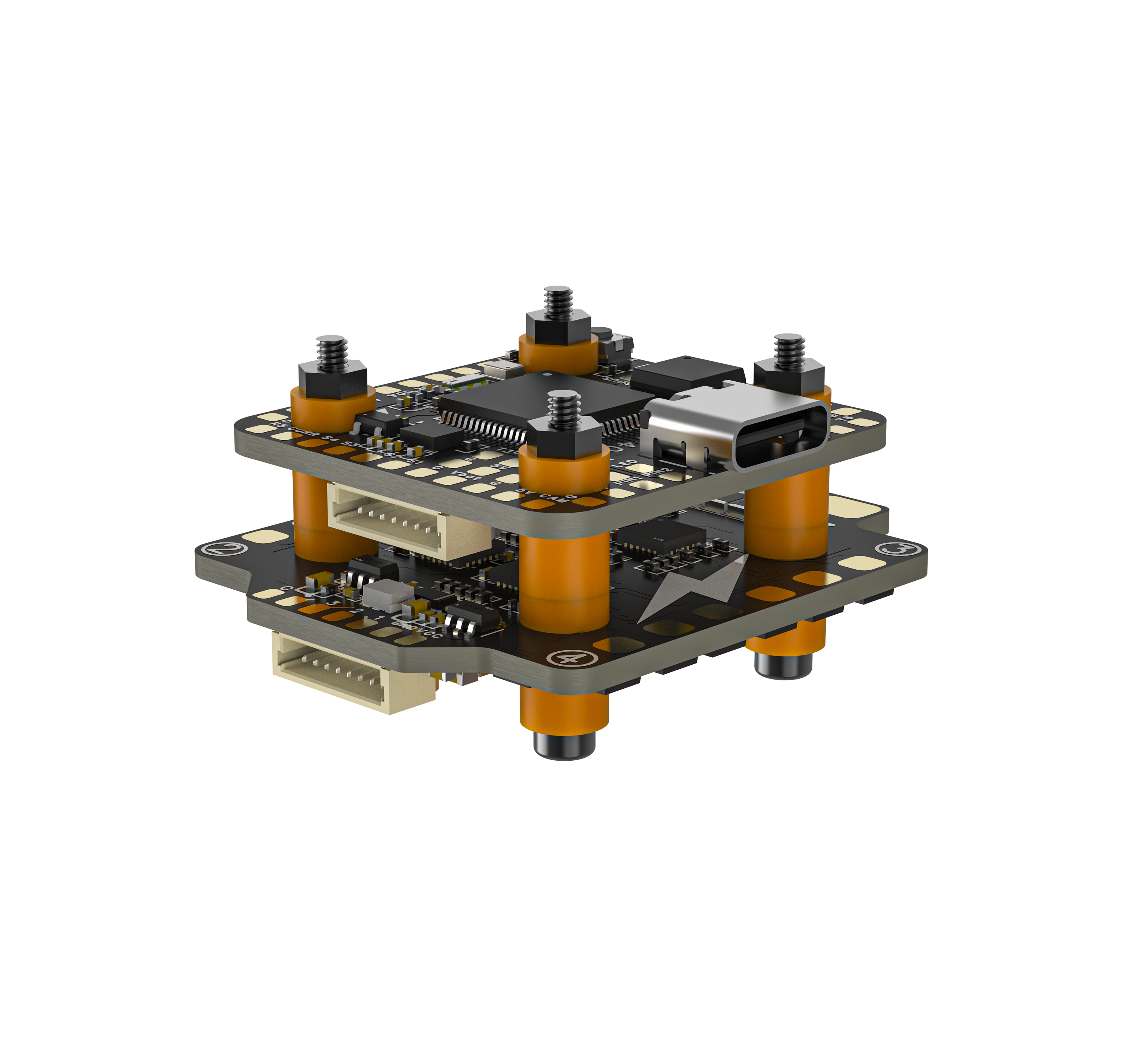

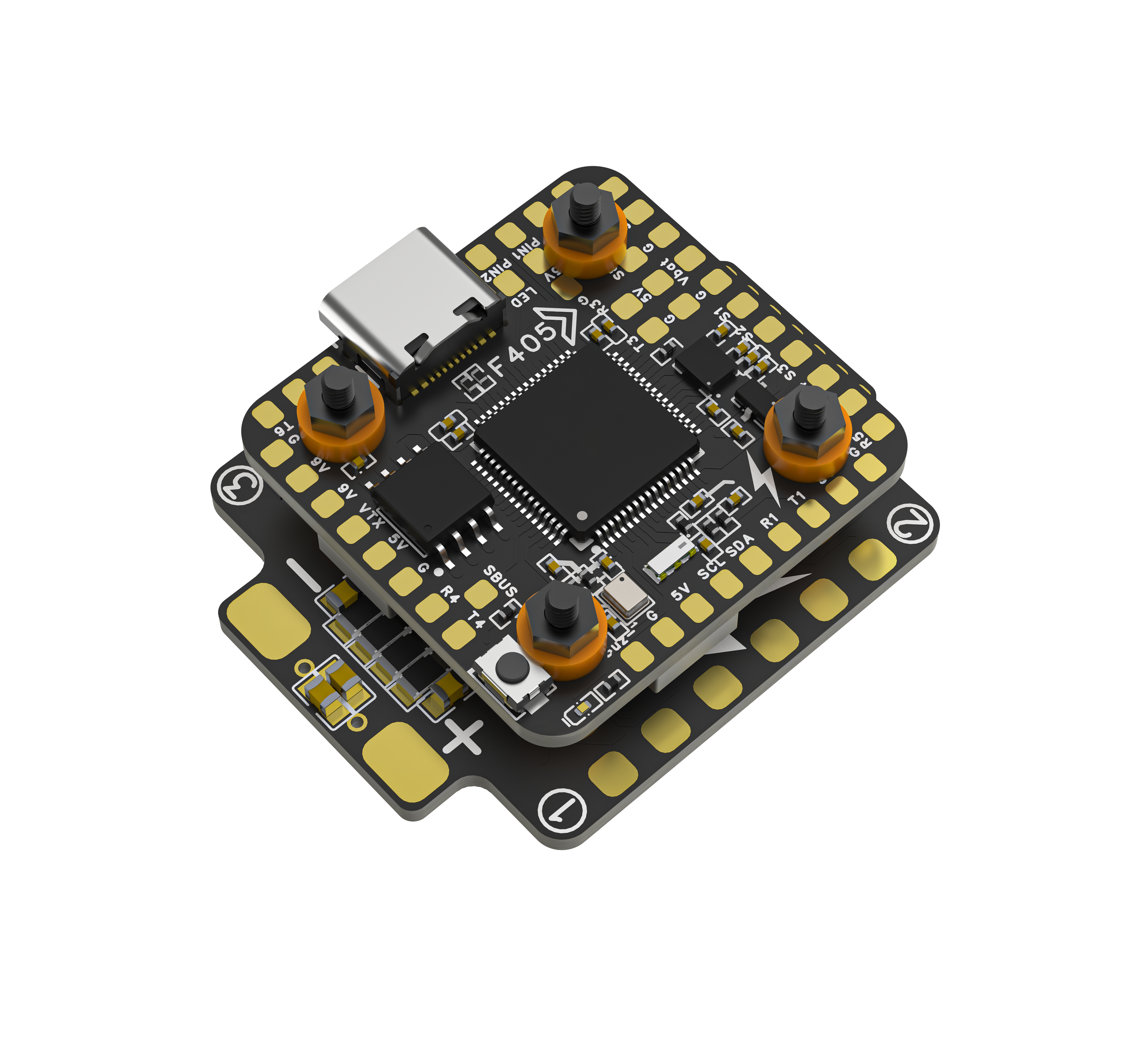

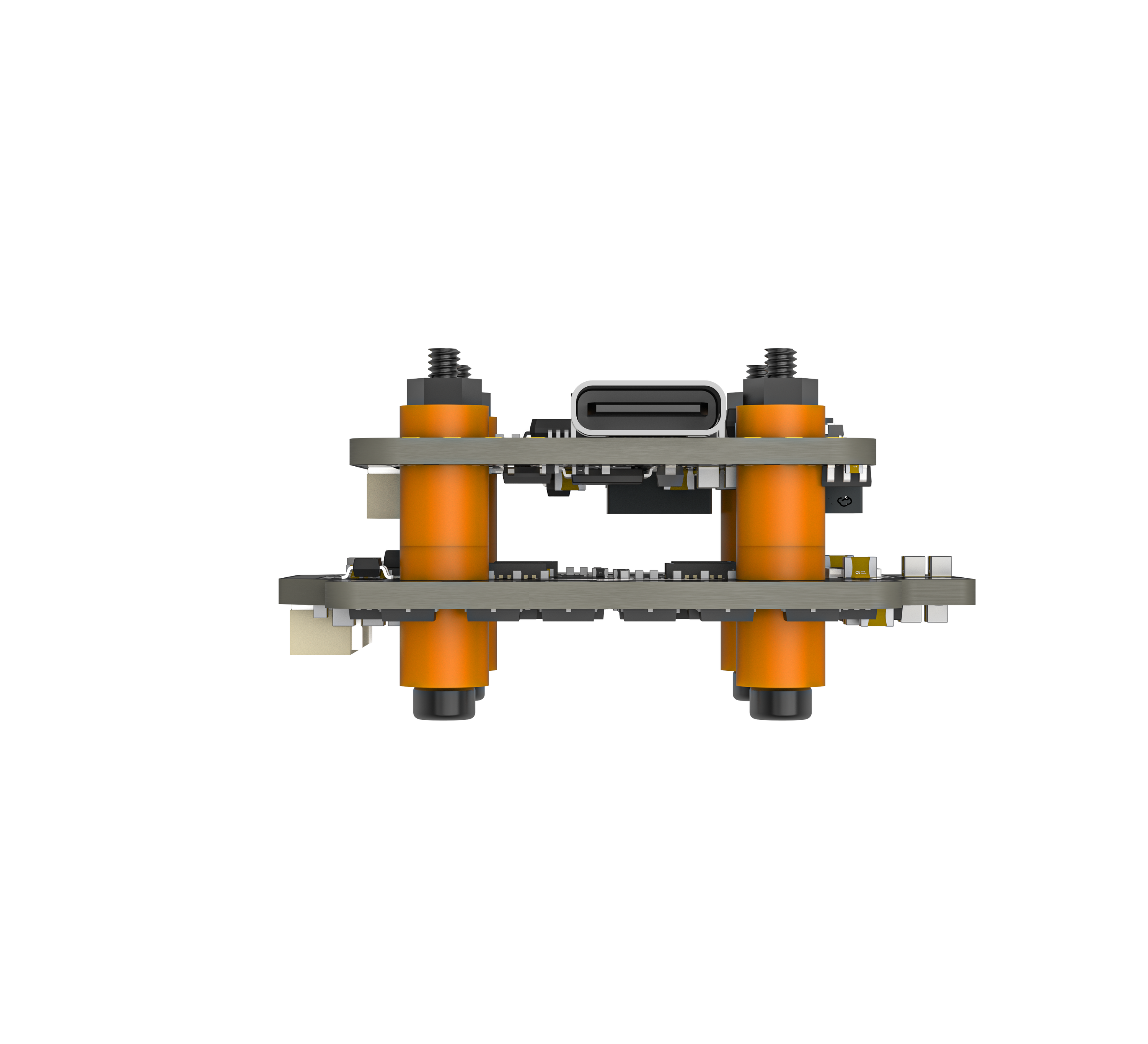

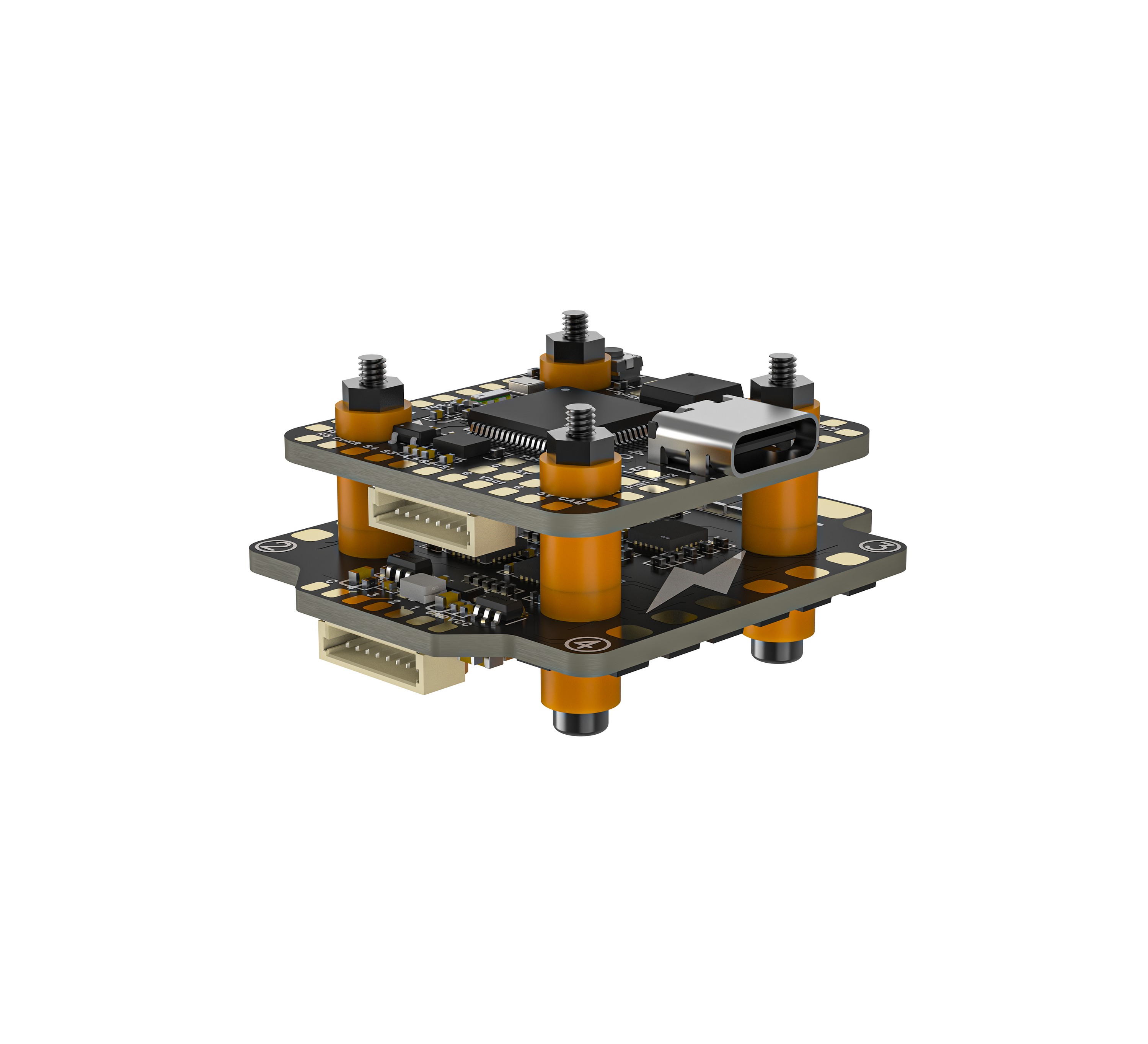

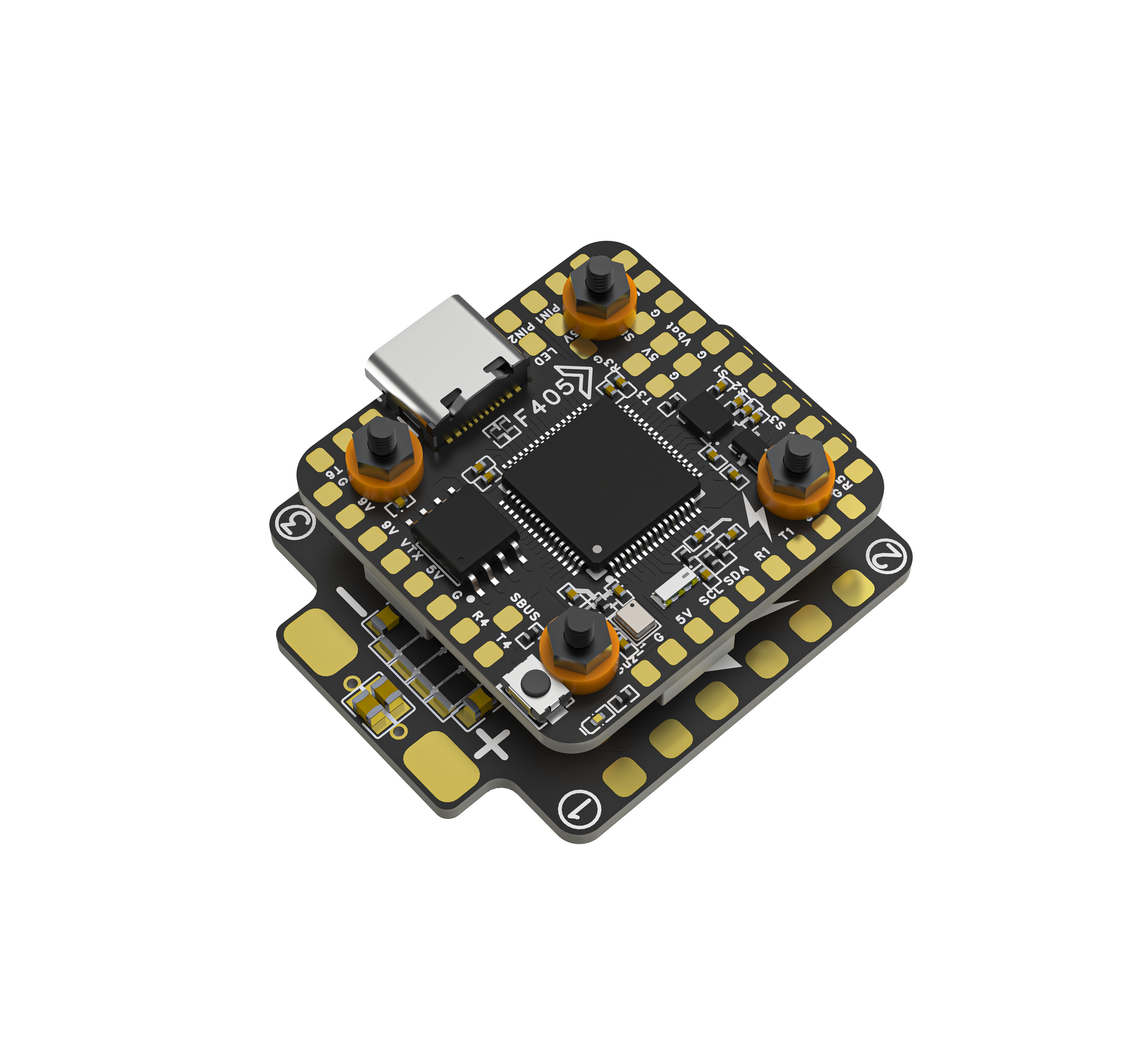

OddityRC Vortex F405 Mini 40A STACK (AM32)
Shipping calculated at checkout.
Couldn't load pickup availability
Choose a complete stack or an individual board
The Vortex F405 Mini product page contains three distinct purchase options:
- STACK: the FC and ESC option.
- ONLY FC: the flight controller option.
- ONLY ESC: the ESC option.
The lowest price on a page containing all three options does not represent the complete stack price. Select STACK to check the current full-stack price and availability.
Hardware at a glance
The FC specification lists an STM32F405 MCU, ICM42688P gyro, SPL06 barometer, 16M blackbox memory, five UART sets and 5V / 9V 2A BEC outputs. The ESC firmware is AM32.
The standard listed input is 3–6S, with 20 × 20mm / M2 mounting. The FC dimensions are 31 × 30mm; the ESC dimensions are 34 × 42mm. Check both board dimensions as well as the mounting pattern.
Firmware status
The current product notice says the FC firmware is in internal testing and provides offline firmware and a preset. Read that notice and confirm the correct target and version before flashing. The “8S available upon request” note is not a specification for every stocked option.
See the product page and current downloads for the existing firmware notice. Hardware, firmware and your planned build must be checked together.
As this firmware is still in the internal testing phase, only offline firmware testing is available (Our offline firmware has now been updated to the lastest version). It can be downloaded from the odd official website. We are currently in contact with the BF team to upload the online firmware.
Betaflight_STM32F405 Lastest Version（Updated 2026.1.20）
F405 STACK PRESET
SPECIFICATION

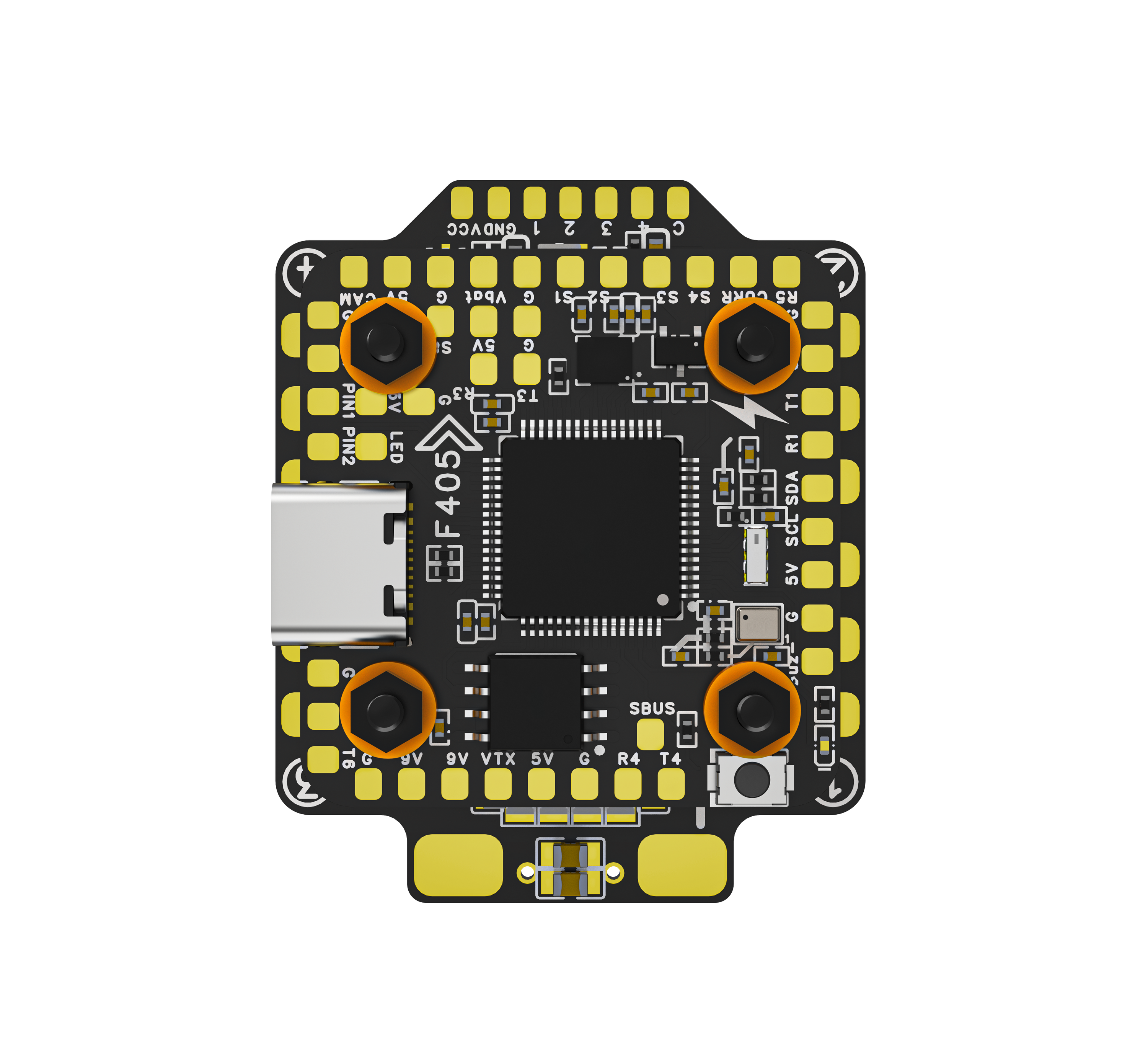

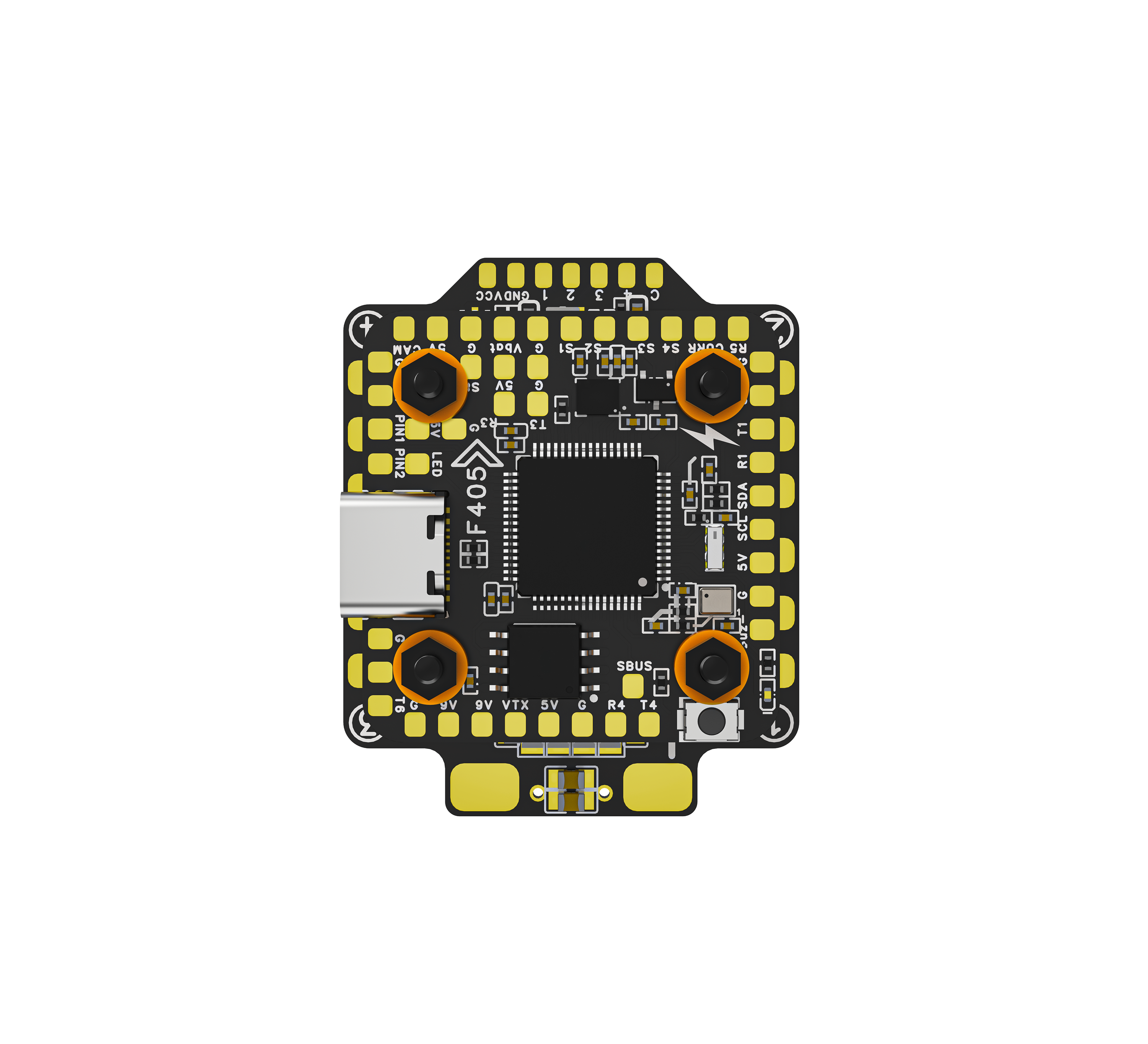

FC Parameter
- MCU：STM32F405
- GYRO：ICM42688P
- OSD：AT7456E
- Barometer：SPL06
- Blackbox：16M Memory
- Uarts：5 Set
- ESC Signal：8 Set
- BEC 5V：2A
- BEC 9V：2A
- TVS Protection：Yes
- Input：3~6S （8S version available upon request）
- Software：Betaflight/inav
- Offline firmware Mounting：20*20mm/M2
- Size：31*30mm
- Weight:6.5g
ESC Parameter
- CURR：Yes
- No return interface, relying on flight control to collect voltage and current, speed is transmitted back via bidirectional dshot.
- Current：30-40a
- Peak Current：50-60a
- Input：3~6S (8S version available upon request)
- Firmware：AM32
- Protocol：PWM/Oneshot/DShot 150/300/600/MultiShot
- Mounting：20*20mm/M2
- Size：34*42mm
- Weight:7.3g
