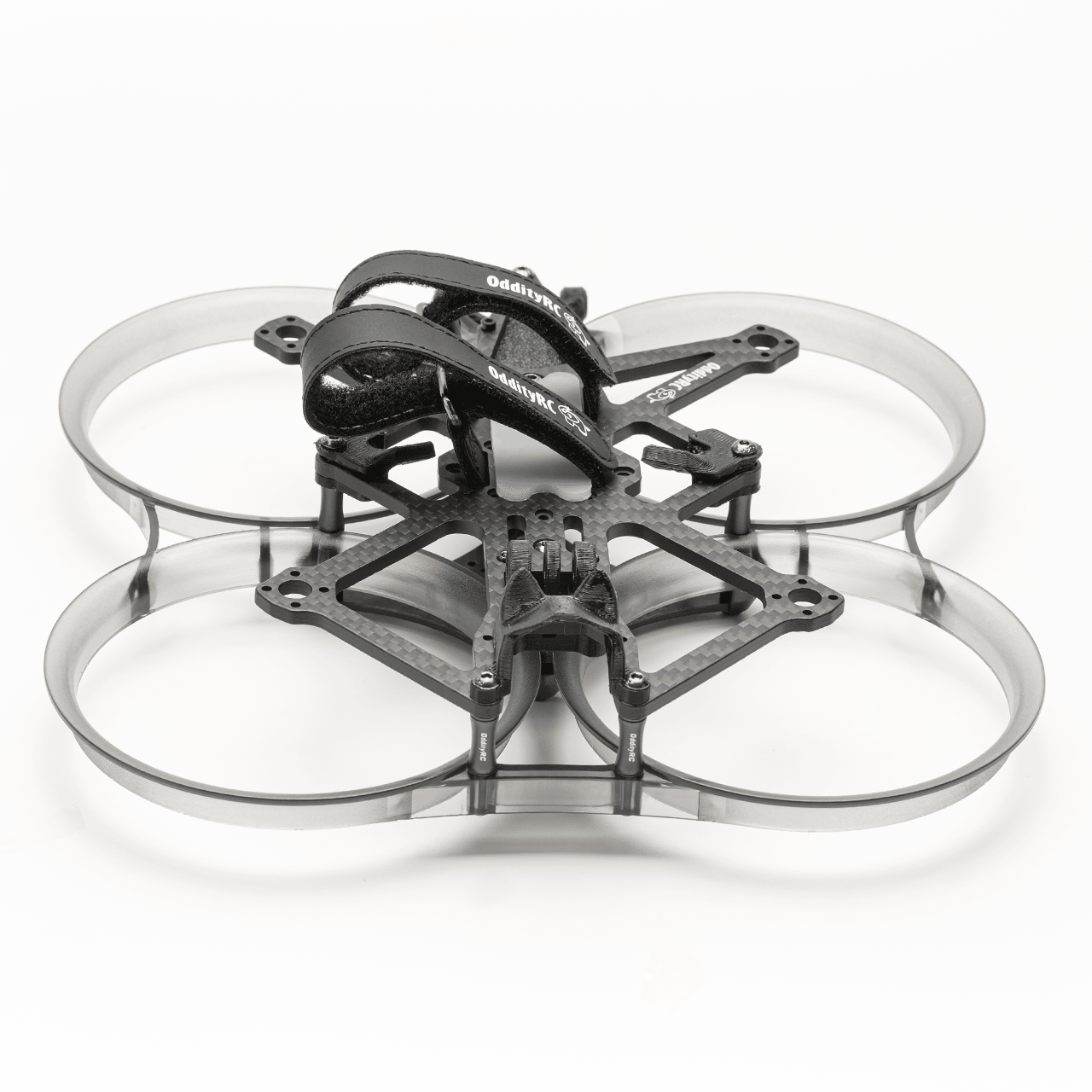

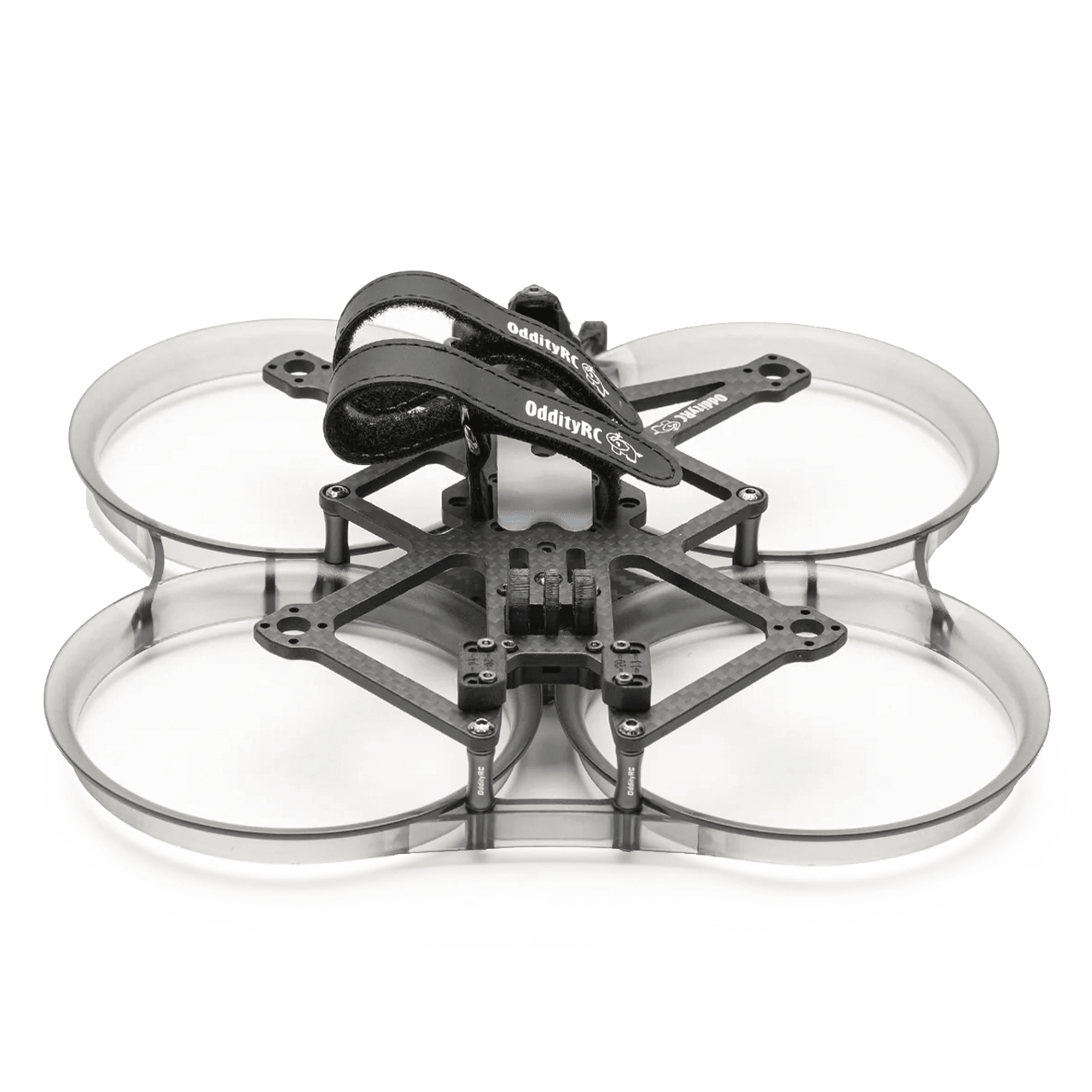

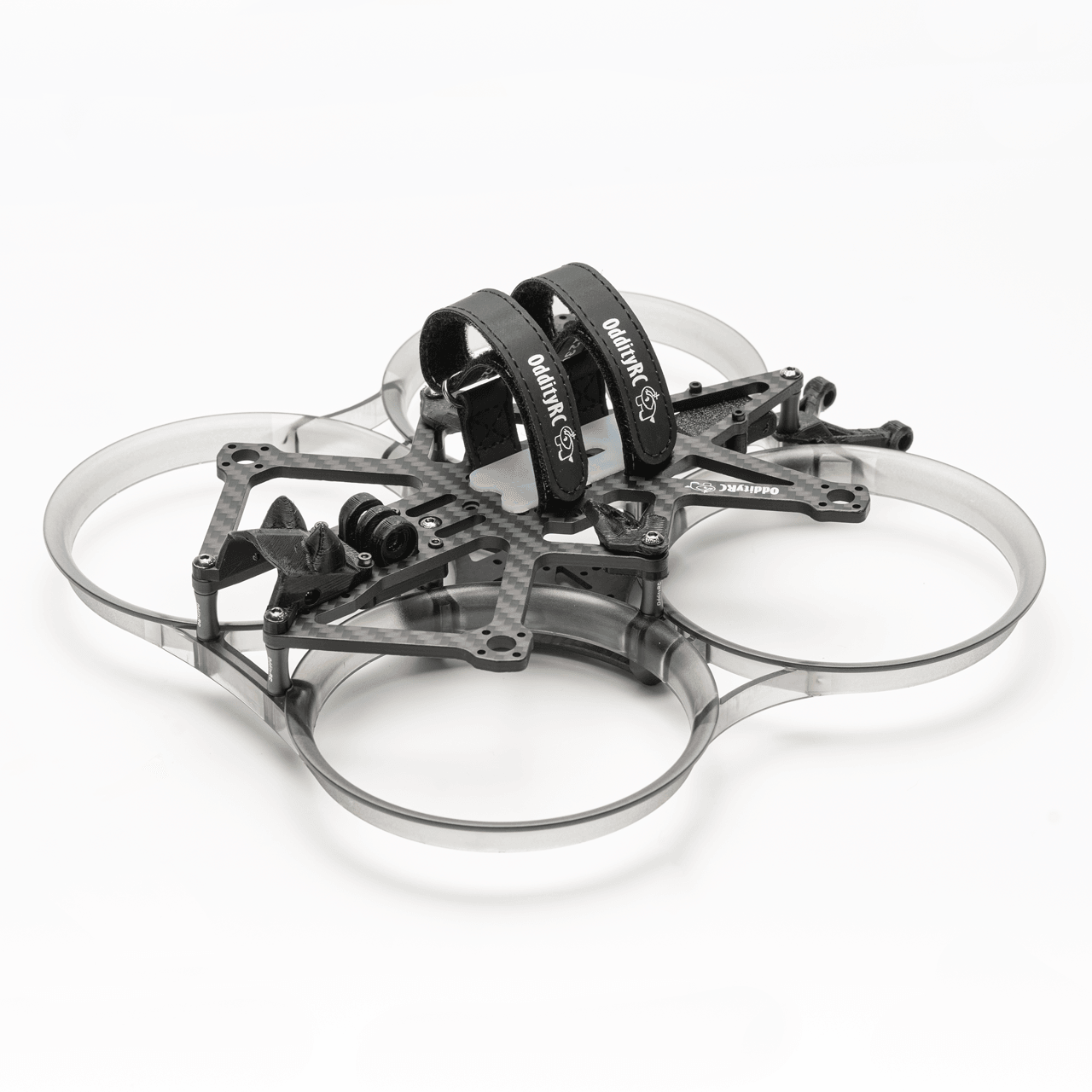

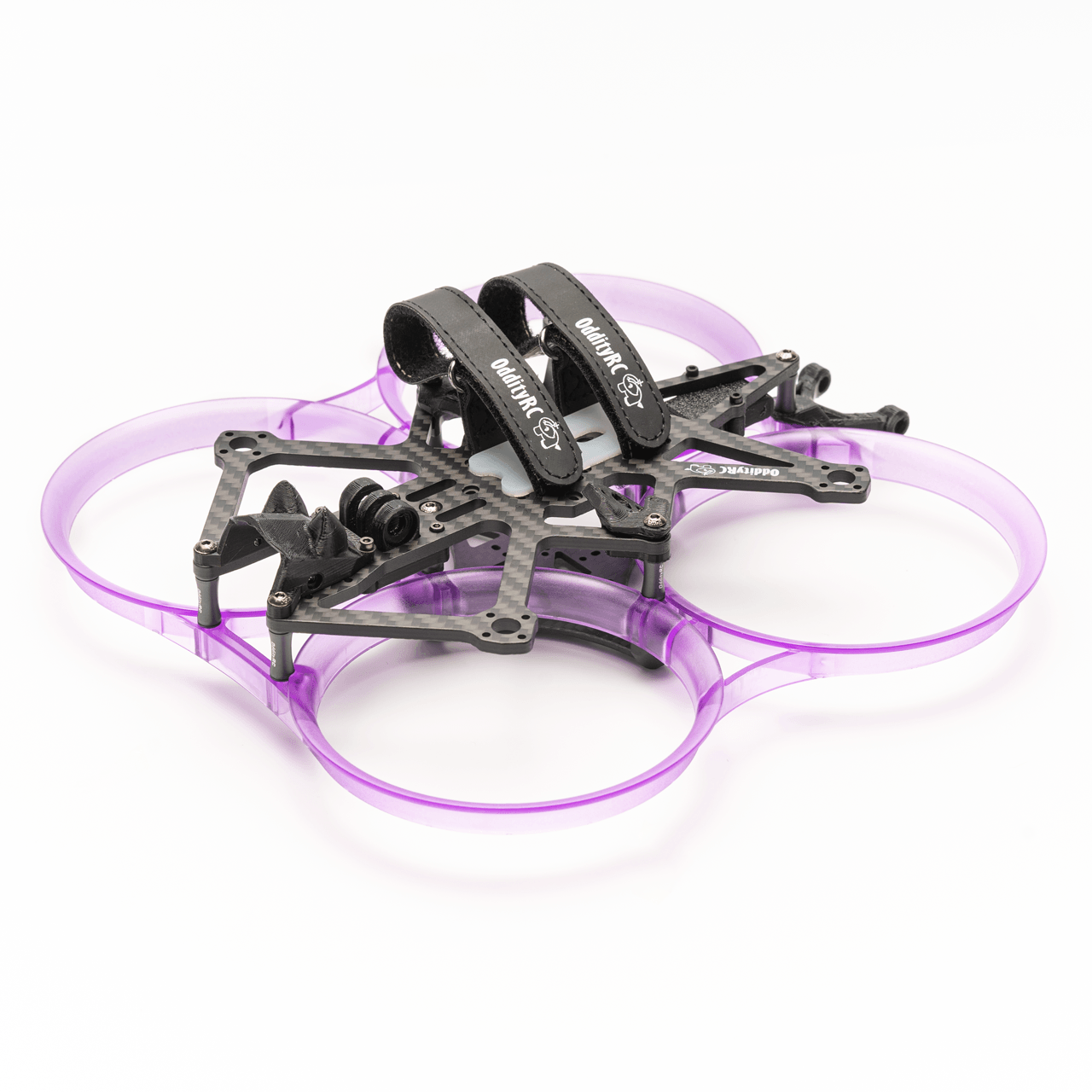

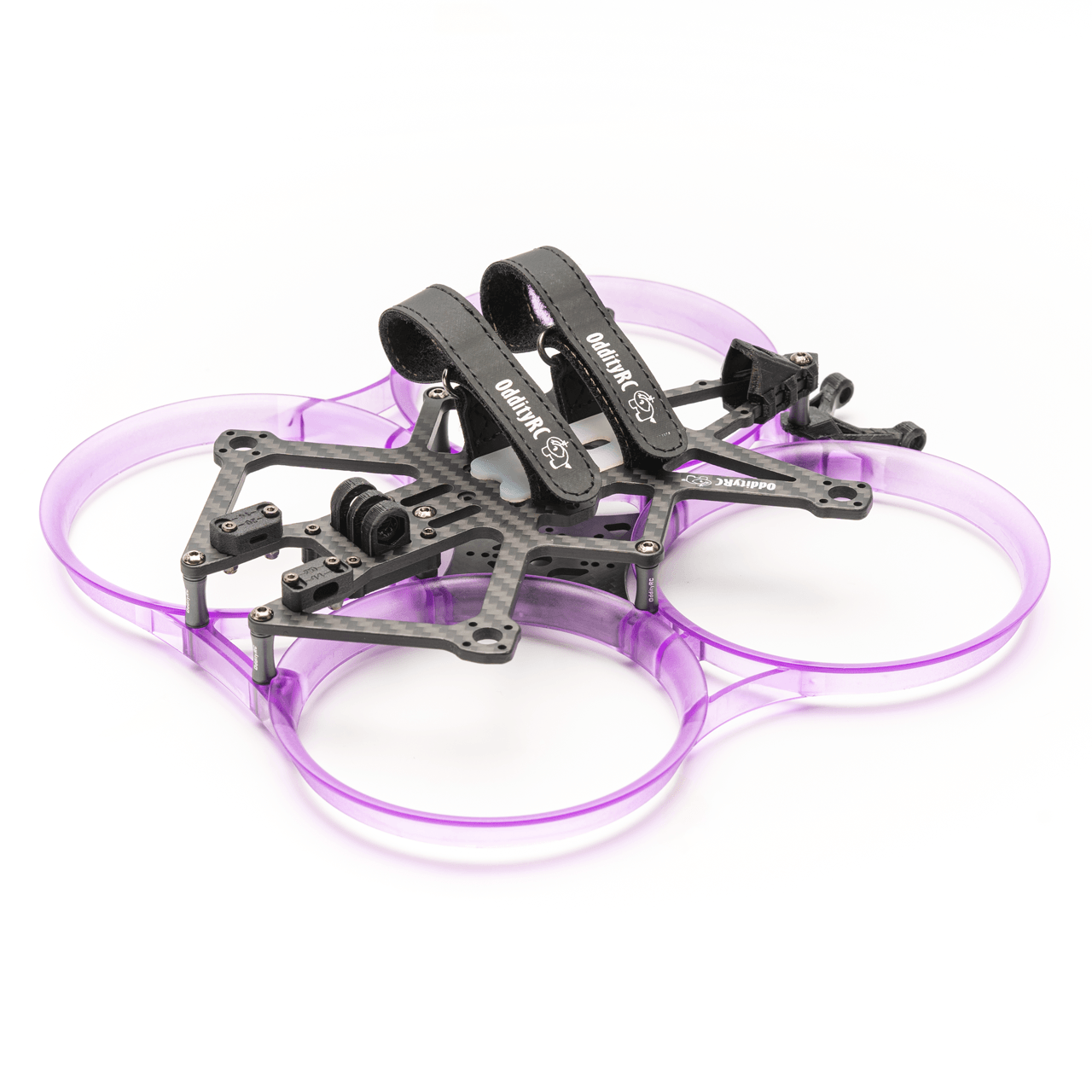

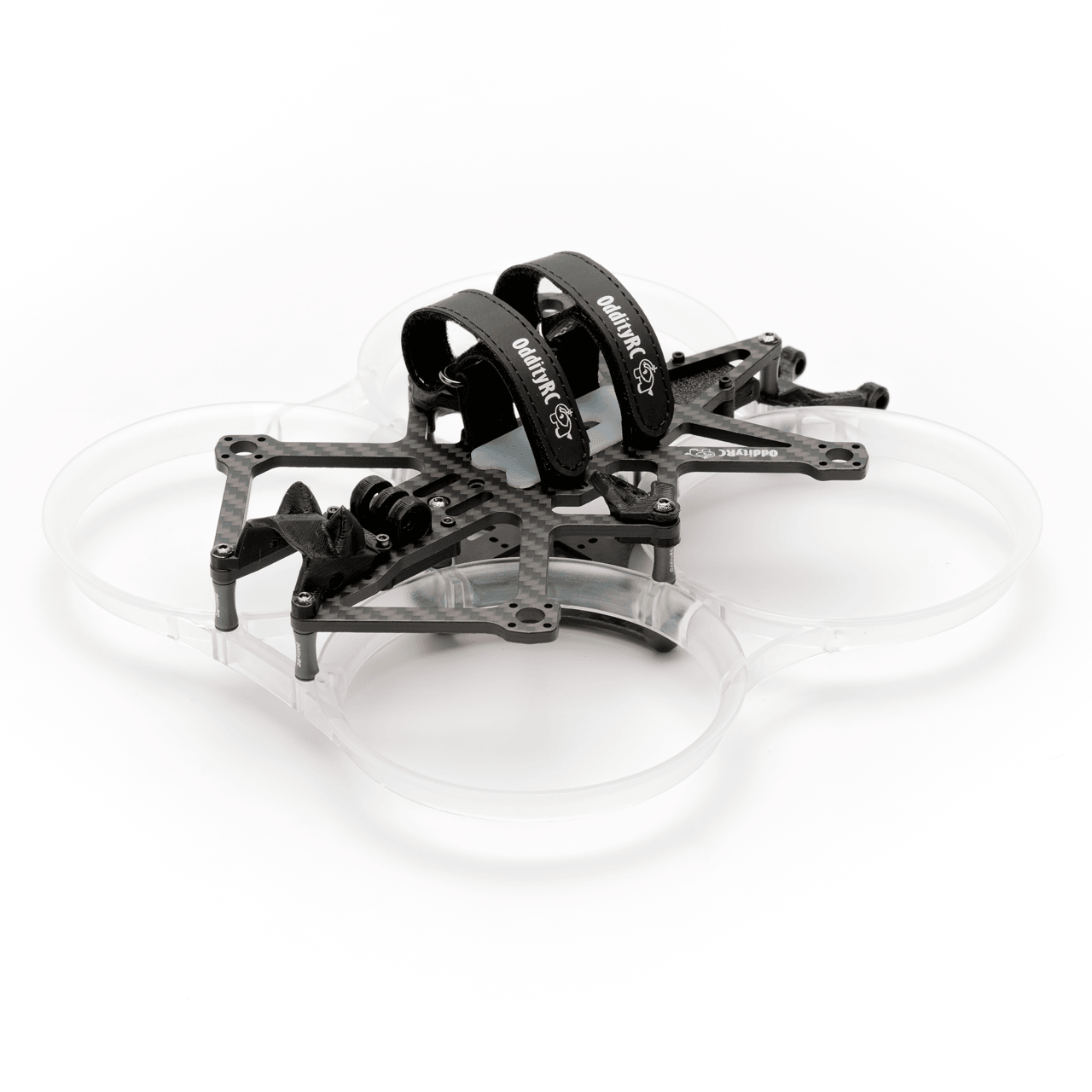

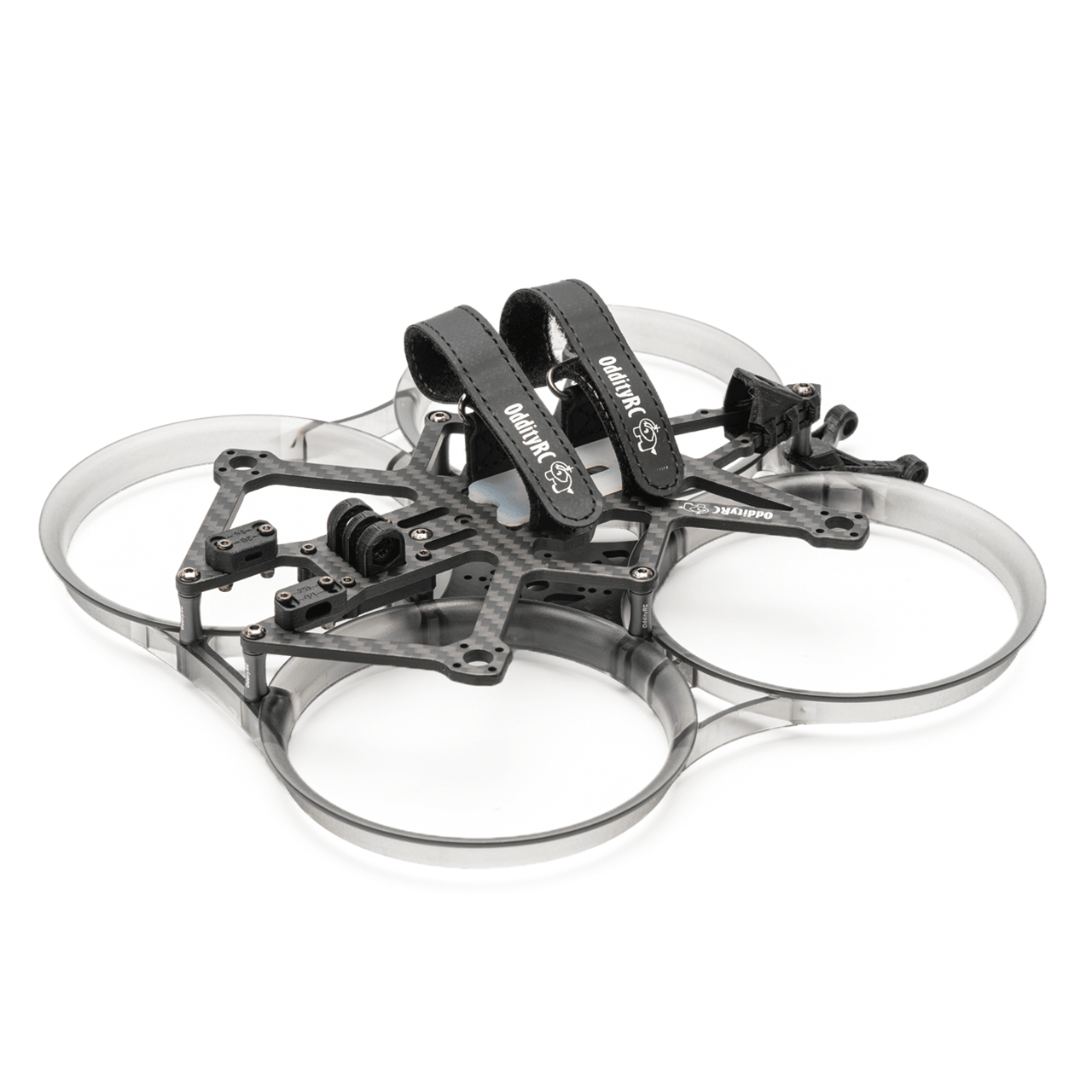

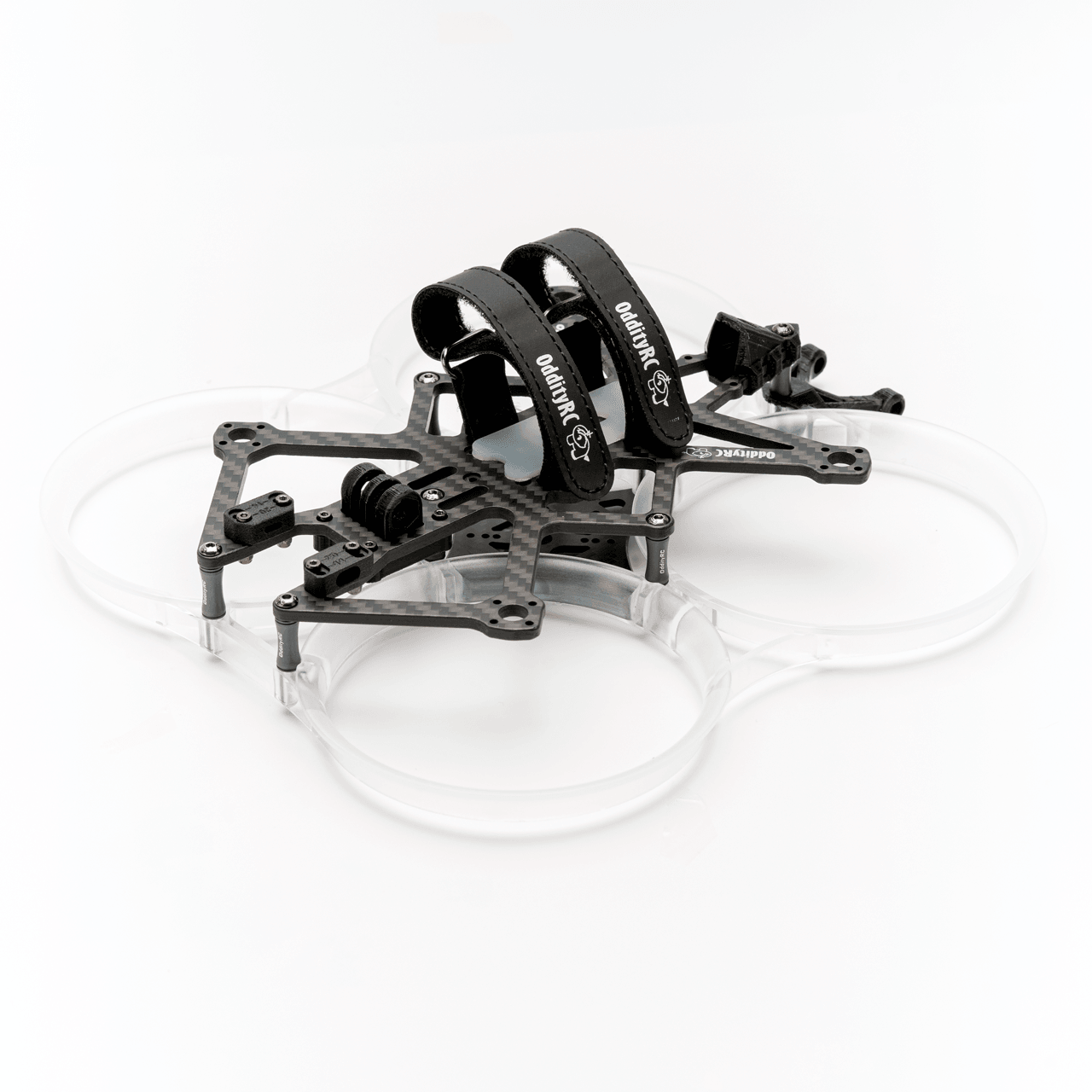

OddityRC XI35 Pro Frame Kit
Shipping calculated at checkout.
Couldn't load pickup availability
Introduction
- Designed by OddityRC team and upgraded from XI35 Series.
- Added DJI O3 Version.
- Exclusive O3 camera mount to filter frame vibration
- With innovative design of the OddityRC team, the prop guard can effectively reduce flight noise and improve motor efficiency.

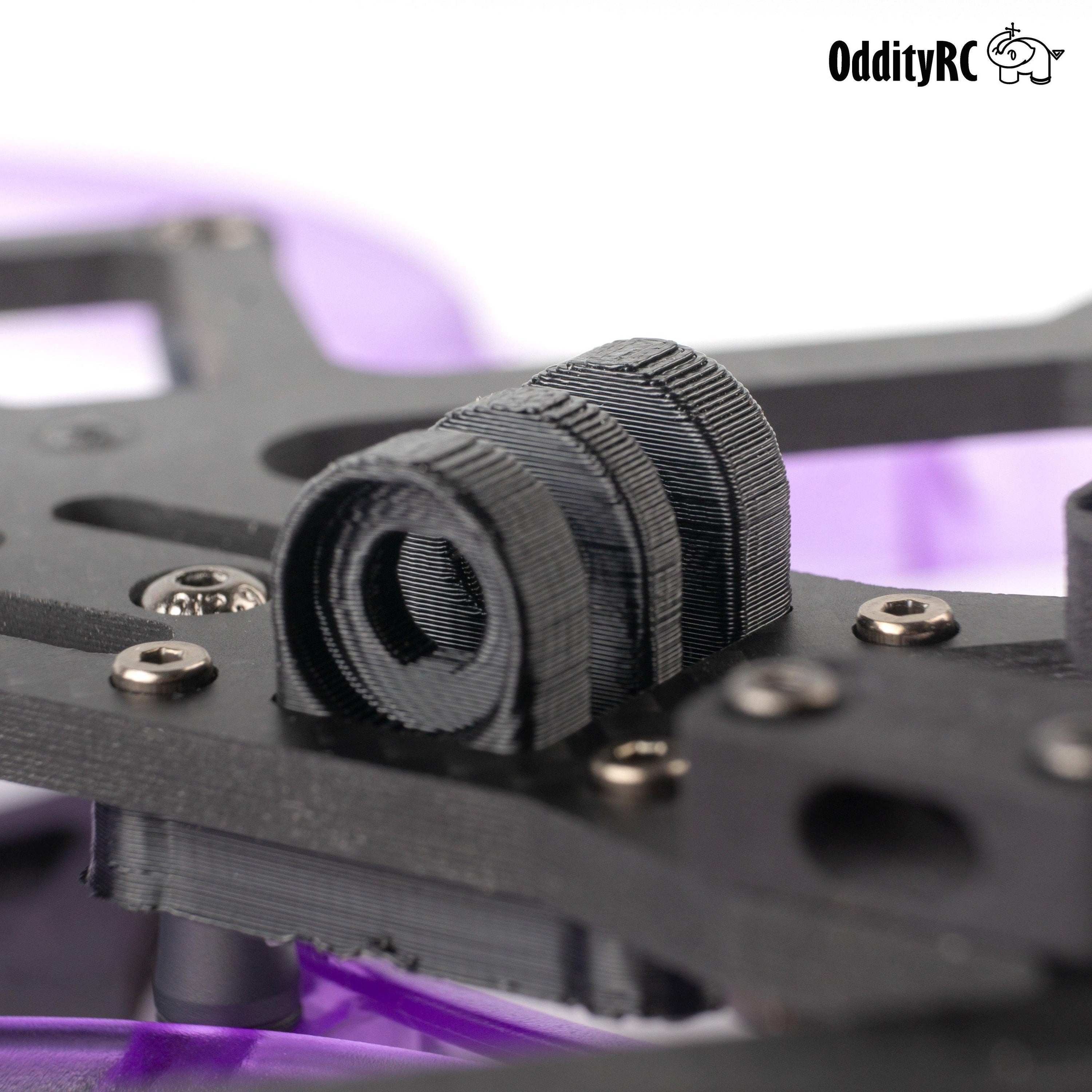

- Can mount Gopro sports camera.
- Excellent flight endurance performance.

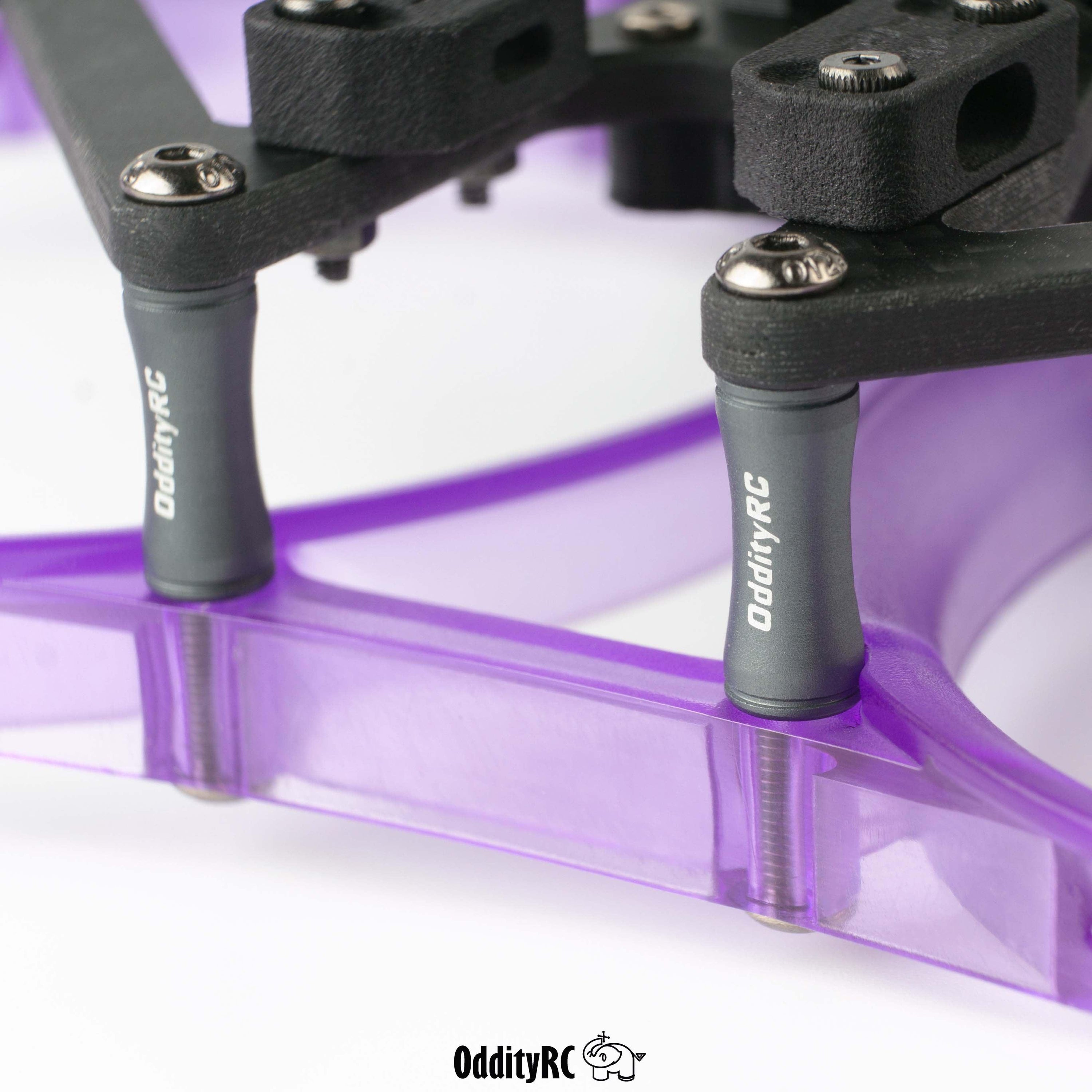

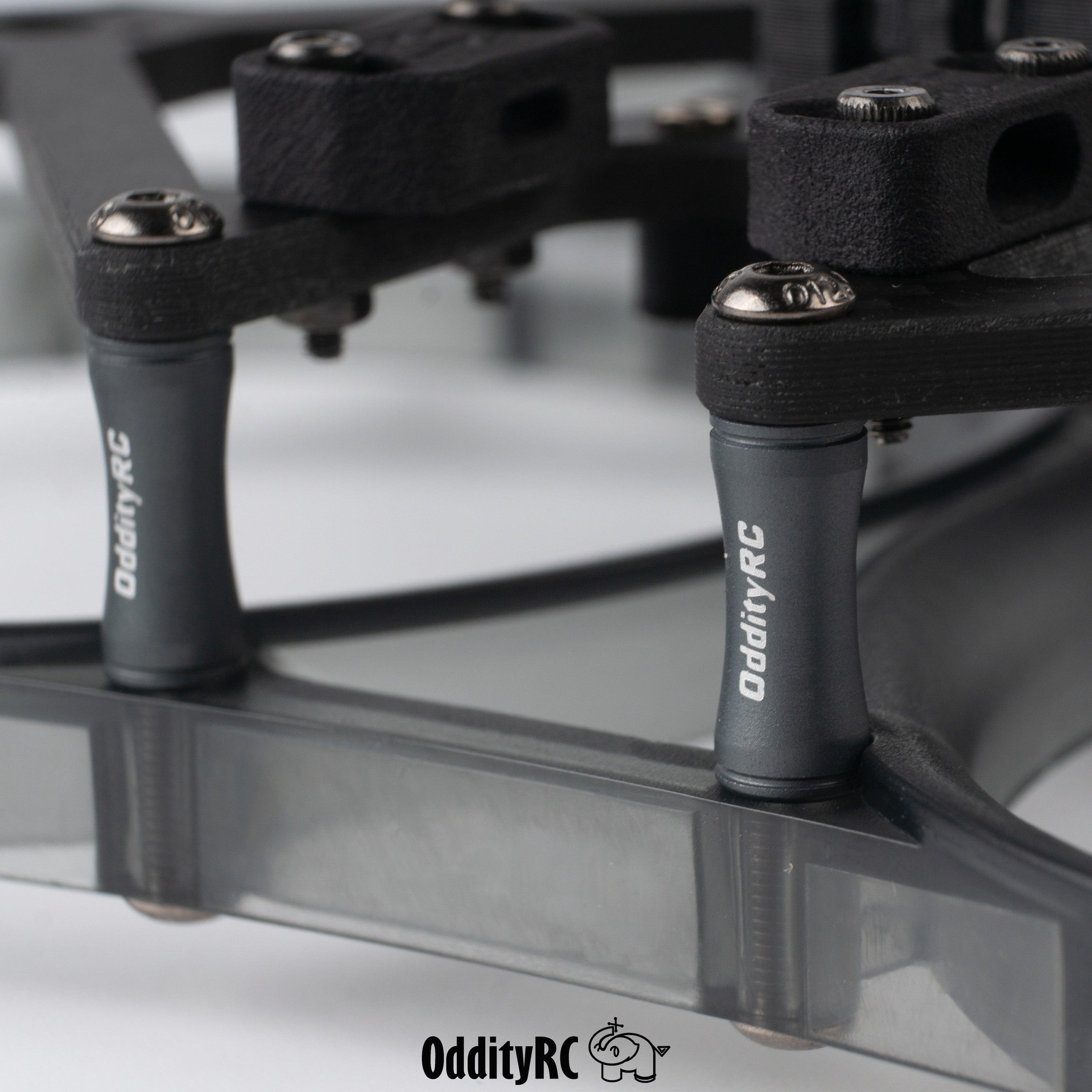

- Customized 7075 high-strength M3 aluminum column.
- Comes with an additional backup prop guard.
Parameter
- Wheelbase: 152mm
- Interior space height: 23mm(Analog/Vista Version), 30mm(DJI O3 Version)
- Main plate: 3.5mm
- Bottom plate: 2mm
- FC mounting: 26.5/25.5/20mm
- VTX mounting: 25.5/20mm
- Motor mounting: 12mm
- Camera mounting: 20/19/14mm(Analog/Vista Version), 20mm(DJI O3 Version)
- Suitable prop size: 3.5 inch
- Weight: 126.6g (Analog/Vista Version), 135.8g (DJI O3 Version)
Recommended Parts
- FC: OddityRC F7 40A AIO
- VTX: Rush Tank Solo 1.6W (Analog) / Polar Starlight Vista / DJI O3 Air Unit
- Motor: Spinnybois-2006 2150KV Motor
- Prop: GEMFAN D90S-3
- Battery: Coddar 6S 1100mAh~1300mAh
Package Included
- Main plate * 1
- Bottom plate * 1
- Injection-molded prop guard * 2
- Aluminum column kit * 1
- Screw kit * 1
- Nut kit * 1
- Camera mount * 1
- Camera mount for O3 * 1 (only for DJI O3 Version)
- M5 Gopro mount * 1
- SMA antenna mount * 1
- Receiver antenna mount * 1
- IPEX to SMA + MMCX to SMA adapter kit (with flange) * 1
- XT60 power cable * 1
- Battery anti-slip pad * 1
- Bottom foam pad * 1
- Battery strap 15*230mm * 1
Power Combo includes one set of frame kit and 4 corresponding motors.
