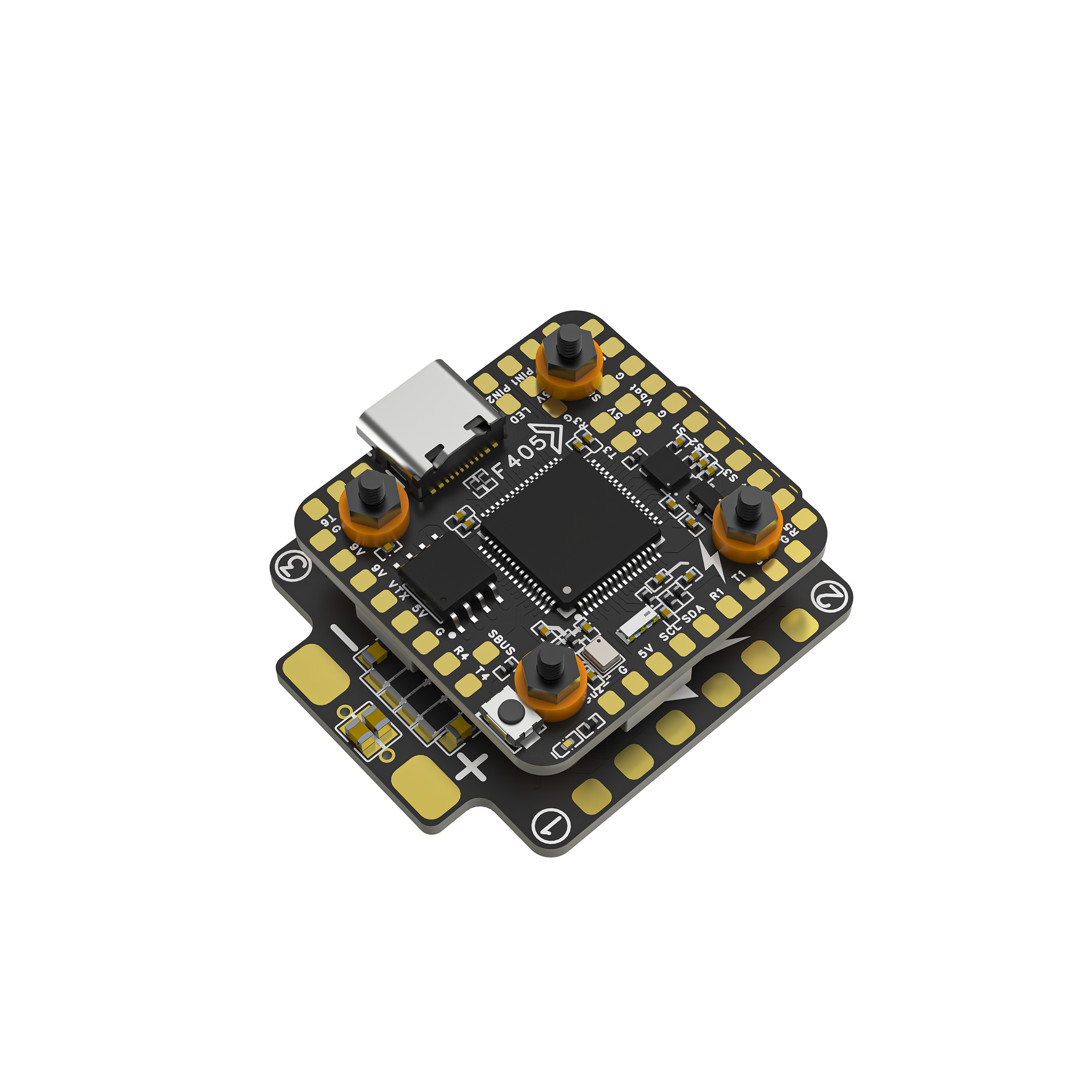

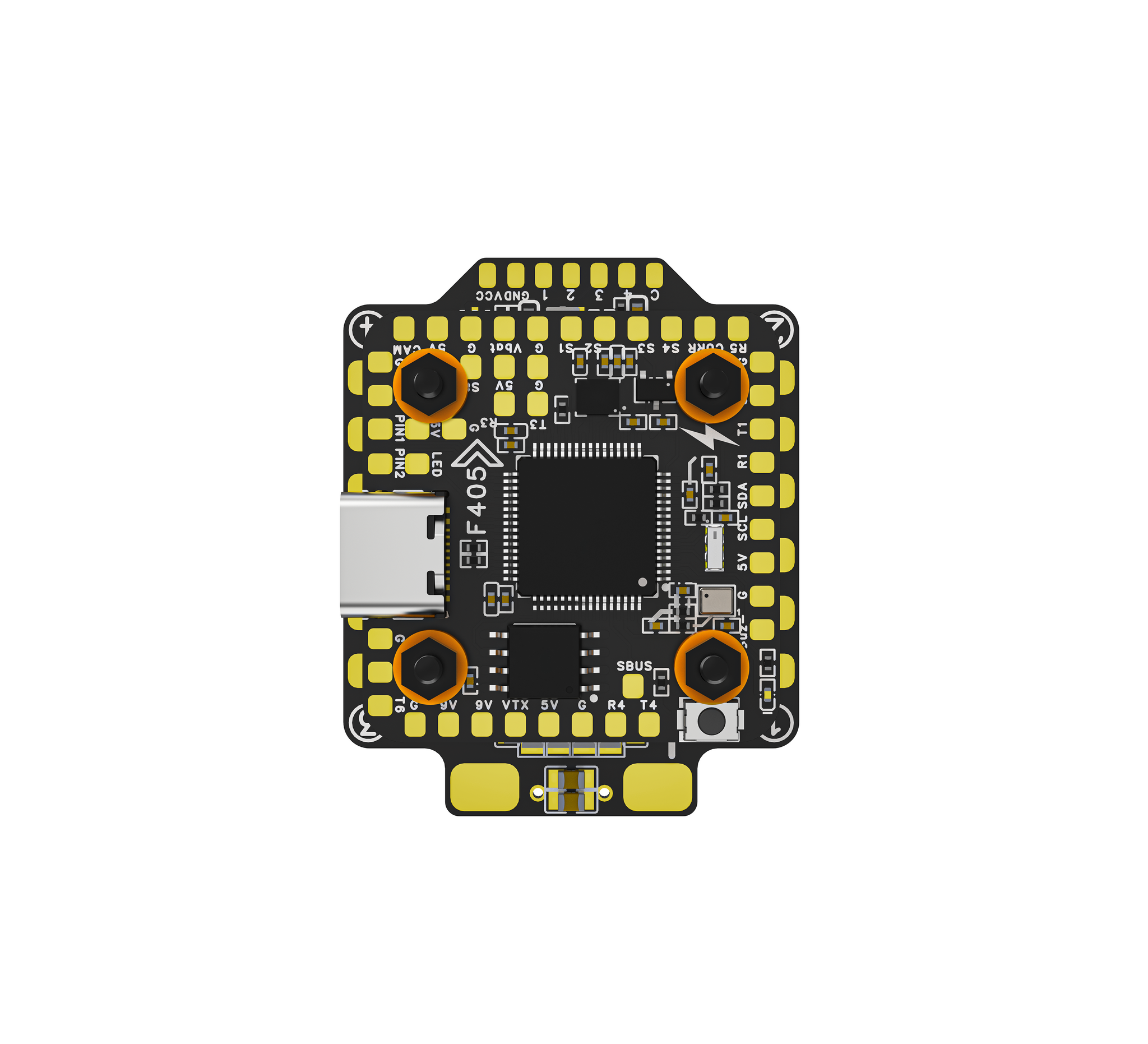

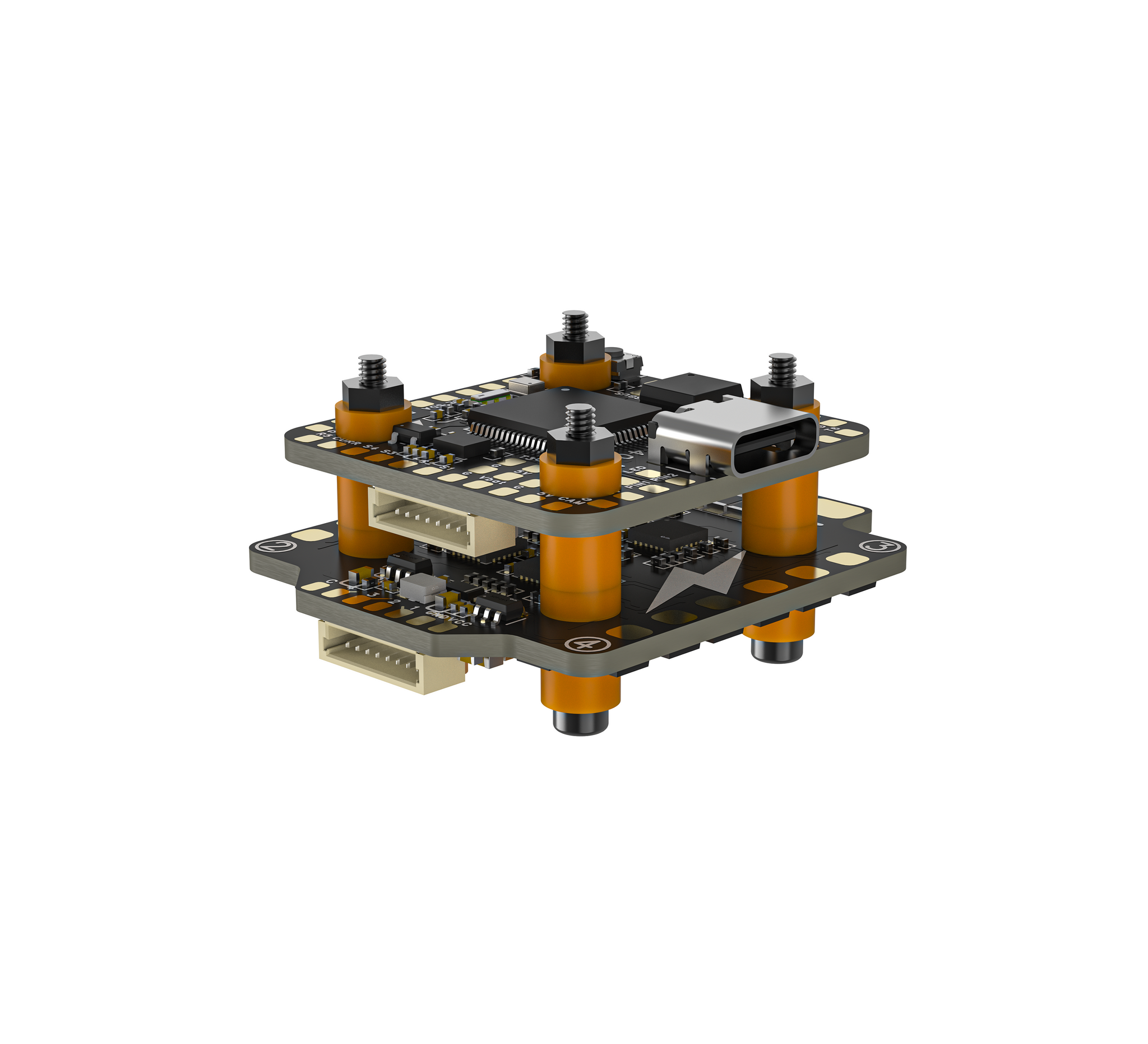

OddityRC F405 Mini AM32 40A STACK
Shipping calculated at checkout.
Couldn't load pickup availability
As this firmware is still in the internal testing phase, only offline firmware testing is available (Our offline firmware has now been updated to the lastest version). It can be downloaded from the odd official website. We are currently in contact with the BF team to upload the online firmware.
Betaflight_STM32F405 Lastest Version(Updated 2026.1.20)
F405 STACK PRESET
SPECIFICATION
FC Parameter
- MCU:STM32F405
- GYRO:ICM42688P
- OSD:AT7456E
- Barometer:SPL06
- Blackbox:16M Memory
- Uarts:5 Set
- ESC Signal:8 Set
- BEC 5V:2A
- BEC 9V:2A
- TVS Protection:Yes
- Input:3~6S (8S version available upon request)
- Software:Betaflight/inav
- Offline firmware Mounting:20*20mm/M2
- Size:31*30mm
- Weight:6.5g
ESC Parameter
- CURR:Yes
- No return interface, relying on flight control to collect voltage and current, speed is transmitted back via bidirectional dshot.
- Current:30-40a
- Peak Current:50-60a
- Input:3~6S (8S version available upon request)
- Firmware:AM32
- Protocol:PWM/Oneshot/DShot 150/300/600/MultiShot
- Mounting:20*20mm/M2
- Size:34*42mm
- Weight:7.3g
