Freestyle 1W VTX
Shipping calculated at checkout.
Couldn't load pickup availability
Description

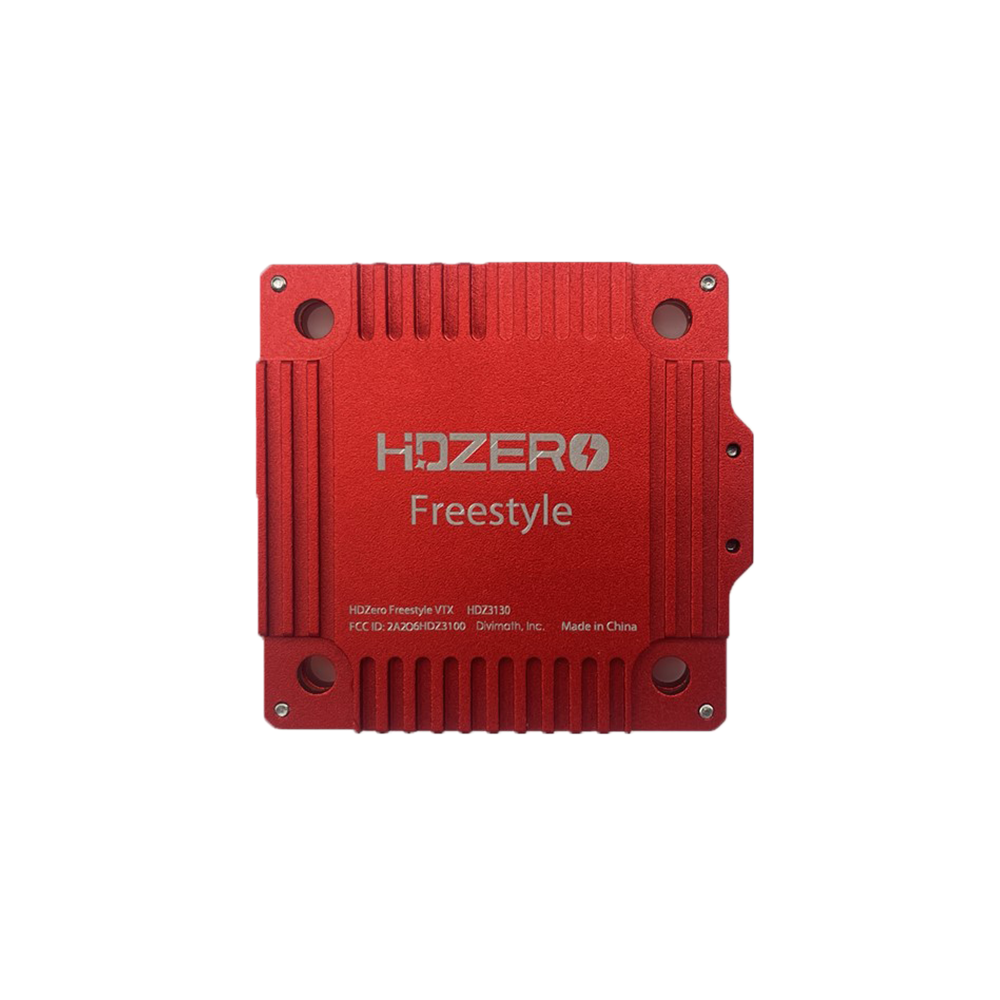

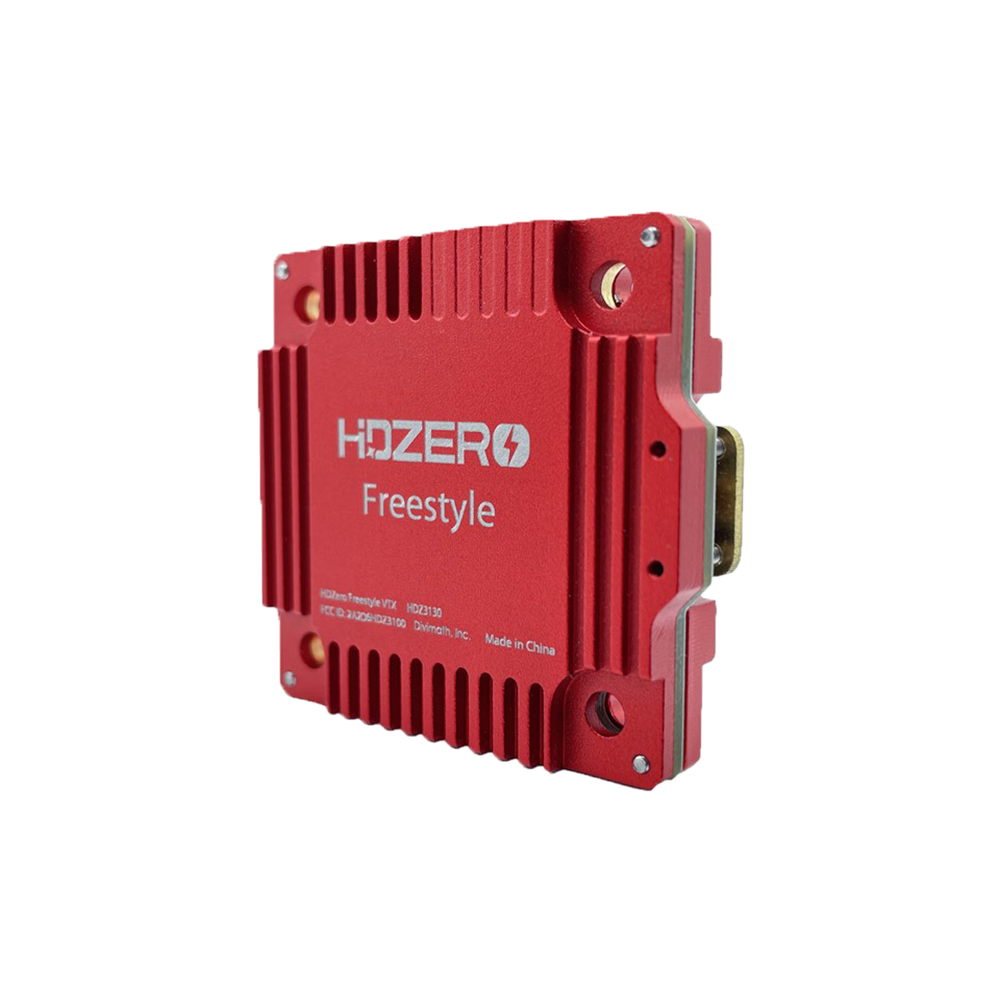

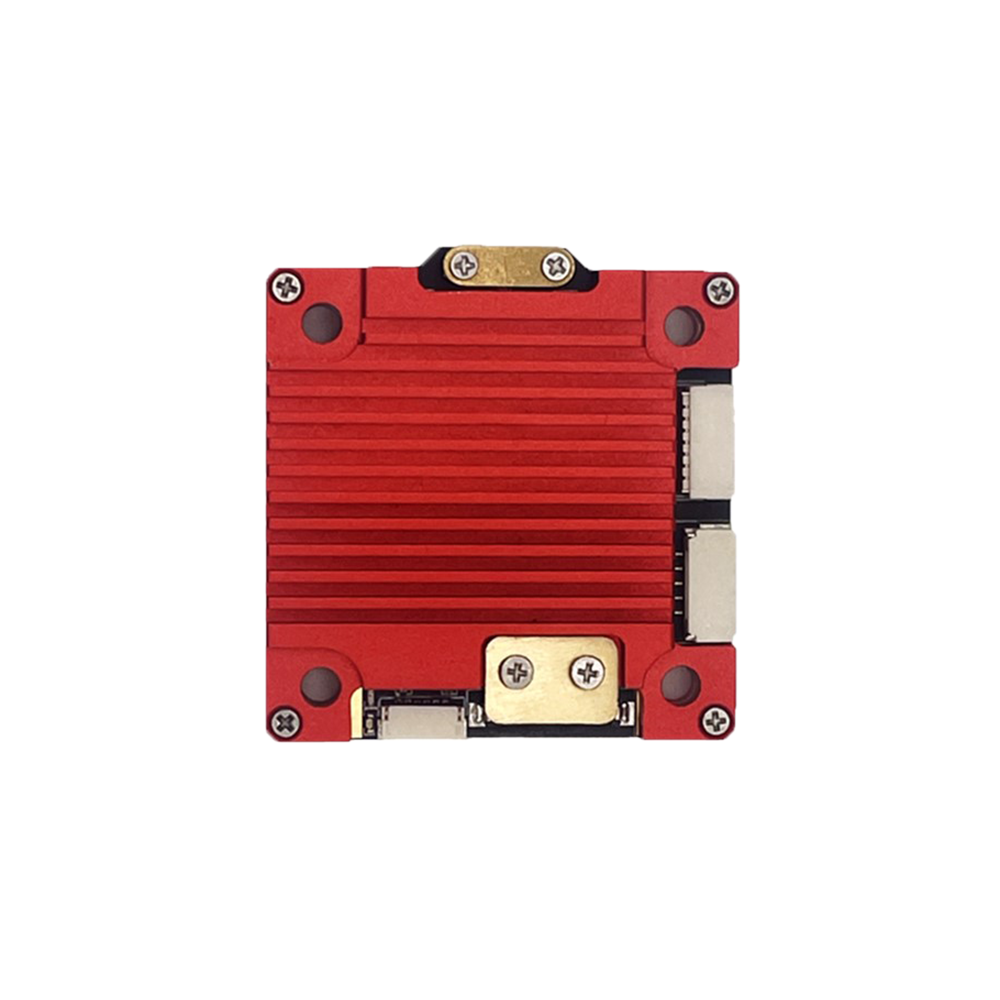

The HDZero Freestyle VTX is a digital HD 720p 60fps video transmitter capable of delivering up to 1000mw on 5.8GHz. It works with the HDZero/Shark Byte goggle module to transmit video, and with a remote controller to wirelessly control the parameters for the transmitter and camera.
The VTX includes an U.FL RHCP antenna. The power input range is 2S –6S. Though the VTX integrates a surge protection circuit, a large capacitor (450+uF) parallel with battery leads is mandatory to smooth the power supply of the whole quad.
Specifications
|
Model: |
HDZero Freestyle |
|
SKU： |
HDZ3130 |
|
Frequency: |
5.725-5.850GHz |
|
Resolution Default: |
1280*720@60fps |
|
RF power： |
25mw/200mw/500mw/1000mw |
|
RF Connector: |
Secured U.FL |
|
Video Connector: |
Secured MIPI |
|
FC protocol |
MSP Canvas Mode/SmartAudio |
|
Size: |
40mm x 42mm x 10mm |
|
Weight: |
28g |
|
Power: |
6-15W |
|
Power input： |
7V-26V(2S-6S) |
|
Mounting： |
30.5mm x 30.5mm M3 holes |

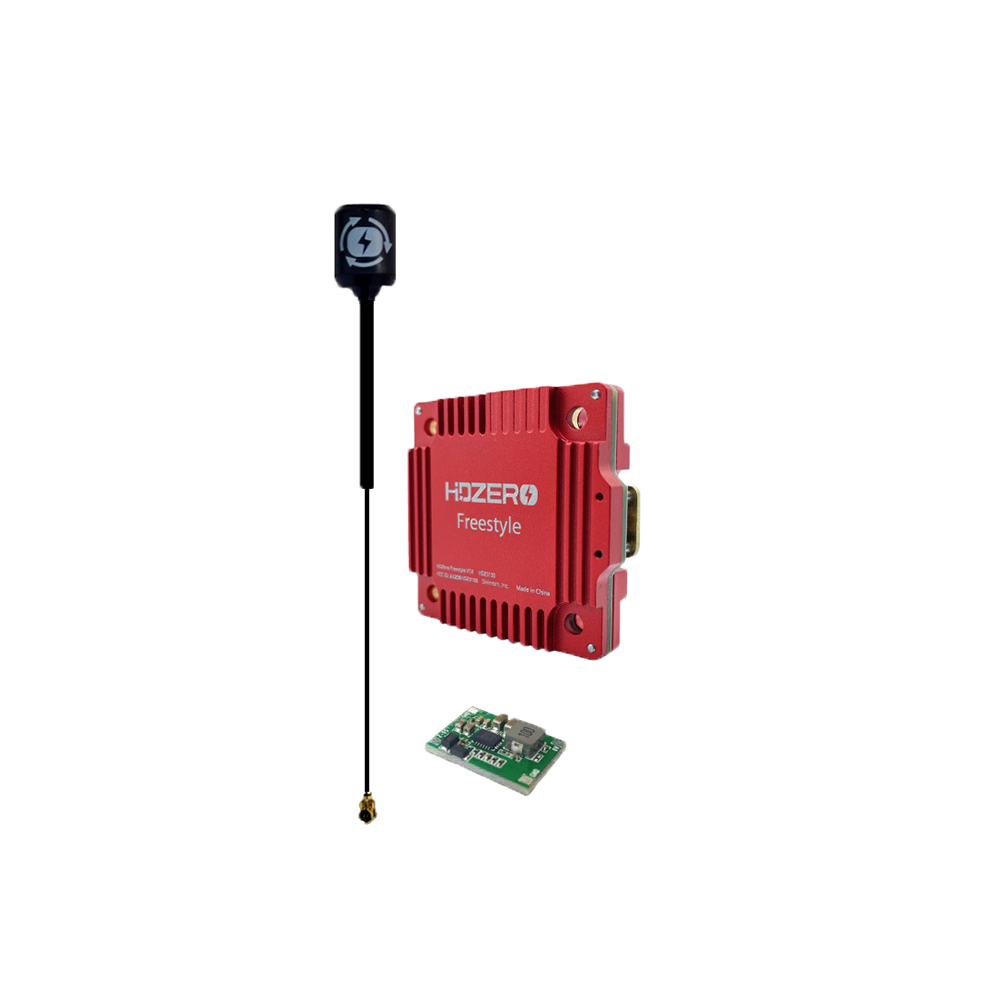

Includes
HDZero Freestyle VTX * 1;
HDZero RHCP Antenna * 1;
Power/ Uart Cables * 1；
u.FL Antenna Retention Screws * 2/Plate * 1
MIPI Retention Screws * 2/Plate * 1
Manual Download
Important Notes
- The Freestyle VTX consumes up to 15W. If it is connected with FC, make sure the FC has enough current. For example, the FC has 10V, it needs minimum 1.5A current output.
- Removing the heat sink is not recommended because it is part of the design.
