$18.99

Shipping calculated at checkout.

In stock!
type: AM32 firmware
quantity: 1 pcs
Select The Options Above
Free Shipping on Orders over $99

Enjoy free standard shipping when you spend $99 or more (except BNF). No hidden fees — just more value with every order.

5-15 Days Express delivery

Tired of waiting for deliveries? Leave it to us—parts typically arrive in 5-8 days, and BNF items in 7-12 days.

In genenral, AM32 firmware is better for crawlers, HF32 is better for airplanes and multirotors.

You can flash HF32 to a ESC with AM32 firmware but you can't flash AM32 firmware to HF32 ESC.

Please select according to your needs.

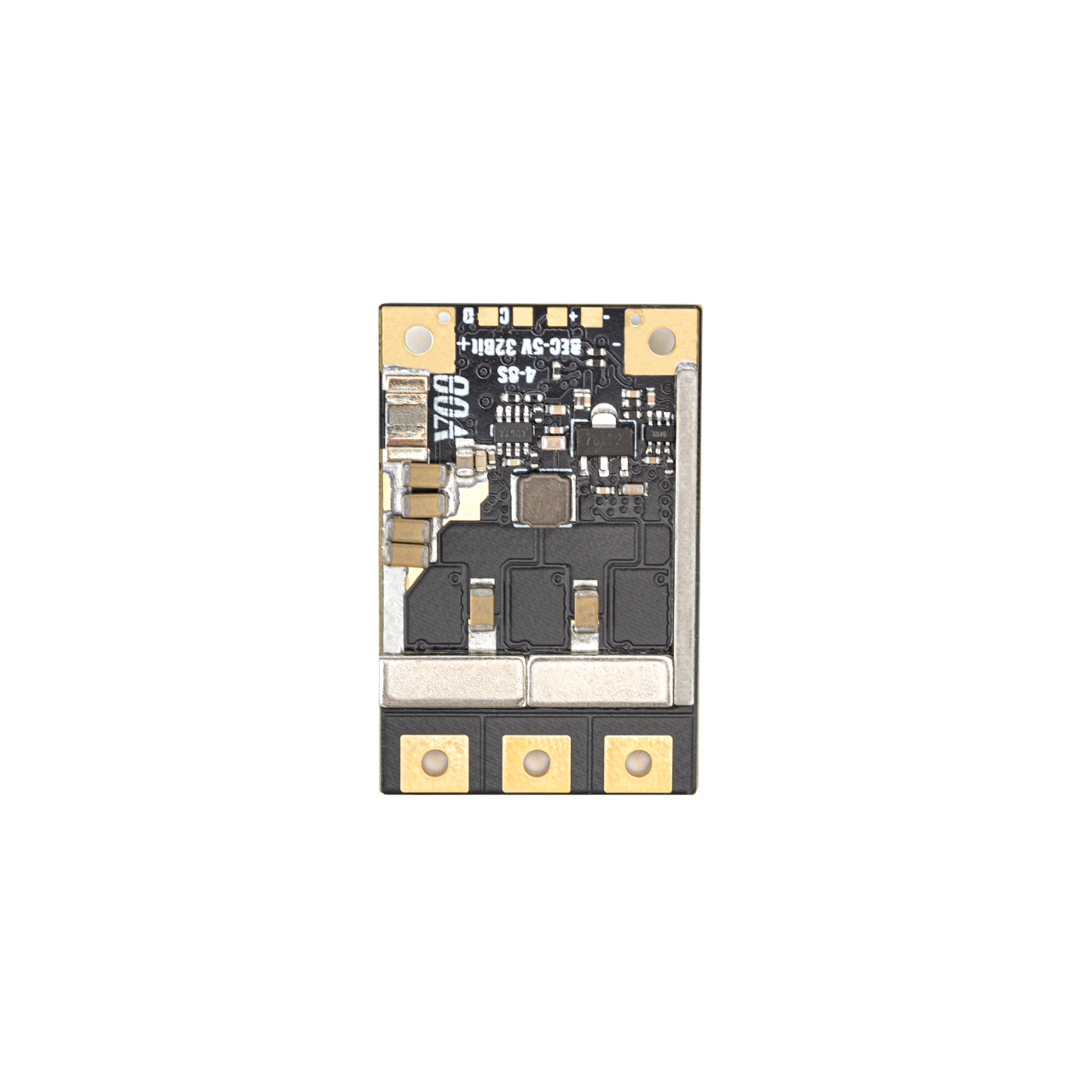

Introduction:

- This is a s 6S 80A single AM32/HF32 firmware ESC developed by OddityRC hardware team. It uses a six-layer board,  3-ounce copper-thick manufacturing process and metal-encapsulated mos tube which has excellent thermal performance and high current handling capabilities.

- It uses AT32F421 MCU which provides excellent computing performance.

- The AM32 firmware is designed specifically for 32-bit ARM processors and is used to control brushless motors (BLDCs). The firmware is designed to be safe and fast, with smooth quick start and linear throttle.  Suitable for various types vehicle cars and flight controllers.

- For more information, please refer to AM32 Github page: https://github.com/AlkaMotors/AM32-MultiRotor-ESC-firmware/wiki/Crawler-Hardware-and-AM32

- HF32 esc firmware is designed for 32-bit BLDC motor electronic speed controllers, aiming for brushless motors in high performance multirotors.

- For more information, please go to HF32 official website: https://hf32.neutron-rc.com/ or Github page: https://github.com/ICpachong/HF32


Specification:

- Item name: OddityRC AM32/HF32 80A brushless ESC
- Protocol: Dshot 300,Dshot 600,PWM(HF32 does not support PWM) etc.
- Telemetry: Support
- BEC: 5V 3A
- Color: Black
- Firmware: AM32/HF32 optional
- MCU: AT32F421 main frequency up to 120MHz operation speed
- Kernel: ARM ® Cortex ® - M4
- Memory: supports up to 64KB of flash memory (Flash) and 16KB
- Working temperature: -40 to 70℃
- Continuous current: 80A
- Burst current: 90A(Instant)
- Peak power: 2000W(Instant)
- Voltage: 10.8V-33.6V (3-8S) lipo battery
- PCB board: 6-layer board with a copper thickness of 3oz inside and outside
- Size: 36.2 x 24.3mm
- Used for 13inch heavy payload FPV drone, fixed wing airplane, ship model, car model, etc.

AM32 Features:

- Variable PWM frequency
- Sine wave start mode

HF32 Features:

- Digital signal protocol: Dshot 150, 300 and 600
- Bidirectional Dshot: RPM telemetry
- High performance: Low comminucation interference
- Smoother PWM ramping
- User configuration startup tunes
- Numerous optimizations and bug fixes

Matters needing attention

- When operating with continuous high current, please provide good heat dissipation for ESC.
- If the ESC can not run after setting the parameters, please set the ESC parameters
  to default and try to adjust parameters again.

Package includes:

- 1pcs AM32/HF32 firmware single ESC
- 1pcs aluminum heat sink
- 2pcs 35V 1000uf high frequency electrolytic capacitor
- 1pcs power cord with XT60 plug
- 1pcs signal cable
