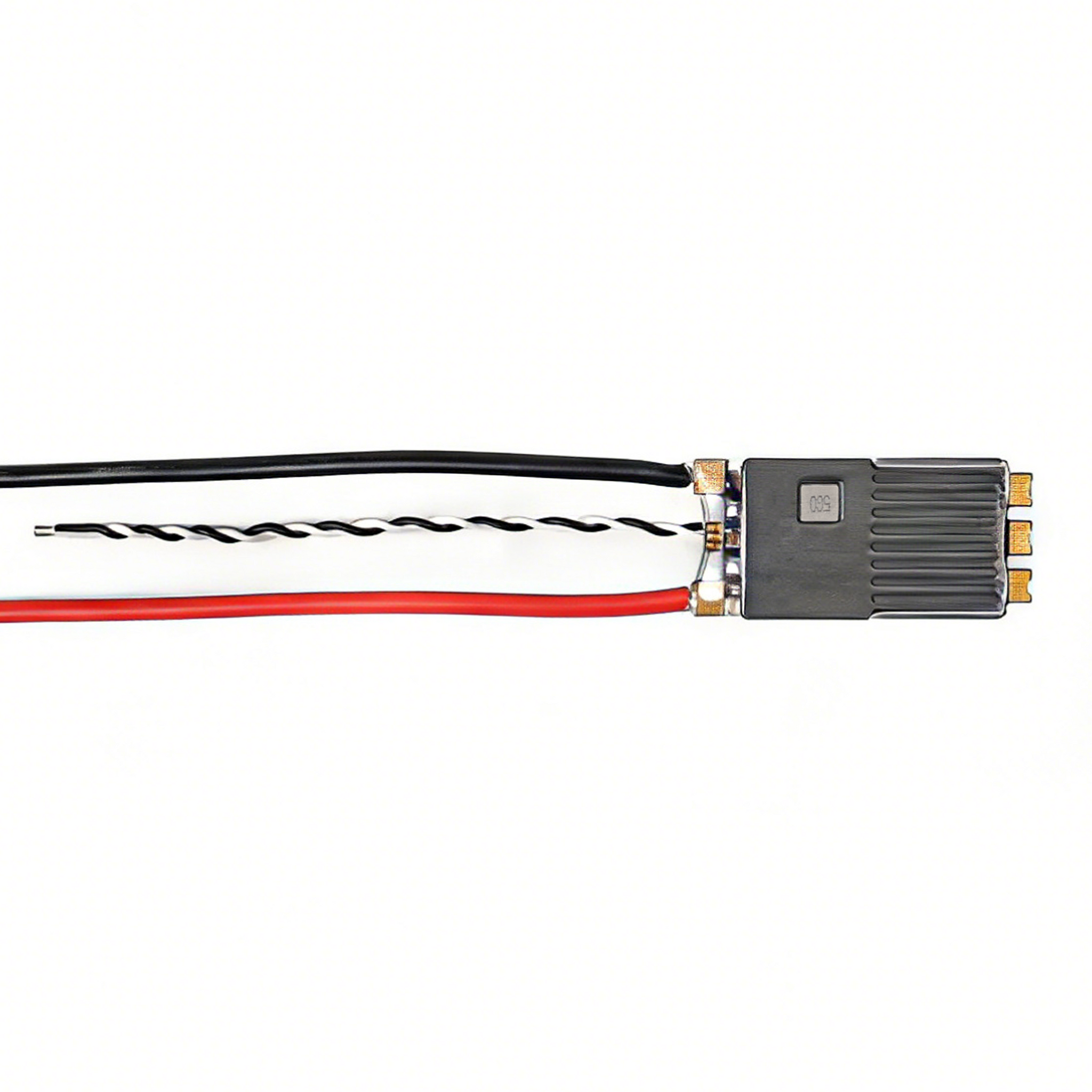

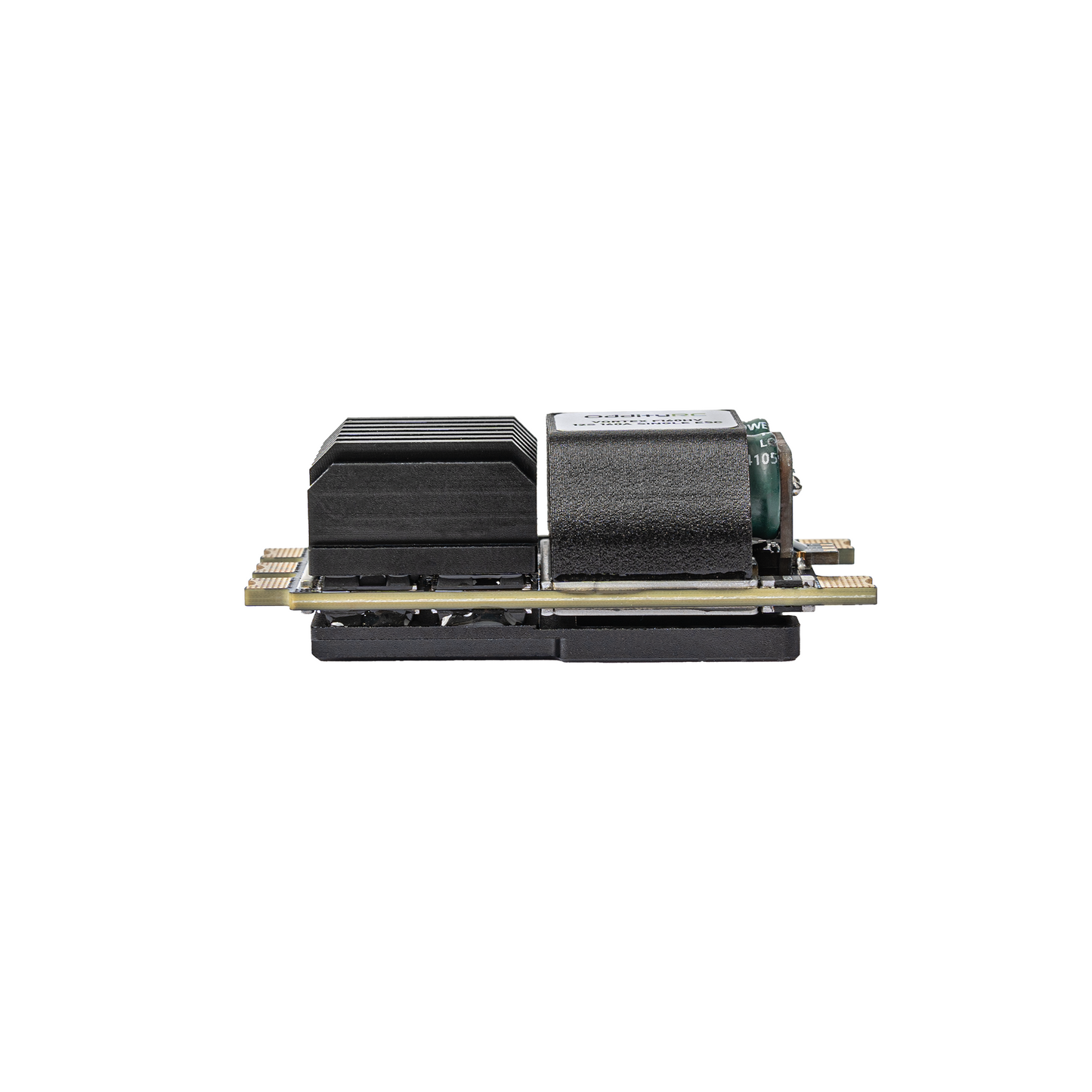

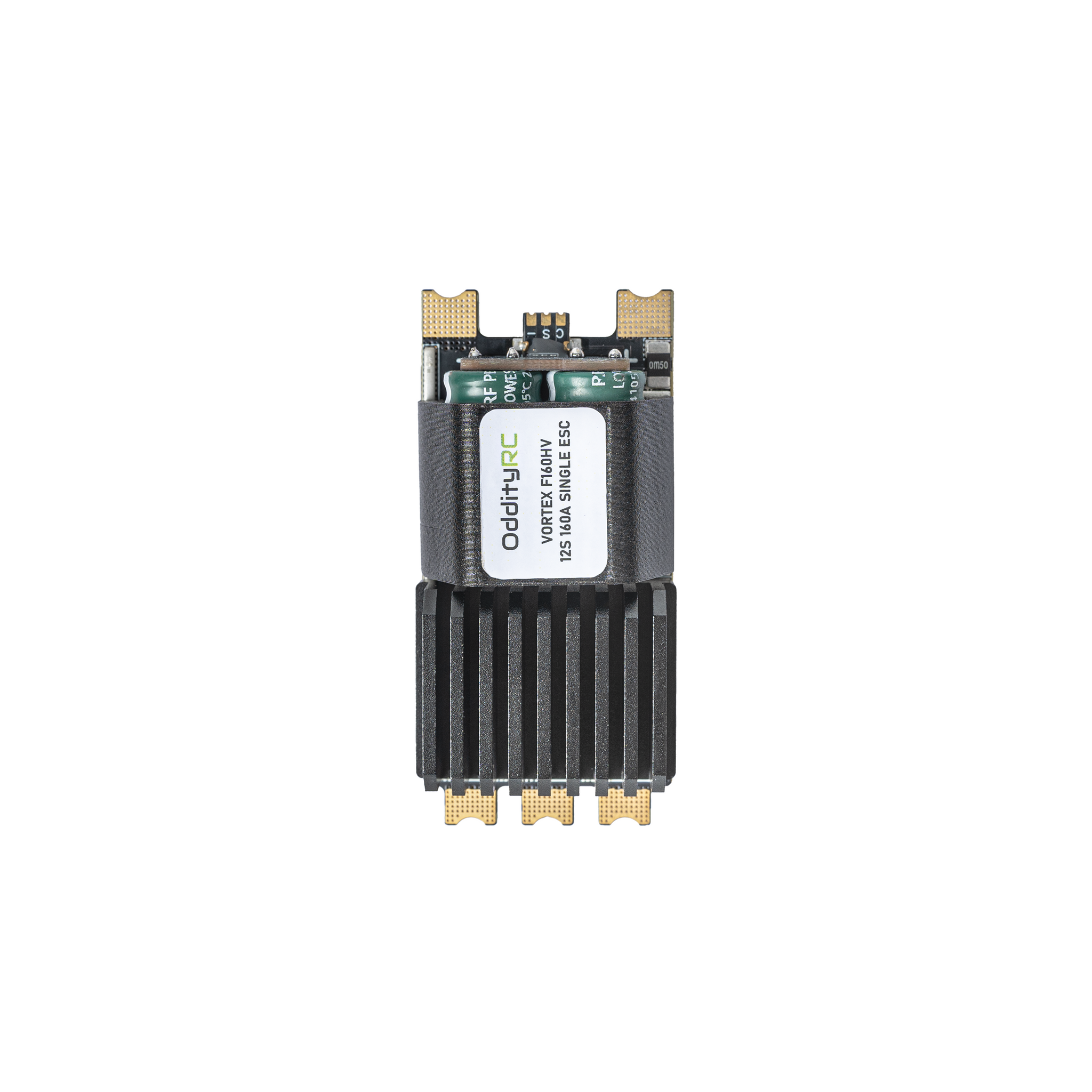

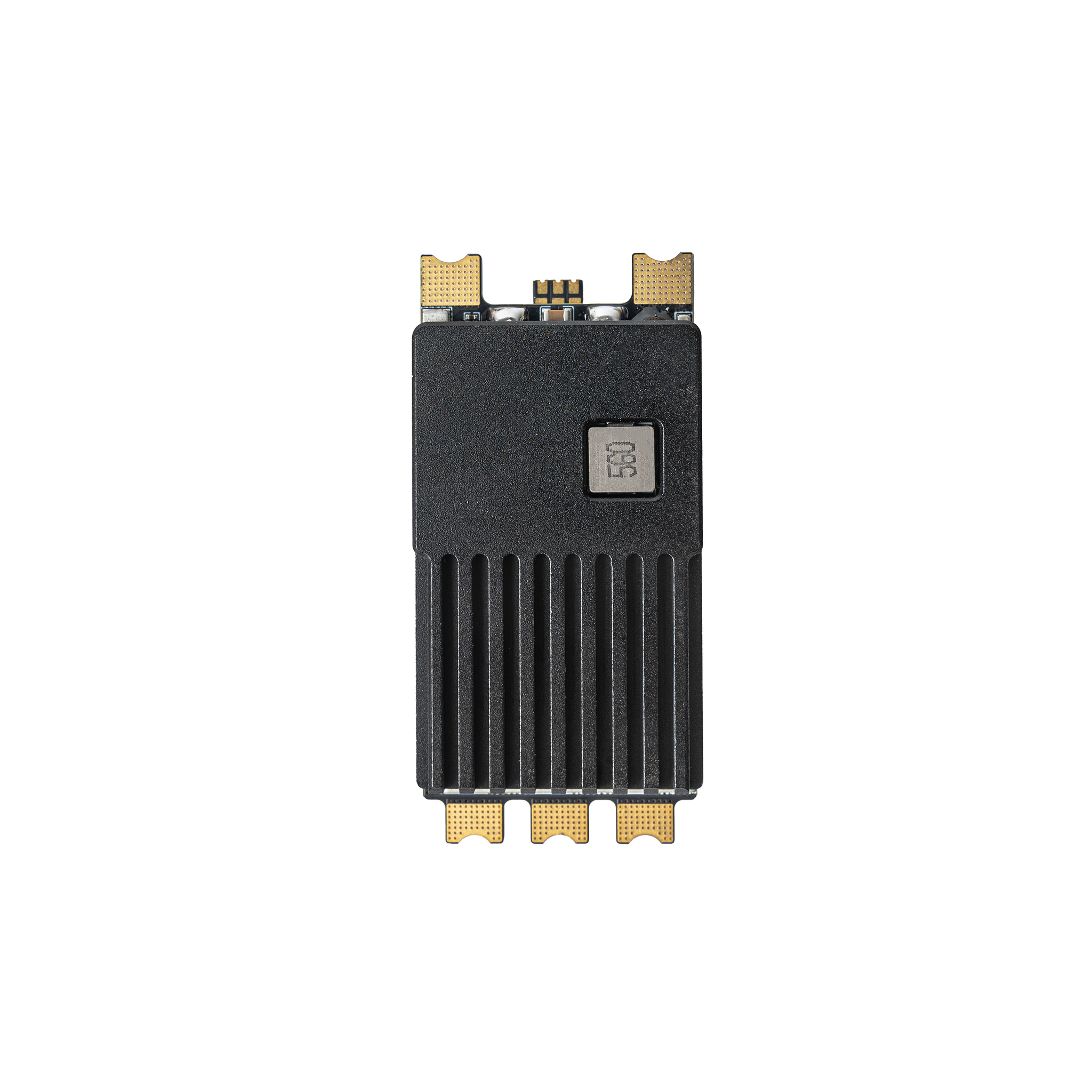

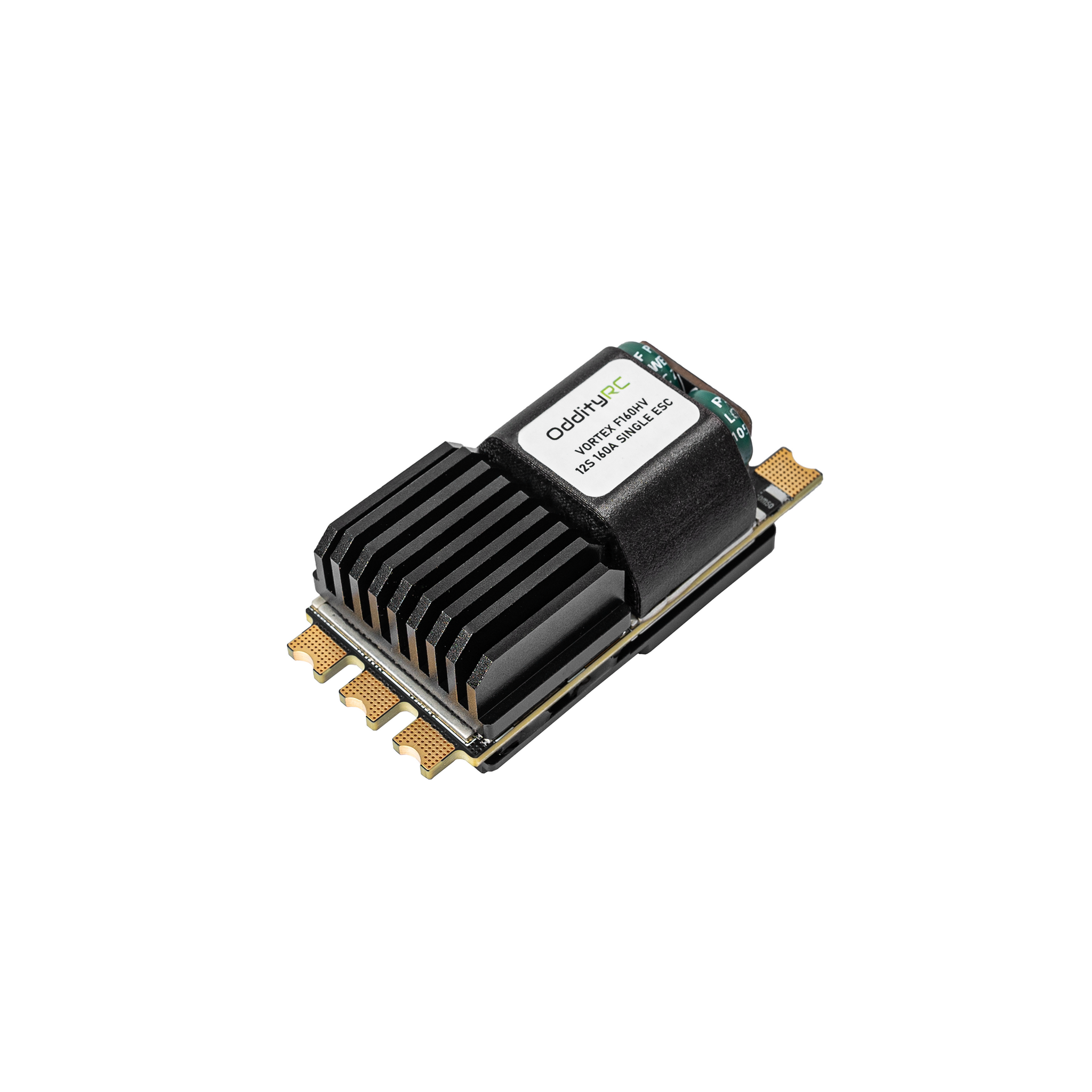

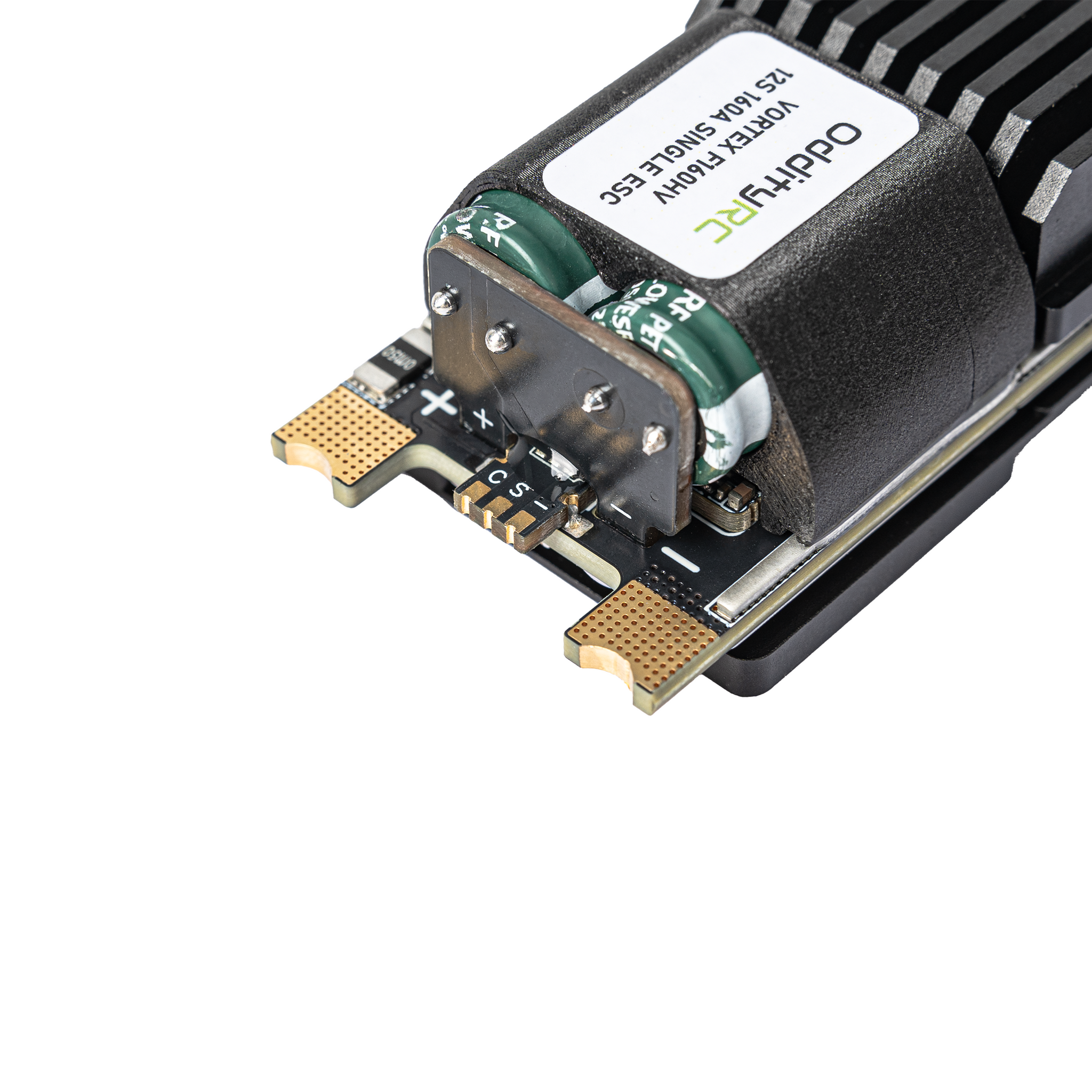

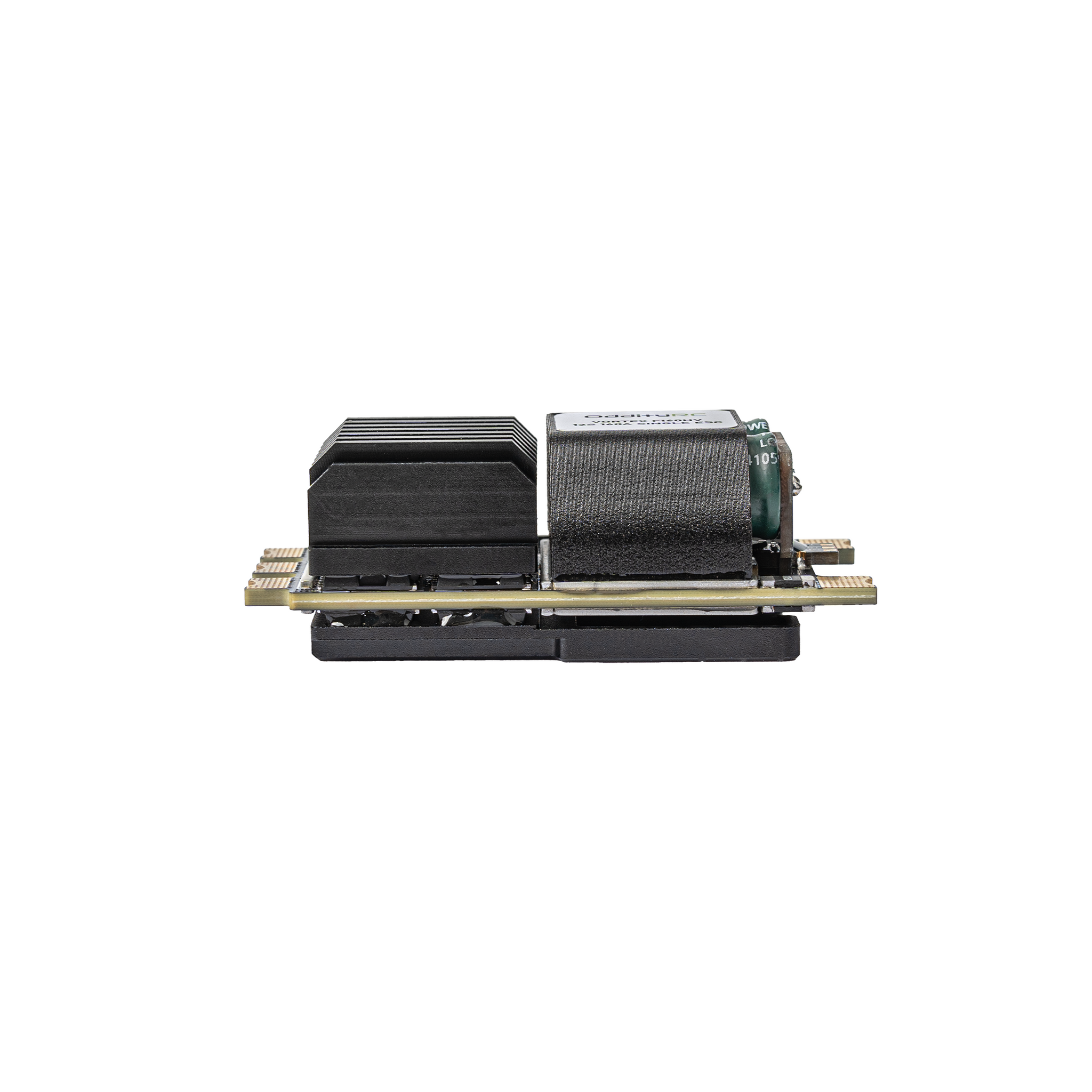

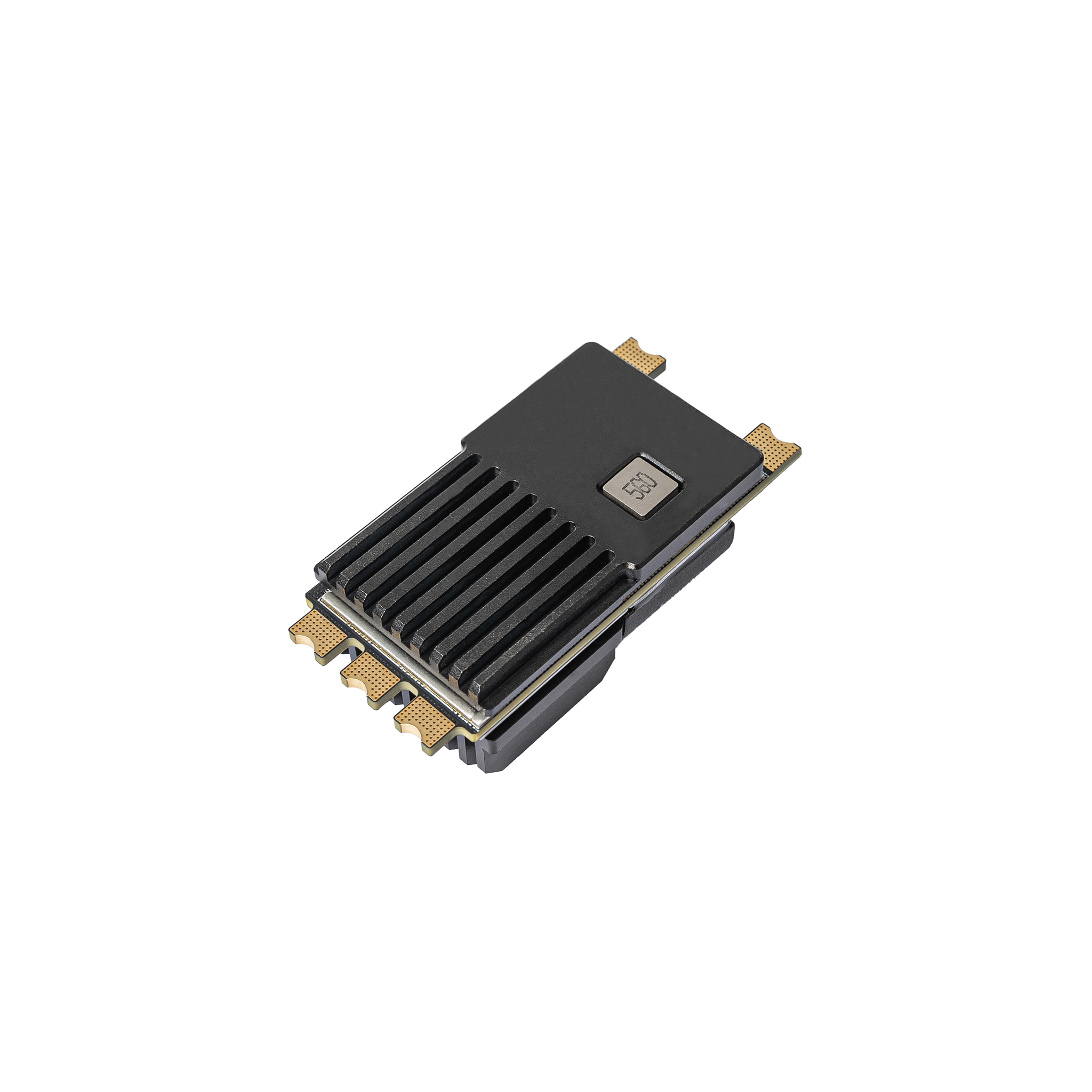

OddityRC Vortex F160HV 12S 160A SINGLE ESC (BLS Bluejay)
Shipping calculated at checkout.
Couldn't load pickup availability
INTRODUCTION
The OddityRC 160A 12S ESC is a versatile powerhouse designed for high-voltage reliability. Supporting 6S to 12S LiPo, it provides rock-solid stability for giant-scale fixed-wing planes, high-speed EDF jets, long-range UAVs, and heavy-lift Cinelifters.
SPECIFICATION
- Continuous / Peak Current: 160A
- Input Voltage: 6S - 12S LiPo
- Firmware Version: BLHeli_S / Bluejay
- Weight (with wire): 145g
- Dimensions: 75mm * 35mm * 26mm
- Supported Protocols: DShot 150/300/600/1200, MultiShot, OneShot
- External Capacitors: 2 x 1000uF/63V high-frequency, low-resistance capacitors (Recommended)
KEY FEATURES
- Features a large-area, thickened aluminum alloy heatsink integrated with OddityRC’s proprietary airflow structure for superior cooling performance.
- Ultra-Low Resistance: Equipped with dual parallel, ultra-low internal resistance MOSFETs to ensure extreme stability under high-current loads.
- 10-Layer PCB: A high-spec 10-layer PCB design significantly reduces heat accumulation and enhances durability.
- Flexible Firmware: Supports BLHeli_S / Bluejay firmware (configurable based on your specific build requirements).
- Real-time Monitoring: Includes a built-in current sensor for precise telemetry and power management.
WIRING DIAGRAM
WEIGHT
DIMENSION
