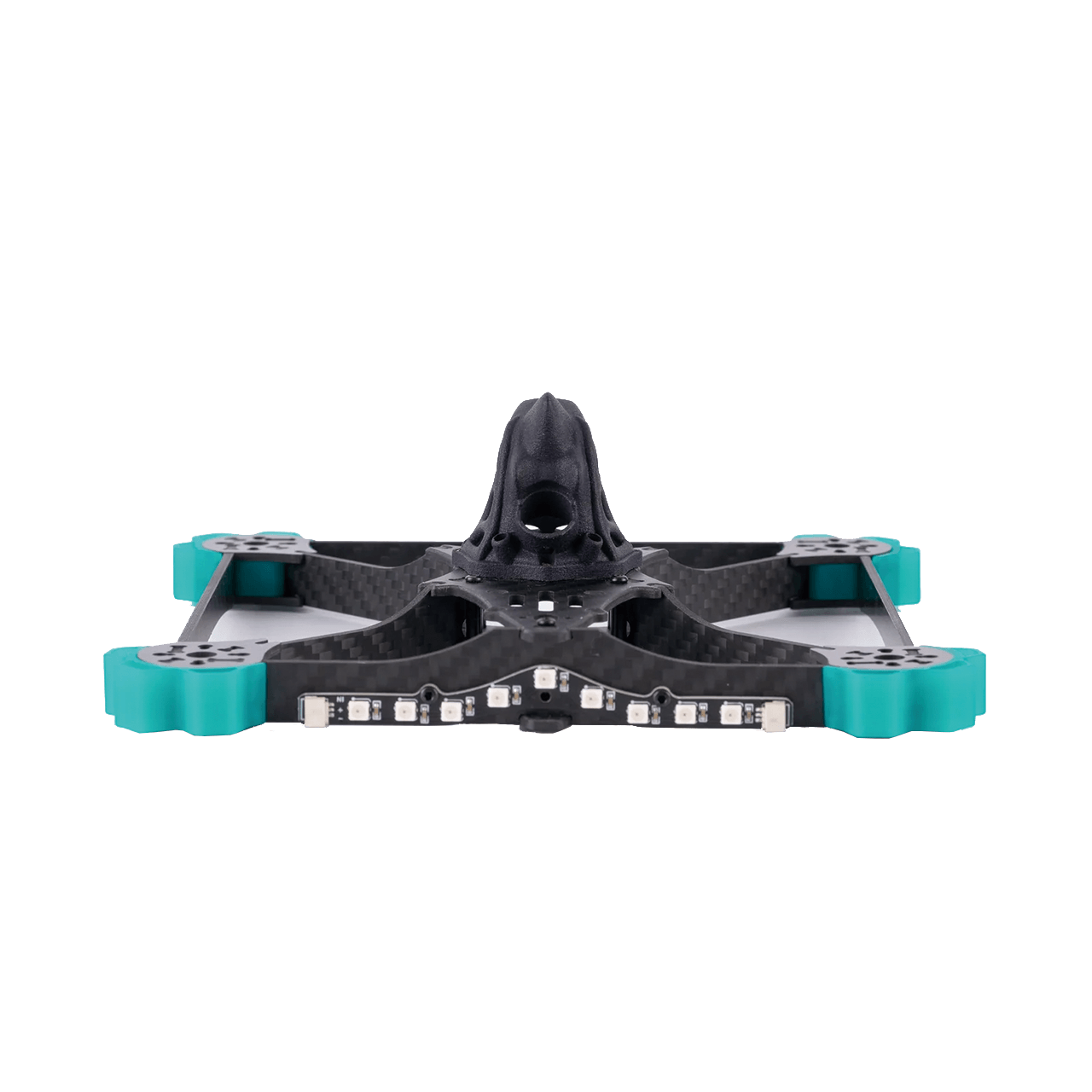

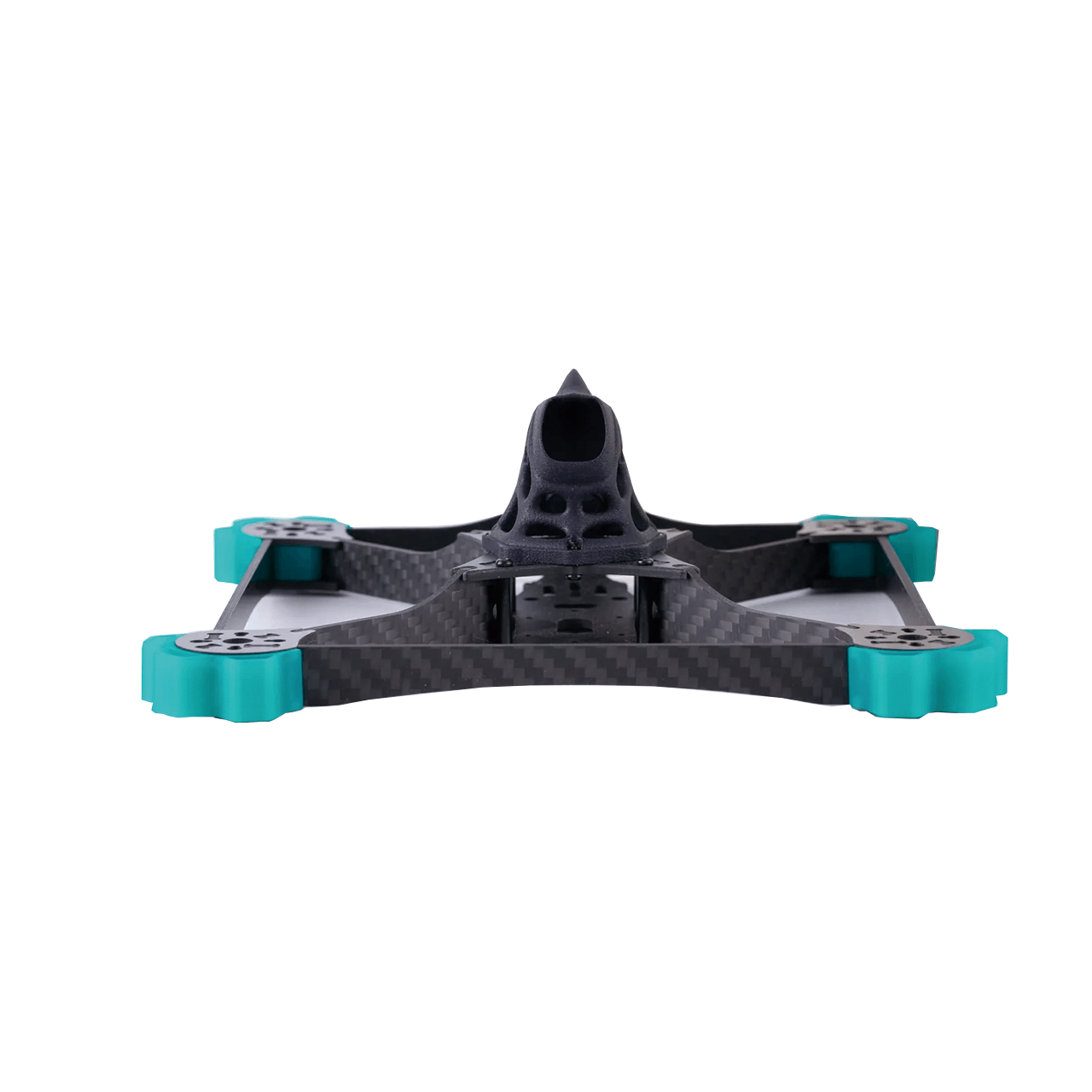

Monolith 5-inch Vista version

Description:

The series of Monolith’s frame define OddityRC's iconic mortise and tenon design. The frame pays tribute to the traditional Chinese tenon-and-mortise structure, which can minimize weight and wind’s resistance while keeping the body stable and sturdy. It is also suitable for lightweight toothpick’s configurations and mainstream heavy-duty racing configurations. The frame is additionally equipped with a canopy antenna adapter,a injection motor seat protector of TPU, and a flexible wire micro USB adapter.



• The name of product ：Monolith 5-inch vista version
• Mortise and tenon structure design

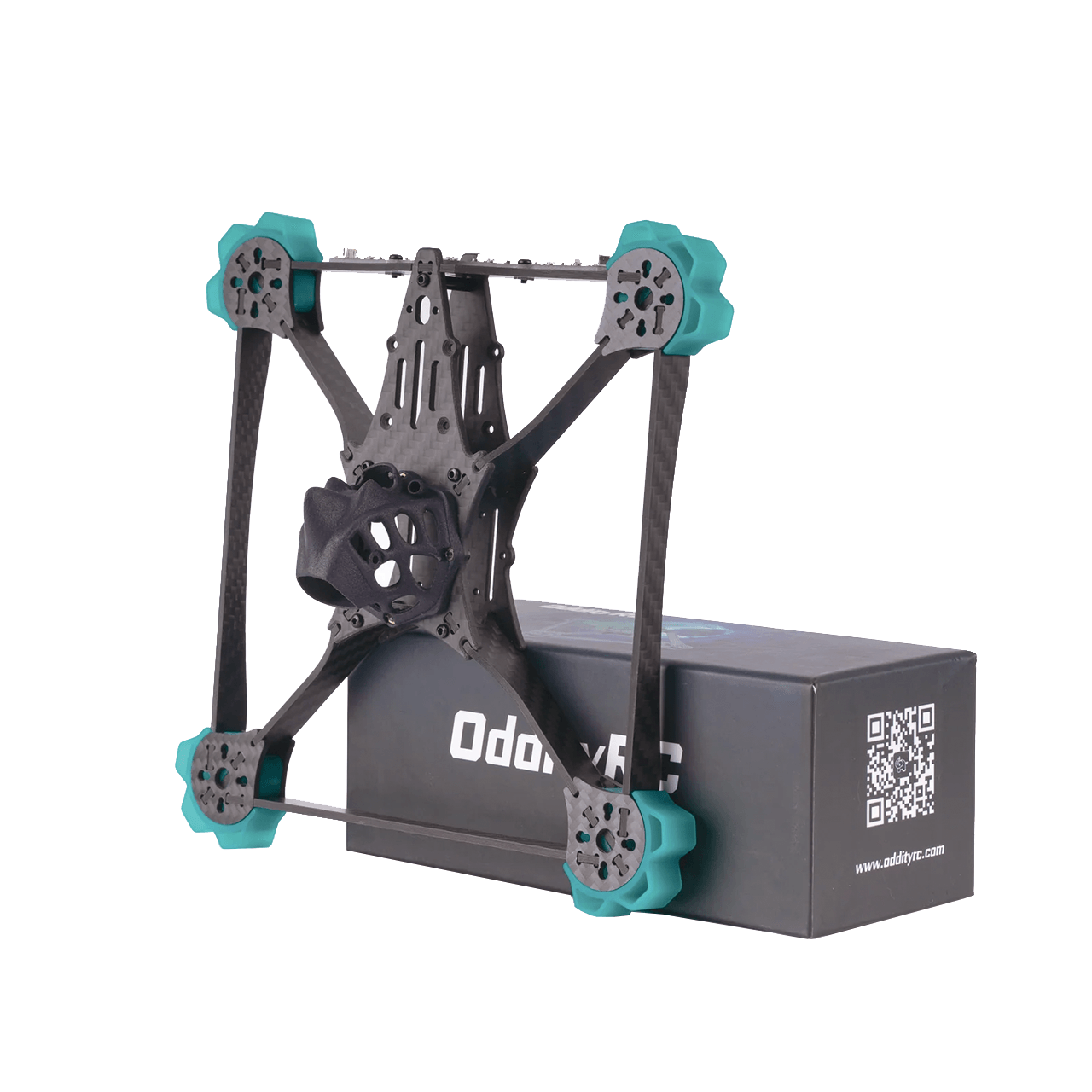

• Exclusive outer box for the Monolith series
• FDM Printed TPU Head Cover Antenna Adapter

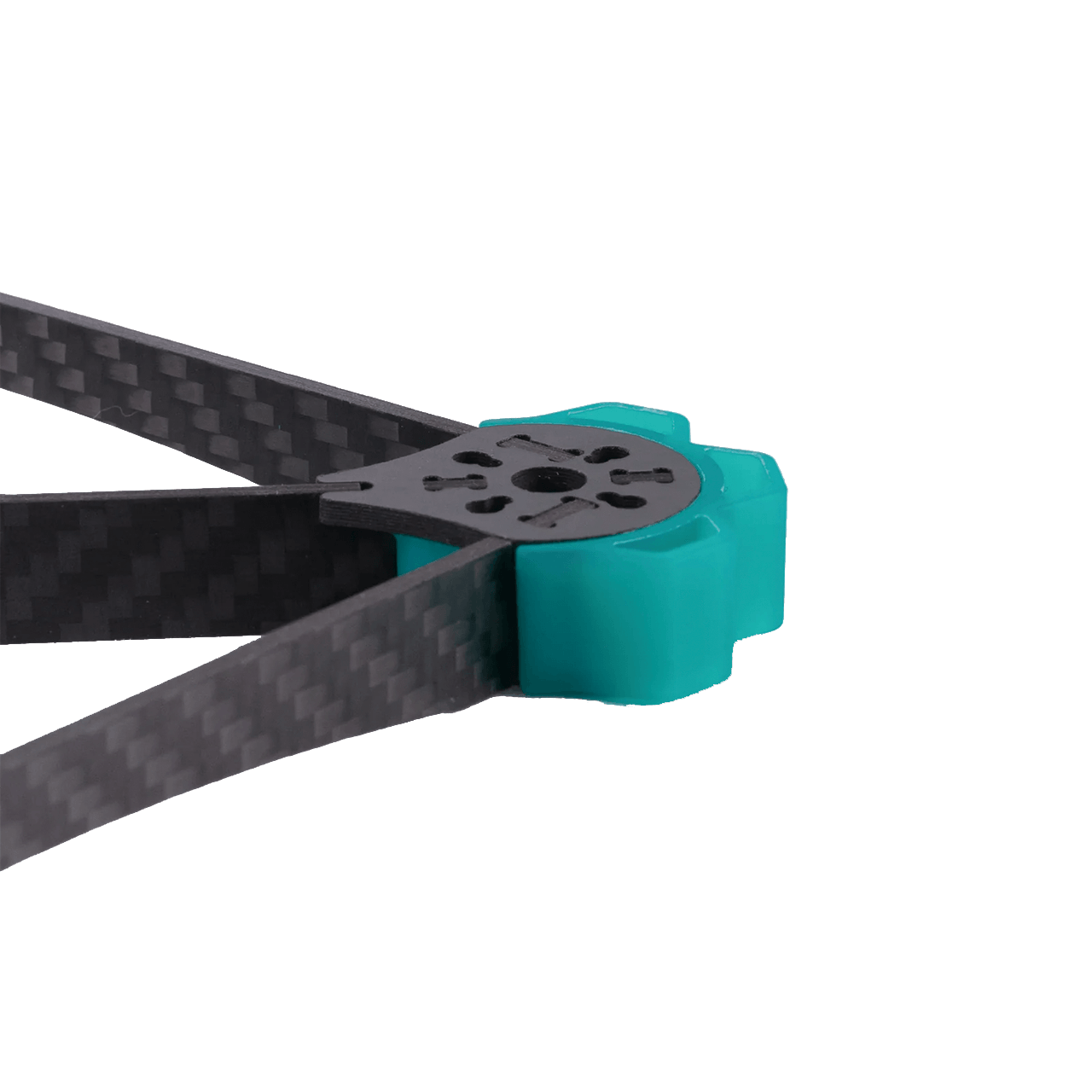

• High-precision mold injection TPU motor seat protector
• Soft line micro-USB parameter adjustment adapter board



Description:

The series of Monolith’s frame define OddityRC's iconic mortise and tenon design. The frame pays tribute to the traditional Chinese tenon-and-mortise structure, which can minimize weight and wind’s resistance while keeping the body stable and sturdy. It is also suitable for lightweight toothpick’s configurations and mainstream heavy-duty racing configurations. The frame is additionally equipped with a canopy antenna adapter,a injection motor seat protector of TPU, and a flexible wire micro USB adapter.



• The name of product ：Monolith 5-inch vista version
• Mortise and tenon structure design
• Exclusive outer box for the Monolith series
• FDM Printed TPU Head Cover Antenna Adapter
• High-precision mold injection TPU motor seat protector
• Soft line micro-USB parameter adjustment adapter board



Detailed parameters:

The wheelbase:190 mm

The interior height:15 mm

The hole of flight control :20 mm/25.5 mm

The hole of vista:20 mm

The installation of motor:12 mm/16 mm

The hole of canopy:25.5 mm

The hole of camera:14 mm

Weight:61 g(carbon fiber plate+canopy)

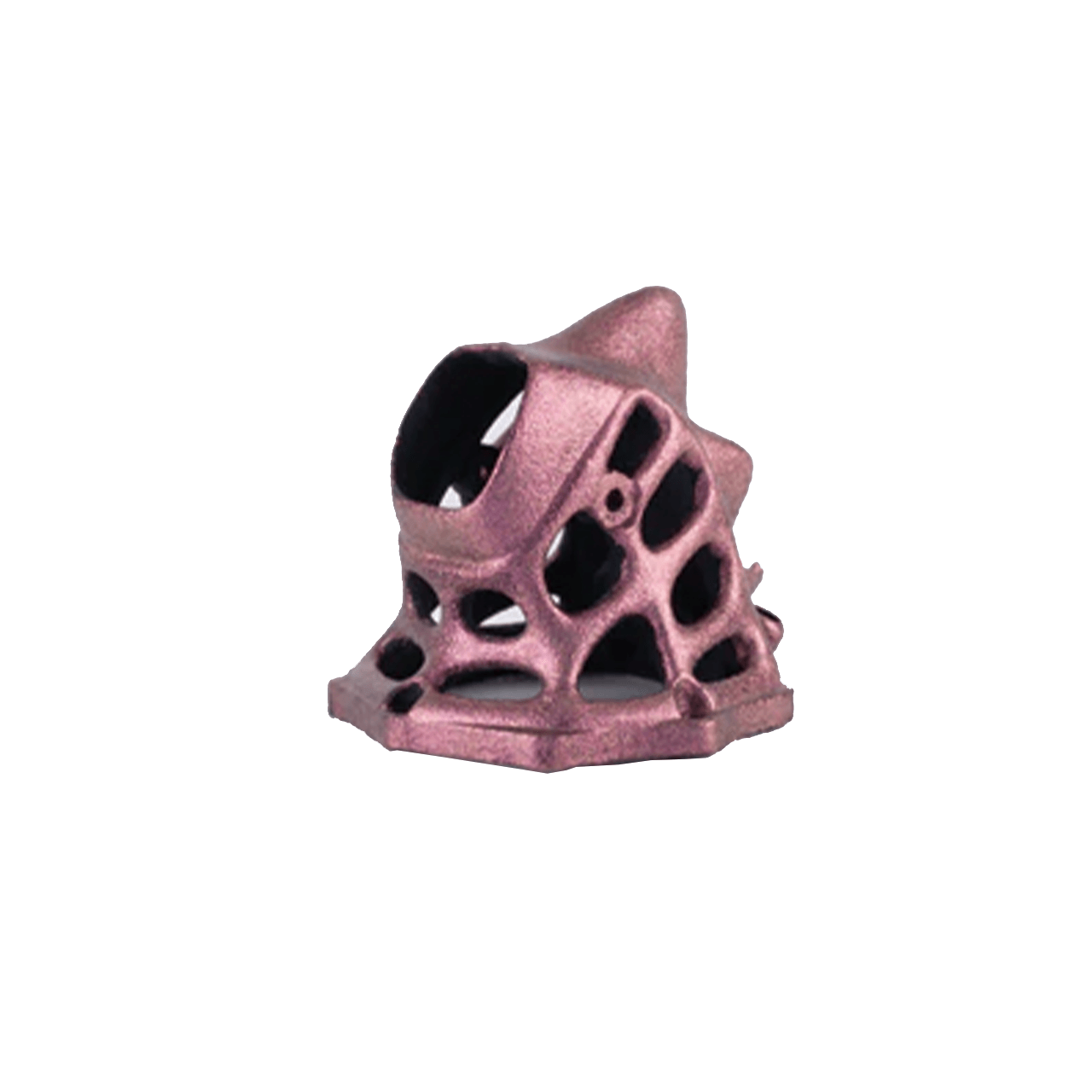

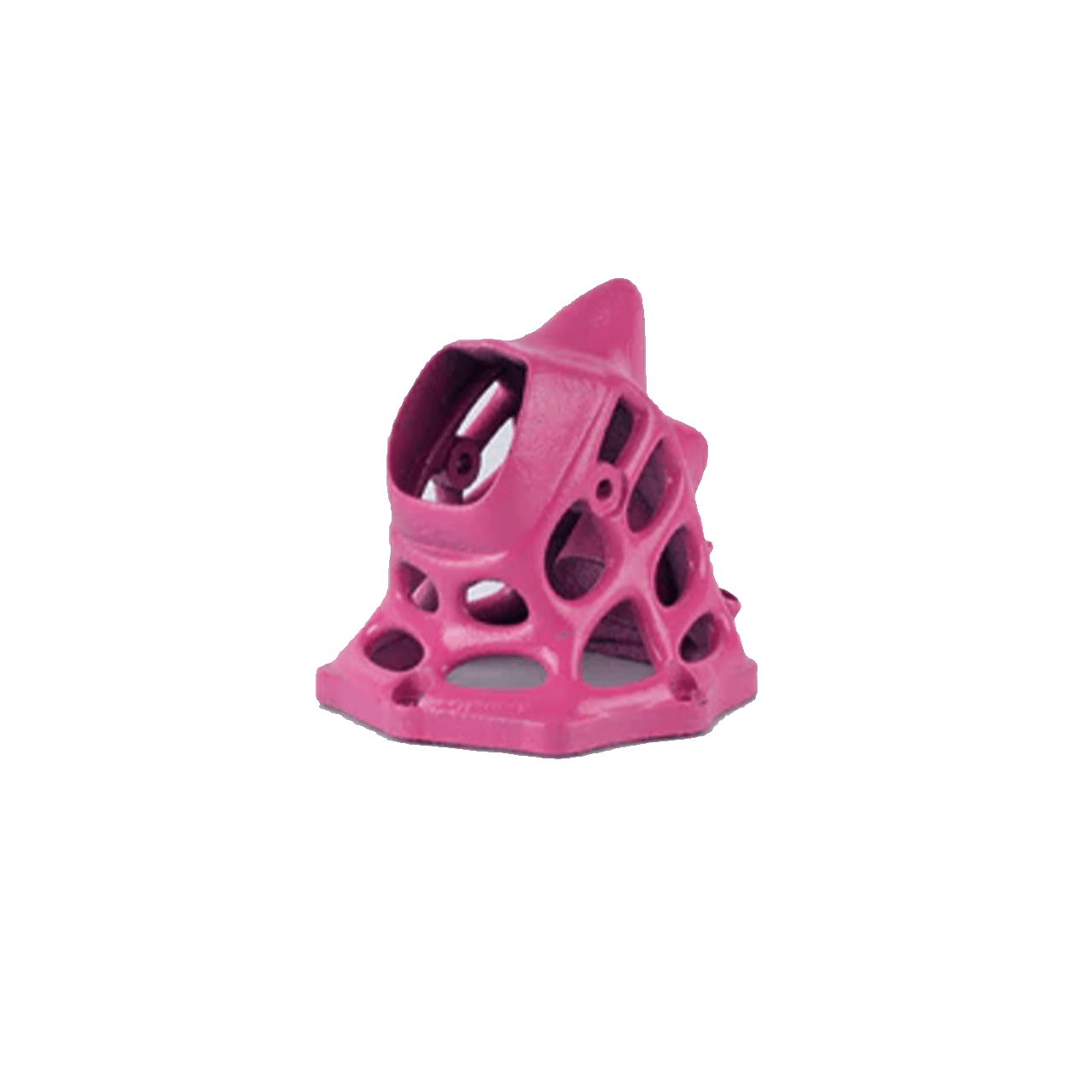

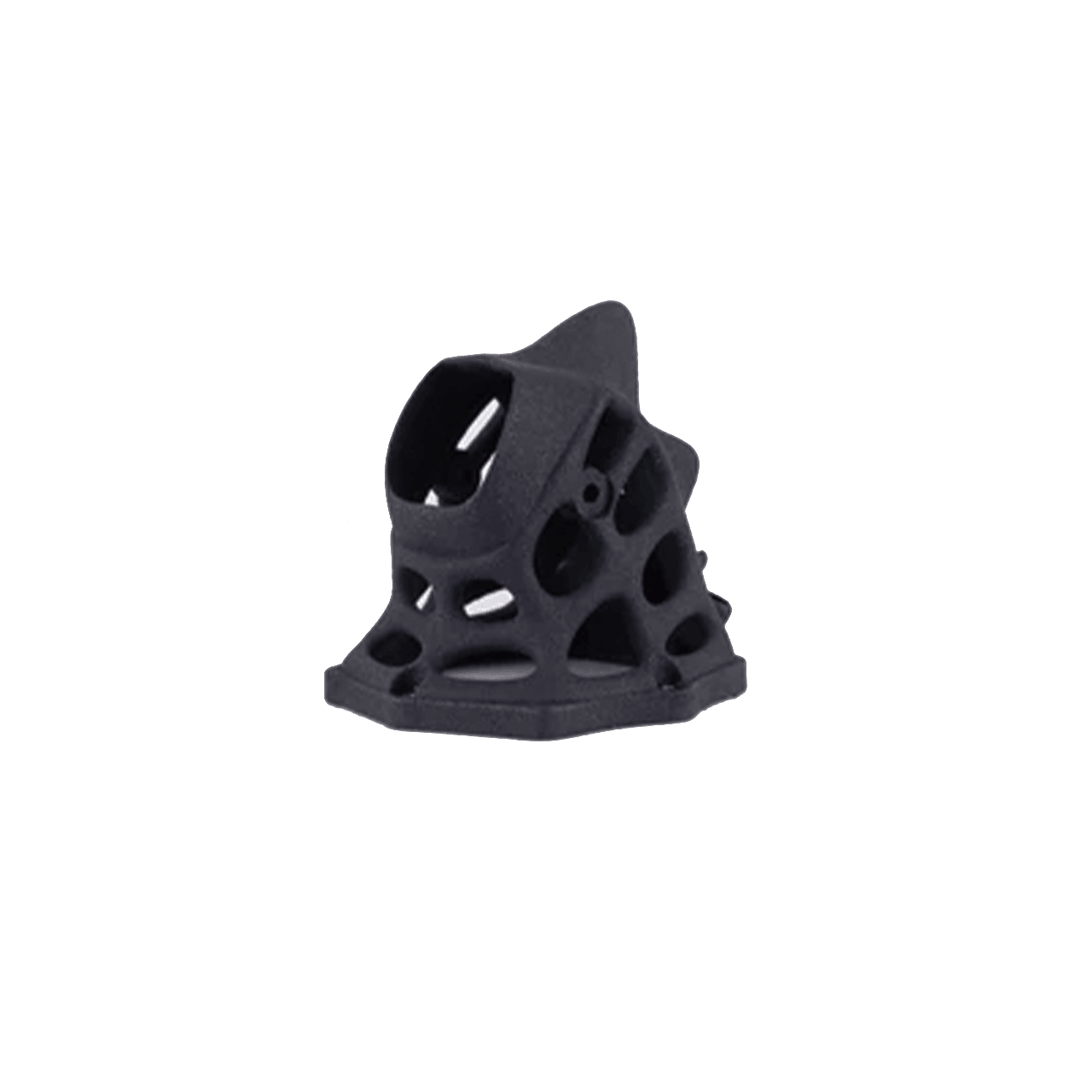

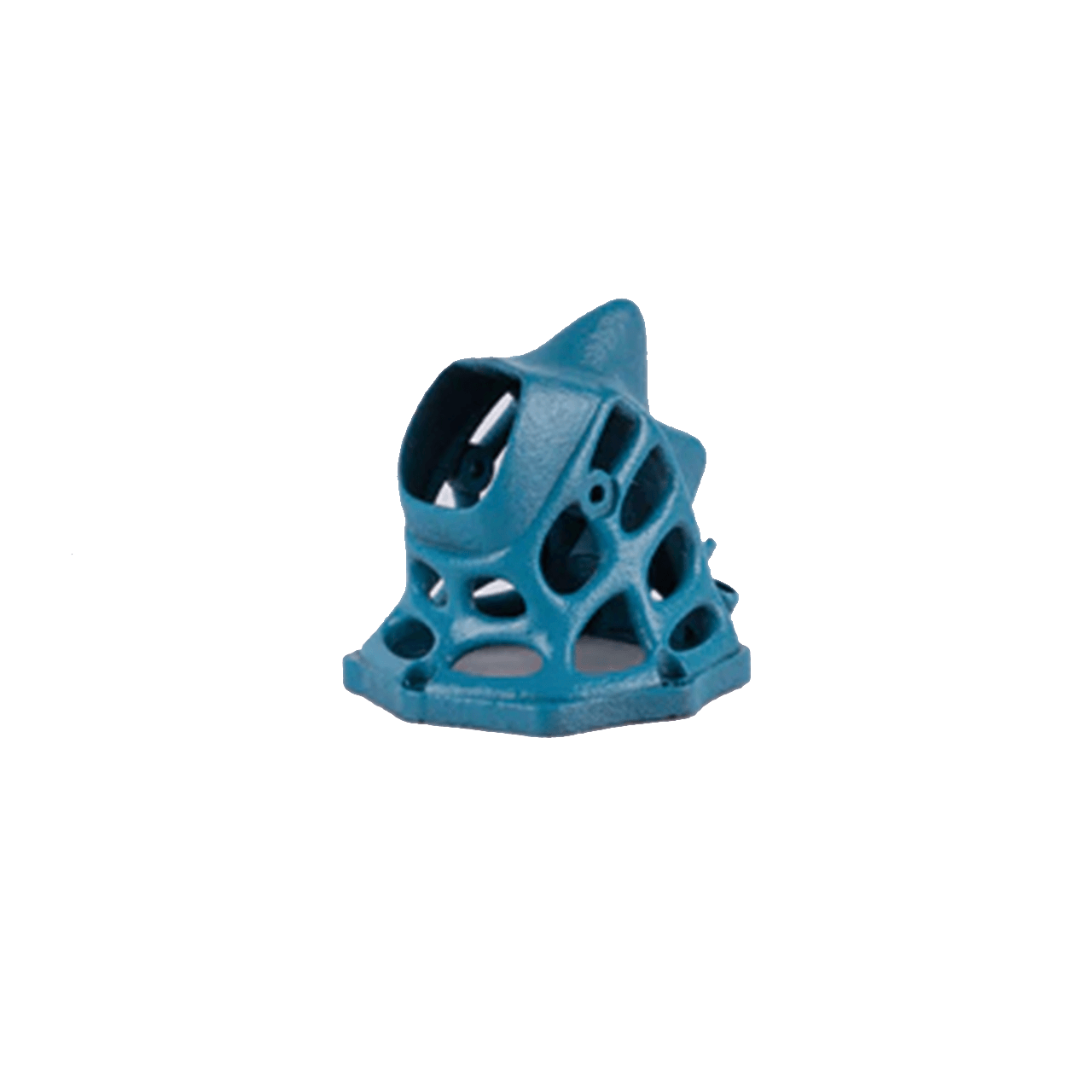

Little dinosaur hood

• It is sintered and formed from sls nylon.
• Knurled copper nuts are embedded inside.
• Antenna adapter is included

Weight: 5.2 g

The location of hole:25.5 mm

14mm’s camera is compatible

The foxeer micro lolipop antenna/rush cherry/Pigtail antenna are compatible

Tips:

The tips of installation :When installing the connection part of the frame, you need to gently tap it with a rubber mallet,its purpose is to make it fit,you can also install it  by using a clamp table

Matters needing attention:Due to the material, there may be a slight error between the actual color and the picture.

Some open source printouts can be downloaded from the thingiverse website by searching oddityrc_support.
