- SKU:
- VENDOR: OddityRC

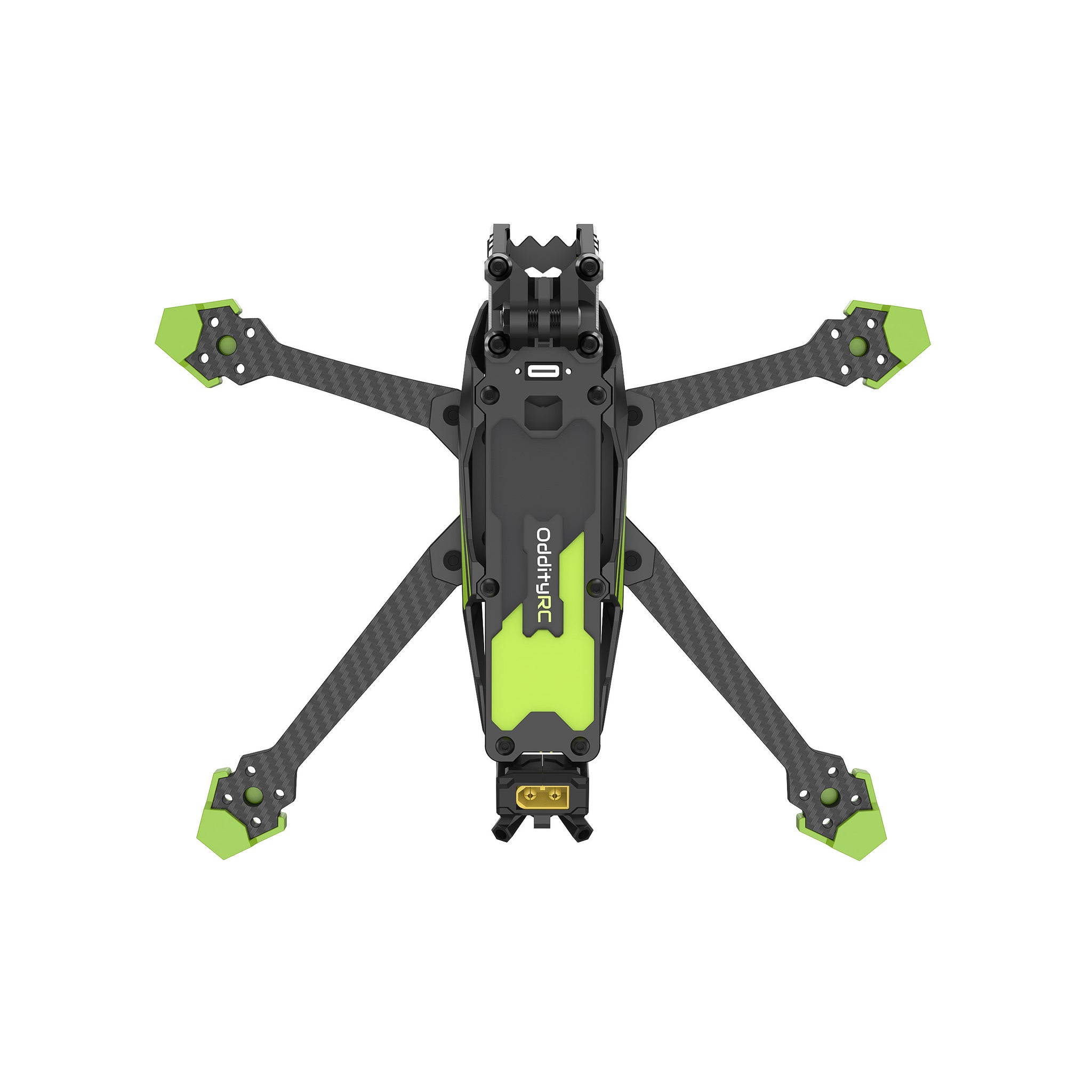

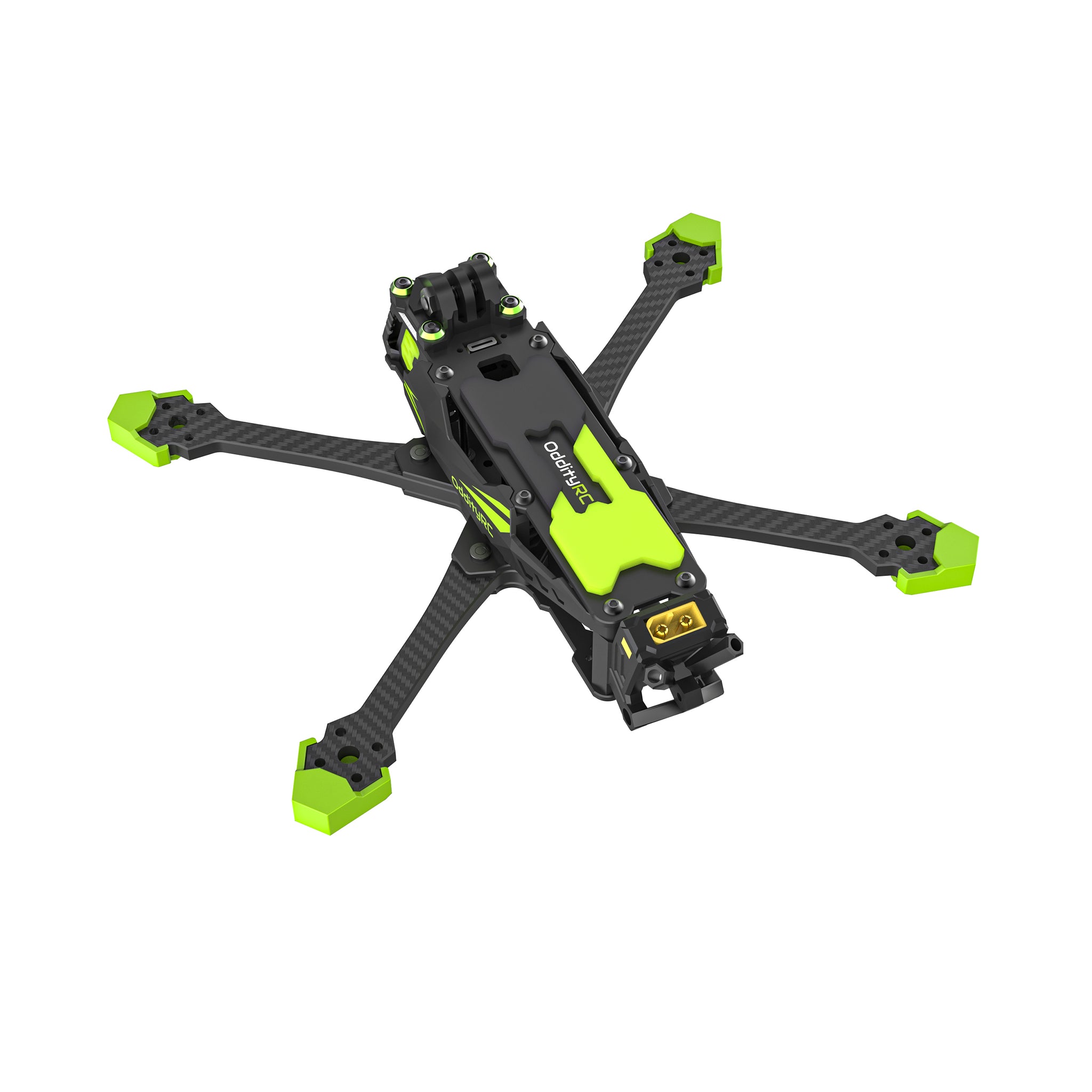

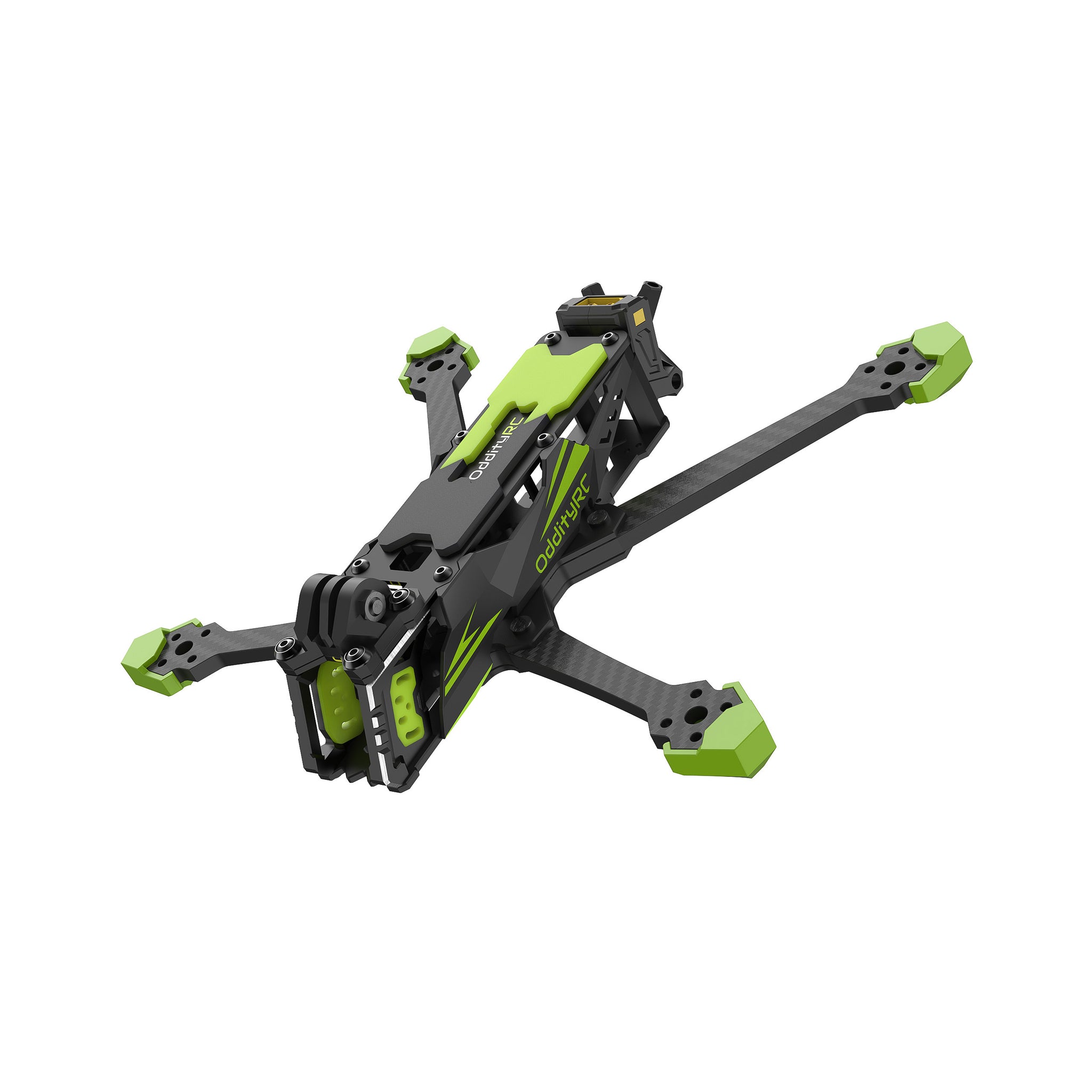

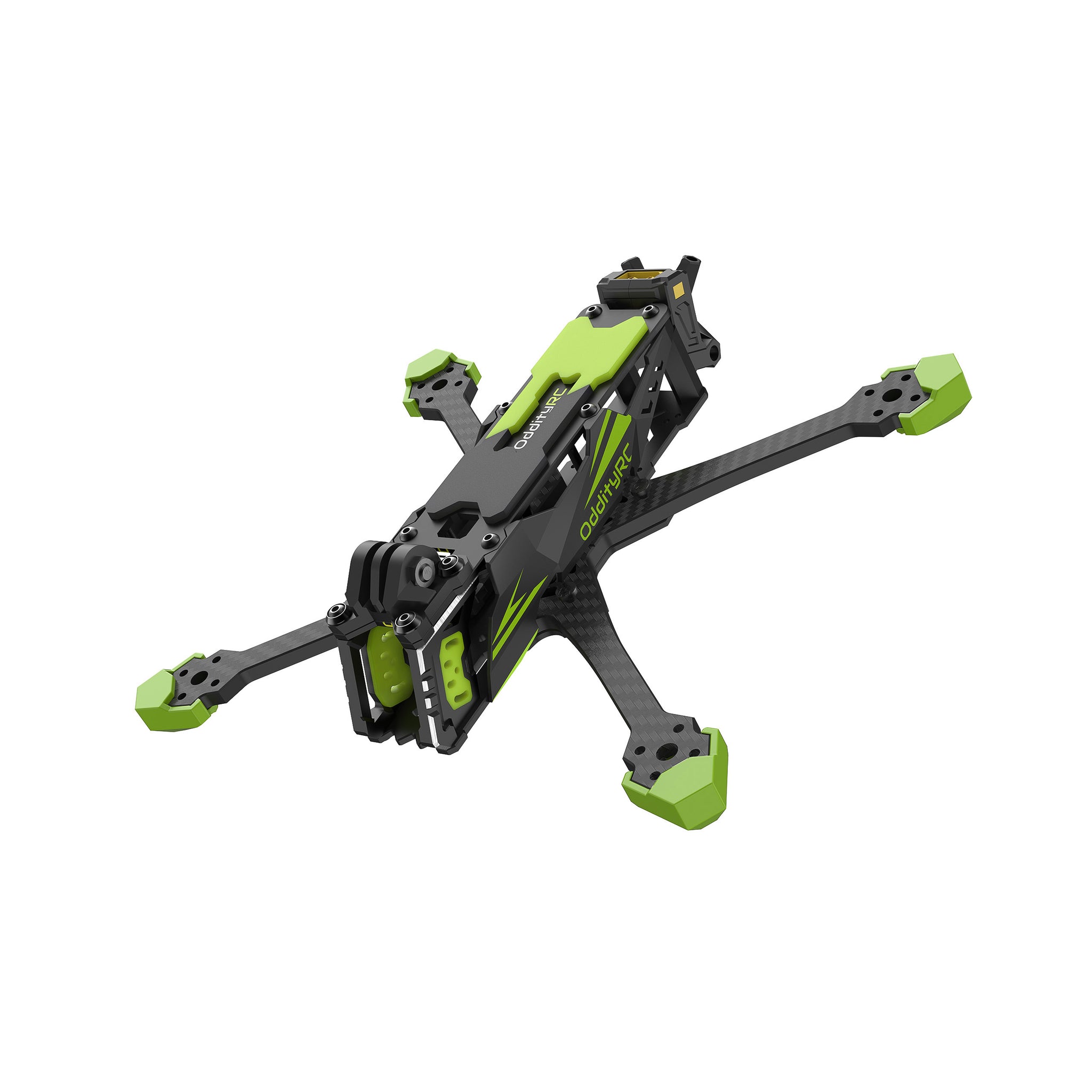

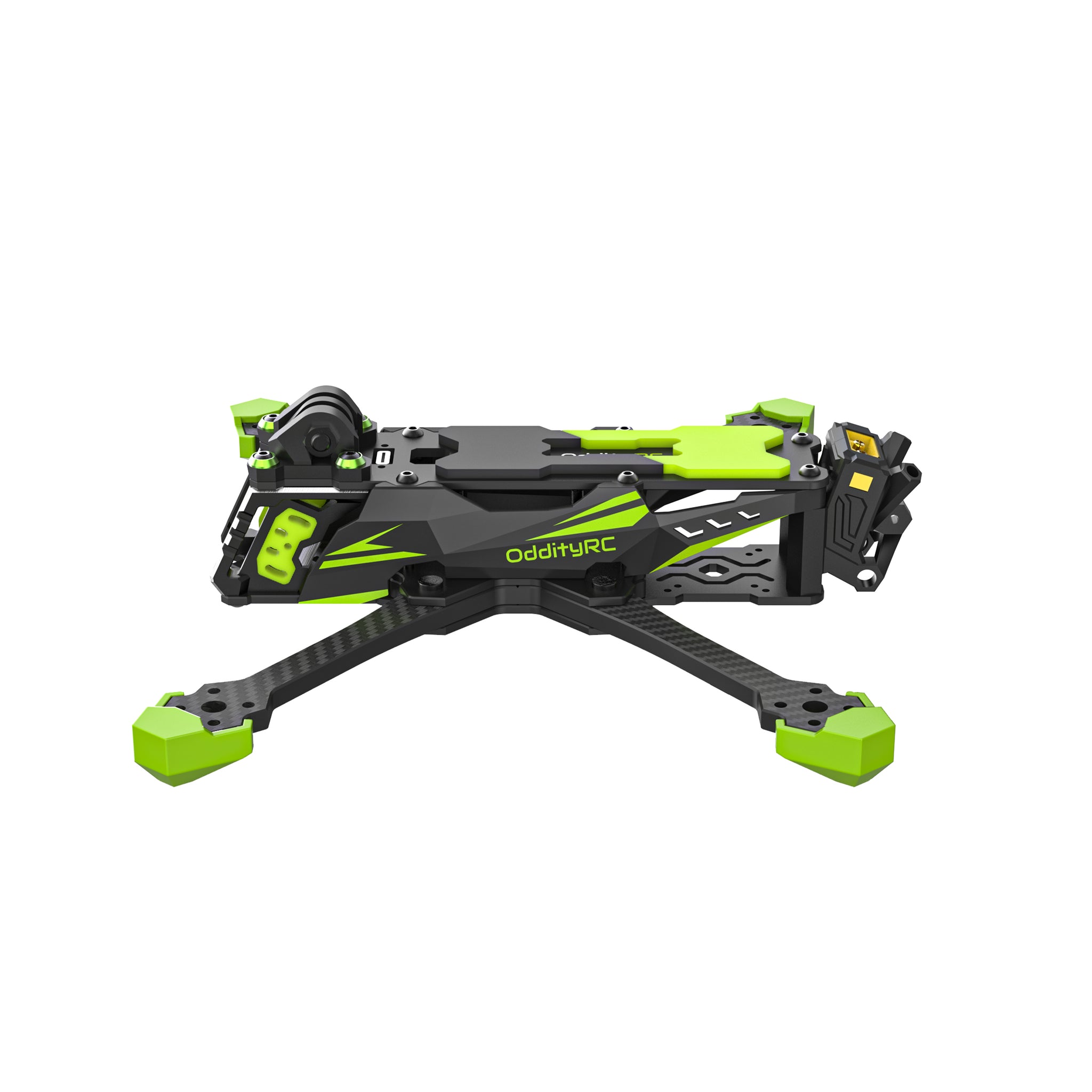

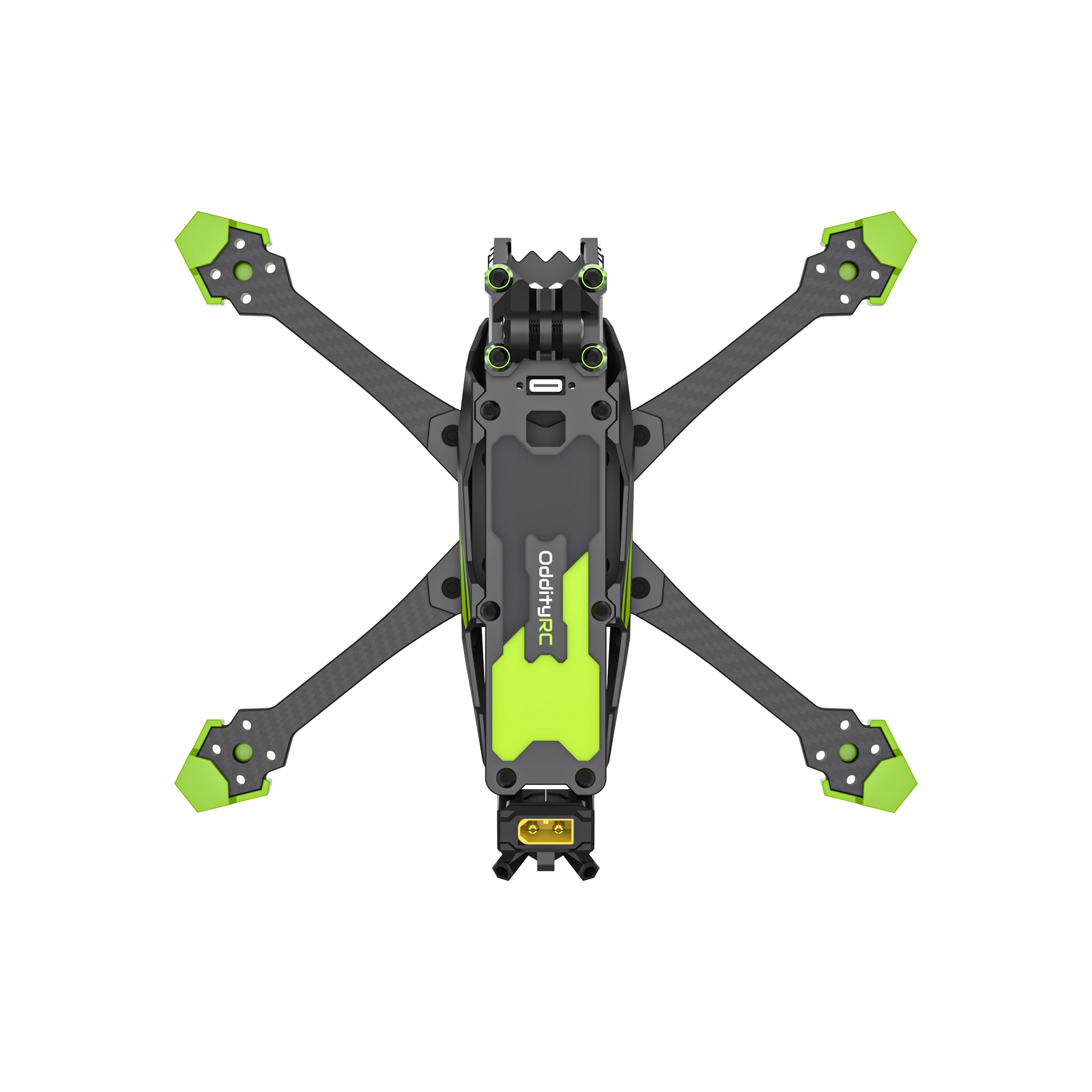

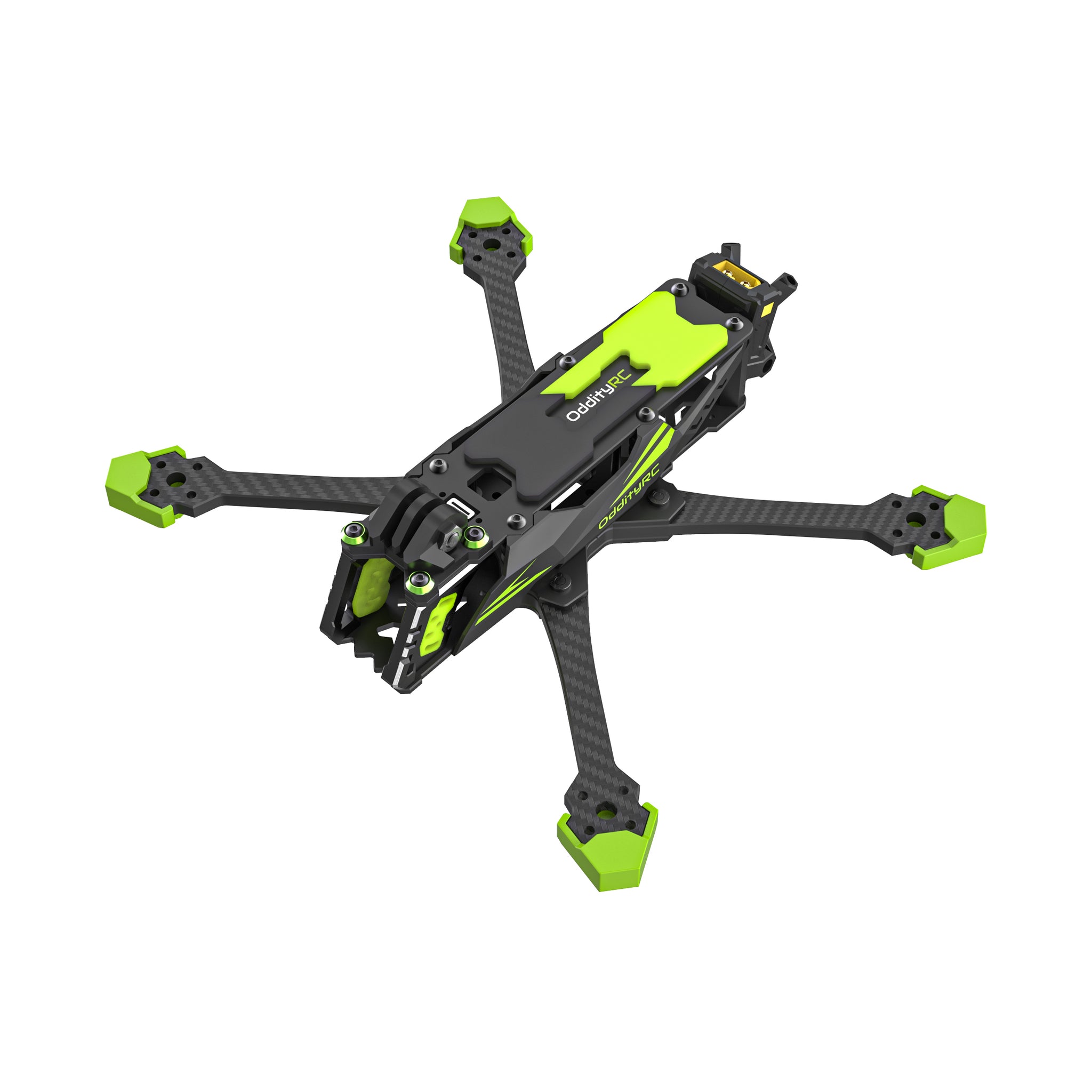

OddityRC ECHO5 Frame Kit
Shipping calculated at checkout.
Couldn't load pickup availability
Introduction
- Designed by OddityRC team
- Supports the DJI O4P and video transmitters with a maximum length of 36 mm or less

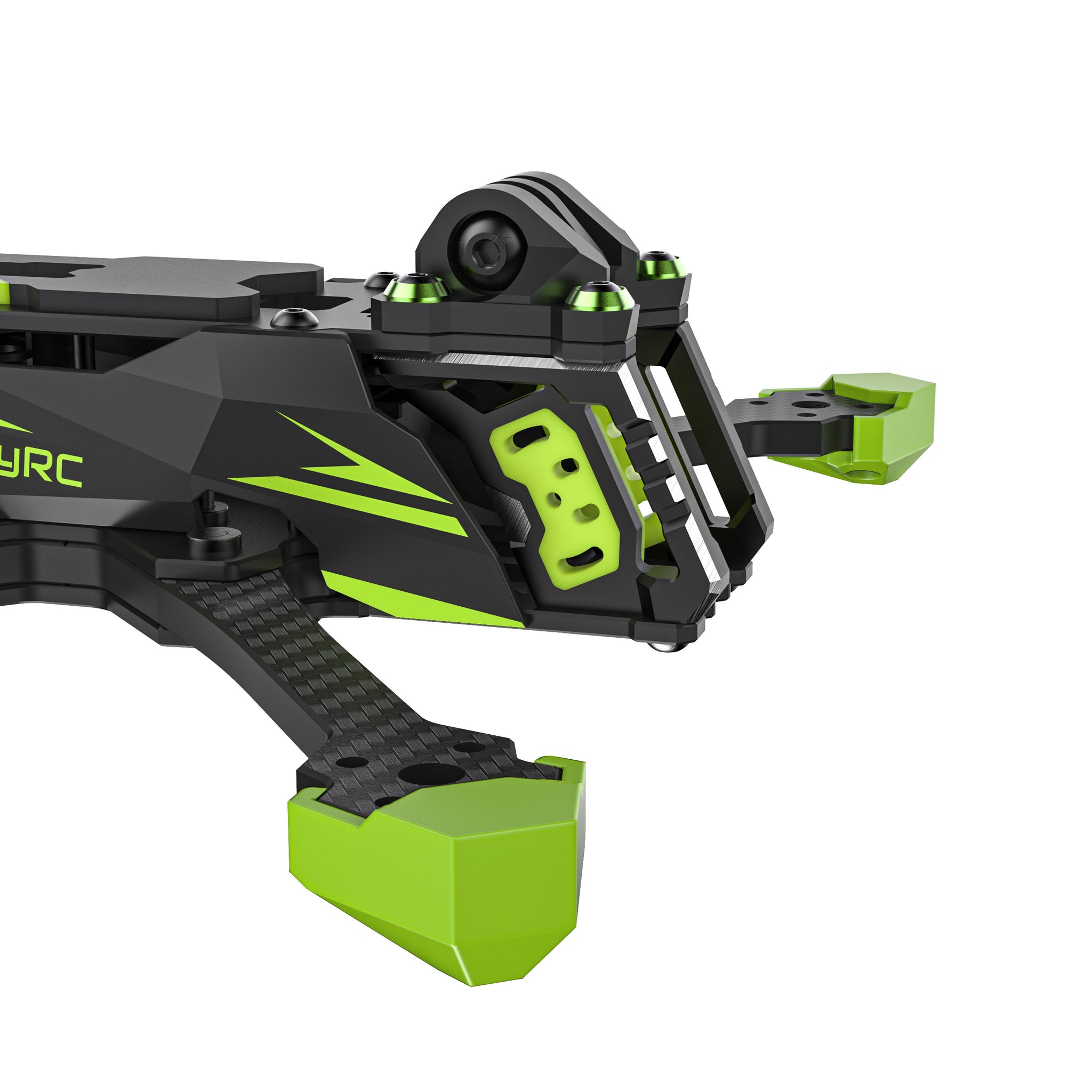

- Built with T700 carbon fiber and a 7075 aluminum front mount, the ECHO5 delivers exceptional rigidity, lightweight performance, and reliable lens protection.
- Can mount Insta360, Gopro, Action2 and other sports camera
-
Parameter
ECHO 5 X Version
Wheelbase: 225mm
Propeller Size: 4.9inch-5.1inch
Weight: 199g
Top Plate Thickness: 2.5mm
Middle Plate Thickness: 2.5mm
Arm Thickness: 5.5mm
Bottom Plate Thickness: 2.5mm
FC Mounting Hole Spacing: 20mm/30.5mm(M3)
VTX Mounting Hole Spacing: 20mm/25.5mm
Motor Mounting Hole Spacing: 16mm
Camera Mounting Hole Spacing: 19mm-20mm
ECHO 5 DC Version
Wheelbase: 230.9mm
Propeller Size: 4.9inch-5.1inch
Weight: 203g
Top Plate Thickness: 2.5mm
Middle Plate Thickness: 2.5mm
Arm Thickness: 5.5mm
Bottom Plate Thickness: 2.5mm
FC Mounting Hole Spacing: 20mm/30.5mm(M3)
VTX Mounting Hole Spacing: 20mm/25.5mm
Motor Mounting Hole Spacing: 16mm
Camera Mounting Hole Spacing:19mm-20mm
Recommended Configuration
Frame: ECHO5 X/DC FRAME KIT
FC: F405 /F722 /H743 (Must include a Type-C pad)
ESC: ≥50A 4IN1 ESC
Motor: 2406/2207/2306/2306.5/2505/2505.5
Propellers: 4.9inch-5.1inch
Battery: 6s 1100mAh - 6s 1800mAh
VTX: DJI O4 Pro and video transmitters with a maximun length of 36mm
Lens:19mm-20mm
Package Included
- Carbon Fiber Plate Kit
- Arm Kit
- Side Cover Kit
- Screws/Nuts Kit
- Accessory Kit
- Prints Kit
- Battery Stripes Kit
- Sticker
- Boom List
- Assembly Guide Card
