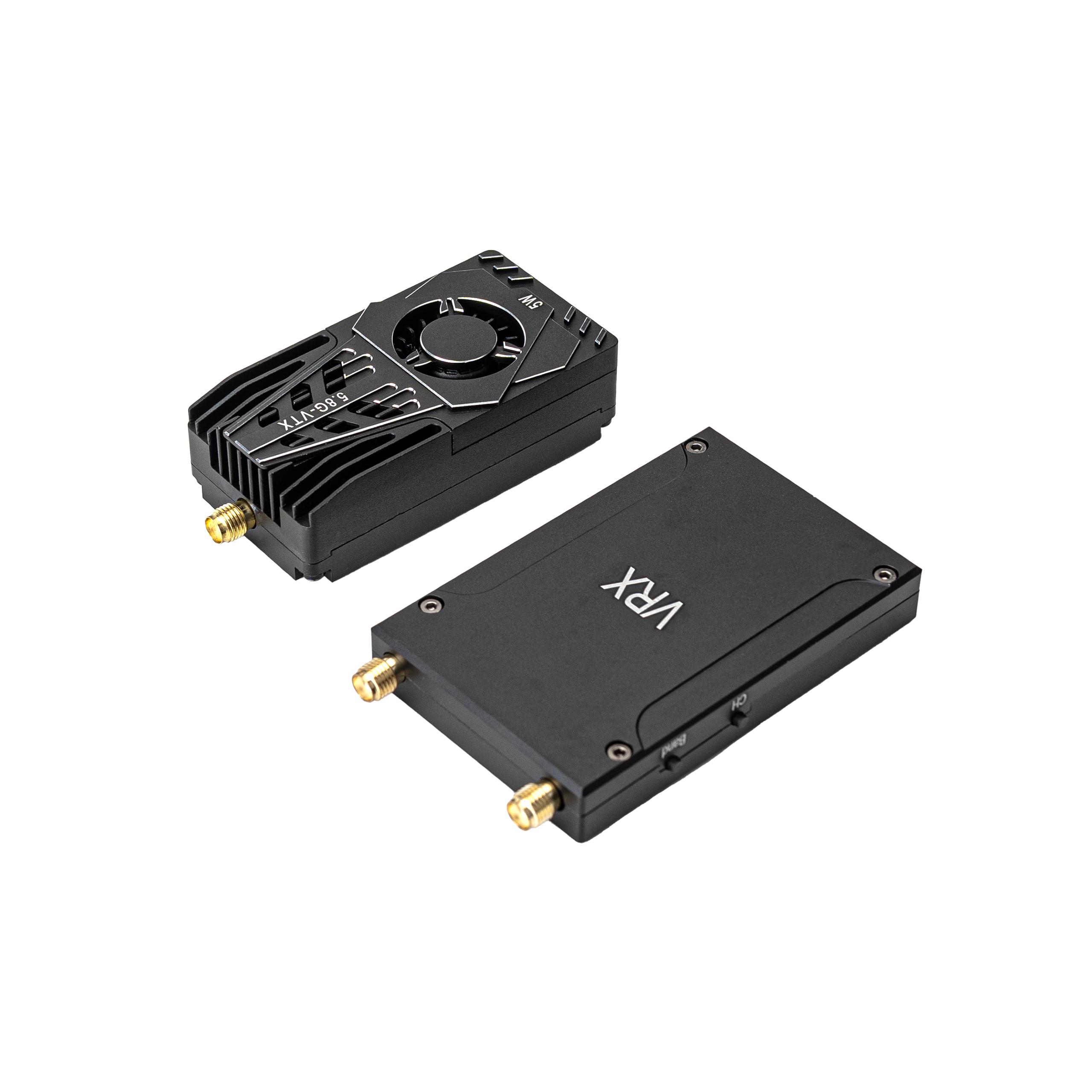

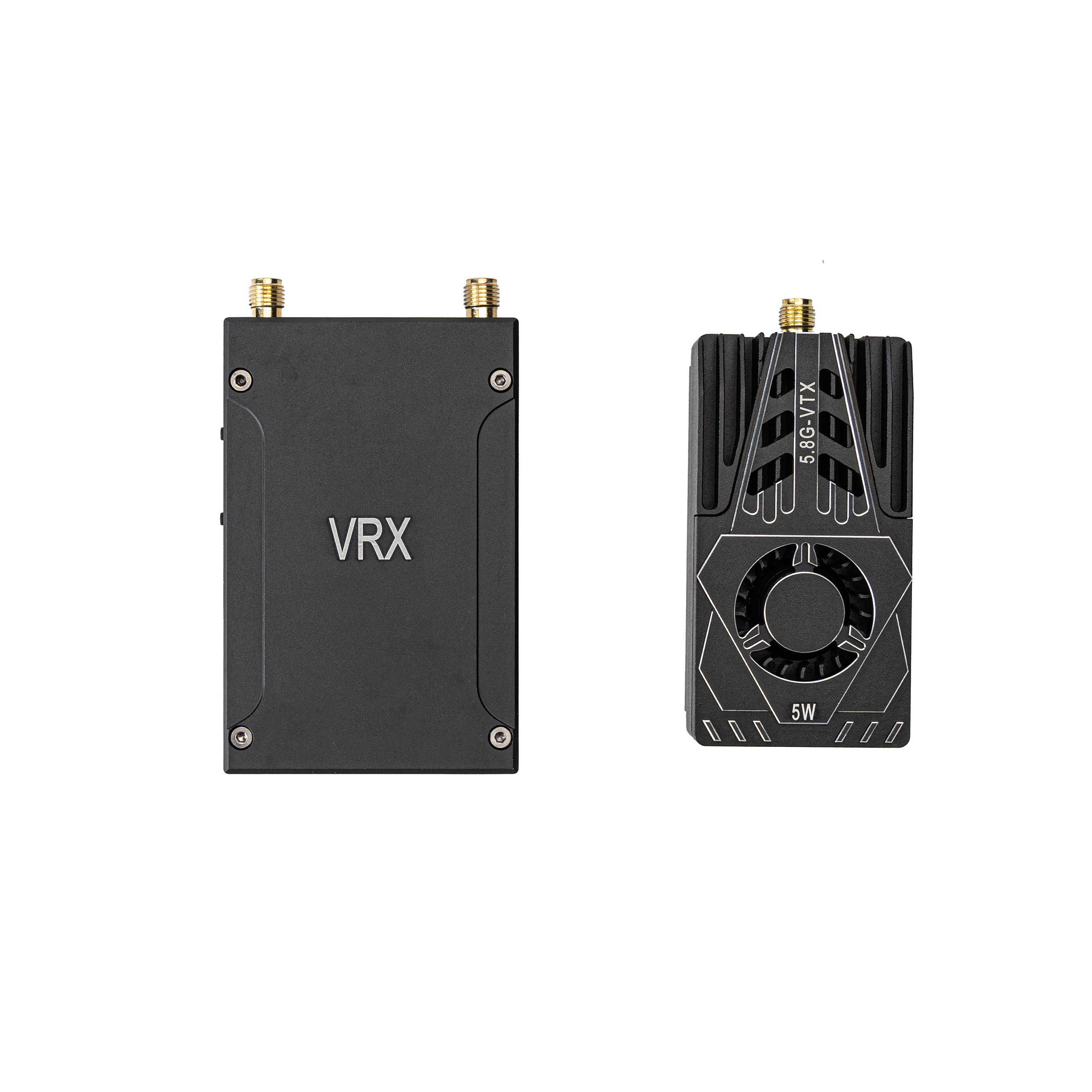

OddityRC 4.9~5.8G 5W VTX/VRX
Shipping calculated at checkout.
Couldn't load pickup availability

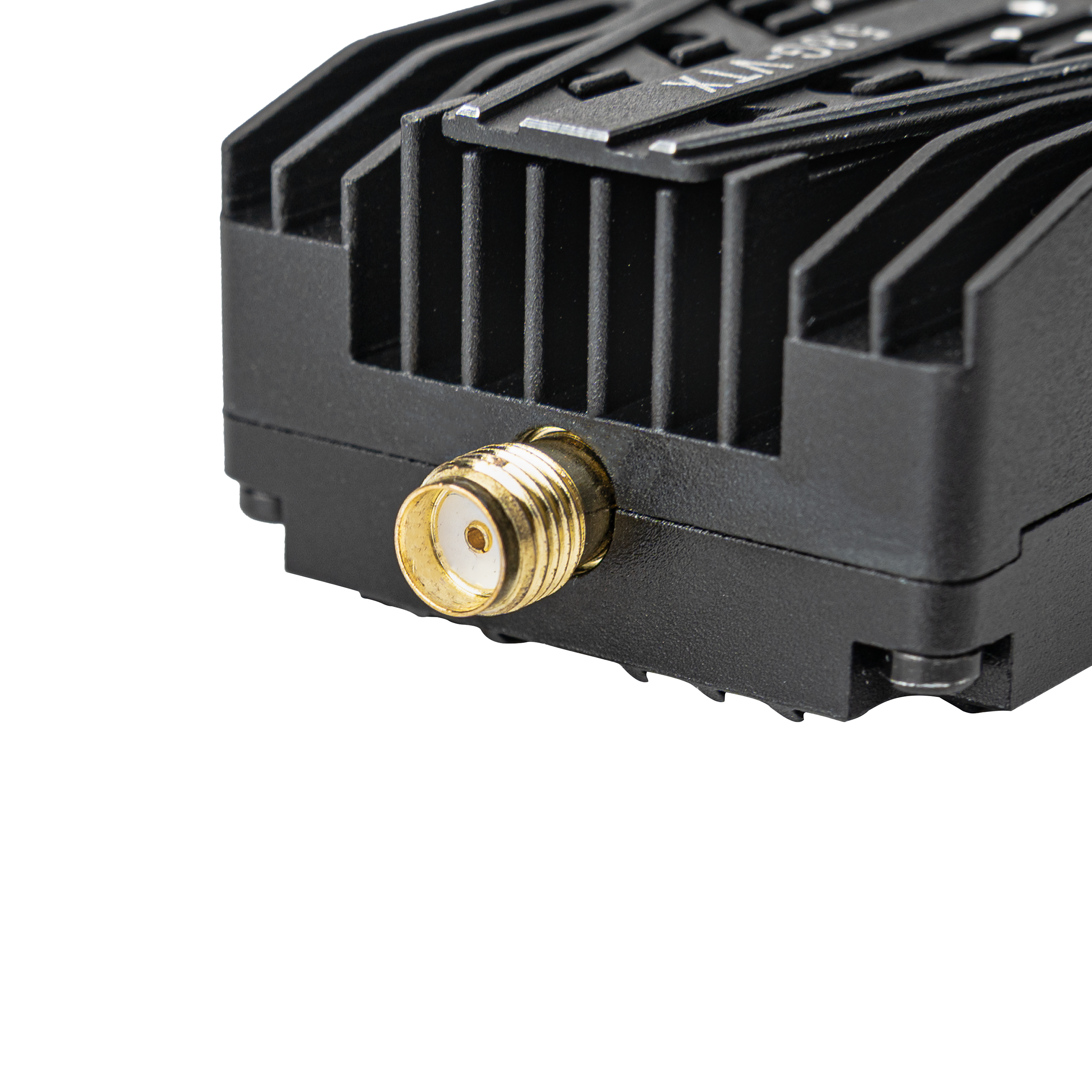

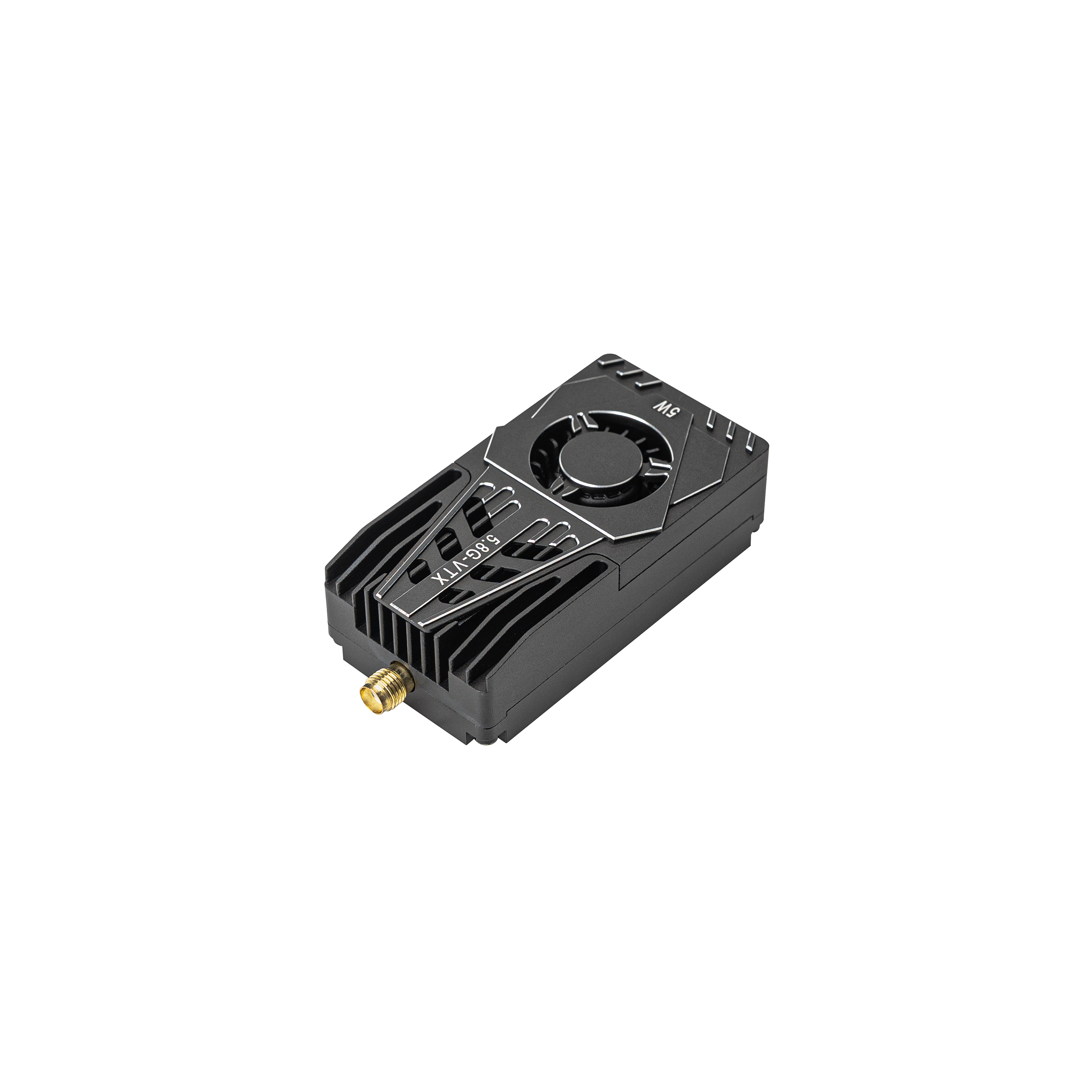

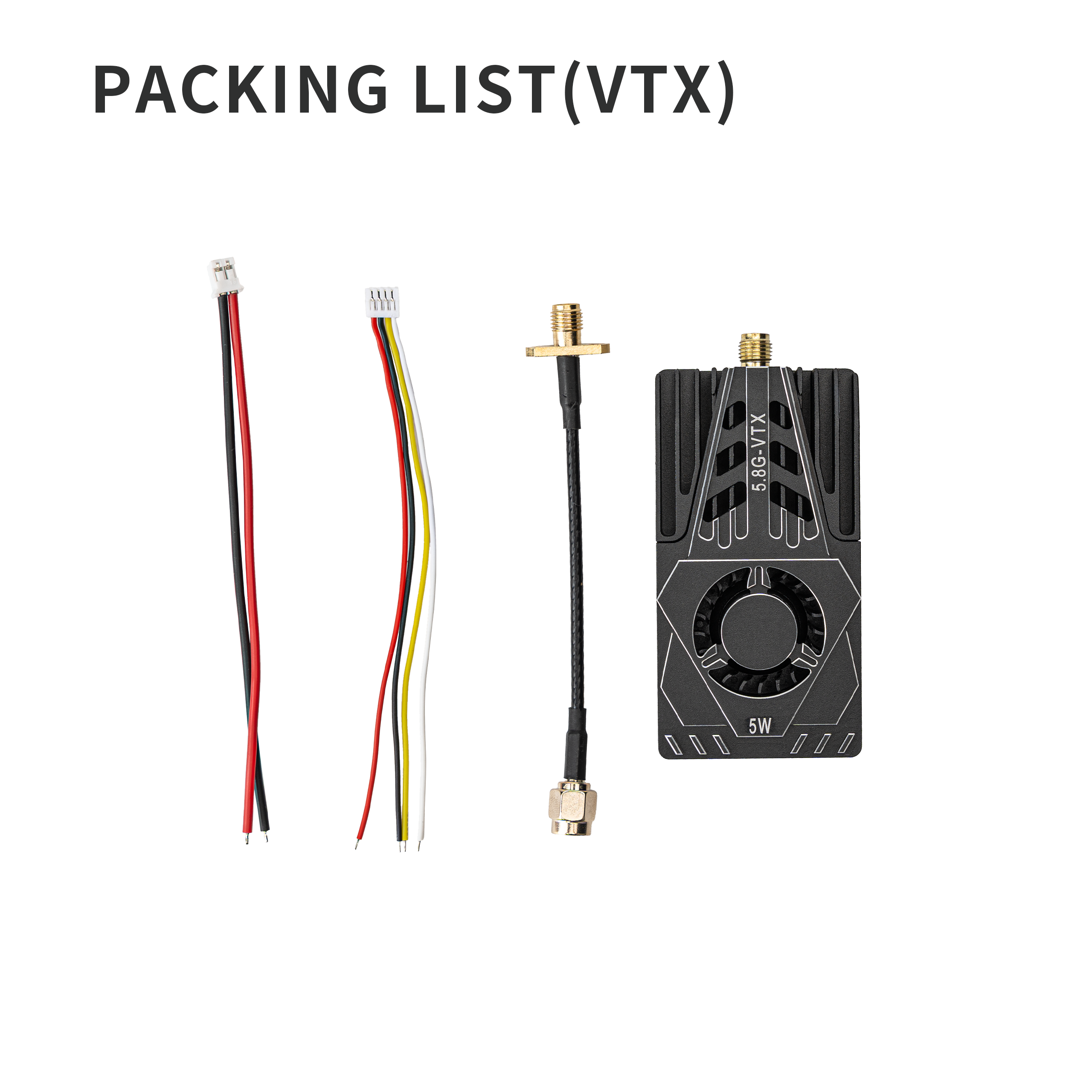

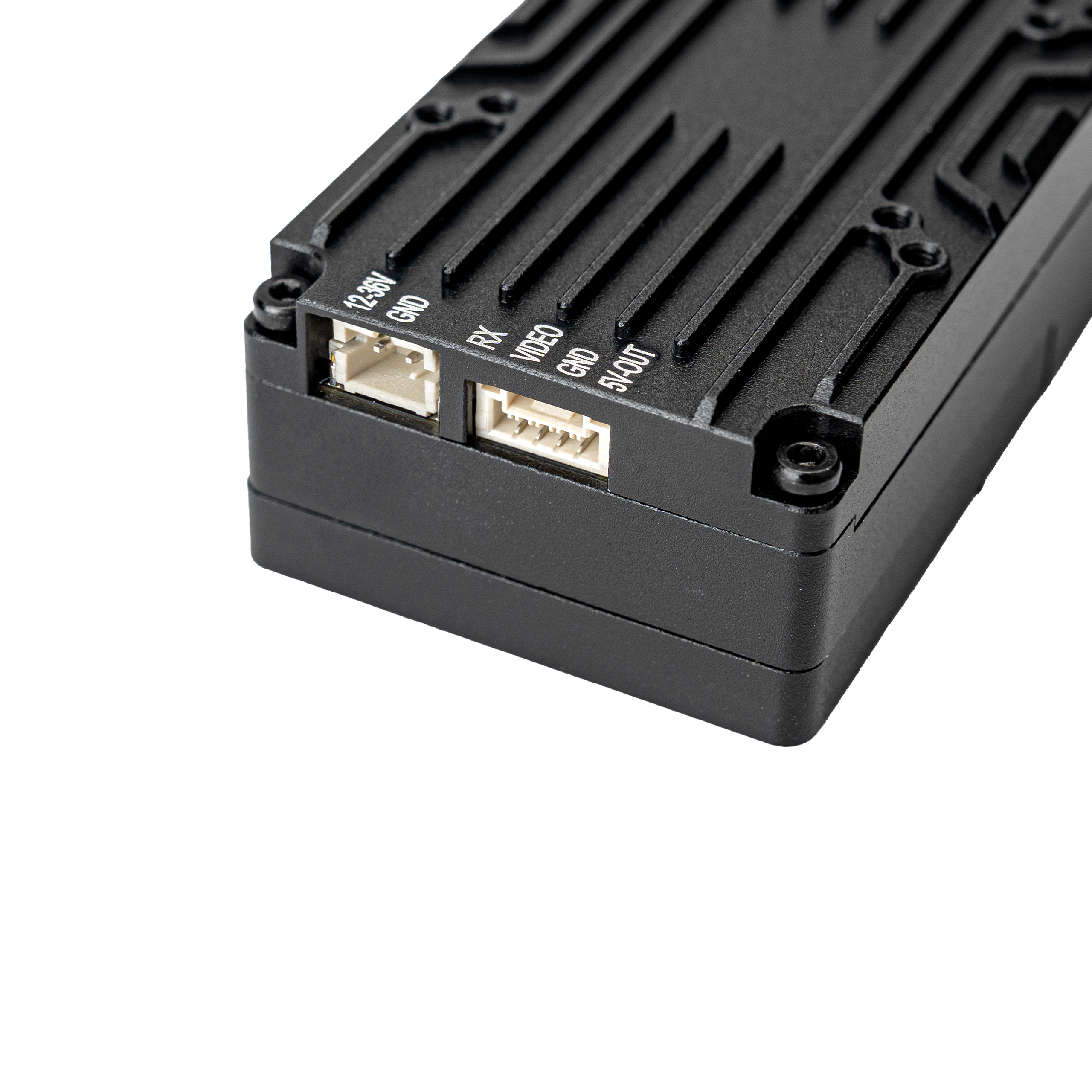

5.8G 5W VTX SPECIFICATION
Button Operation Instructions:
POWER Button: Green light indicates power status. A short press switches power levels, with the number of flashes indicating the current power level; one flash indicates 25mW, two flashes indicate 600mW, three flashes indicate 2W, and four flashes indicate 5W. A long press for 2 seconds switches to PIT mode, with a steady light indicating PIT mode.
Band/CH Button:
Red light indicates the frequency band; a long press for 2 seconds switches the frequency band, with the number of flashes indicating the current band; one flash indicates Band A, two flashes indicate Band B.
Blue light indicates the frequency channel; a short press cycles through CH1-CH8.
Terms of Use: Tramp
Frequency Meter:
A: 5865 5845 5825 5805 5785 5765 5745 5725
B: 5733 5752 5771 5790 5809 5828 5847 5866
E: 5705 5685 5665 5645 5885 5905 5925 5945
F: 5740 5760 5780 5800 5820 5840 5860 5880
R: 5658 5695 5732 5769 5806 5843 5880 5917
L: 5362 5399 5436 5473 5510 5547 5584 5621
X: 4990 5020 5050 5080 5110 5140 5170 5200
Power Meter:
25mW 600mW 2W 5W@12V 2000mA
Weight: 68g
Size: 69*36*22.5mm

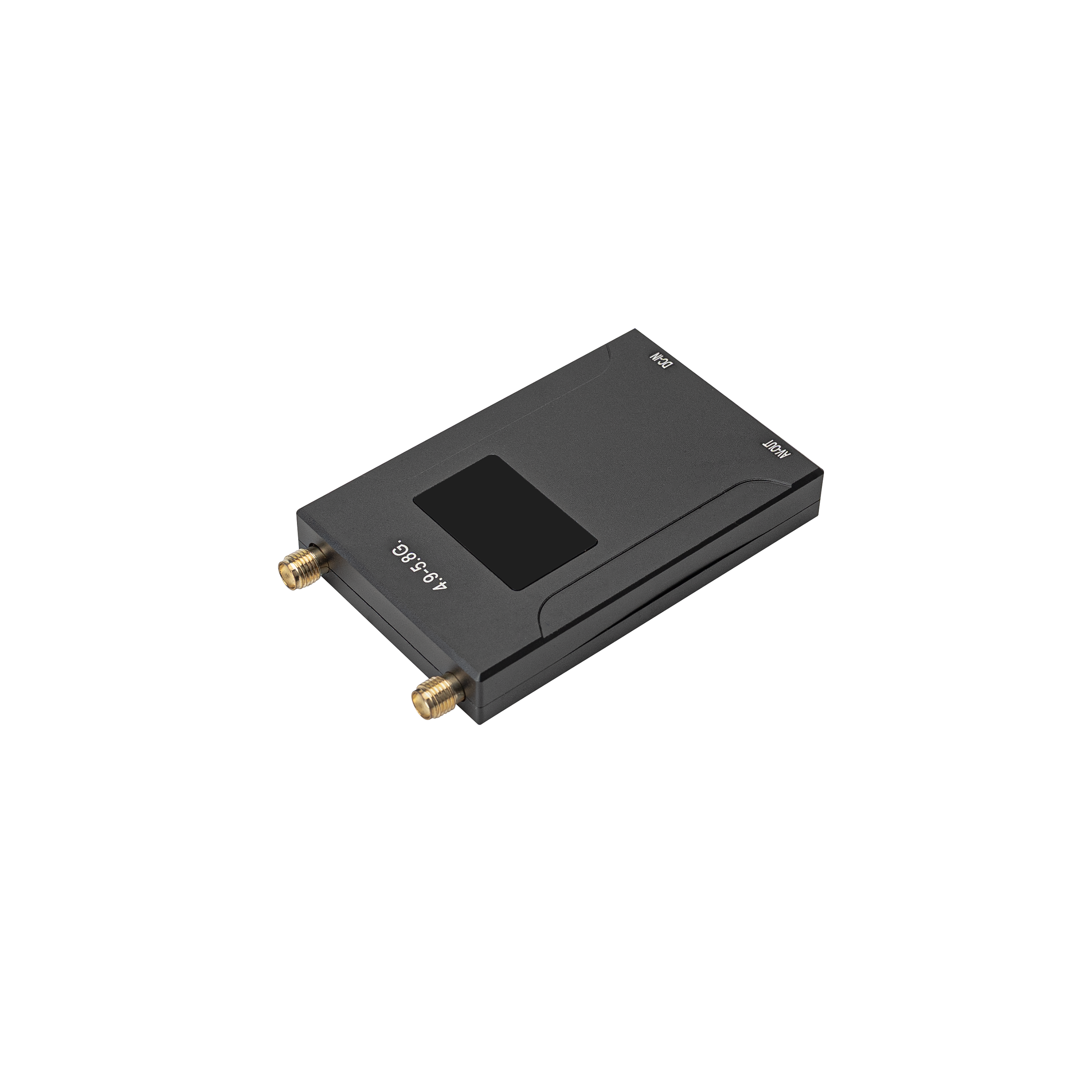

4.9~5.8G VRX SPECIFICATION
Number of channels: 4.9/5.8G band; ABEFRLX Frequency Groups, (4990MHz-5945MHz)

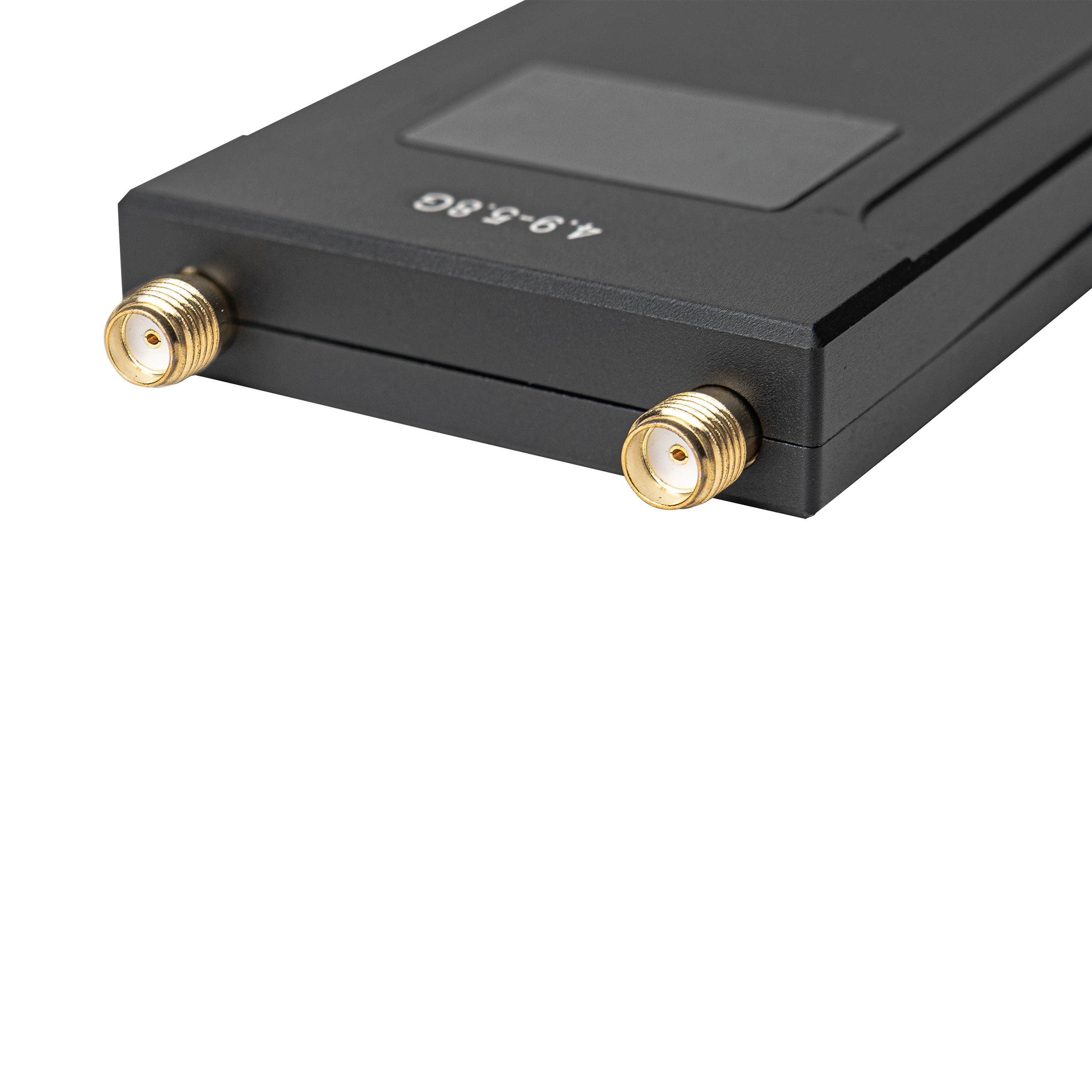

Antenna Interface: Standard SMA
RF impedance: 50Ω
The input voltage: 2S-7S
Current consumption: 150mA/12VDC
Receiving Sensitivity: -95dBm
Video Output impedance:75Ω
Video format:NTSC/PAL
Video Output Level:CVBS 1.0~1.4VP-P
Power cable: DC3.5*1.35mm to DC5.5*2.1mm

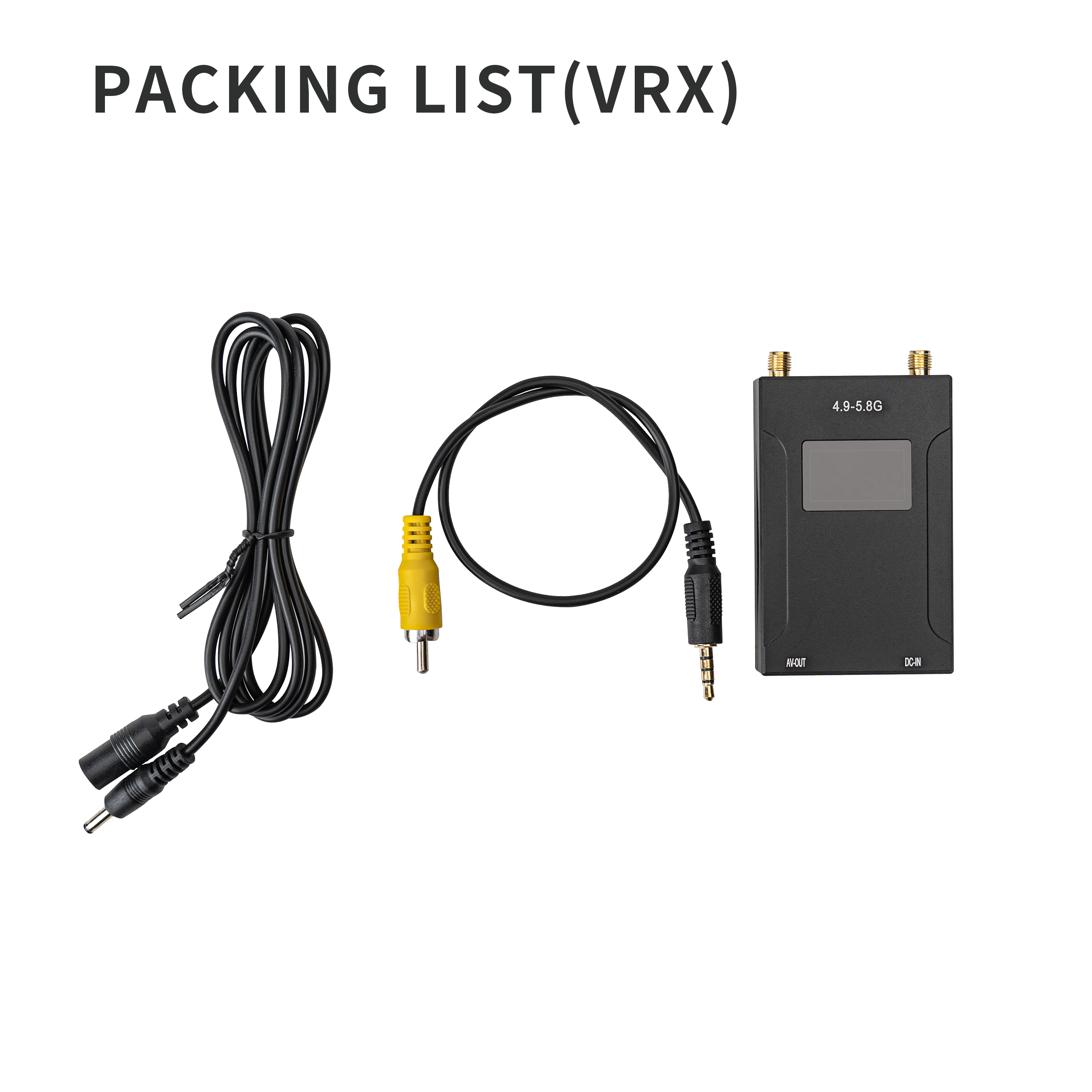

Video cable: 4-pin 2.5mm headphone jack to RCA adapter
Working Temp: -10_60℃
Mounting hole: M6
Dimension(L*W*H): 77mm*50mm*11mm
Weight: 50g
