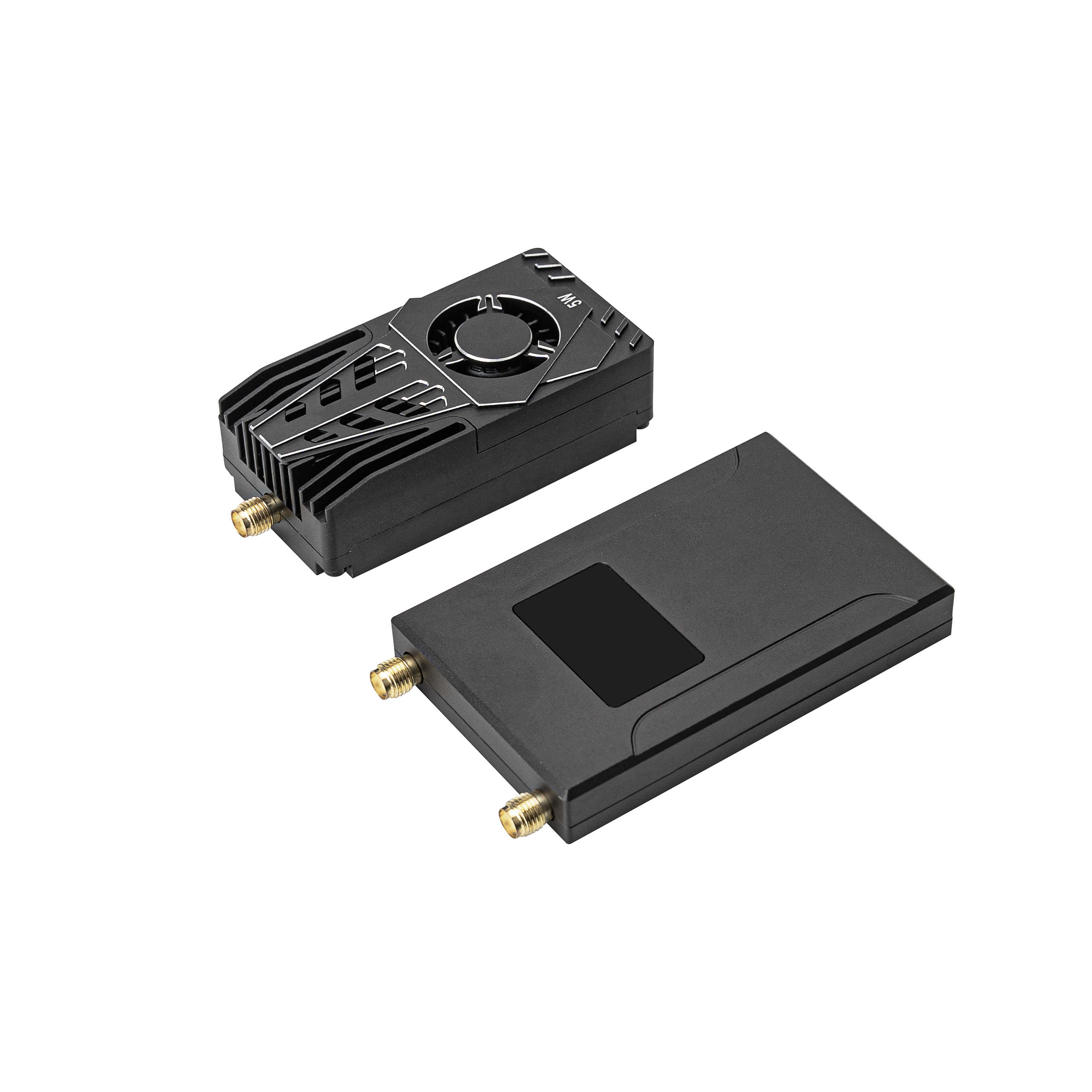

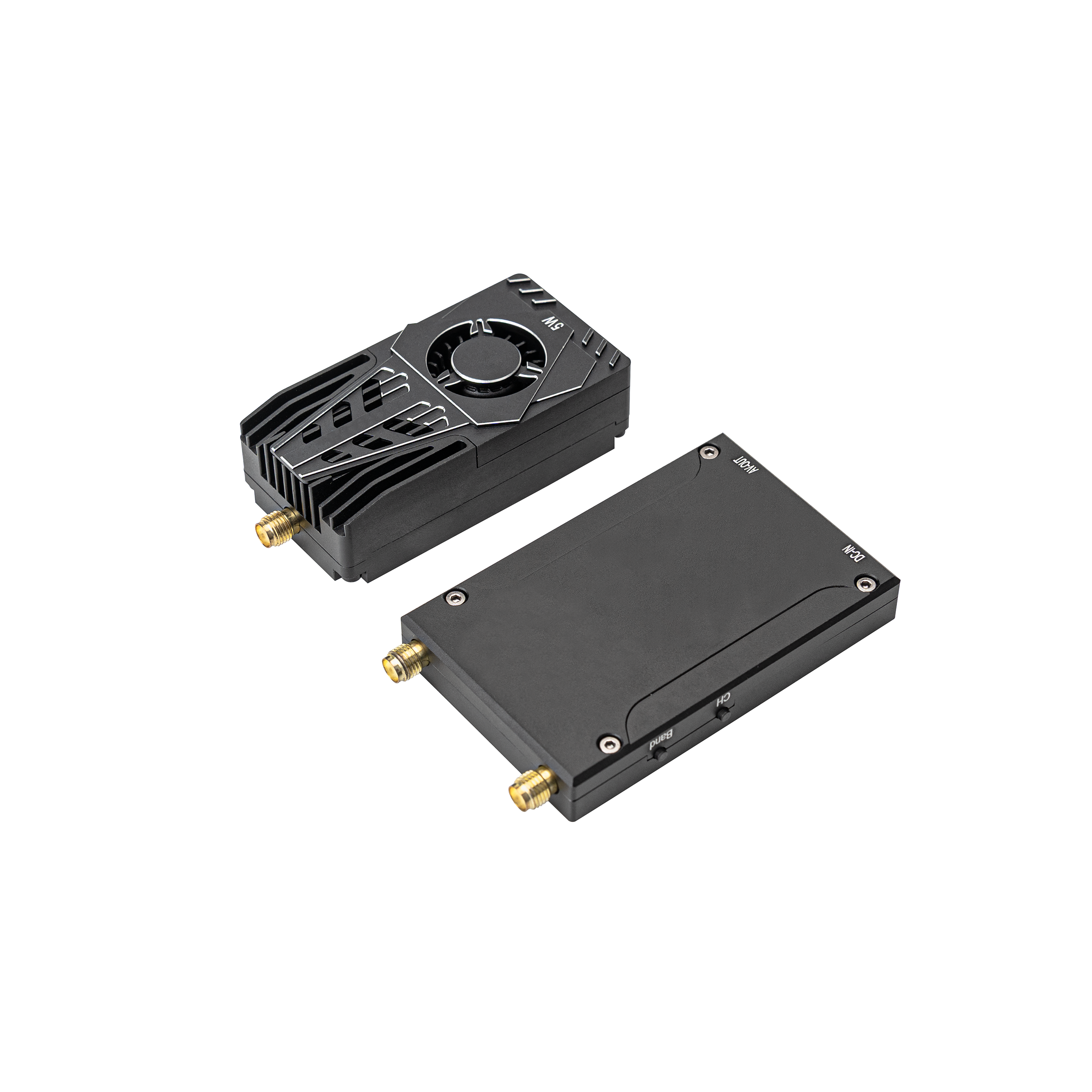

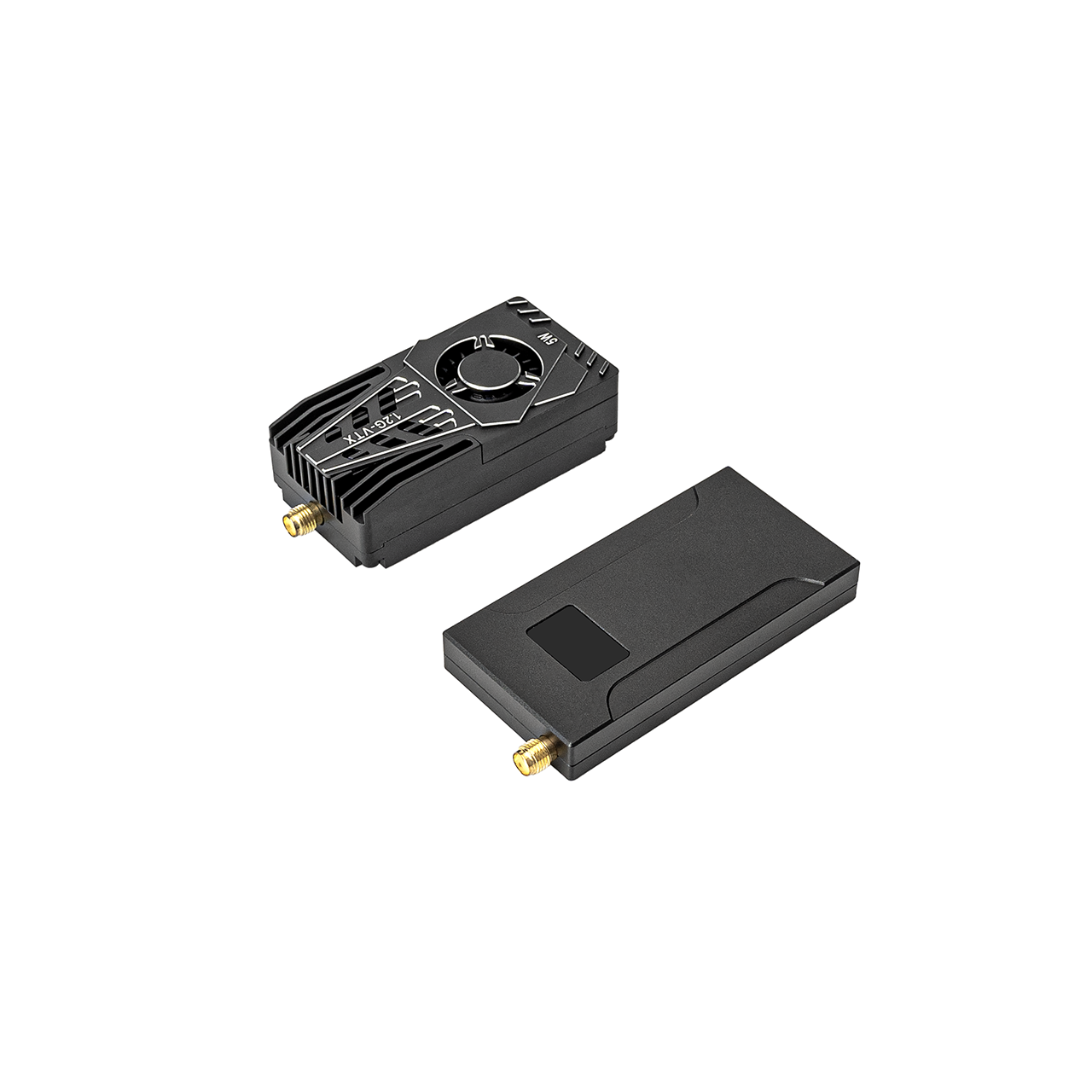

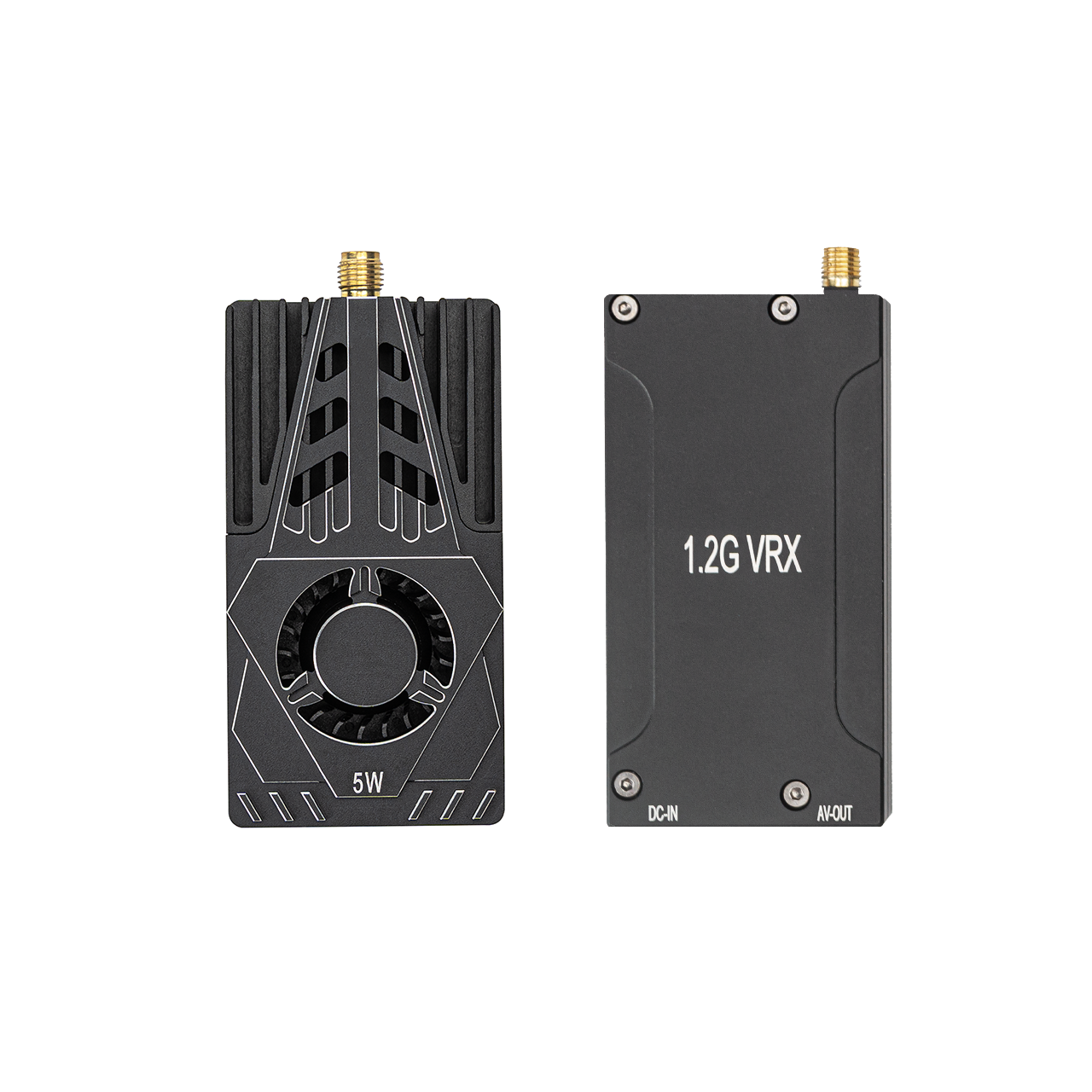

OddityRC 1.2G 5W VTX/VRX

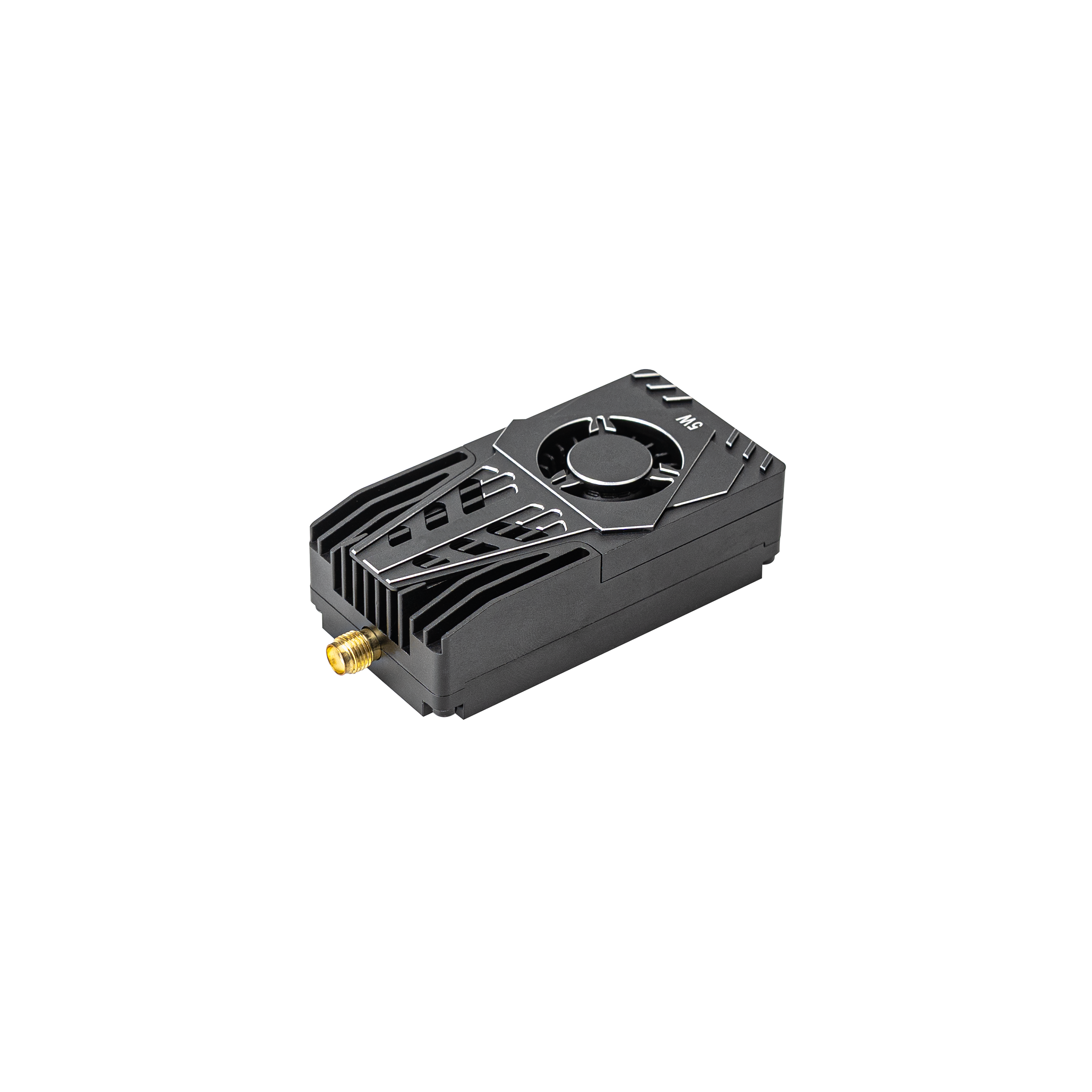

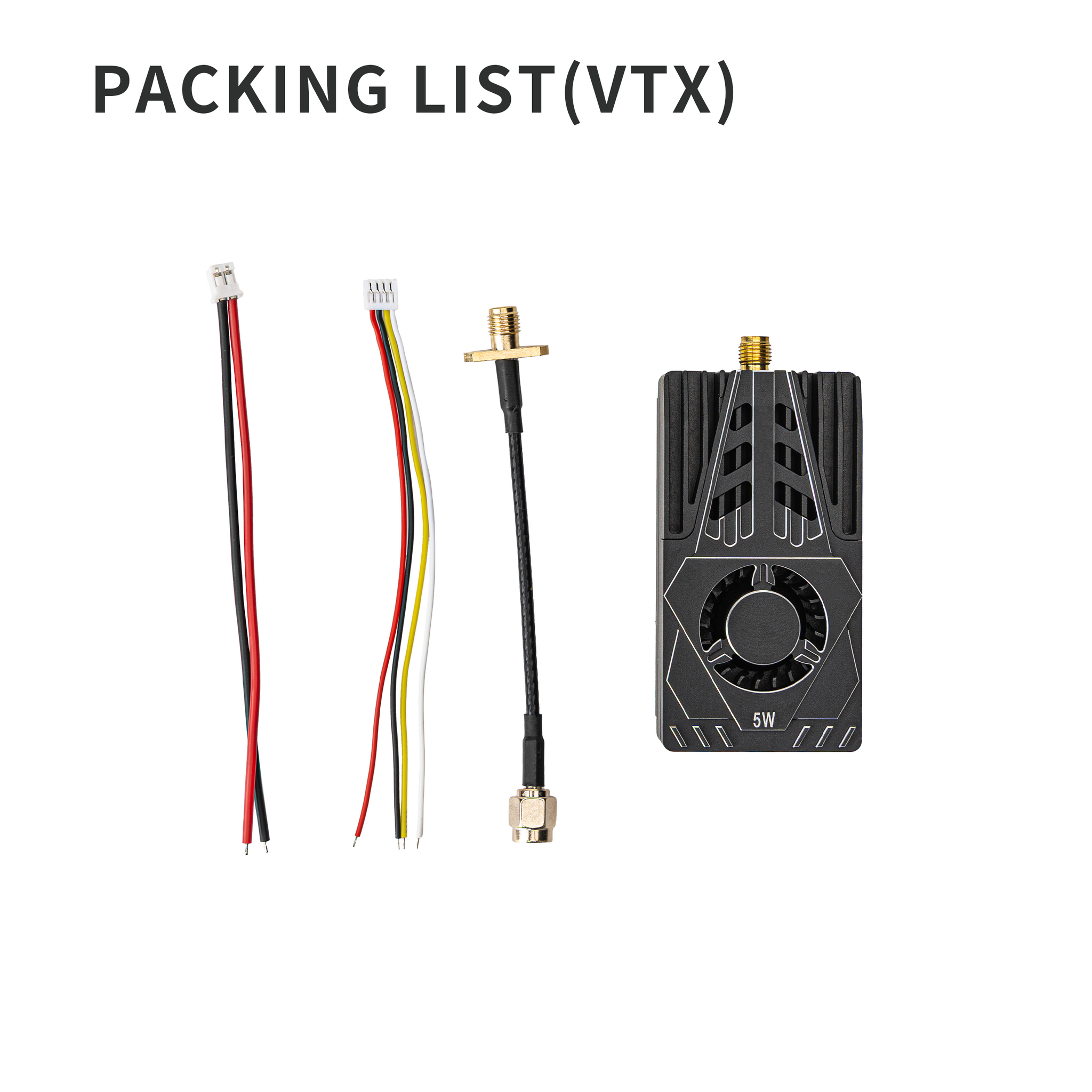

1.2G 5W VTX SPECIFICATION
Button Operation Instructions:
POWER Button: Green light indicates power status. A short press switches power levels, with the number of flashes indicating the current power level; one flash indicates 25mW, two flashes indicate 600mW, three flashes indicate 2W, and four flashes indicate 5W. A long press for 2 seconds switches to PIT mode, with a steady light indicating PIT mode.

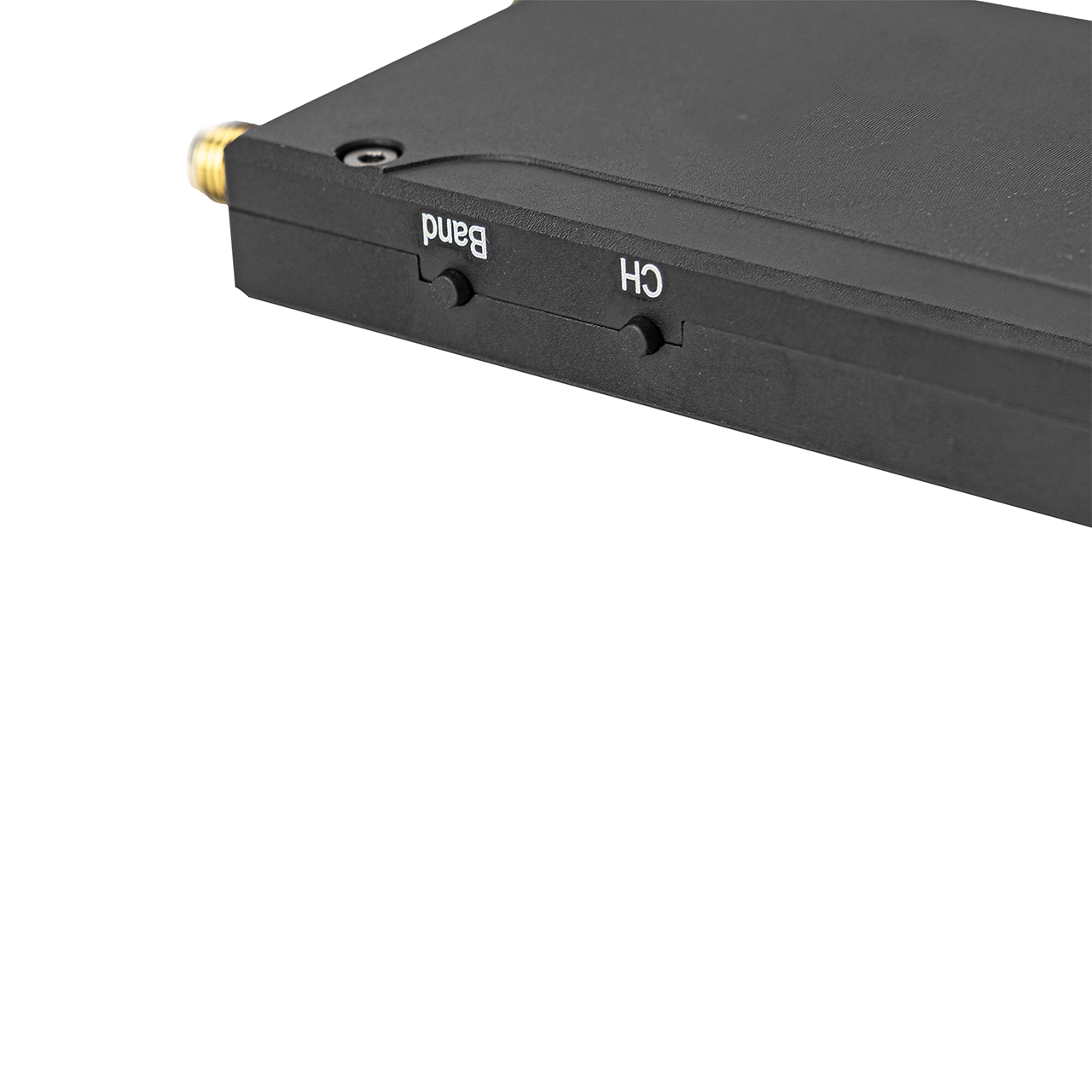

Band/CH Button:
Red light indicates the frequency band; a long press for 2 seconds switches the frequency band, with the number of flashes indicating the current band; one flash indicates Band A, two flashes indicate Band B.
Blue light indicates the frequency channel; a short press cycles through CH1-CH8.
Terms of Use: Tramp
Frequency Meter:
A: 1080 1120 1160 1200 1240 1280 1320 1360
Power Meter:
25mW 600mW 2W 5W@12V 2000mA
Weight: 68g
Size: 69*36*22.5mm

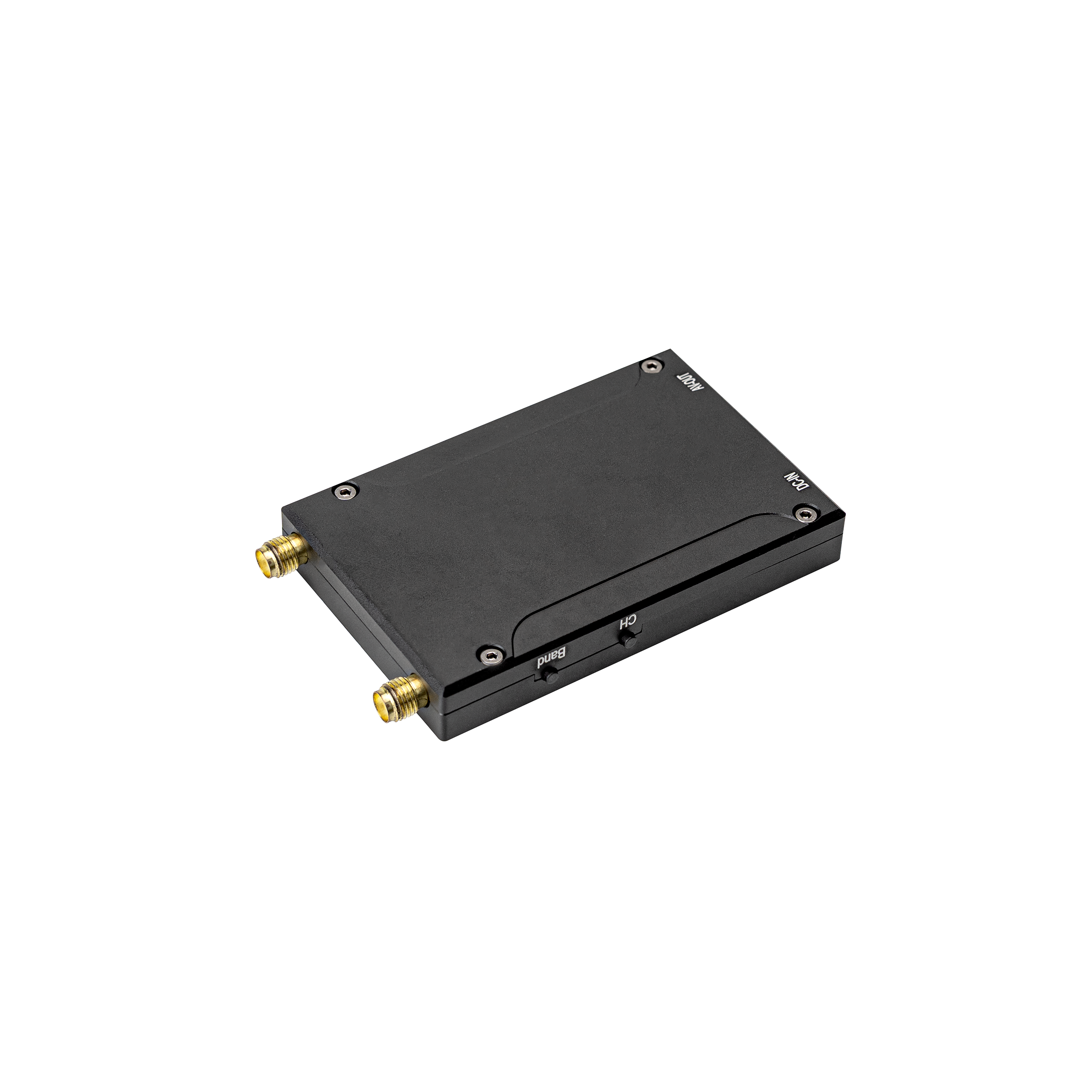

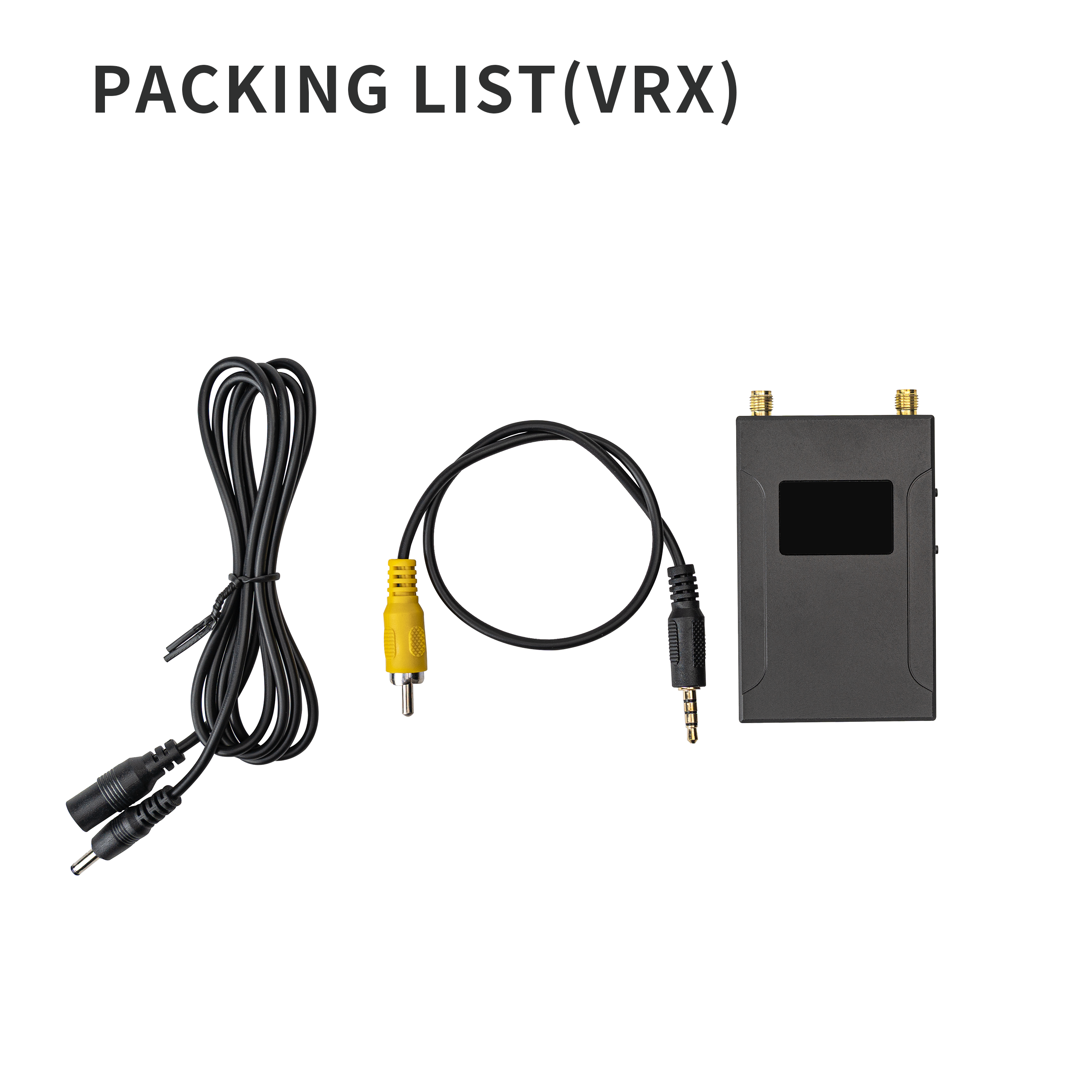

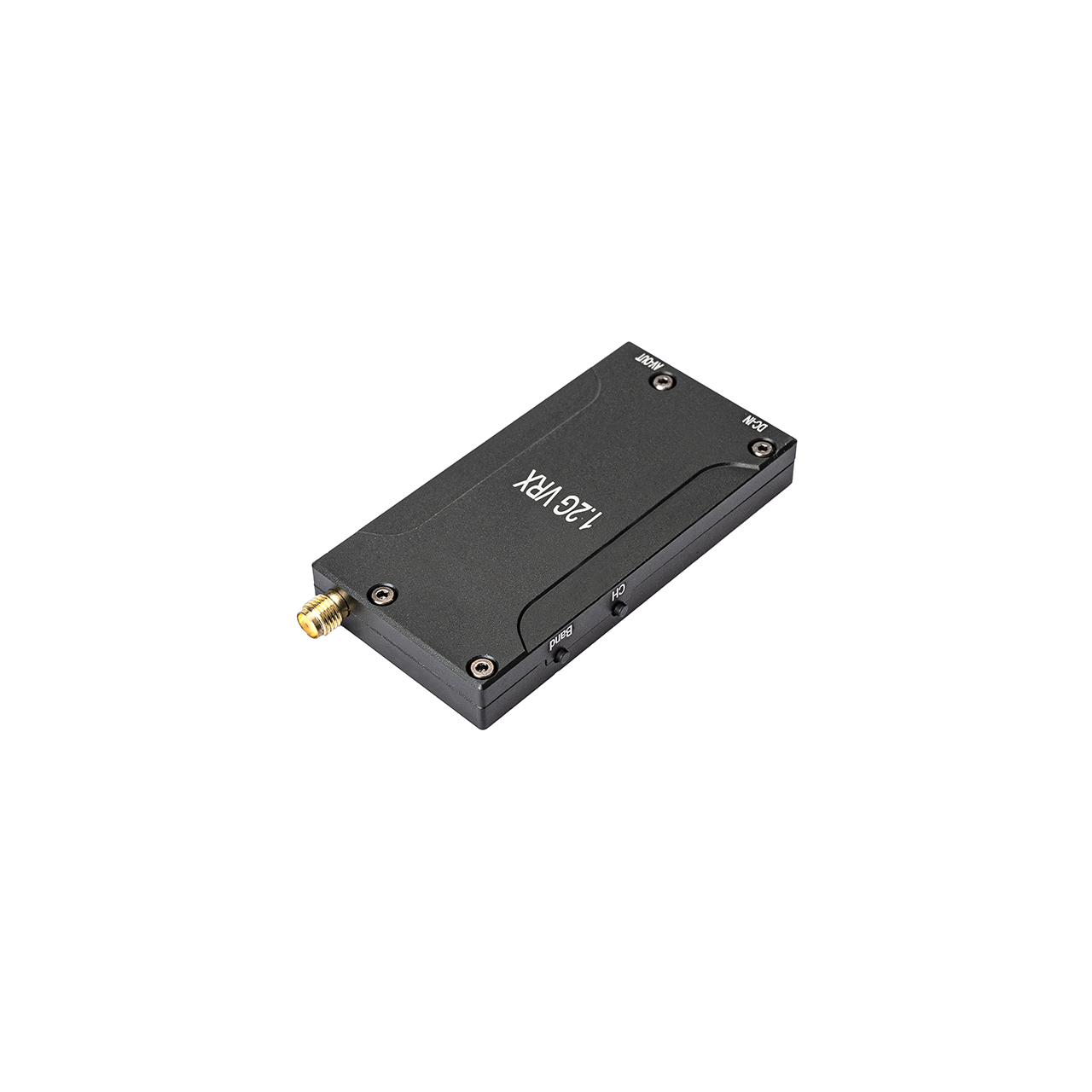

1.2G VRX SPECIFICATION
Number of channels: 1.2G band; A Frequency Groups, 16channels(A:1080MHz-1360MHz)

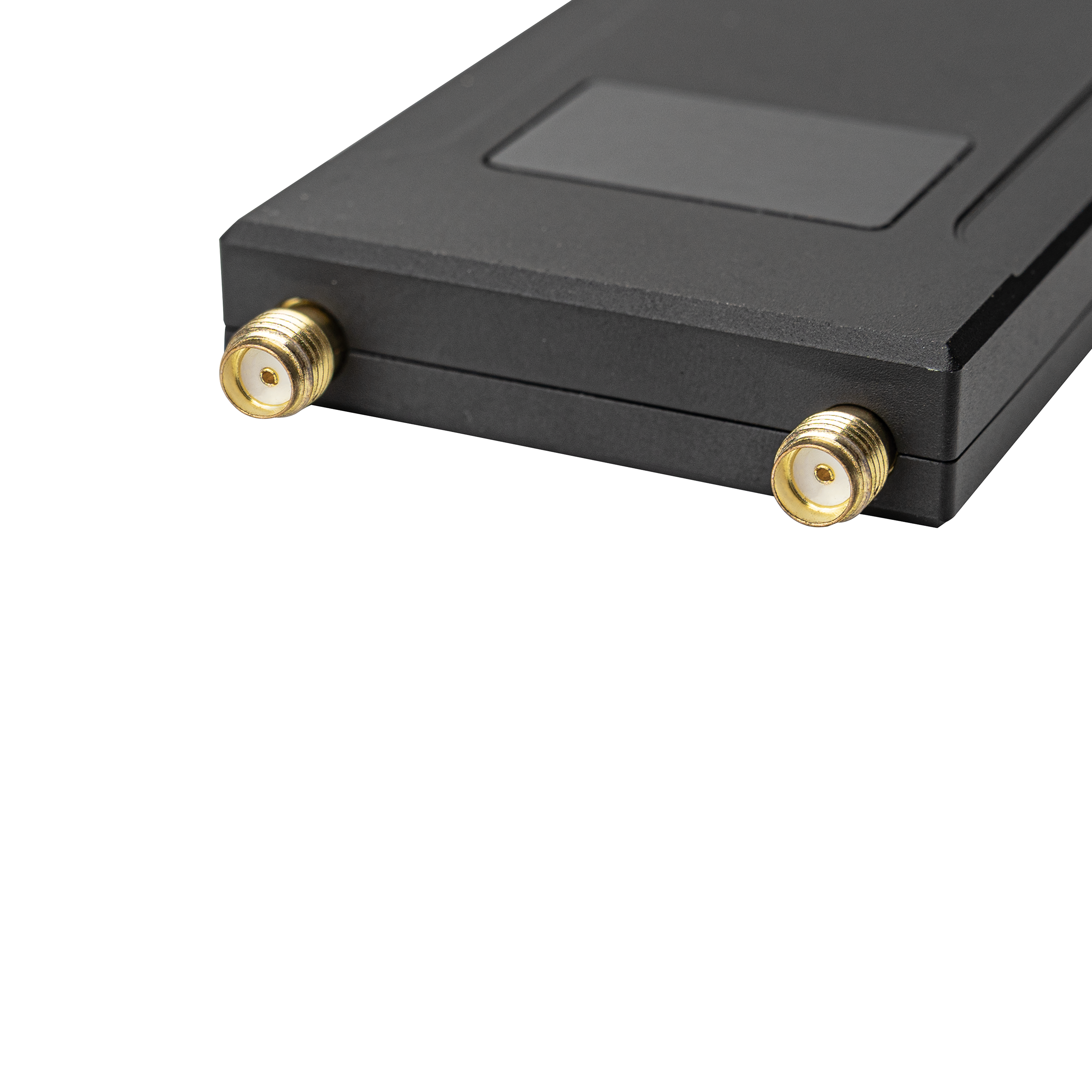

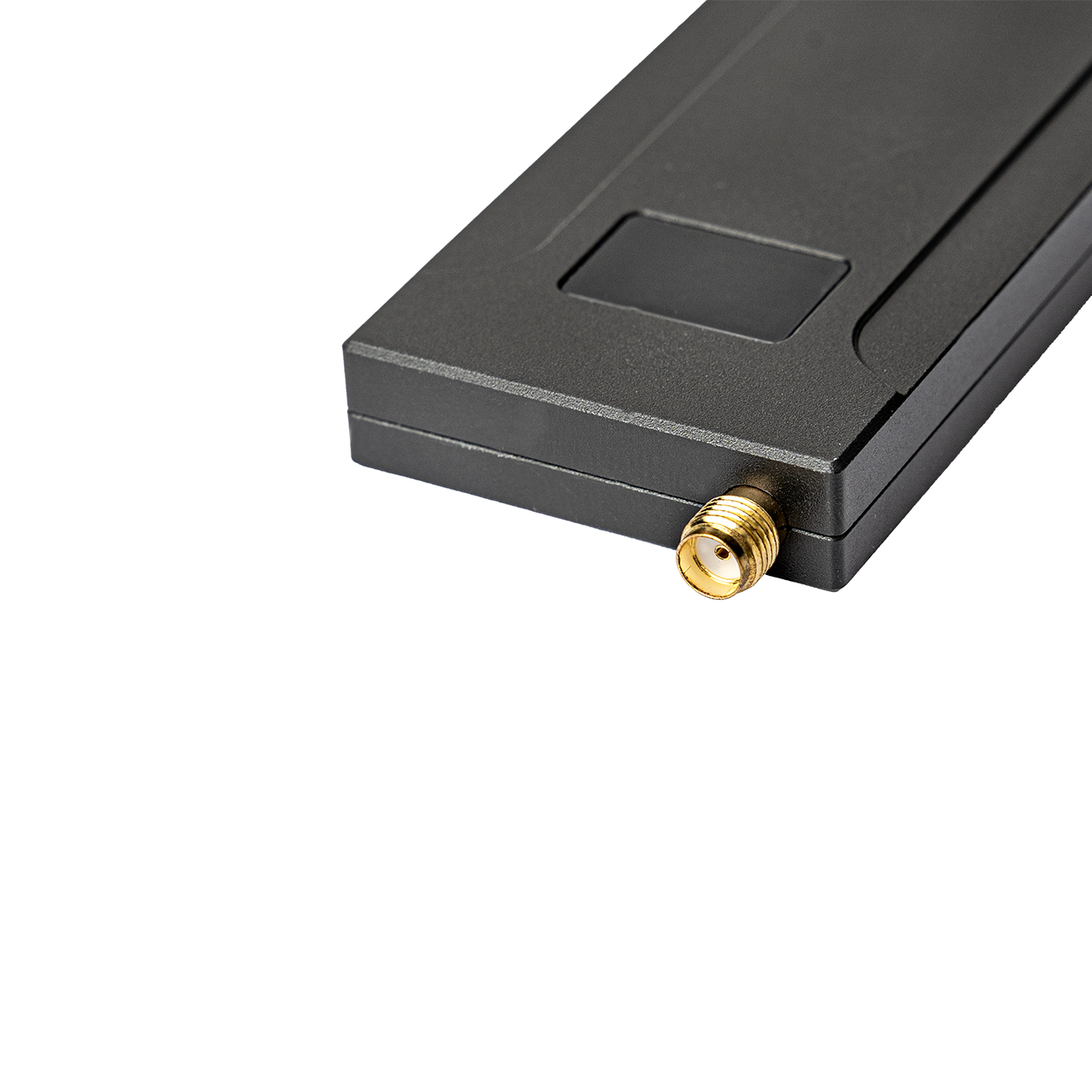

Antenna Interface: Standard SMA
RF impedance: 50Ω
The input voltage: 2S-7S
Current consumption: 150mA/12VDC
Receiving Sensitivity: -95dBm
Video Output impedance:75Ω
Video format:NTSC/PAL
Video Output Level:CVBS 1.0~1.4VP-P

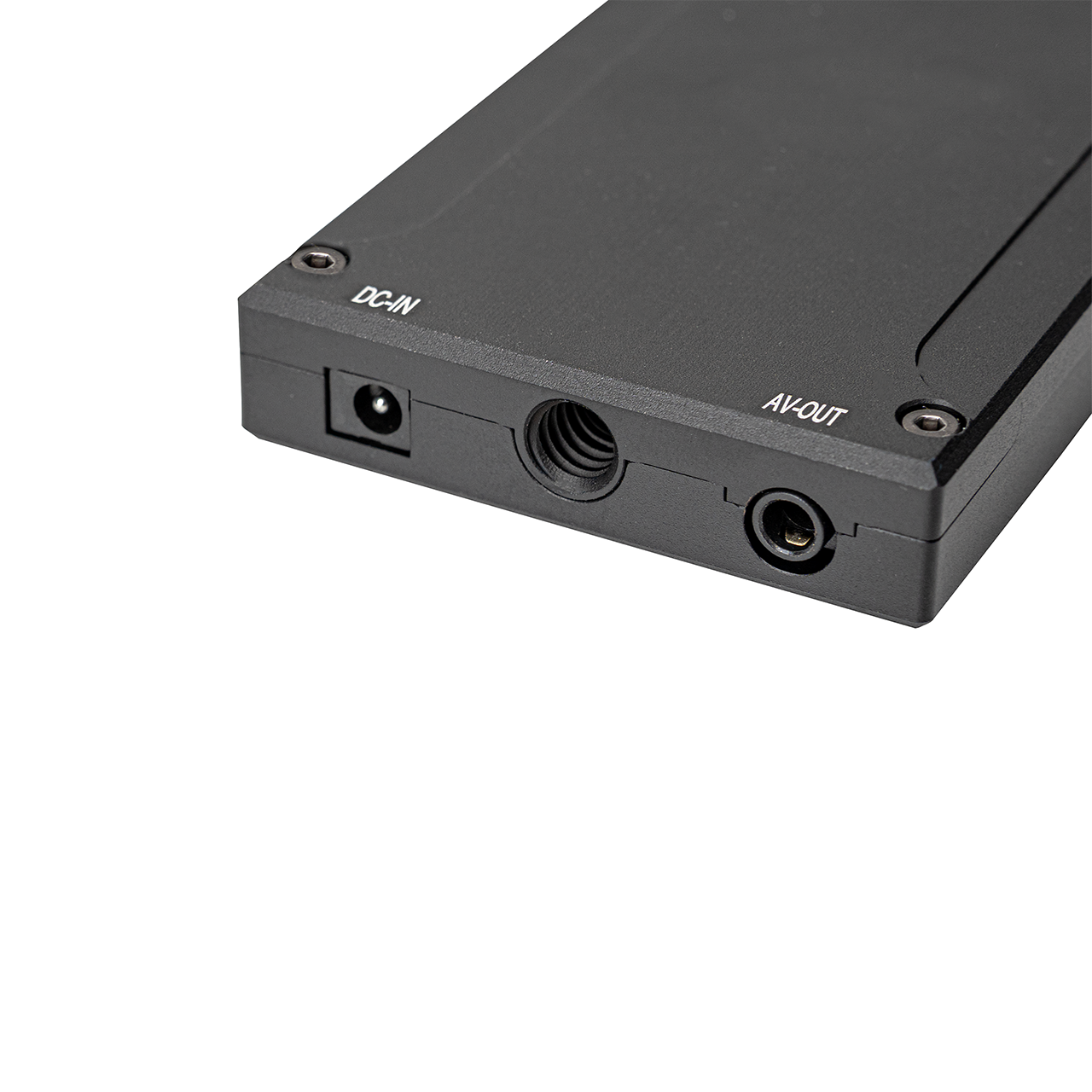

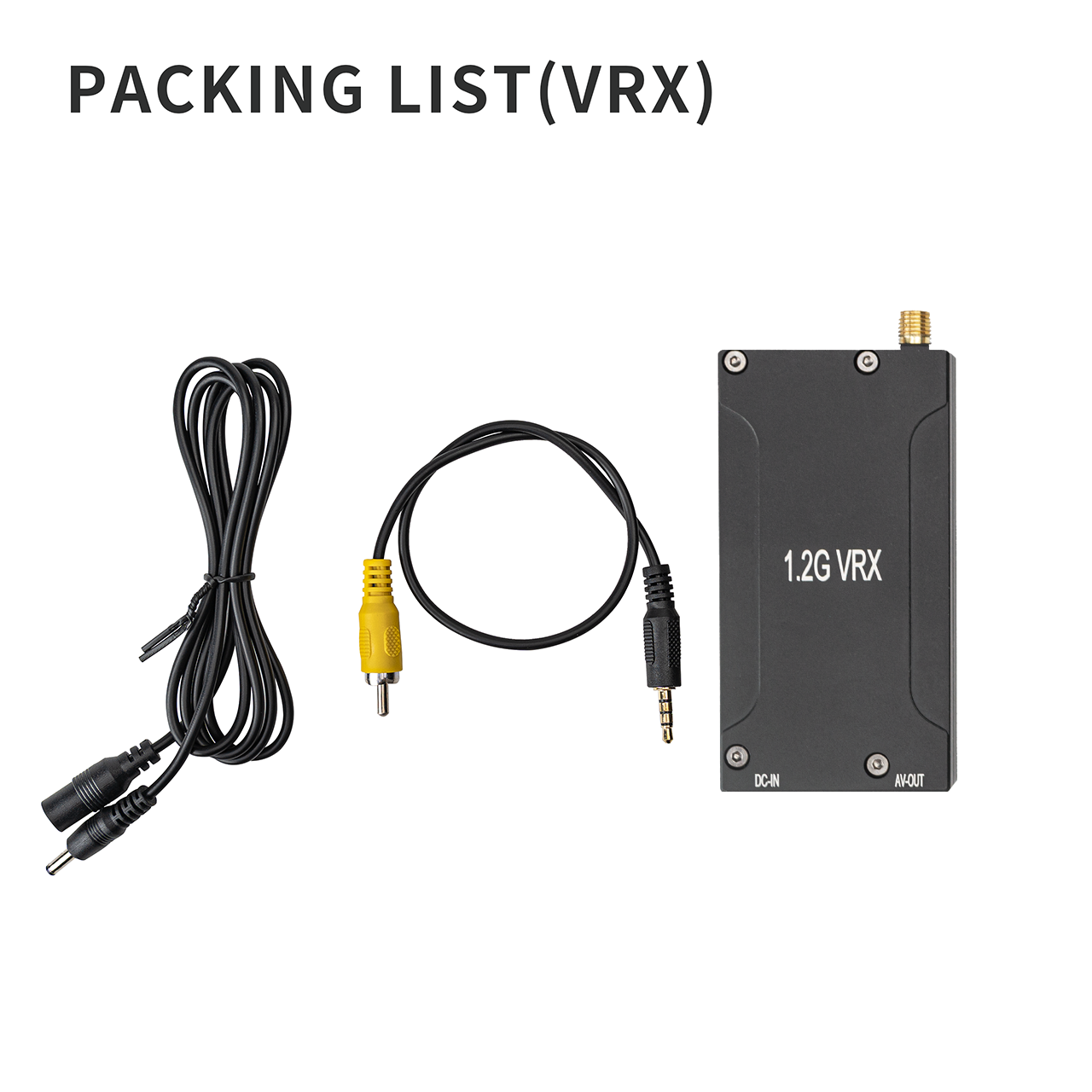

Power cable: DC3.5*1.35mm to DC5.5*2.1mm
Video cable: 4-pin 2.5mm headphone jack to RCA adapter
Working Temp: -10_60℃
Mounting hole: M6
Dimension(L*W*H): 85mm*40mm*11mm
Weight: 36g
