- SKU:
- VENDOR: Walksnail

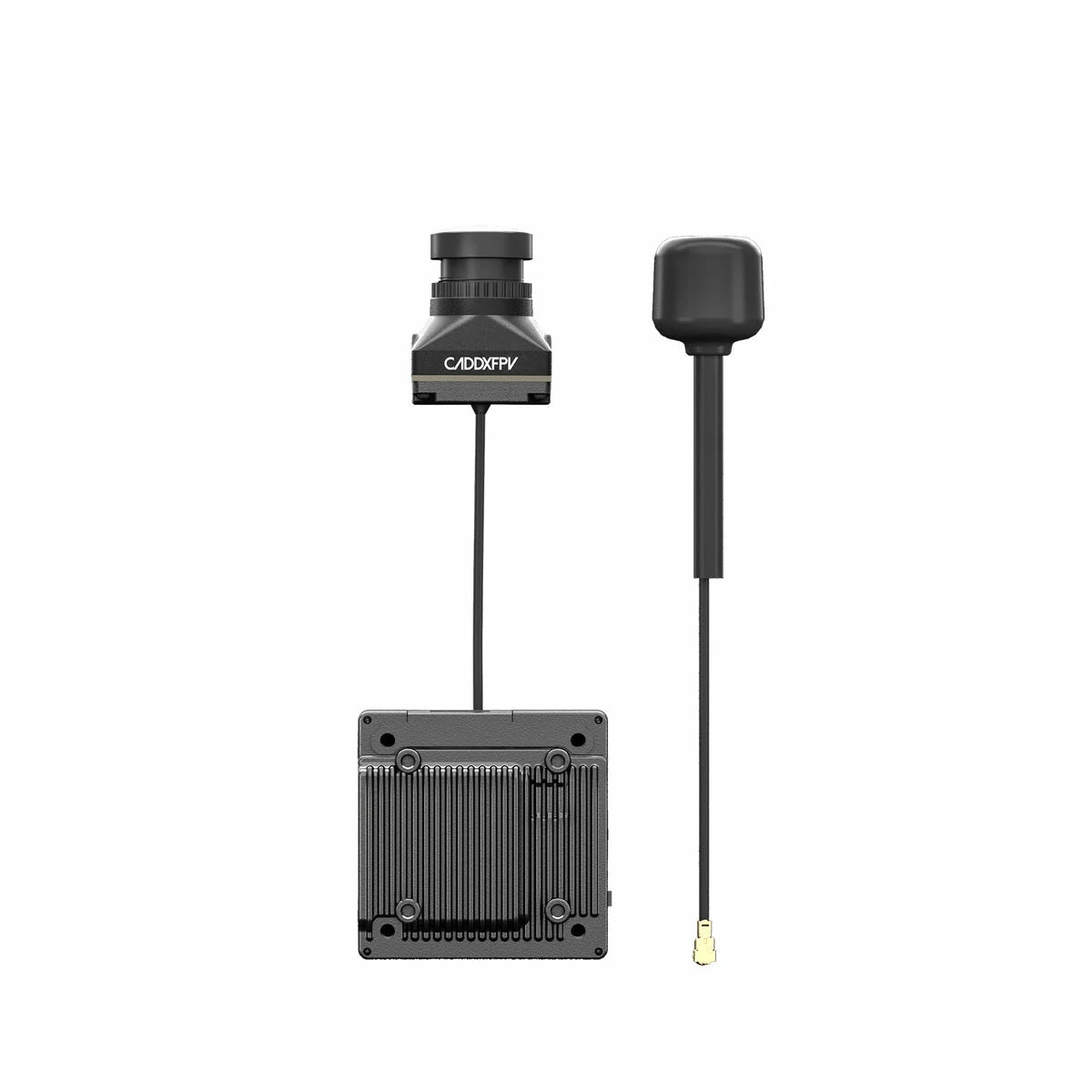

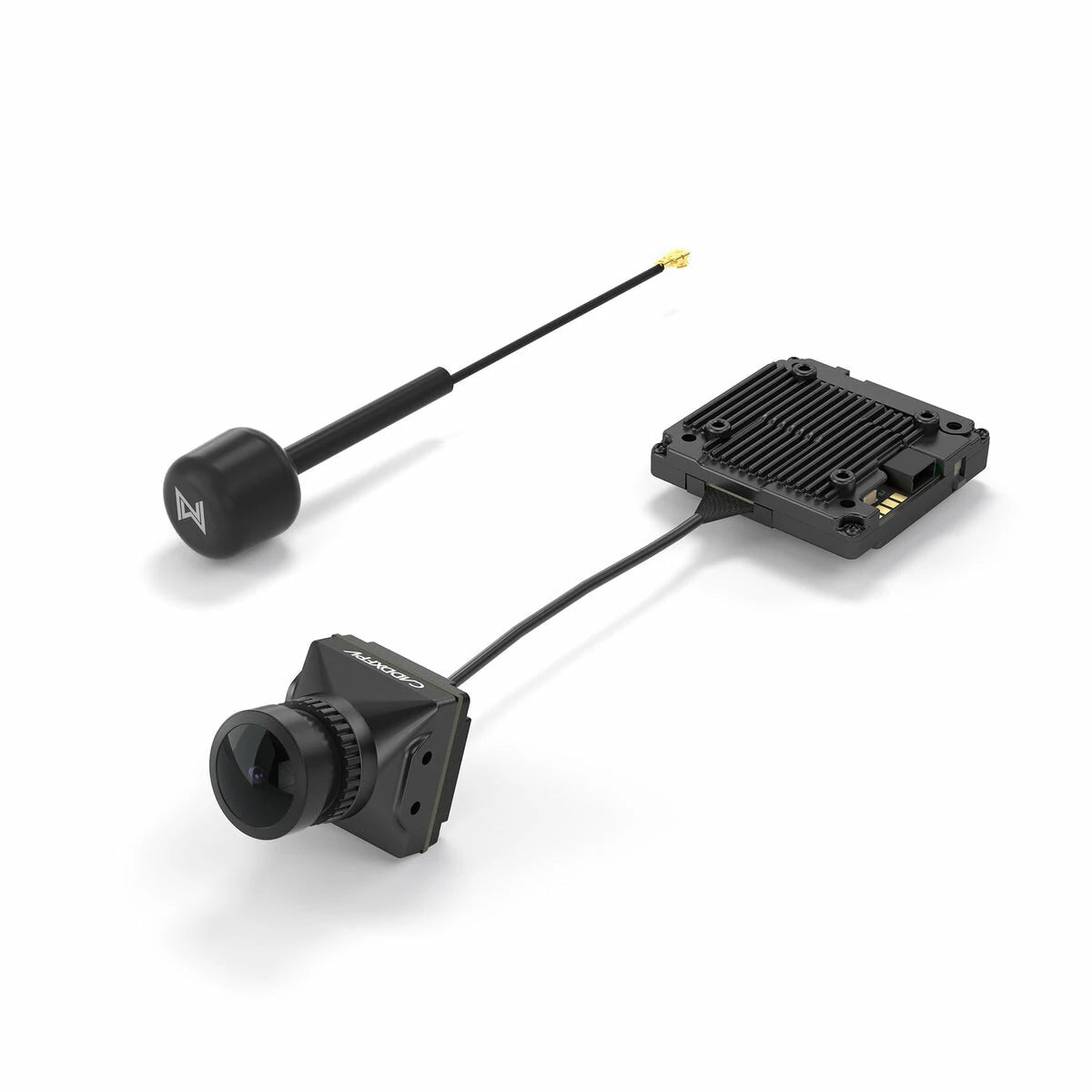

Avatar HD Pro Kit
Shipping calculated at checkout.
Couldn't load pickup availability
| Packing List | |
| USB transfer extension cable | X1 |
| 4 Pin silicone cable | X1 |
| M2*4mm screws | X8 |
| M2*5mm screws | X4 |
| M2*6mm screws | X4 |
| M2*14mm screws | X4 |
| M2*5*0.5mm gasket | X4 |
- 1/1.8 inch Sony Starvis Ⅱ sensor, come with extremely clear night vision as long as day vision.
- Support 1080P/120fps high frame, also the first high frame night vision HD camera in FPV market.
- Supporting Gyroflow for more stable and smoother footage.
- Add 20*20mm mounting holes for easy installation.
- Add 32g built-in storage option.
- Updated the design of PCB board and outer shell, more durable.
- A spare pad is added to provide two power connection modes.
- Optimized antenna base design and frequency button position for greater convenience.

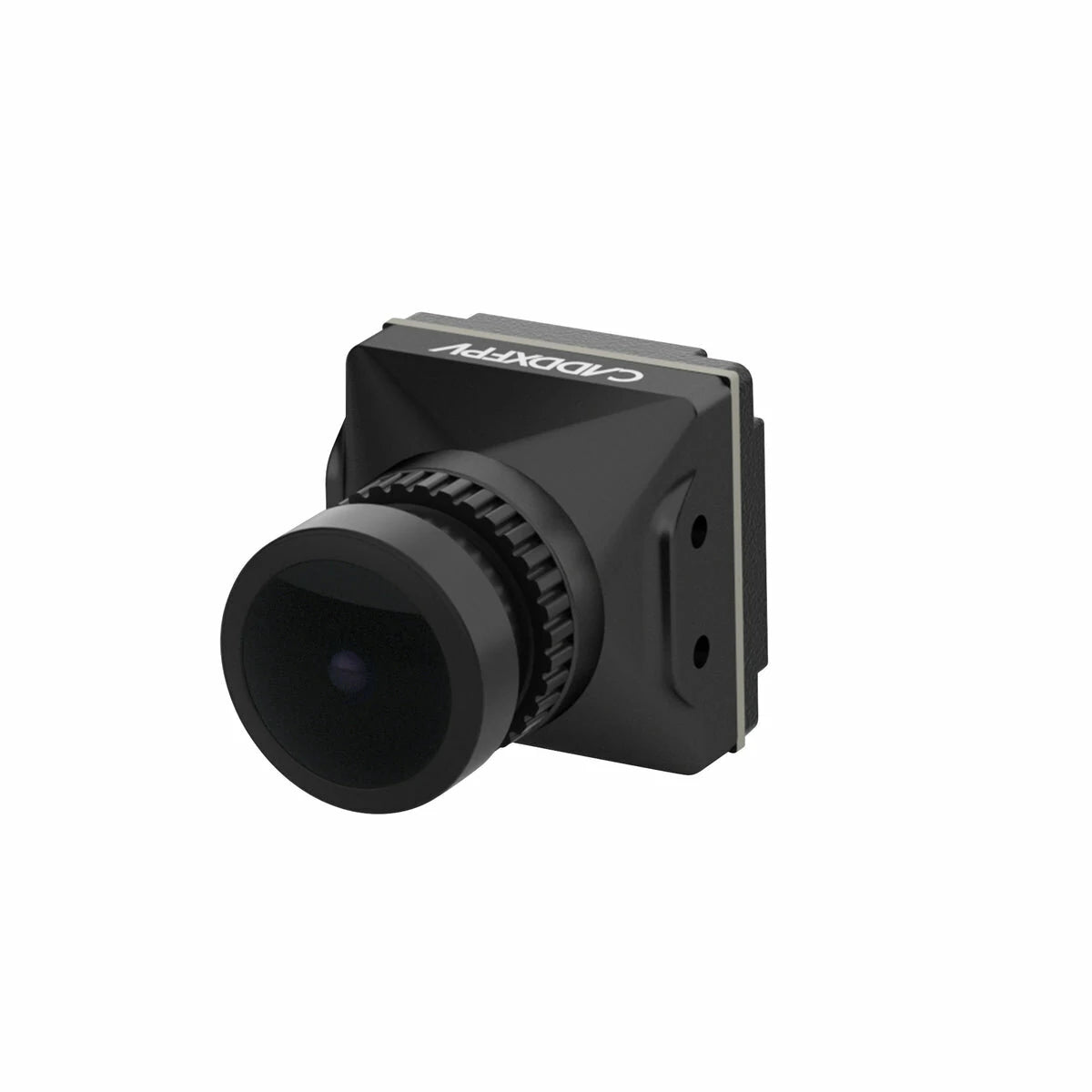

Camera
| Model |
Avatar HD pro camera |
| Image Sensor |
1/1.8-Inch Sony Starvis Ⅱ Sensor |
| Resolution |
1080P/60fps;720P/120fps,720P/60fps;1080P/120fps compatibility; |
| Ratio |
16/9; 4/3 |
| Lens |
8Mp |
| FOV |
160° |
| Aperture |
F1.6 |
| Shutter |
Rolling shutter |
| Min.Illumination |
0.00001Lux |
| Weight |
9.5g |
| Dimensions |
19*19*24mm |
| Coaxial Cable |
140mm |

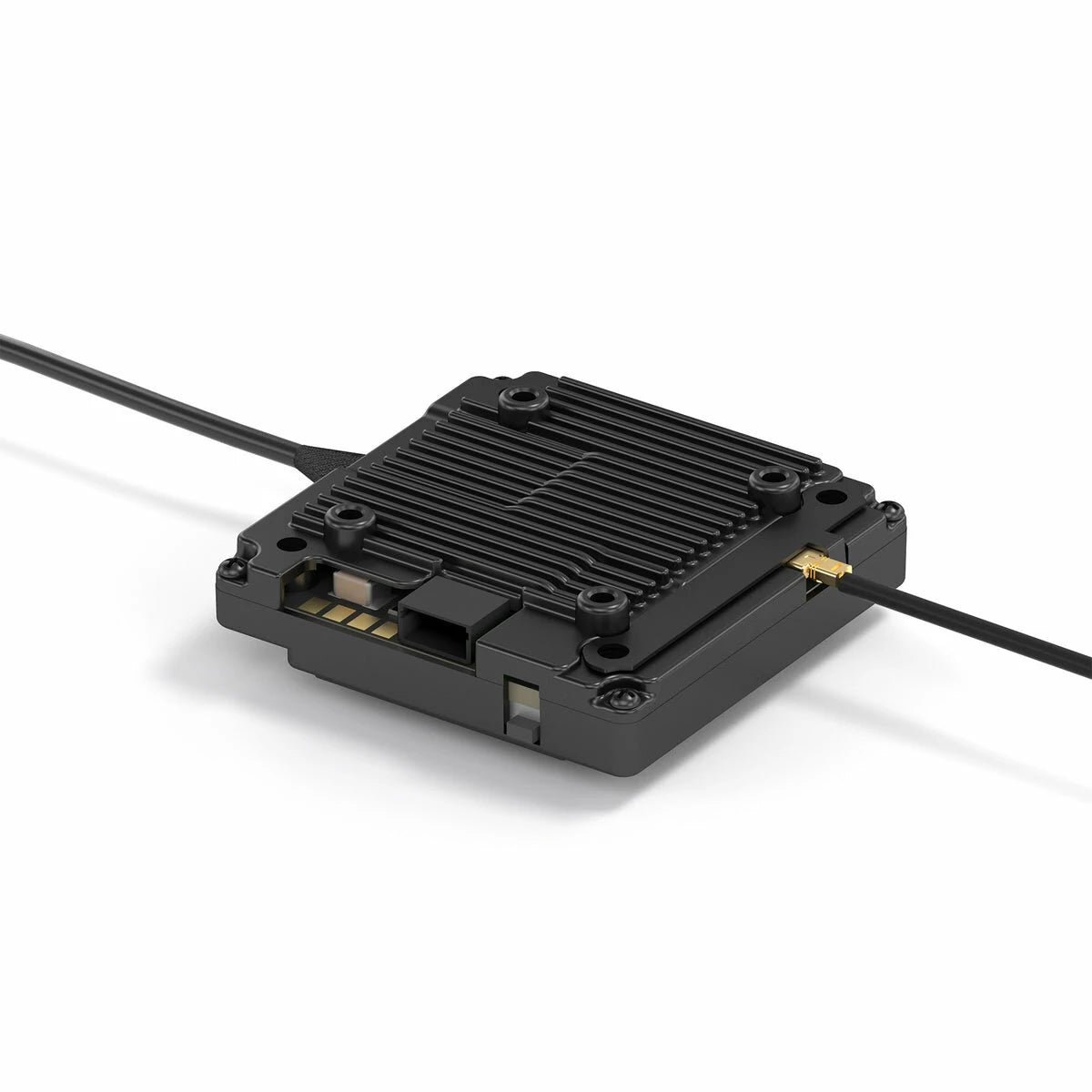

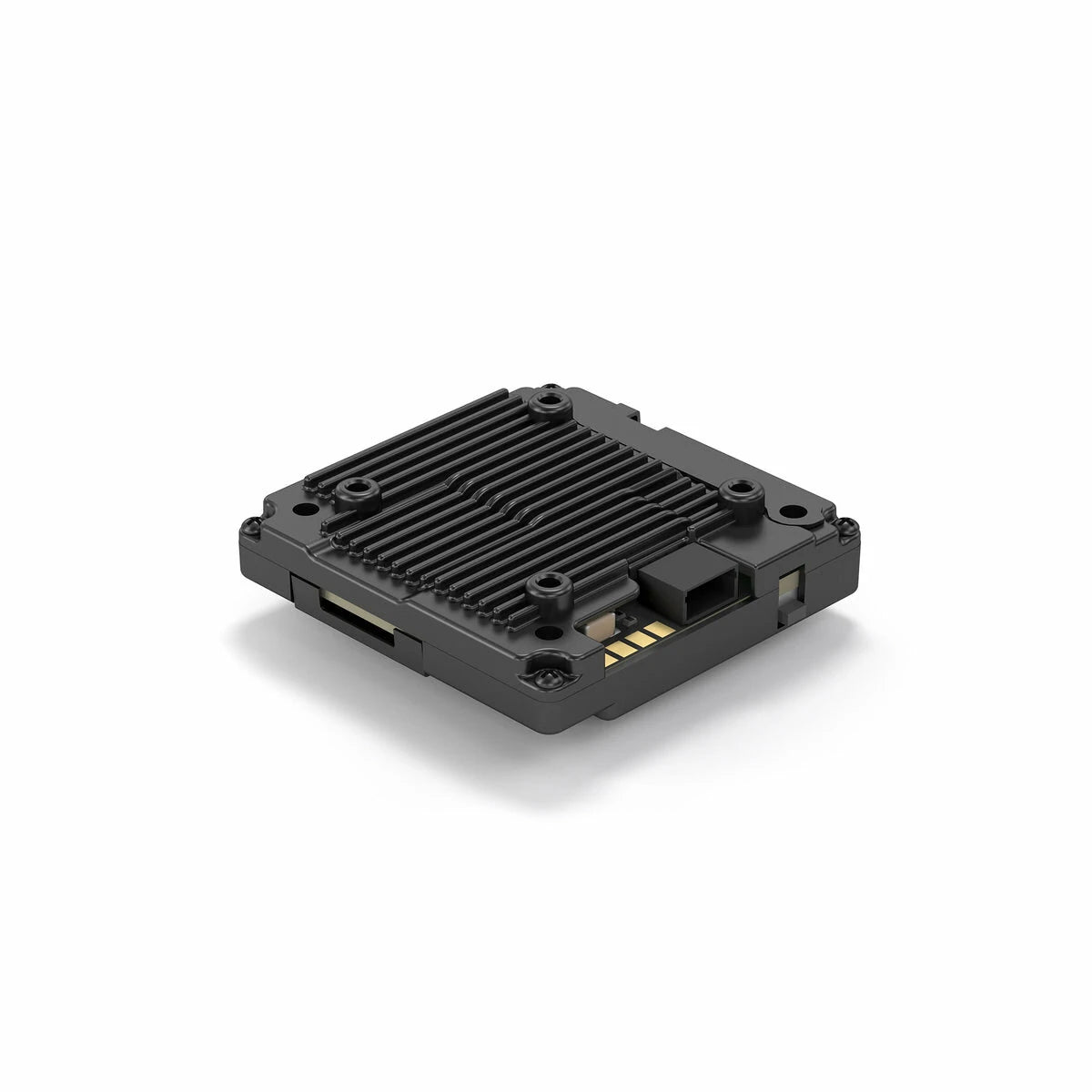

VTX
| Model |
Avatar V2 module |
| Communication Frequency |
5.725-5.850GHz |
| Transmitter Power (EIRP) |
FCC:<30dBm;CE:<14dBm;SRRC:<20dBm; MIC:<25dBm |
| 1/O Interface |
JST1.0*4(Power in)JST0.8*6(USB) |
| Mounting Holes |
25.5*25.5mm; 20*20mm |
| Dimensions |
33.5*33.5*10.5mm |
| Storage |
32G |
| Recording |
1080p/720p |
| Weight |
17.6g |
| Operating Temperature |
-20-40℃ |
| Channels |
8 |
| Wide Power Input |
6V-25.2V |
| Supported FC System |
Betaflight; Inav; Fettec; ArduPilot;Kiss |
| OSD |
Canvas mode |
| Latency |
Average delay 22ms |
| Antenna |
1(IPEX) |

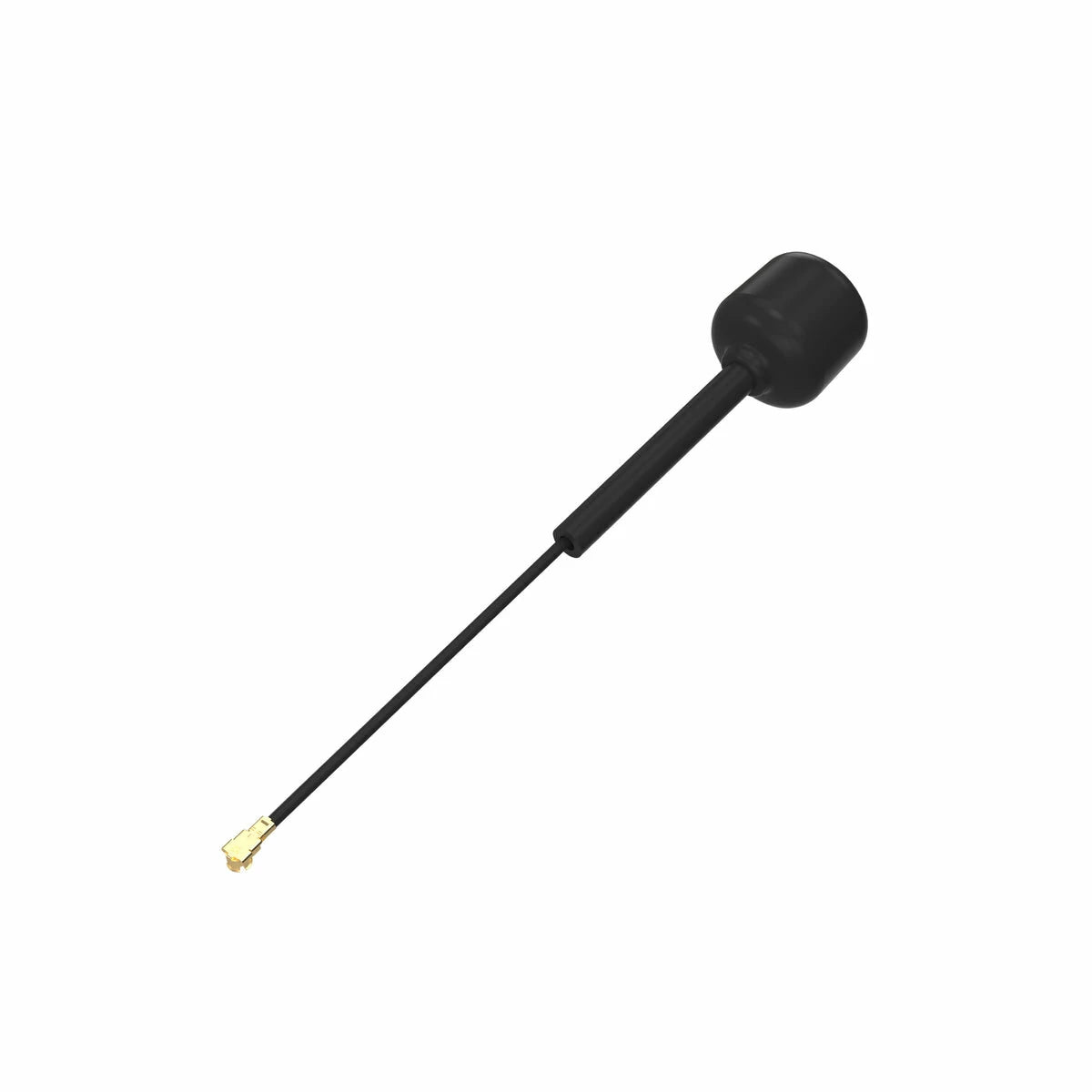

Avatar V2 antenna
| Polarization |
LHCP |
| Frequency range |
5600MHz-6000MHz |
| Gain |
1.9dBi |
| VSWR |
≤1.5 |
| Input Impedance |
50Ω |
| Interface |
IPEX-1 |
| Size |
R15 X 45mm(without cable) |
| Weight |
2g |
