- SKU:
- VENDOR: XTRAFLY

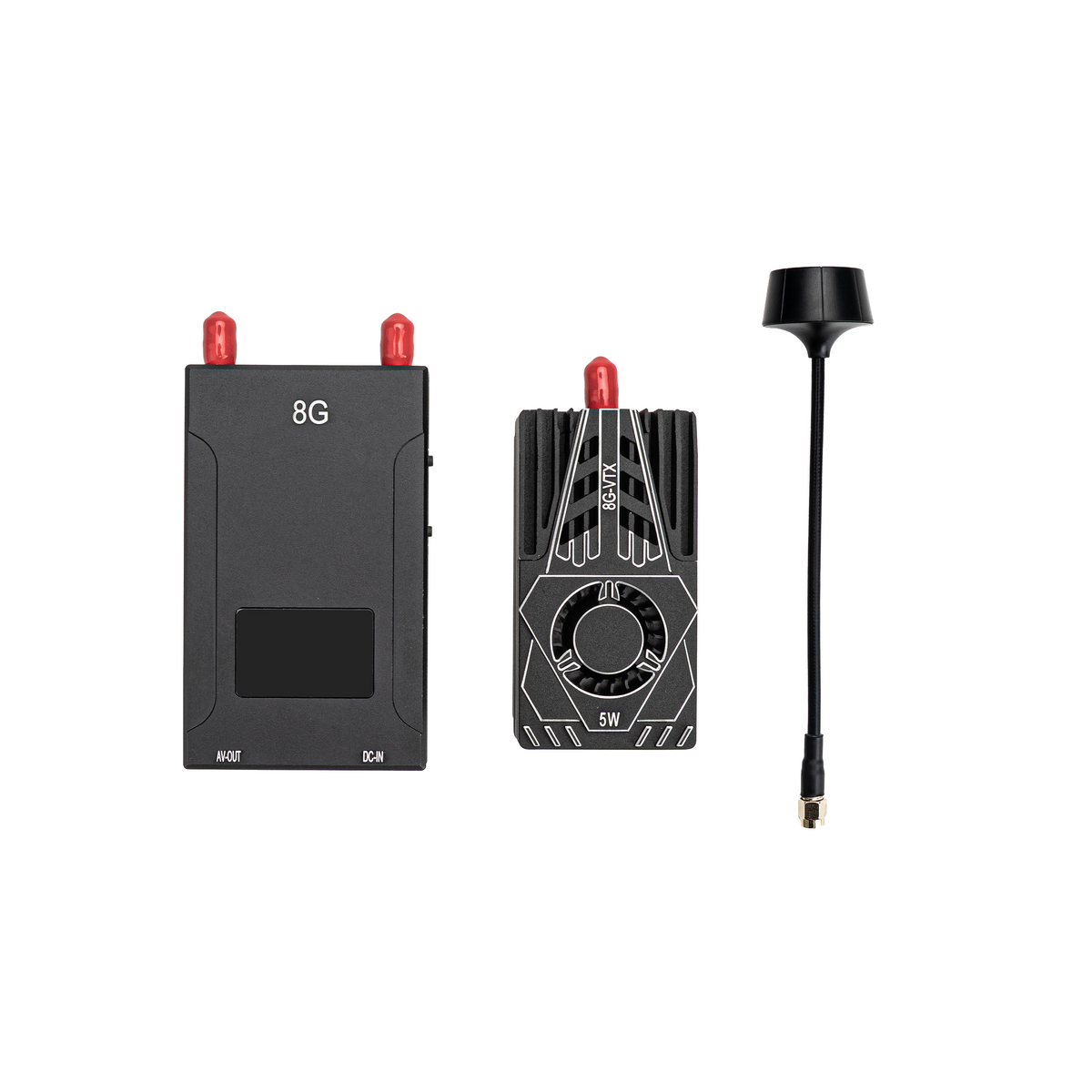

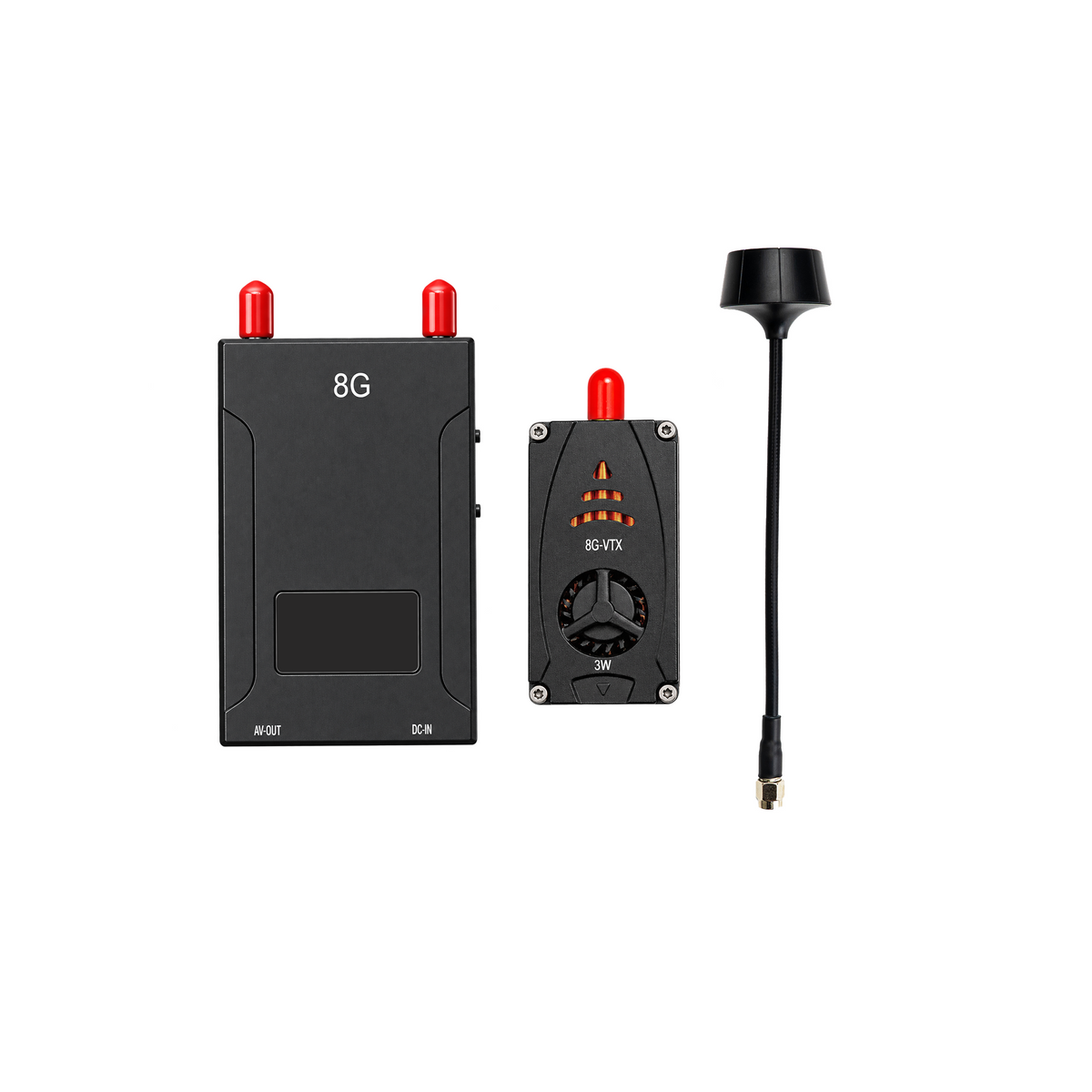

7-8G VTX COMBO
Shipping calculated at checkout.
Couldn't load pickup availability

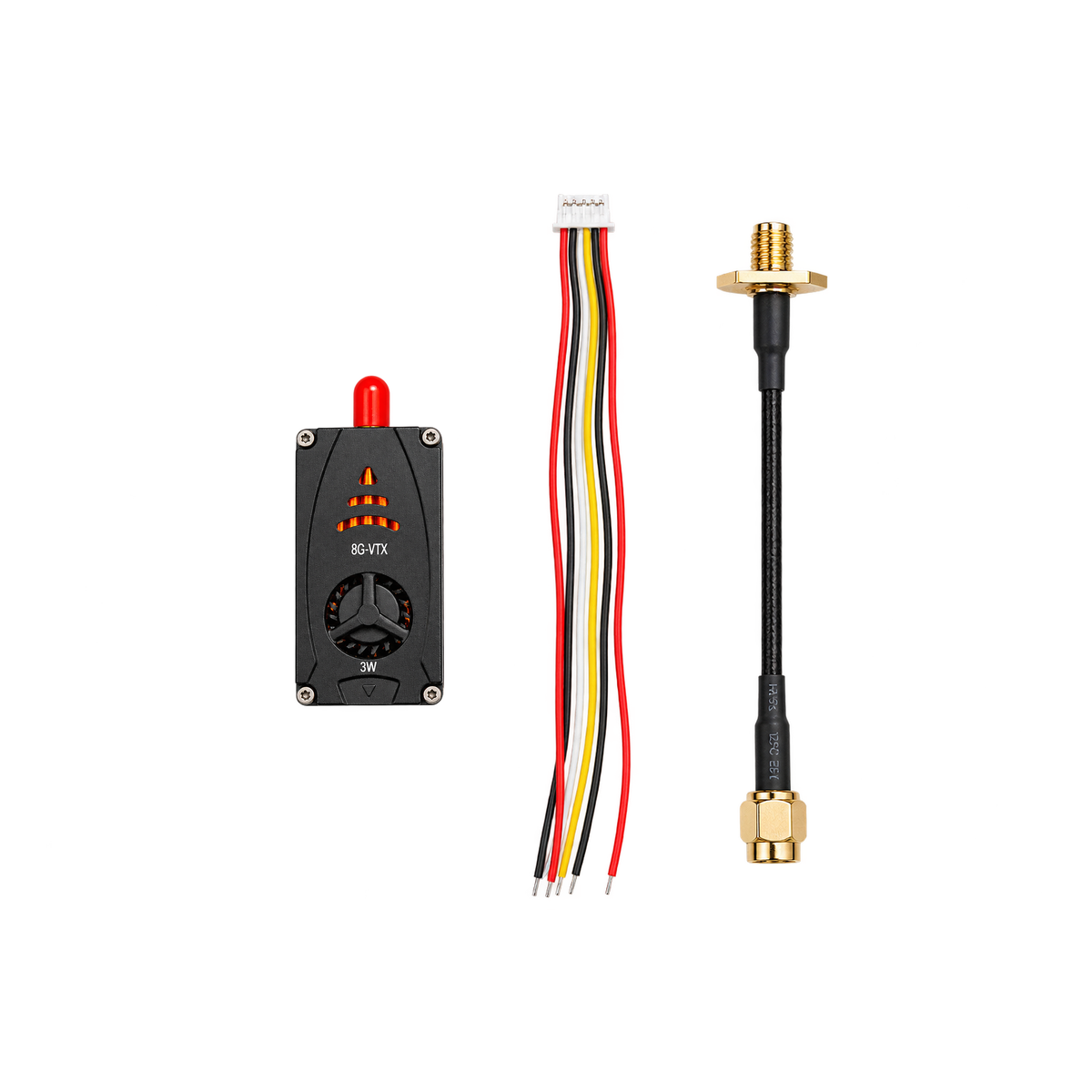

7-8G 3W VTX

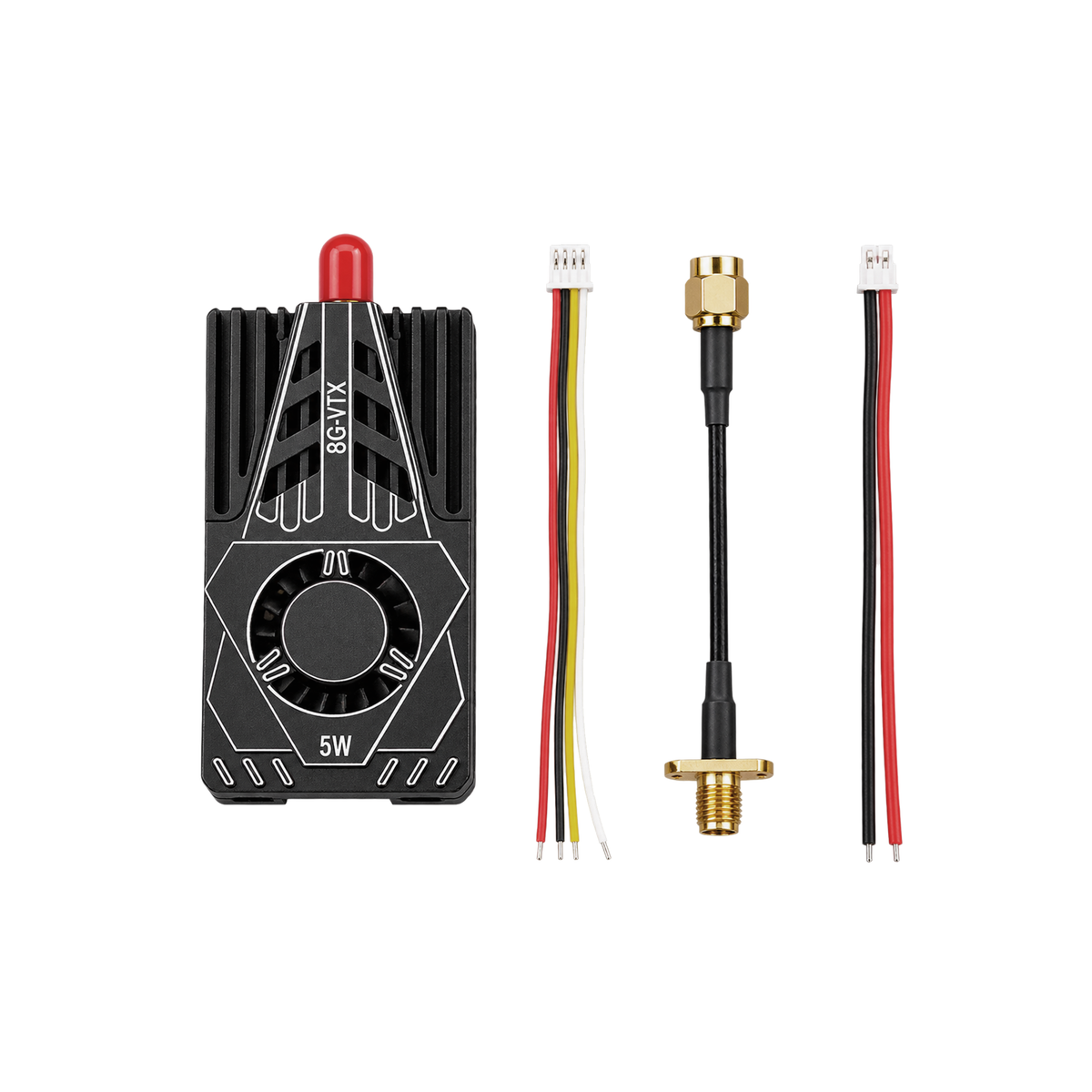

7-8G 5W VTX

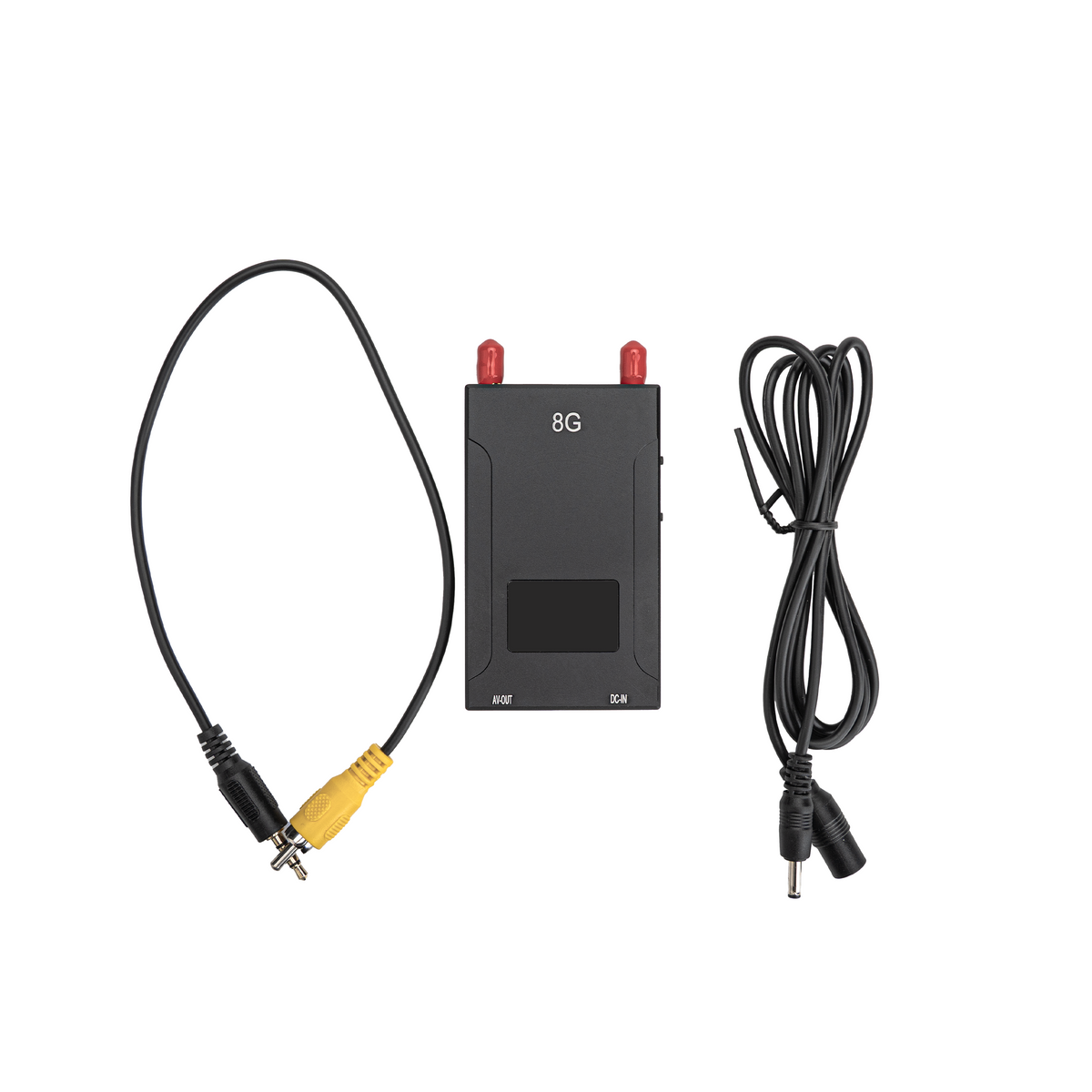

7-8G VRX

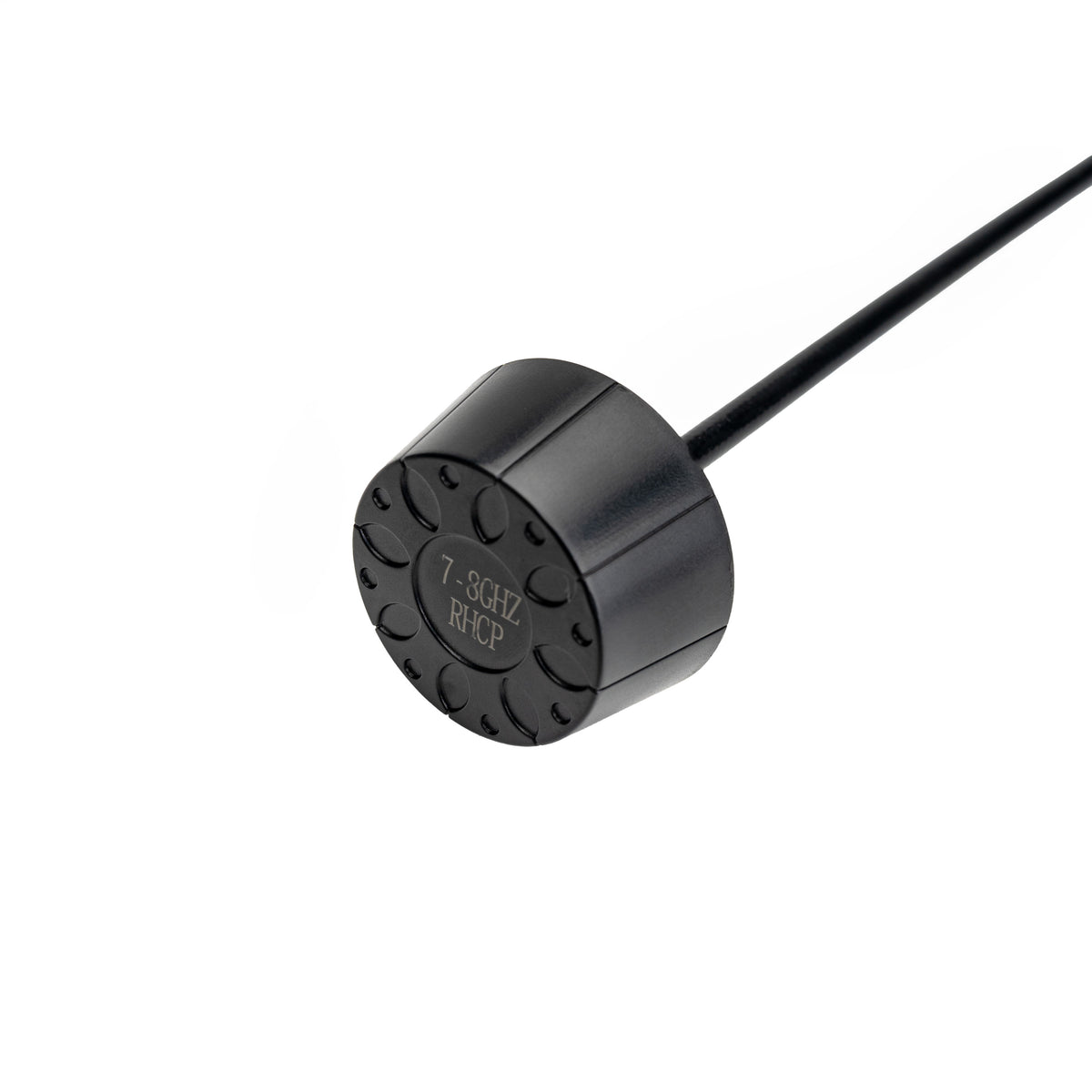

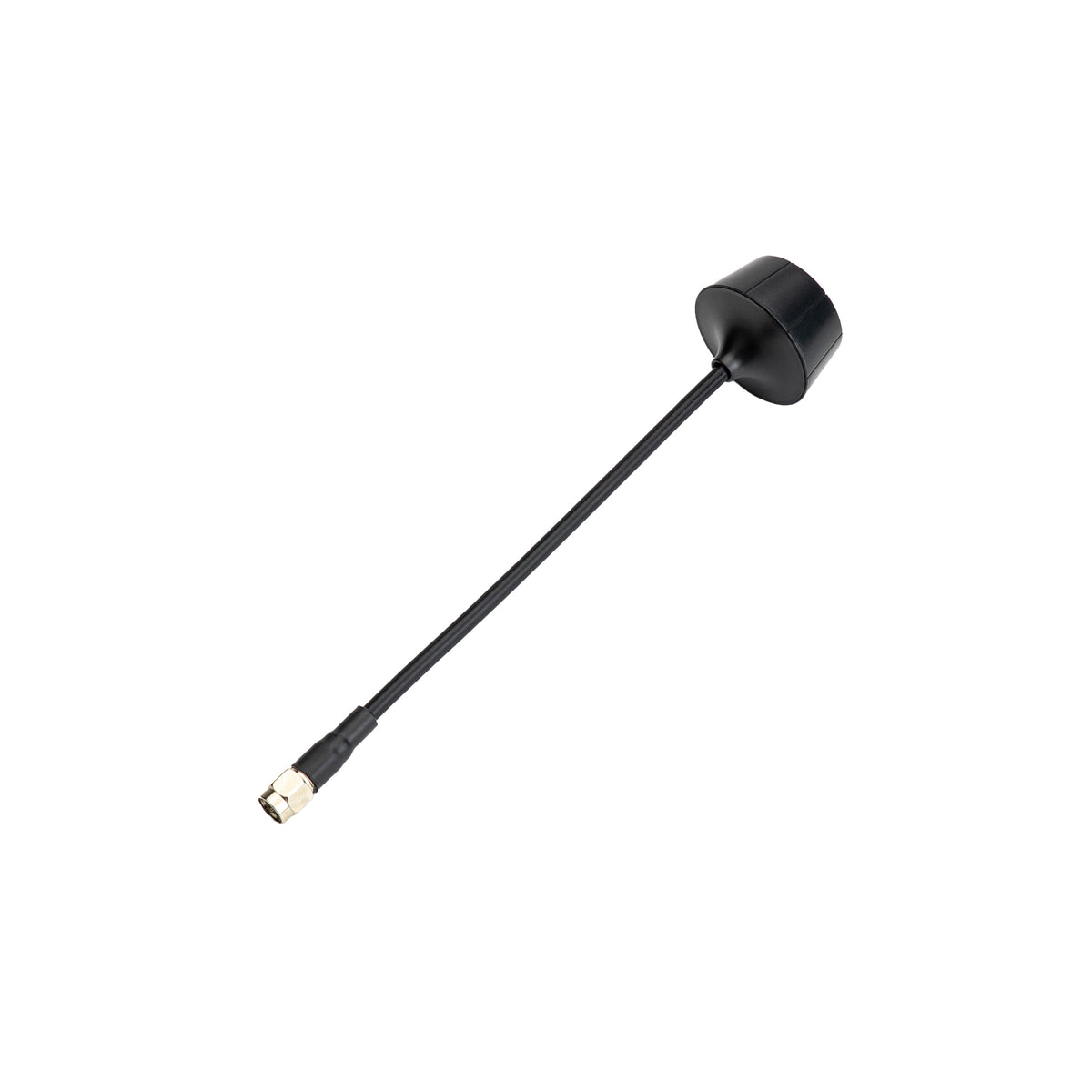

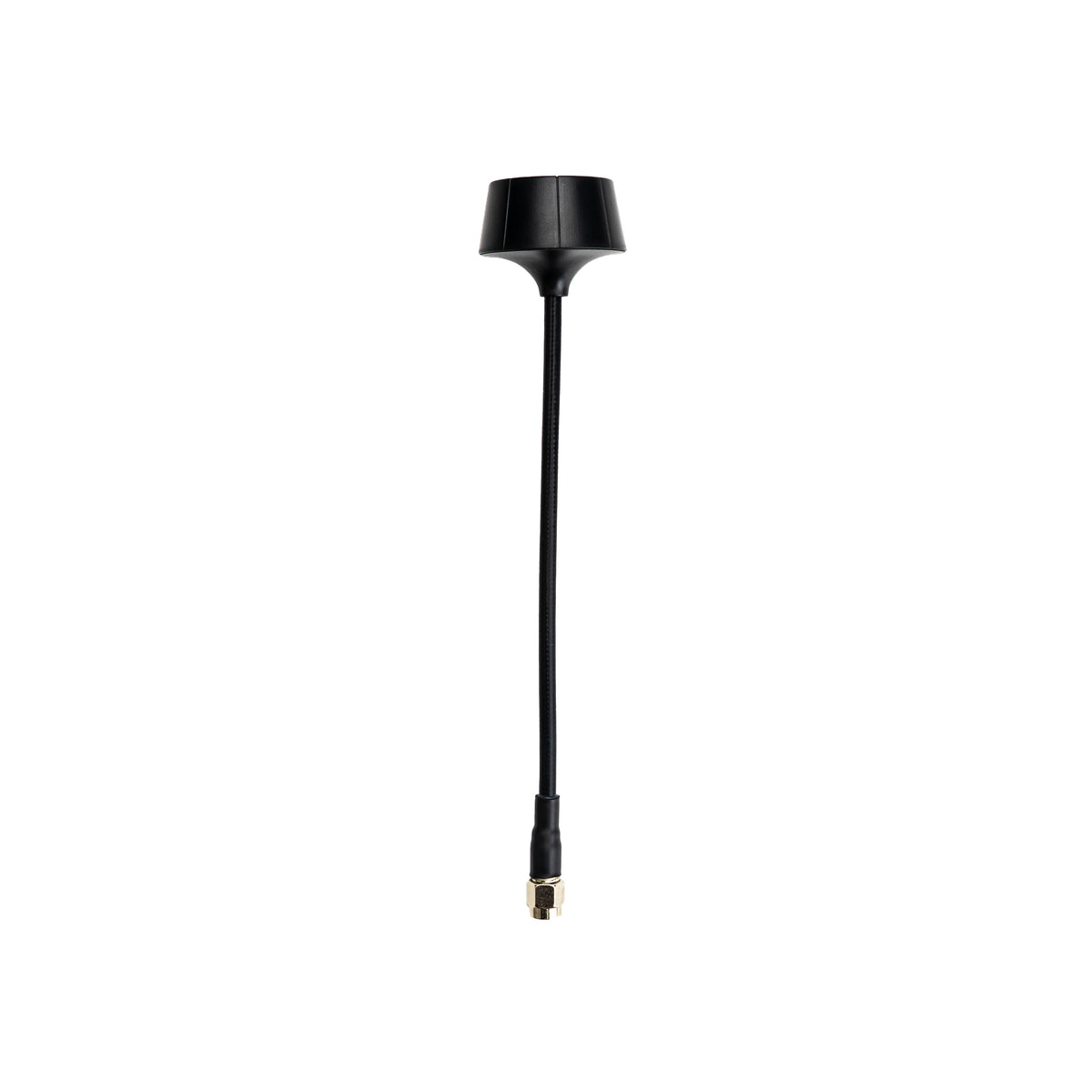

7-8G ANTENNA
Model: DTMG7.2-8G-SMA-116
Dimensions and Appearance
Maximum Diameter: Ø17.1 ±1 mm
Antenna Housing Height: 19 ±2 mm
Overall Height: 116 ±10 mm
Housing Color: Purple
Cable Color: Black
Heat-Shrink Tubing Color: Black
VSWR Test Data
7.2 GHz: 1.4762
7.6 GHz: 1.2804
8.0 GHz: 1.4875
Start Frequency: 7 GHz
Stop Frequency: 8.2 GHz
Intermediate-Frequency Bandwidth: 70 kHz
VSWR Reference: 1.000
Electrical Specifications
Product Type: Mushroom Antenna
Model: DTMG7.2-8G-SMA-116
Frequency Range: 7200-8000 MHz
Input Impedance: 50 Ω
VSWR: ≤1.5
Gain: 6-7 dBi
Polarization: RHCP
Radiation Pattern: Omnidirectional
Maximum Power: 50 W
Mechanical Specifications
Product Type: Mushroom Antenna
Model: DTMG7.2-8G-SMA-116
Height: 116 ±10 mm
Maximum Diameter: 17.1 mm
Minimum Diameter: ------
Connector: SMA Male with Male Pin
Cable: Black 141 Cable
Lightning Protection: DC Grounded
Color: Purple/Black
