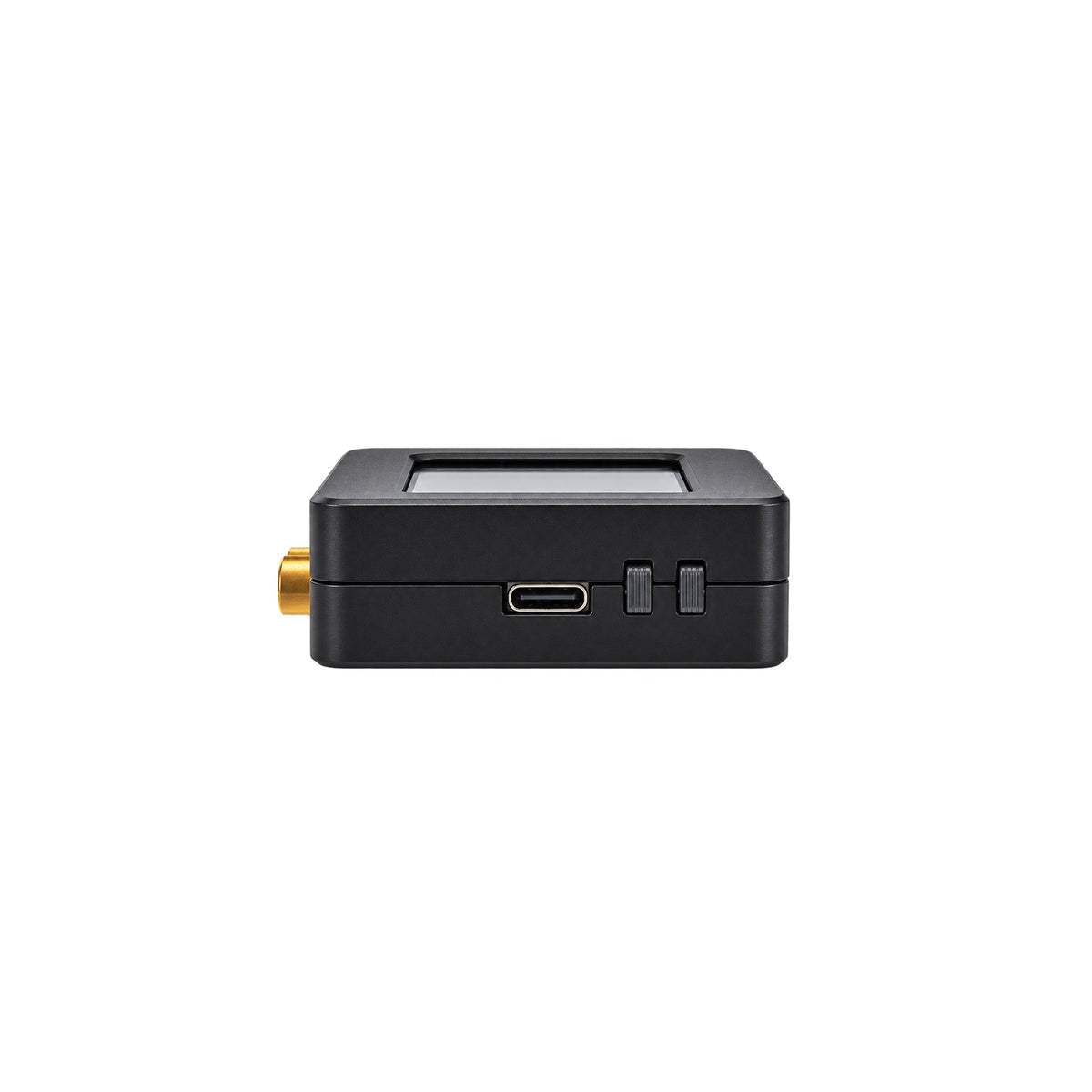

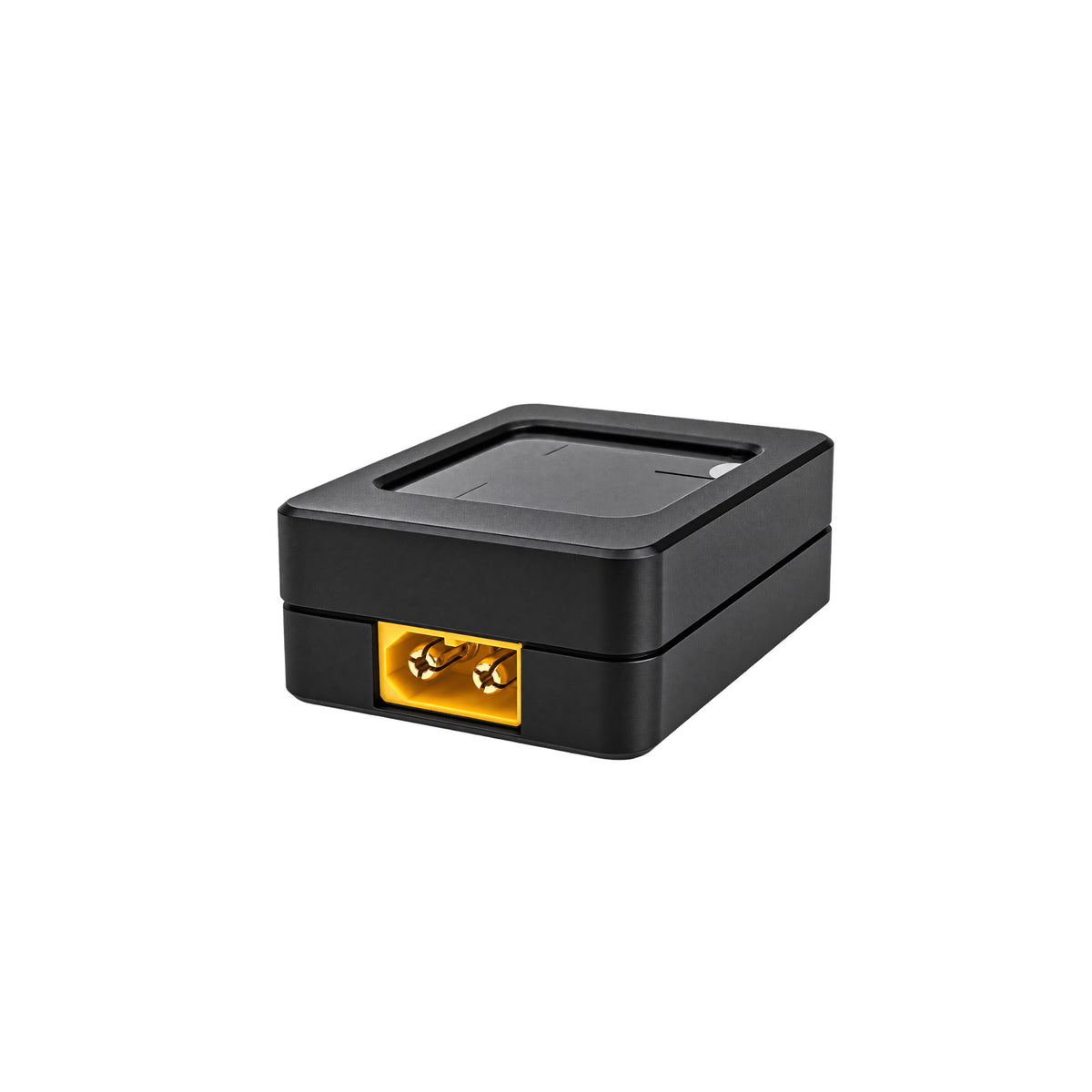

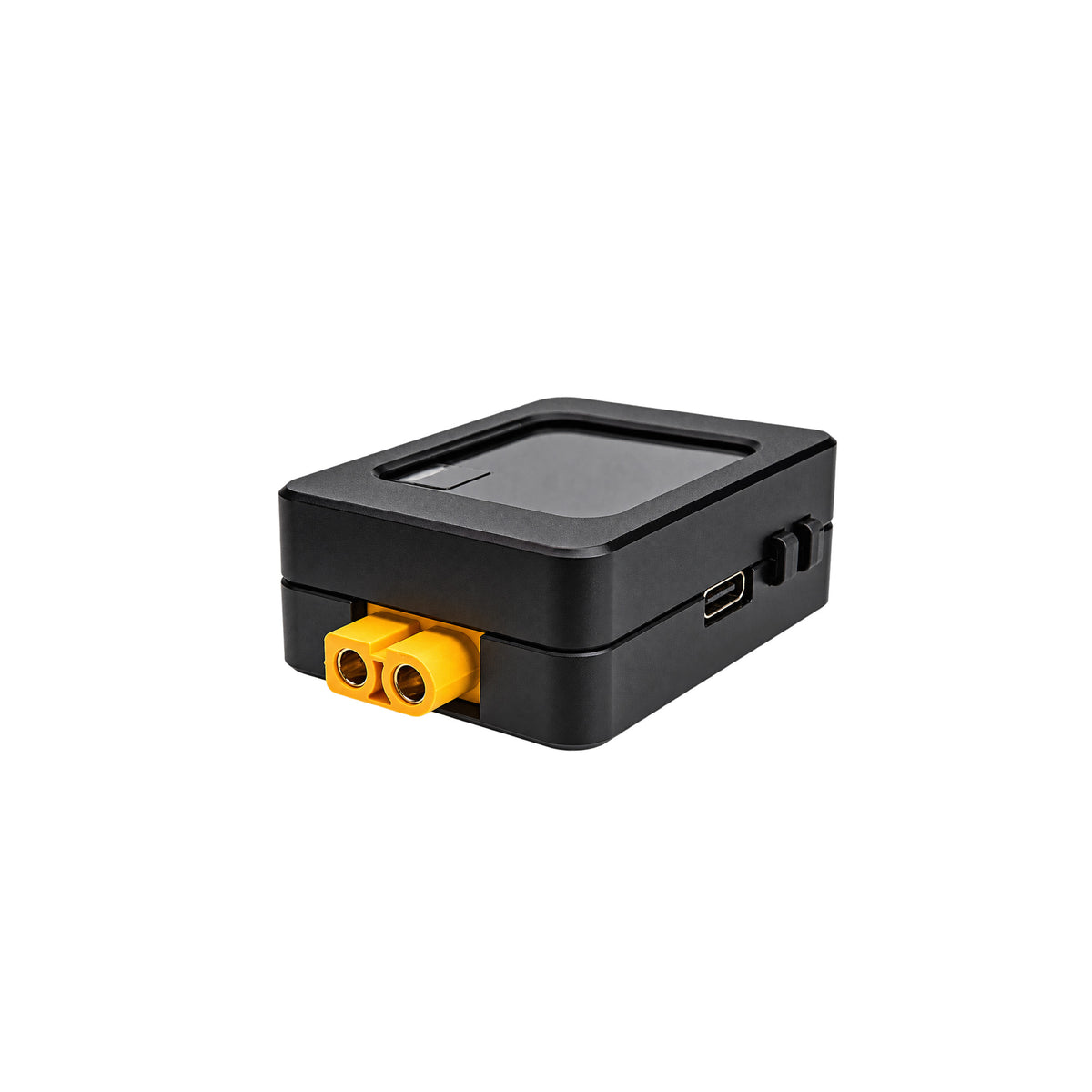

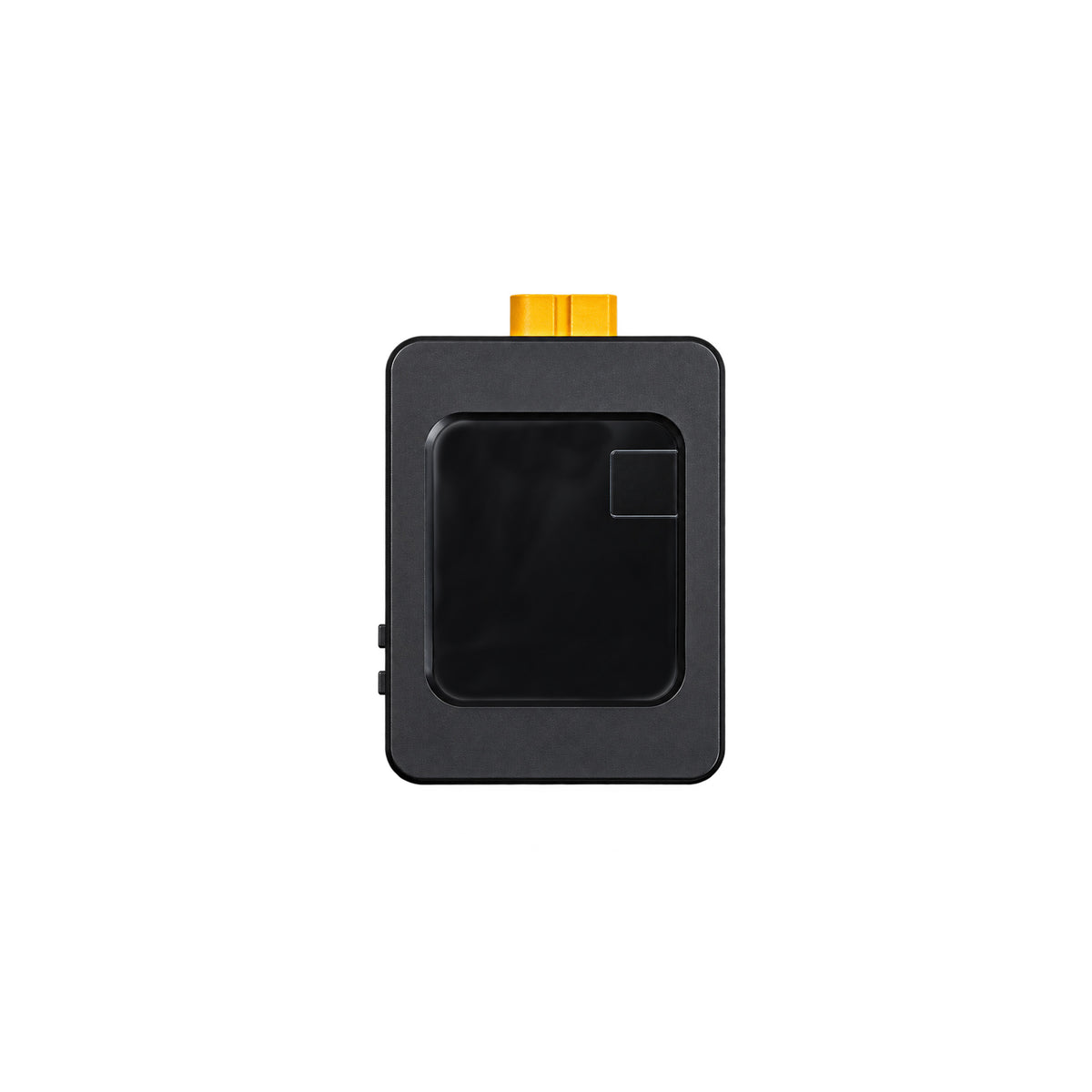

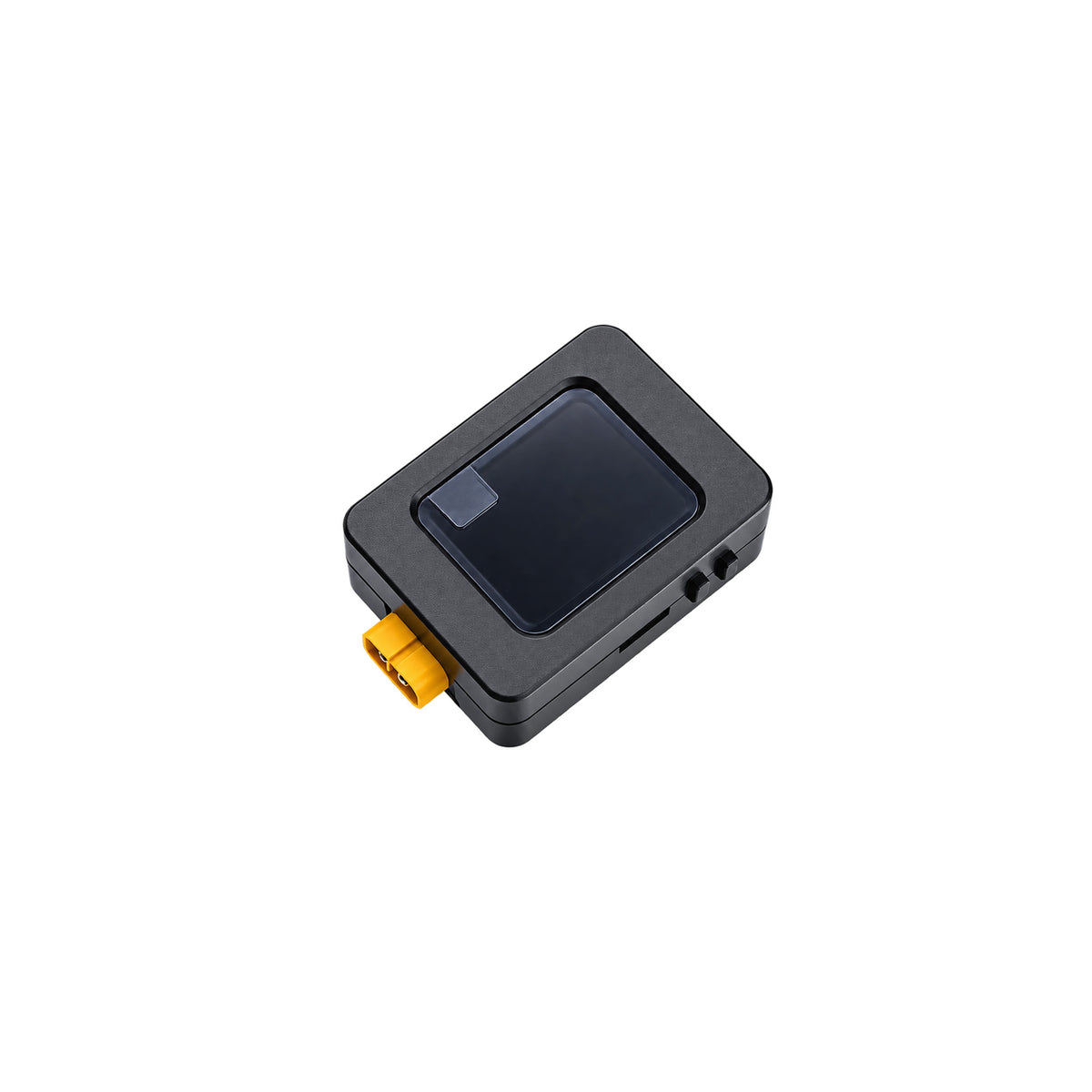

OddityRC PM90 DC Power Meter & Data Logger
Frais d'expédition calculés à la caisse.
Impossible de charger la disponibilité du retrait
Manual, Software & Firmware: Please contact customer services to obtain！
Portable DC Power Meter — 6–85 V, 90 A, XT60
A compact DC power meter for RC aircraft, UAVs, robots, and power-system testing. Built around the Texas Instruments INA228, it measures voltage, bidirectional current, power, energy (Wh), and charge (Ah), with a color LCD for real-time monitoring.
Key Features
• 6–85 V DC measurement range with rated current up to 90 A.
• Bidirectional current sensing for monitoring charging and discharging.
• 128 MB onboard storage for approximately 6 hours of recording at the maximum 166 Hz rate.
• USB connection for PC monitoring, graphing, CSV export, and recorded-data playback.
• Selectable 40 A and 90 A ranges, with adjustable conversion time and averaging.
• XT60 input/output connectors.
• Compact dimensions: 60.0 × 42.4 × 20.0 mm, including buttons and connectors.
Firmware V1.4.0 adds separate forward/reverse Ah and Wh accumulation, current calibration compensation, and screen rotation. Firmware V1.4.x requires PC software V1.3.0; V1.3.x requires PC software V1.2.0.
Operating Note
No overvoltage, overcurrent, or reverse-polarity protection is built in. Observe voltage and current ratings, verify polarity, and monitor temperature during use.
