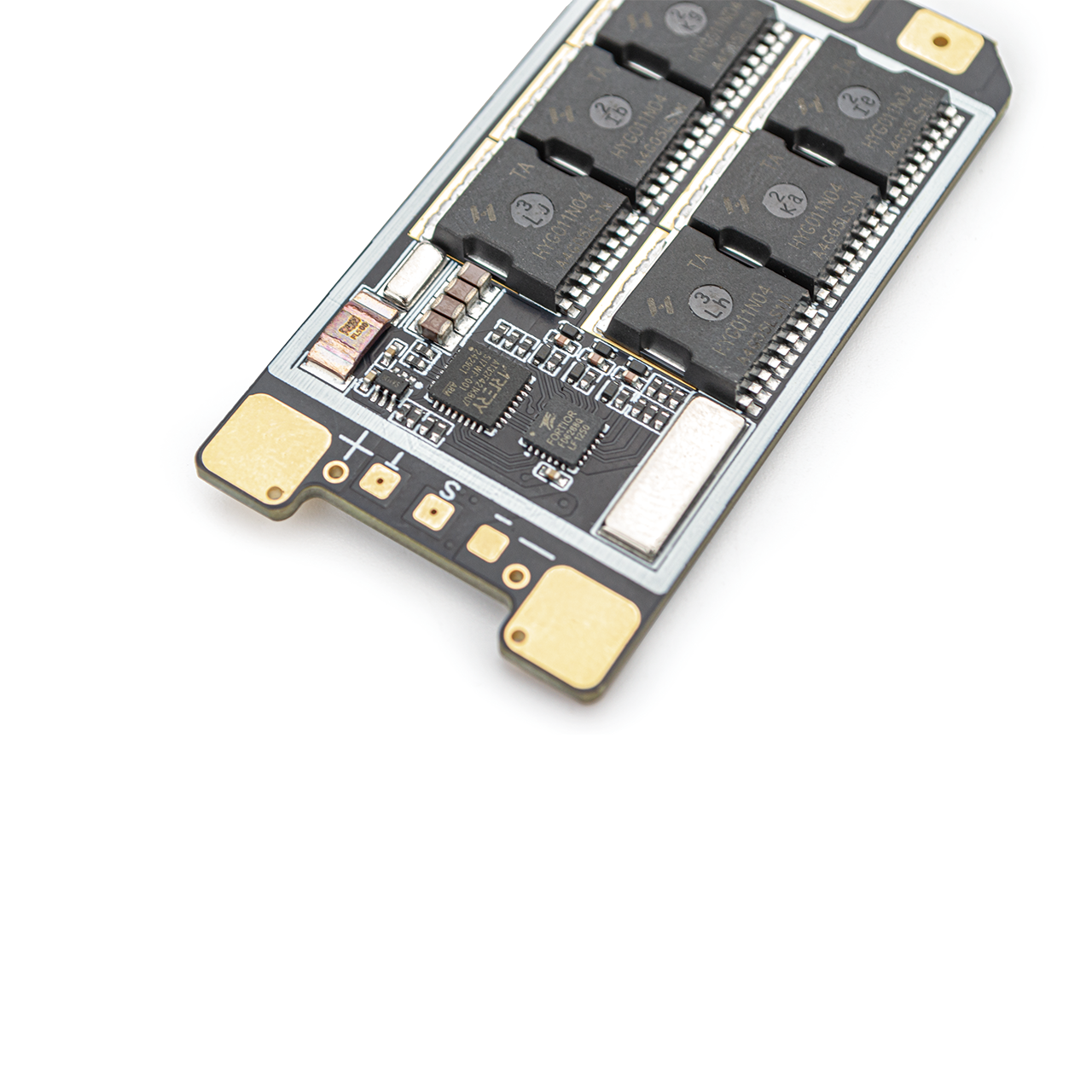

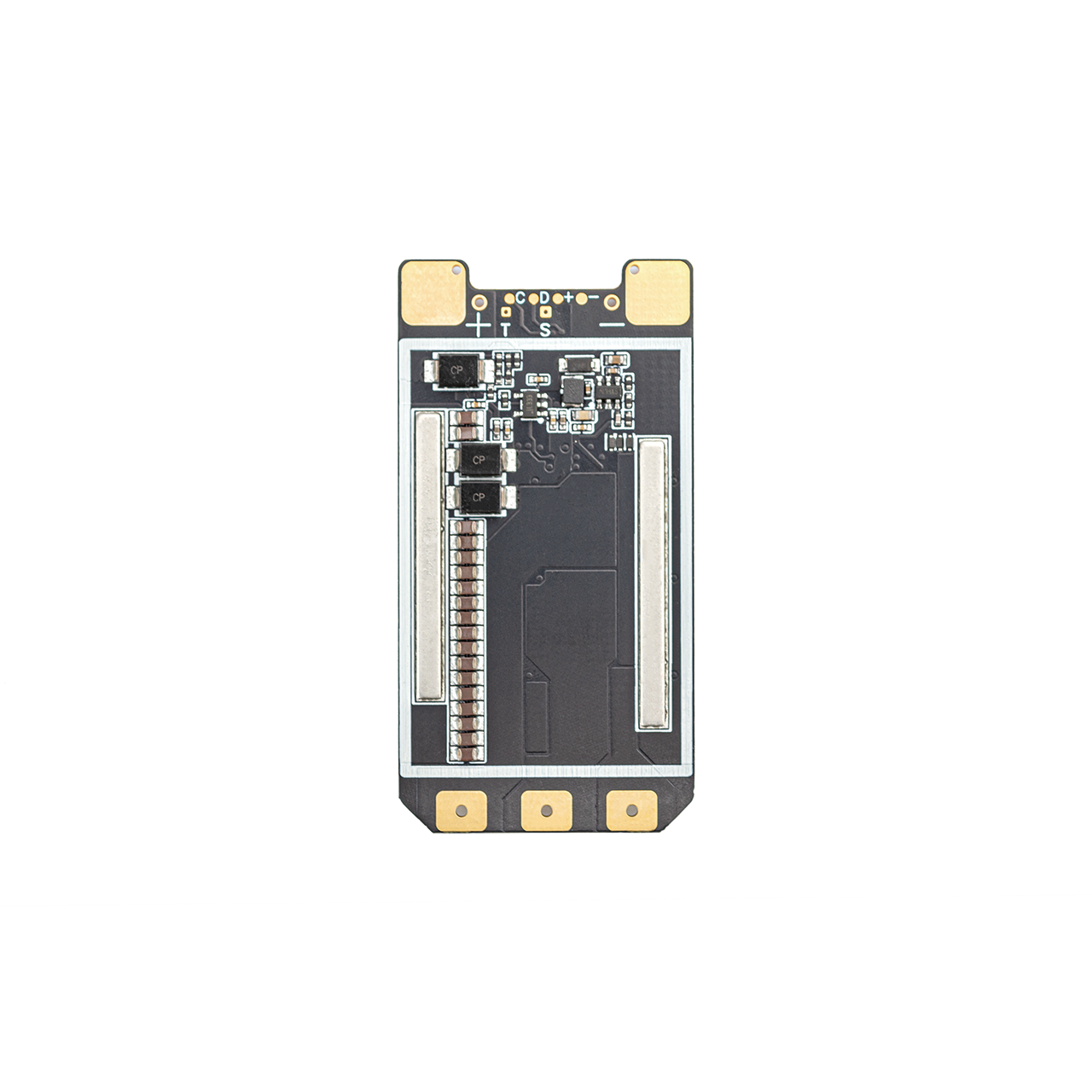

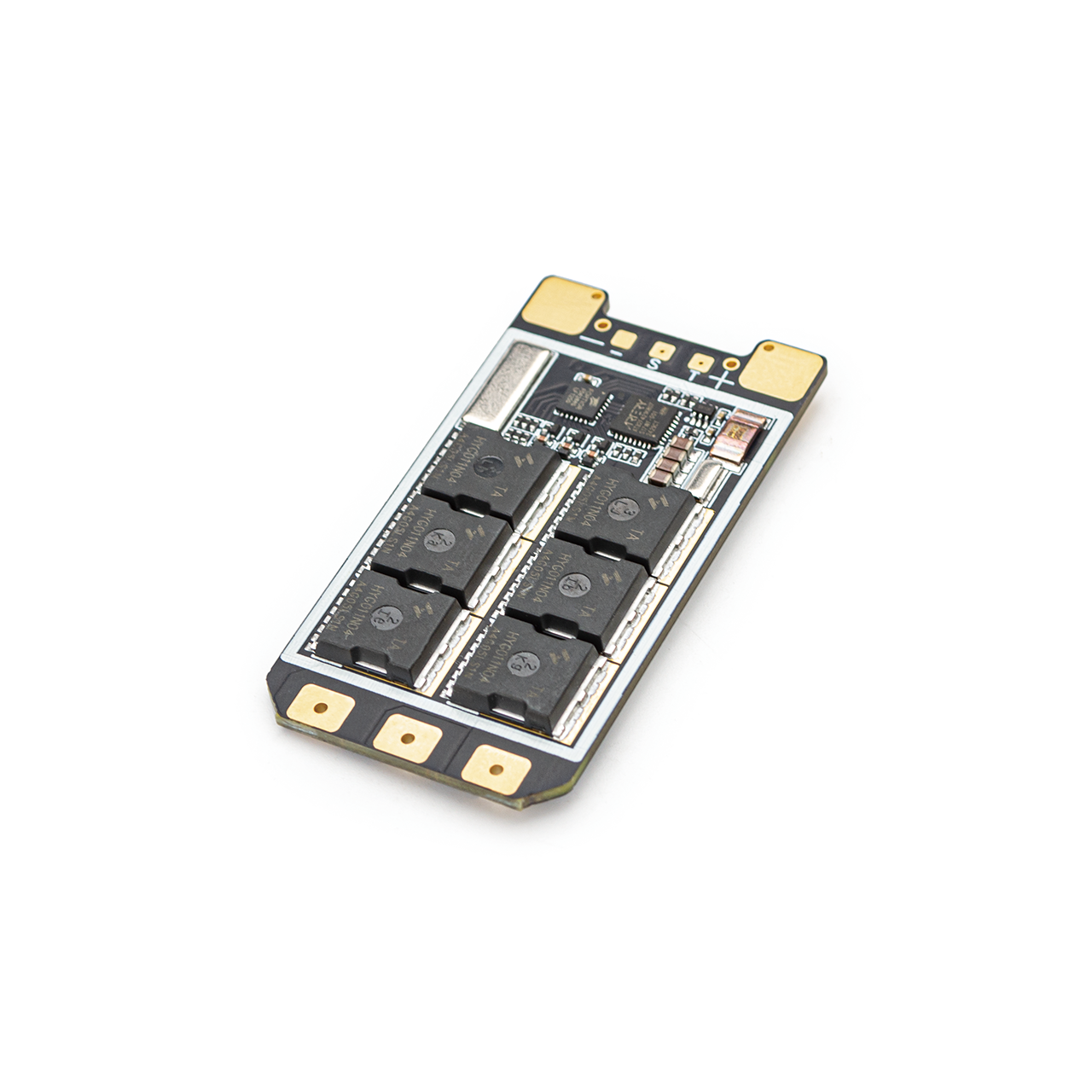

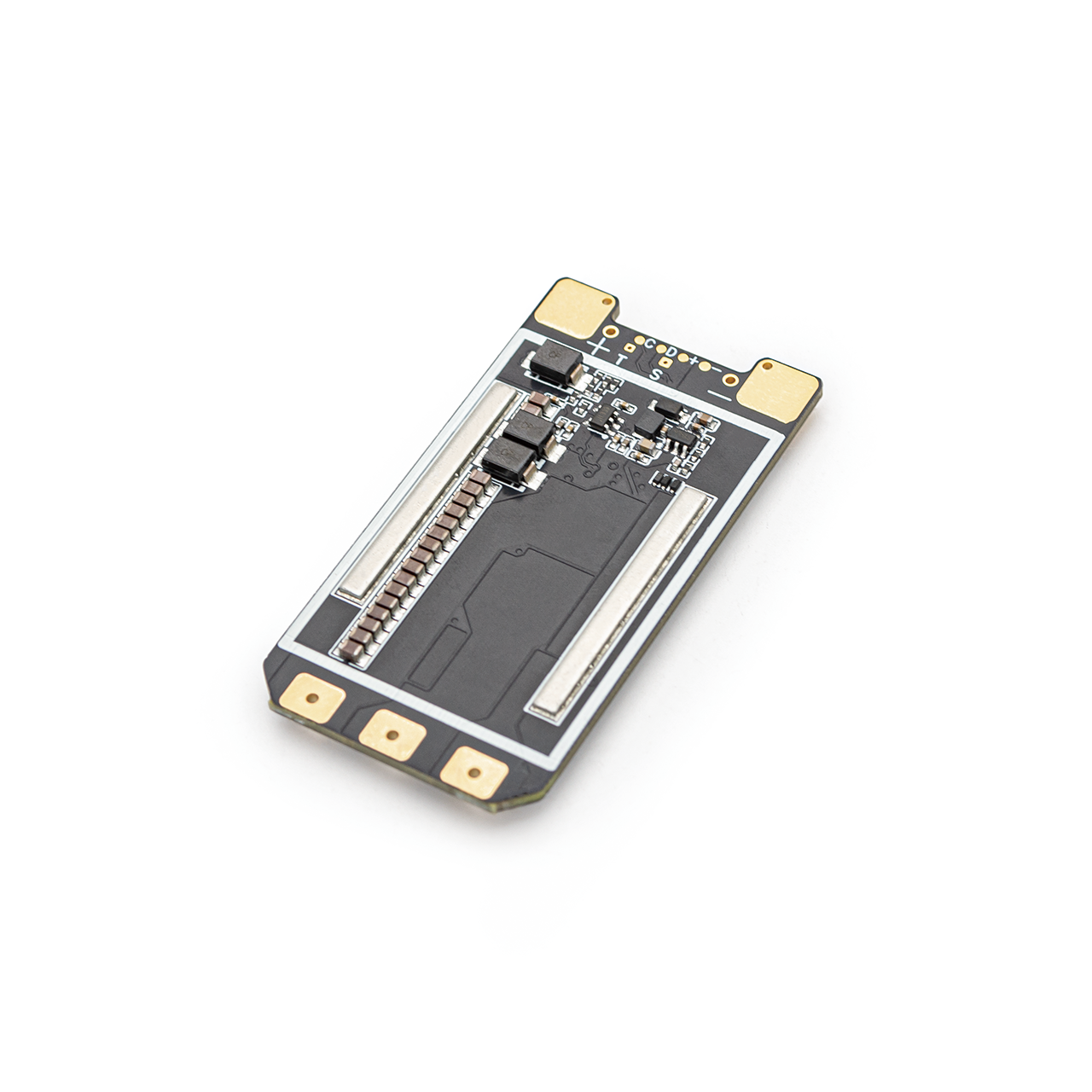

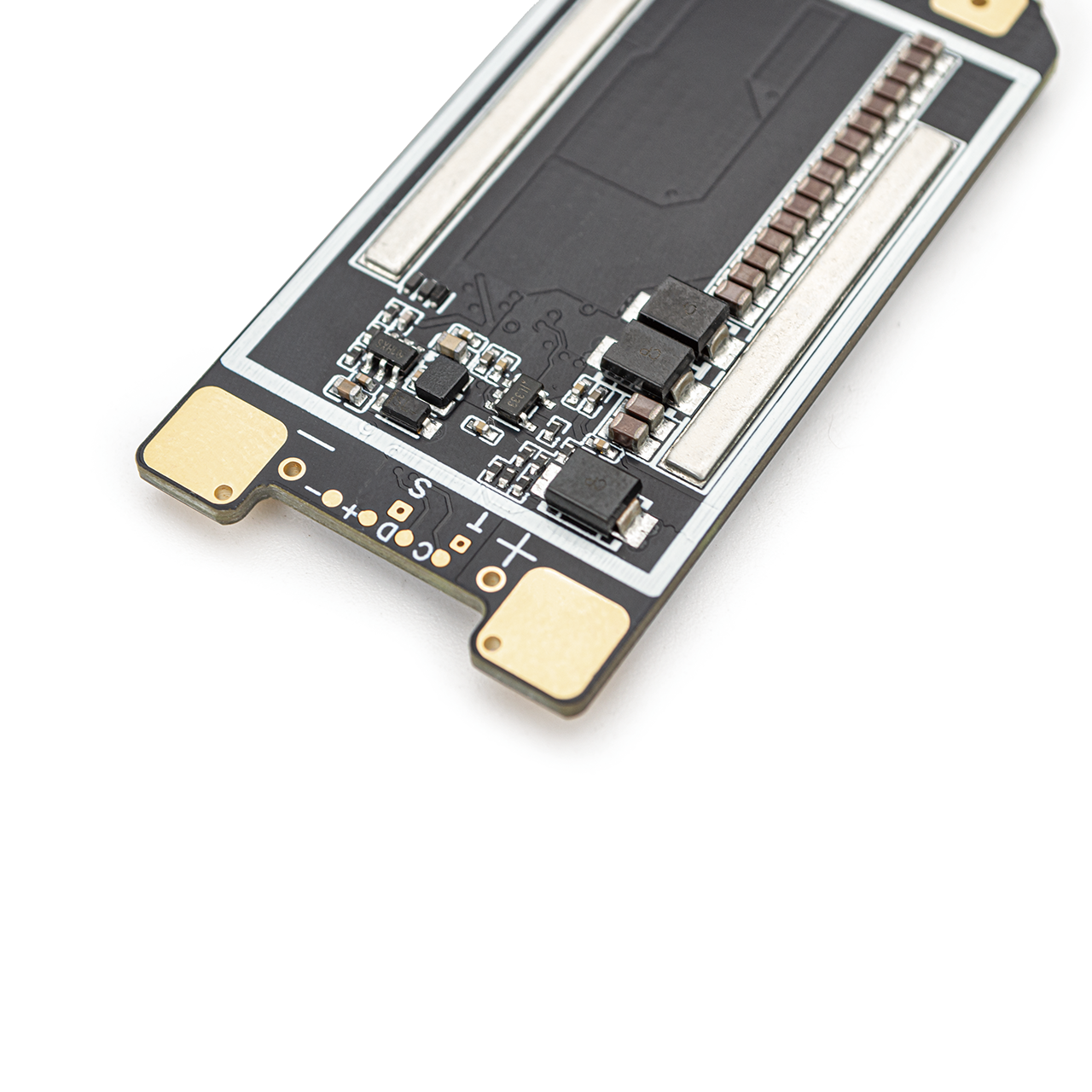

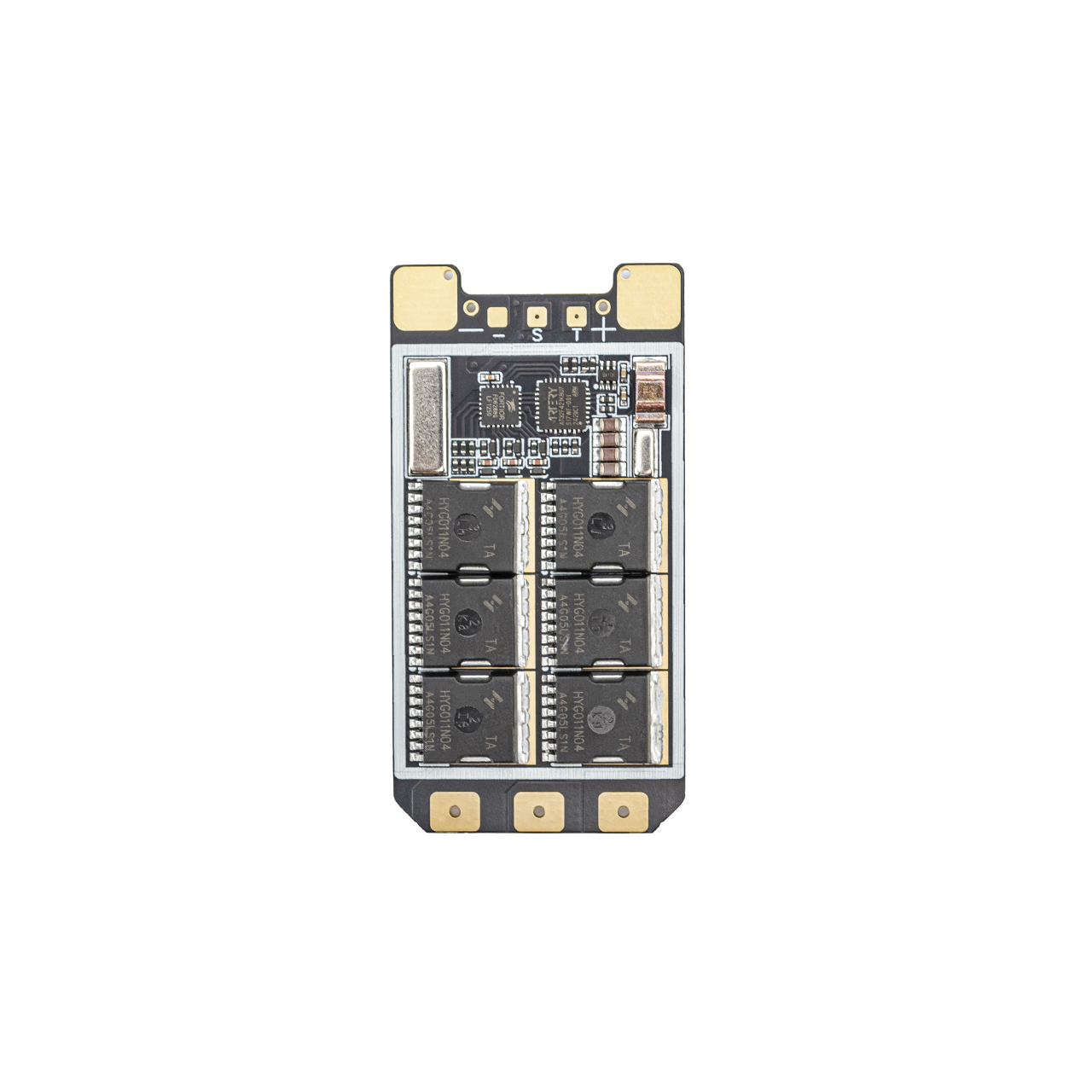

OddityRC Vortex F100 8S ESC (AM32)
Shipping calculated at checkout.
Couldn't load pickup availability
We recommend pairing every single ESC with our AM32 flash/ configuration tool.
Firmware Flash/Update URL: https://am32.ca/
Configuration:
Product Name: OddityRC Vortex F100 8S 100A Single ESC AM32 firmware
Working temperature: -40 to 60℃
Firmware: AM32_ODDITYRC_F421_2.20
MCU: AT32F421 main frequency up to 120MHz operation speed
Kernel: ARM ® Cortex ® - M4
Memory: supports up to 64KB of flash memory (Flash) and 16KB
Input Voltage: 4-8S
Constant current: 100A
Burst current: 120A
Peak power: 4000W
Current sensor: Yes
Telemetry: Yes
Supports: DShot DShot150/300/600/MultiShot/ OneShot/PWM etc.
PCB board: 6 layer board with a copper thickness of 3oz
Size: 57.5 x 27.5mm
Used for 13-15 inch FPV drones, fixed wing drones, ship model, car model, etc.
