- SKU:
- VENDOR: EMAX

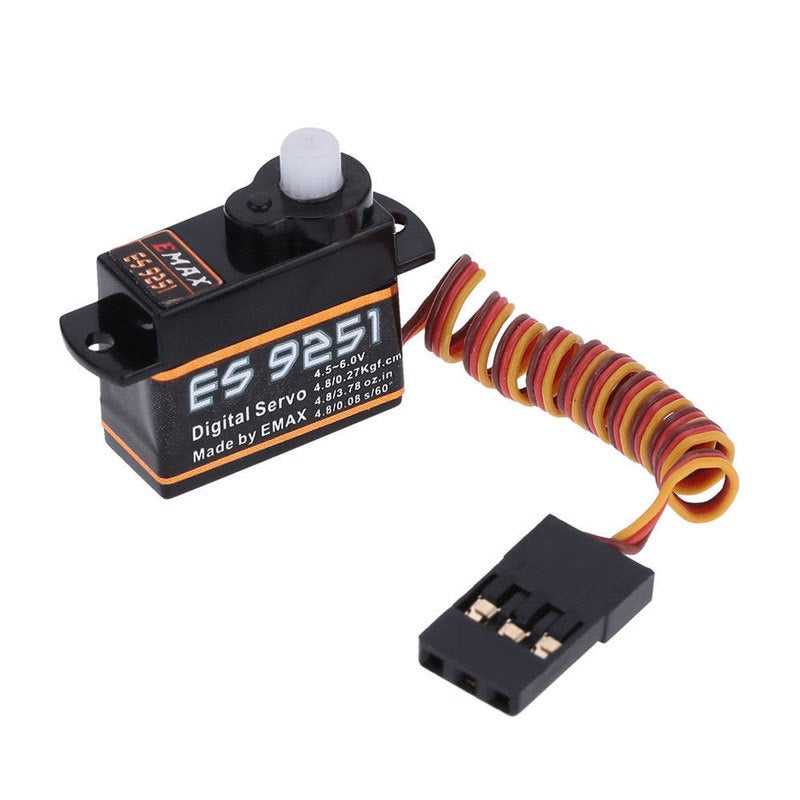

EMAX ES9251 Ⅱ Plastic/Metal Gear Digital Servo
Shipping calculated at checkout.
Couldn't load pickup availability
Product Description
Brand Name: EMAX ES9251
Operating Voltage: 4.8-6.0V
Working’s Environment：
Storage temperature Range: -20℃~70℃
Operating temperature Range: -10℃~60℃
Electrical Specification (Function of the Performance) @4.8V：
Operating speed (at no load): 0.09 sec/60°
Running current (at no load): 25mA Max
Stall torque: 0.25kg.cm Max
Maximum current: 120mA Max
Idle Current: 2.2mA
Electrical Specification (Function of the Performance) @6V：
Operating speed (at no load): 0.08 sec/60°
Running current (at no load): 35mA Max
Stall torque: 0.3kg.cm Max
Maximum current: 140mA Max
Idle Current: 2.2mA
Mechanical Specification：
Weight: 3.0±0.5 g
Connector wire gauge: JR
Connector wire length: 180±8
Flower head: 15T
Bearing: 15T
Gear type: 1metal gear +5plastic gear
Extreme angle: 360°
Control Specification：
Control system: PMW
Operating travel: 90° ±10°( when 1000-2000 μ sec )
Neutral position: 1500 μ sec
Rotating direction: Counter Clockwise / Pulse Traveling 1500 to 1900 μ sec
Pulse width range: 700-2300 μ sec
Maximum travel: 145° ±10°( 700-2300μ sec )
Package include
1pcs * EMAX Digital ES9251 servos
