ODD SELECT / VOL.03
How do you choose a servo for a robot arm or mechanism?
Choose a robot servo by motion type, load and lever arm, then check voltage, speed, current requirements and mechanical fit. OddityRC's ODD SELECT shortlist includes RDS3218MG, a coreless RDS3235 option, RCLS3325MG, AS3103-360MG and RDS5160MG. Each addresses a different selection question.
ODD SELECT is OddityRC's curated range of third-party RC and maker hardware. These guides explain why products were selected, where they fit and what to check before choosing.

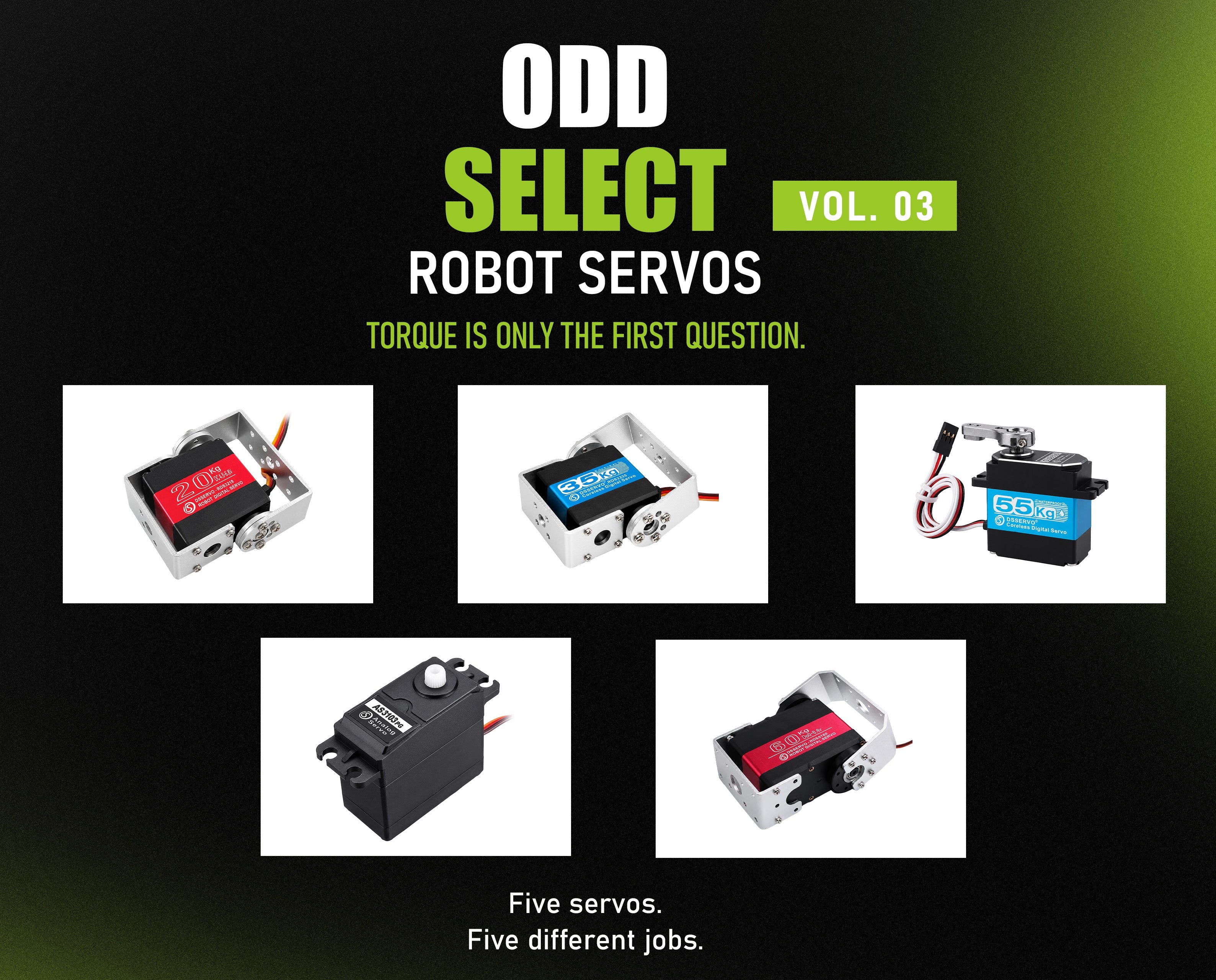

Quick comparison of the five robot servo options
| Product at OddityRC | Reason to compare it | Listed detail to check |
|---|---|---|
| RDS3218MG | A starting point for a bracket-mounted joint | 18.5kg·cm at 5V; 180° and 270° versions |
| Coreless RDS3235 | More listed torque within the same nominal body dimensions as RDS3218MG | 29kg·cm at 5V; 40 × 20 × 40mm body |
| Coreless All-Metal RCLS3325MG | Compare response as well as torque | Listed speed: 0.11s/60° at 5V |
| AS3103-360MG | Establish the required rotation and control mode | 4.8–6.0V; listed as a 360° version |
| RDS5160MG | A larger-format option for higher-load mechanisms | 58kg·cm at 6V; 52 × 30 × 65mm body |
Figures are taken from the corresponding OddityRC product listings, not comparative measurements. Torque figures at different voltages should not be compared as equivalent conditions.
RDS3218MG or RDS3235: compare at your working voltage
The RDS3218MG listing gives 18.5kg·cm at 5V, while the coreless RDS3235 listing gives 29kg·cm at 5V. Both list a 40 × 20 × 40mm servo body. That makes them a useful pair to compare when a project needs more torque within that nominal body size.
Check bracket clearances, horn fit, supply capacity and the selected travel version as well. This guide refers specifically to the coreless RDS3235 listing; the separately listed RDS3235MG has its own specifications.
RCLS3325MG: when response is part of the decision
At 5V, the RCLS3325MG lists 0.11s/60° and the coreless RDS3235 lists 0.13s/60°. These are supplier-listed speed figures under the stated voltage conditions. They do not establish loaded accuracy or real-world performance in a complete robot.
Compare the RCLS3325MG specifications when the timing of joint movement matters alongside the required torque.
AS3103-360MG: confirm the motion before designing around it
A continuous-rotation servo generally uses the command signal to control direction and speed; a positional servo uses it to request an angle. The AS3103-360MG listing identifies a 360° version, but that label alone does not establish its control behavior.
Confirm the supplied version's control mode before choosing it for a wheel drive or a positioning joint.
RDS5160MG: allow for the whole installation
The RDS5160MG has a larger listed body and higher listed torque than the smaller options in this guide. It also brings a different space and structural requirement. Check support around the joint, horn attachment, linkage clearance and power wiring before choosing the RDS5160MG.
Frequently asked questions
Does a higher torque number mean a servo can lift more in every mechanism?
No. Required torque increases with lever-arm length and depends on acceleration, geometry and the mass of the linkage. A headline torque figure is not a continuous working-load rating.
Are 180°, 270° and 360° servos interchangeable?
No. Confirm both travel range and control behavior. A mechanism designed for angle control needs a positional servo with enough usable travel.
What information helps OddityRC recommend a robot servo?
Share the load, distance from the shaft, required travel, operating voltage, movement speed and mounting space. Those details make the shortlist more useful than a torque target alone.
Find robot servos at OddityRC
Open the product links above to compare exact versions, or explore ODD SELECT for third-party motion-control hardware selected by OddityRC.
